Head lights cuttting out problem :s



Page 1 of 1 [ 10 posts ]


 Post subject: Head lights cuttting out problem :s
Posted: Wed May 12, 2010 1:24 pm
Smokin em up
Offline

Age: 26

Posts: 218

Joined: 27th Apr 2008

Ride: EF Fairmont

Location: Perth
WA, Australia

My headlights last night started to cut out in and out in about 10 second intervals last night it use to do this before and the problem was the circut breaker underneath the water bottle but I checked that out and the out going side of the breaker is very hot and has actually started to temper the metal does that mean it's screwed or ?
Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Fri May 14, 2010 11:36 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 694

Joined: 6th Apr 2007

Ride: 98 NL, 97NL, 98EL

Power: 141 rwkw

Location: Sunny Coast or Beerburrum
QLD, Australia

shazza9275 wrote:
My headlights last night started to cut out in and out in about 10 second intervals last night it use to do this before and the problem was the circut breaker underneath the water bottle but I checked that out and the out going side of the breaker is very hot and has actually started to temper the metal does that mean it's screwed or ?


Common problem that, people put 100W globes in instead of 55W ones, best of go to supercrap, but a new circuit breaker and use that, maybe I think the standard ford one is 60AMP maybe get another 60AMP or even 80AMP. They come with a switch so if they over load, and headlights start flashing, on/off again, just flick the switch to make them normal again, I put a 80AMP one in mine from supercrapauto cos I have two extra 100W driving lights mounted on the front. they are only about $30-50 depending what amperage you want...

Leticia.



_________________

BANNED!!!!

Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Fri May 14, 2010 11:42 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Just be careful how big you go... Wire is only mean to carry x amount of amps... If you put too big of a breaker or fuse on the circuit this means more current can be drawn and you will get a point whether the fuse of circuit breaker wont operate and the actual wire will be the fuse... This will be then more headaches than its worth... As you'll be replacing the engine bay loom to fix it...

What size headlights are you running? And did you have both high and low beams on or just lows (if it was just low beams sounds really odd like maybe something is shorting out)

If you tell me what size headlights (wattage wise) they are we can work out how much current you have there and see whether the breaker is too small or not... (Like you said the breaker itself could be full of s**t and shorting out to its steel frame)...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Fri May 14, 2010 11:48 am
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

check ya relay.



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Fri May 14, 2010 11:57 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Froudey wrote:
check ya relay.



live beside battery... middle two are headlights (one low & and one for high)



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Sun Oct 10, 2010 12:19 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

timmytimtim wrote:
Just be careful how big you go... Wire is only mean to carry x amount of amps... If you put too big of a breaker or fuse on the circuit this means more current can be drawn and you will get a point whether the fuse of circuit breaker wont operate and the actual wire will be the fuse... This will be then more headaches than its worth... As you'll be replacing the engine bay loom to fix it...

What size headlights are you running? And did you have both high and low beams on or just lows (if it was just low beams sounds really odd like maybe something is shorting out)

If you tell me what size headlights (wattage wise) they are we can work out how much current you have there and see whether the breaker is too small or not... (Like you said the breaker itself could be full of s**t and shorting out to its steel frame)...

Cheers,
Tim


G'day Tim

Yeah, I got a set of 250 Watt Long Range Spotties . What amperage of wire and fuse should I use ?

As these need to be wired up to normal high / low beam circuitry so that when on high beam , the spotties also goes out, should the existing high / low beam wire circuitry be changed or kept same.

I will be placing a seoerate on/off switch to the spotties incase I dont want them on.

Cheers
Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Sun Oct 10, 2010 8:37 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I'll draw you up a picture...

But you want the spotties on when the high beam is on? Or when the low beam is on? I'd have though with the highs, but you made it sound like you want them with the lows?

250W/12V = 21A Each light... Fairly big lights... Might be overkill, but I'd run each light offits own fuse and relay because it'll save dramas latter on and means you can use wire rated for 25amp rather than wire rated for 40 or 50 amps... Easier to work with, lug, solder, etc and cheaper (for the cost of one more fuse and one more relay might work out cheaper overall)... Plus your std relays are only rated to 40amps so switching that all the time wont be doing them any favours, switching 20amps will be much better...

So if it was me... each light on its very own circuit... also then if one does blow one light stays working... This way you'll be much much less likely to ever run into problems...

Do you own a multimeter? Just out of curiosity, what is the ohm's reading of each light?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Sun Oct 10, 2010 9:11 am
Getting Side Ways
Offline

Age: 58

Posts: 1027

Joined: 13th Sep 2010

Ride: Ford Falcon AU 2000 Series II

Location: Eagleby
QLD, Australia

G'day Tim,

No, I want the spotties on when its on high beam and switches off when its back to low beam.

The use of the seperate switch is to isolate the spotties i.e. have no power going to the spotties when I have the normal low beam go to high beam, I guess it could be called an override switch.

I dont have a multimeter as yet.

Cheers, Peter
Top
 Profile


 Post subject: Re: Head lights cuttting out problem :s
Posted: Sun Oct 10, 2010 10:50 am
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Thats ok then...

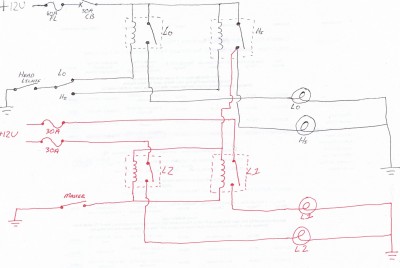

Now what I have drawn is this...
