 Post subject: Head unit install in BA 3 seater ute
Posted: Sun Nov 15, 2015 3:01 pm
Fordmods Newbie
Offline
User avatar

Age: 55

Posts: 5

Joined: 17th Aug 2014

Ride: BA Falcon Ute

Location: Warnervale
NSW, Australia

Hi
I've just finished installing a Media Head Unit into my BA Falcon 3 seater ute, it's been a working progress over a couple of years.
Very happy with the result, I have 3 amps 6 speakers and 4 tweeters.
Head unit Pioneer MVH-565BT
Sub 12 inch Option Audio Slim Box (fits behind passenger seat)
6 inch Kenwood dual mags splits in door (not the ones on the outside of the door cards)
6.5 inch Alpine splits and 9x6 Kickers in B pillar
2 channel Kenwood amp (runs door speakers)
4 channel Option Audio amp (runs B pillar speakers)
Kenwood Mono Block (12 sub)

I`m posting this to show people like myself that don't mind playing around with their vehicles and like their music that anything possible.
Please note that I still have to tidy up the wires (next project)
Swapped steering wheel to XR6 (added cruise control)
Roof mounted sunglass holder
Fairlane Analog clock
Added instrument decal from Ford Territory
Attachment:
File comment: Pioneer MVH-565BT
IMG_3329 (640x480).jpg
IMG_3329 (640x480).jpg [ 177.86 KiB | Viewed 111 times ]





Attachments:

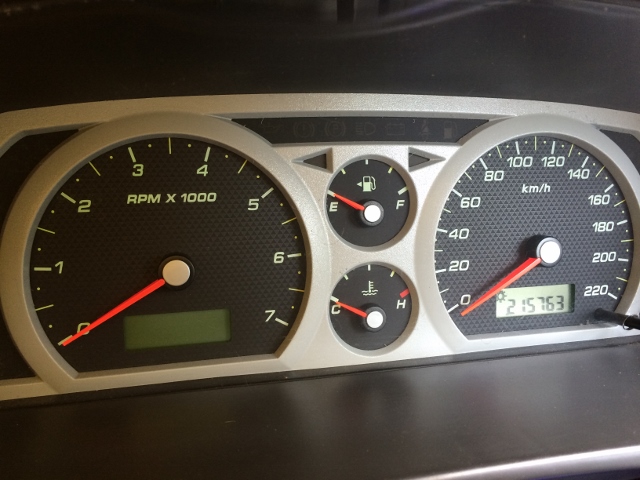

File comment: Instrument Decal from Ford Territory
IMG_3356 (640x480).jpg
IMG_3356 (640x480).jpg [ 160.39 KiB | Viewed 99 times ]

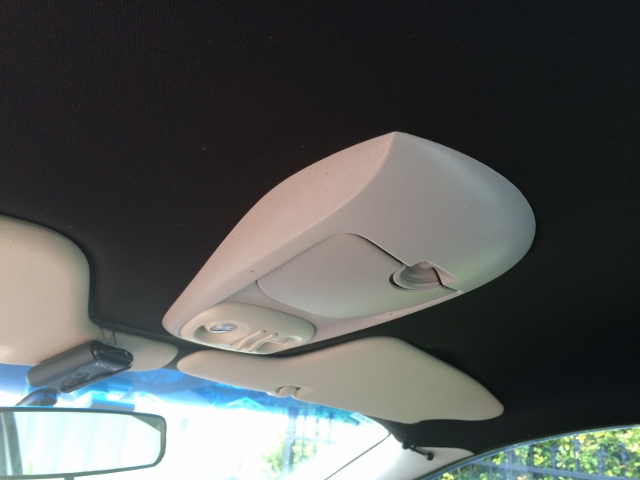

File comment: ROOF MOUNTED INTERIOR LIGHT SUNGLASS HOLDER
IMG_3350 (640x480).jpg
IMG_3350 (640x480).jpg [ 126.45 KiB | Viewed 113 times ]

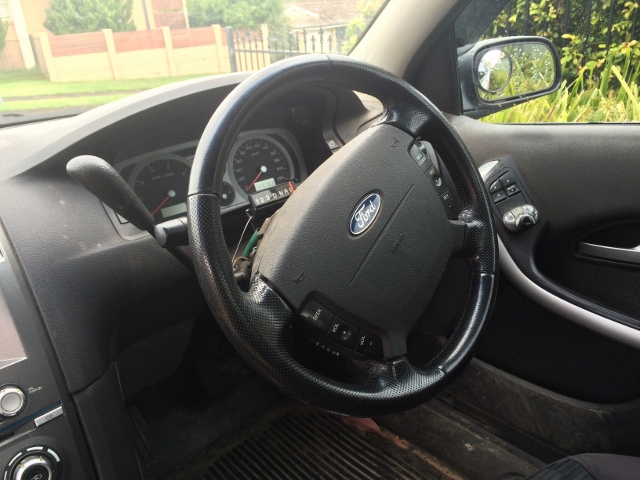

File comment: Indoor Speakers - XR6 Steering Wheel
IMG_3349 (640x480).jpg
IMG_3349 (640x480).jpg [ 184.01 KiB | Viewed 107 times ]

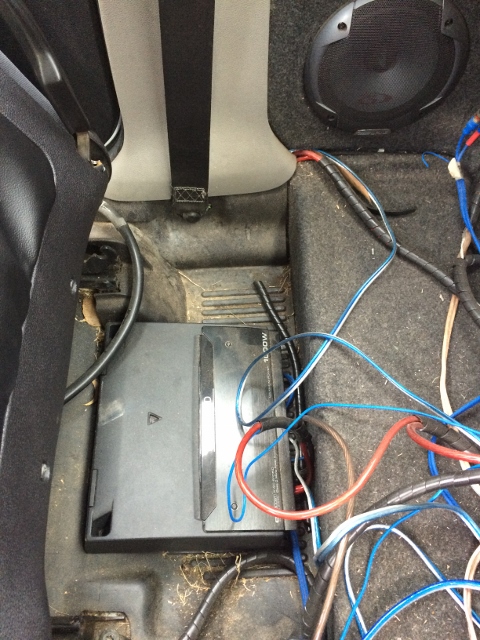

File comment: Mono Block
IMG_3344 (480x640).jpg
IMG_3344 (480x640).jpg [ 229.85 KiB | Viewed 100 times ]

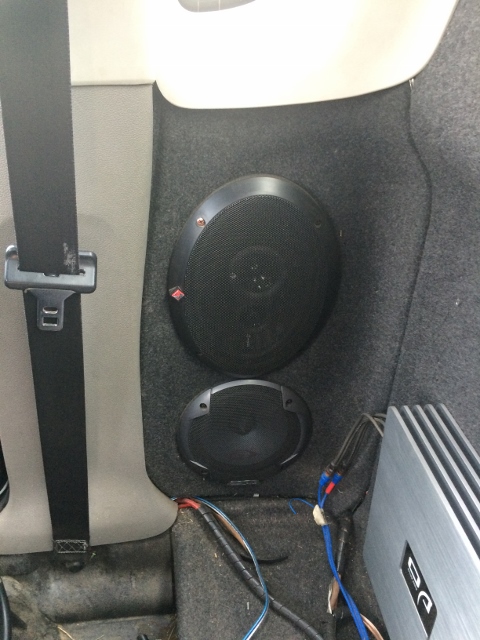

File comment: B Pillar Speakers
IMG_3343 (480x640).jpg
IMG_3343 (480x640).jpg [ 175.27 KiB | Viewed 106 times ]

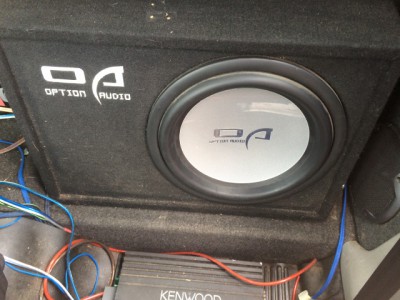

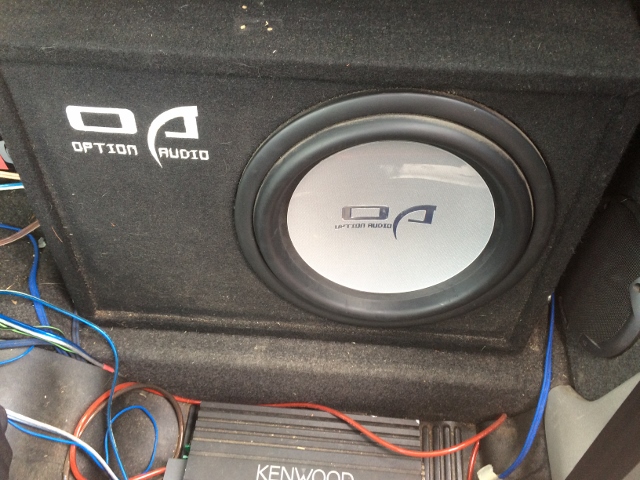

File comment: 12 Sub
IMG_3339 (640x480).jpg
IMG_3339 (640x480).jpg [ 205.54 KiB | Viewed 101 times ]

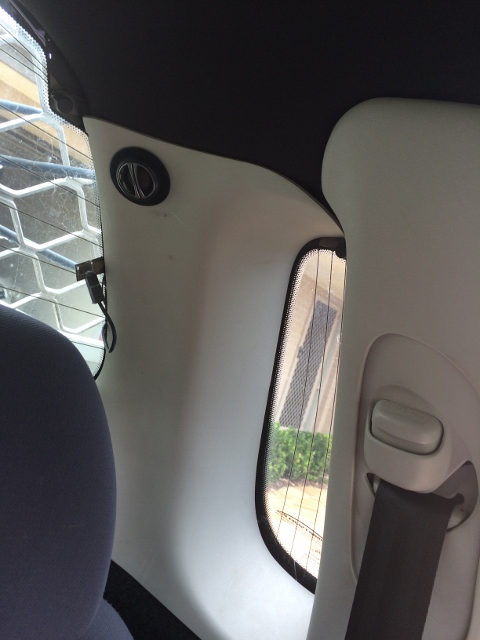

File comment: B Pillar Tweeters
IMG_3338 (480x640).jpg
IMG_3338 (480x640).jpg [ 136.63 KiB | Viewed 109 times ]

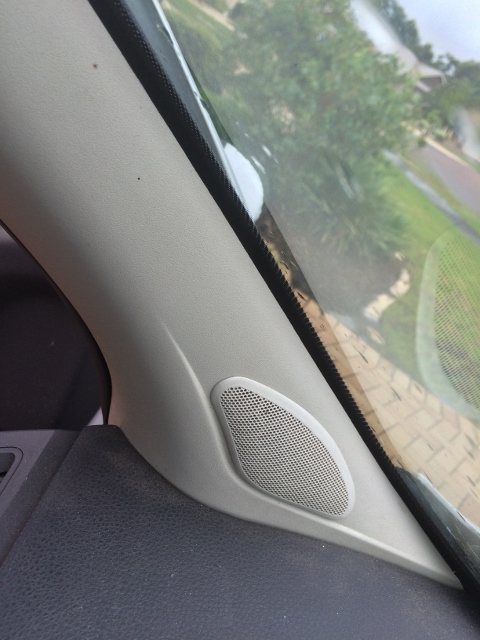

File comment: A Pillar Tweeters
IMG_3337 (480x640).jpg
IMG_3337 (480x640).jpg [ 167.27 KiB | Viewed 103 times ]

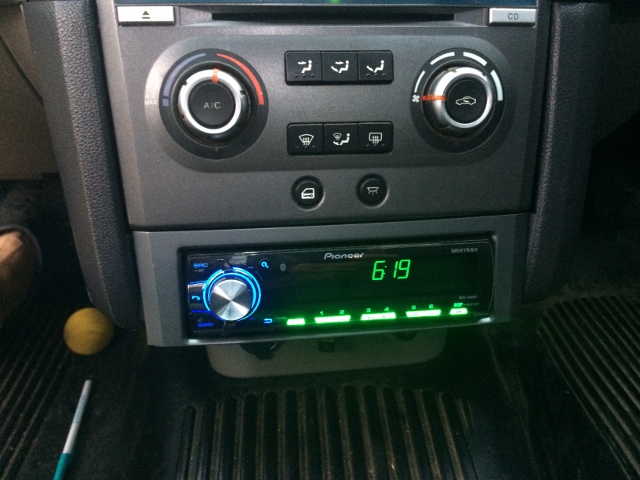

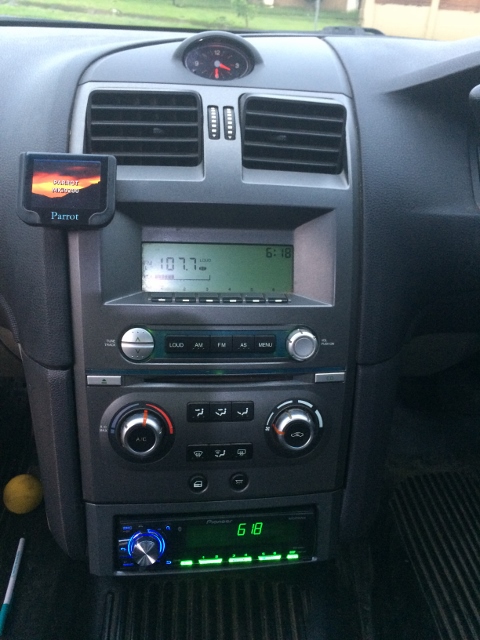

File comment: Head Unit
IMG_3328 (480x640).jpg
IMG_3328 (480x640).jpg [ 172.22 KiB | Viewed 127 times ]
Top
 Profile


 Post subject: Re: Head unit install in BA 3 seater ute
Posted: Wed Jan 20, 2016 1:36 pm
Fordmods Newbie
Offline
User avatar

Posts: 3

Joined: 16th Sep 2015

Ride: 2004 Ford BA XL Ute

Location: Hamilton
VIC, Australia

Hey mate

Glad to see somebody else putting a new head unit in a bench seat! Spent hours digging all over the internet and couldn't find any mention of anyone doing it.
What fascia kit are you using there, and where from/price?
I'm doing my install at the moment, but I've had to cut out pieces of the lower dash to fit the universal mounting box in, and it looks like crap. Think I'll pick up another part of that trim from a wreckers and use what ever kit you've got there, as it looks real clean and neat.

I was tempted to add some 6x9's in those rear quarter panels, but it just seemed like a bit much work and reading online a majority of people didn't think rear fill was worth much in a sound quality build.

Cheers,
MAK777



_________________

MAK777

2004 Ford BA XL Ute

Pioneer AVH-P7550DVD
Fusion Powerplant 5x7's
Alpine SWS-1223D 12in Sealed Sub
Alpine MRP-M500 Monoblock Amp

(and a bunch of messy DIY wiring! :S )

Top
 Profile


 Post subject: Re: Head unit install in BA 3 seater ute
Posted: Thu Jan 21, 2016 9:24 am
Fordmods Newbie
Offline
User avatar

Age: 55

Posts: 5

Joined: 17th Aug 2014

Ride: BA Falcon Ute

Location: Warnervale
NSW, Australia

Hi MAK777

Yes I had to cut out where the ashtray was it was very fiddly, and I was a bit nervous about doing it, not a 5 minute job.

Fascia...... if you go to eBay you can find them there FORD BA BF FALCON TERRITORY CAR DASH STEREO FASCIA
However I got my from Auto Barn it was only about $25.

In reference to the speakers in the B pillar, it really fills the Ute with sound, for me it works, I've ran the speakers through the doors only and it doesn't sound nowhere near as good with running all.

Keep in mind that all my speakers are running through amps and not the head unit, which makes a big difference.

Hope all goes well for your install, as I mentioned before, my install was over a period of a couple of years(time poor).

Cheers Vince





Attachments:

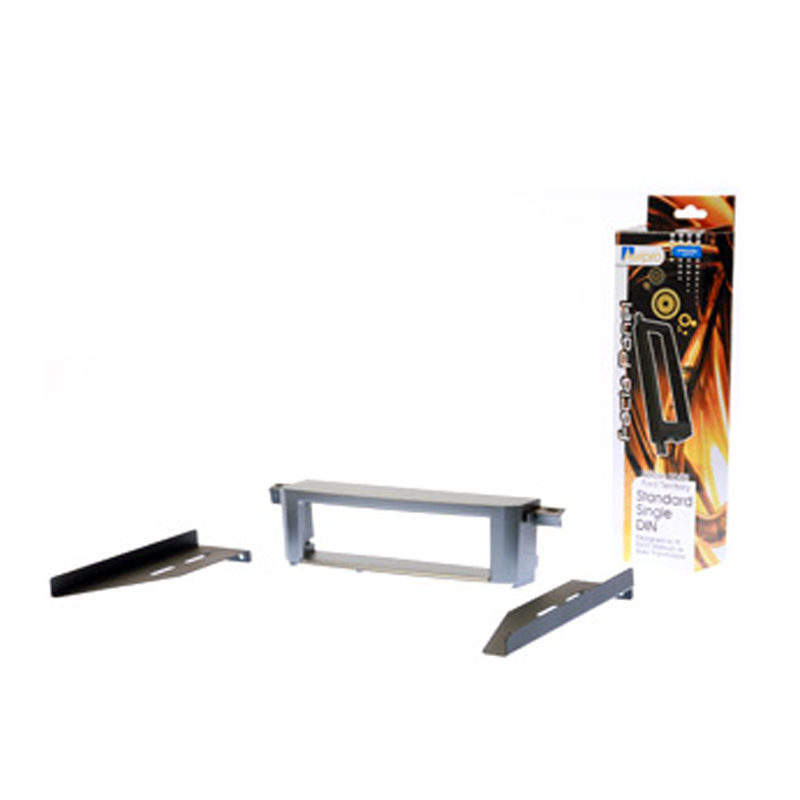

File comment: Fascia
$_57.JPG [ 30.67 KiB | Viewed 105 times ]
Top
 Profile


 Post subject: Re: Head unit install in BA 3 seater ute
Posted: Wed Jan 27, 2016 10:13 pm
Fordmods Newbie
Offline

Age: 47

Posts: 5

Joined: 14th Dec 2014

Ride: BA Falcon

Location: Mackay
QLD, Australia

Regarding the Cruise Control connection, Was it necessary to have ford to run diagnostics to have cruise control activated or is there something im missing? Was given impression that all i need was to connect the missing wiring and all was good but appears ive missed something. would appreciate your input please.
Top
 Profile


 Post subject: Re: Head unit install in BA 3 seater ute
Posted: Thu Jan 28, 2016 10:16 am
Fordmods Newbie
Offline
User avatar

Age: 55

Posts: 5

Joined: 17th Aug 2014

Ride: BA Falcon Ute

Location: Warnervale
NSW, Australia

Hi

Regarding Cruse Control, I brought a second hand unit with install instructions from eBay $99, my Ute is a base model hence no Cruse.

Install was easy with the instructions provided, or you can google it, lots out there in forums.

I went back to my local Ford dealer to activate it.

Cost $55, took them about 30 mins which included a test drive.

This was a couple of years ago so price might be different.

Hope this helps.

Vince
Top
 Profile


 Post subject: Re: Head unit install in BA 3 seater ute
Posted: Sun Mar 06, 2016 2:51 pm
Fordmods Newbie
Offline
User avatar

Age: 55

Posts: 5

Joined: 17th Aug 2014

Ride: BA Falcon Ute

Location: Warnervale
NSW, Australia

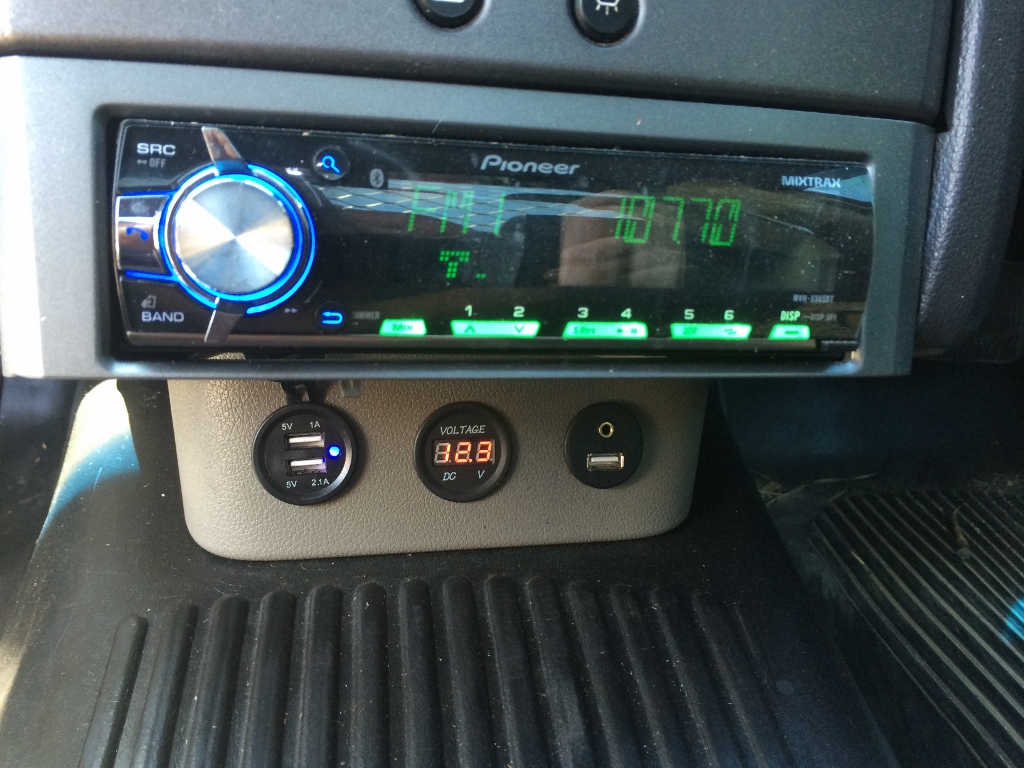

I have added some more photos........

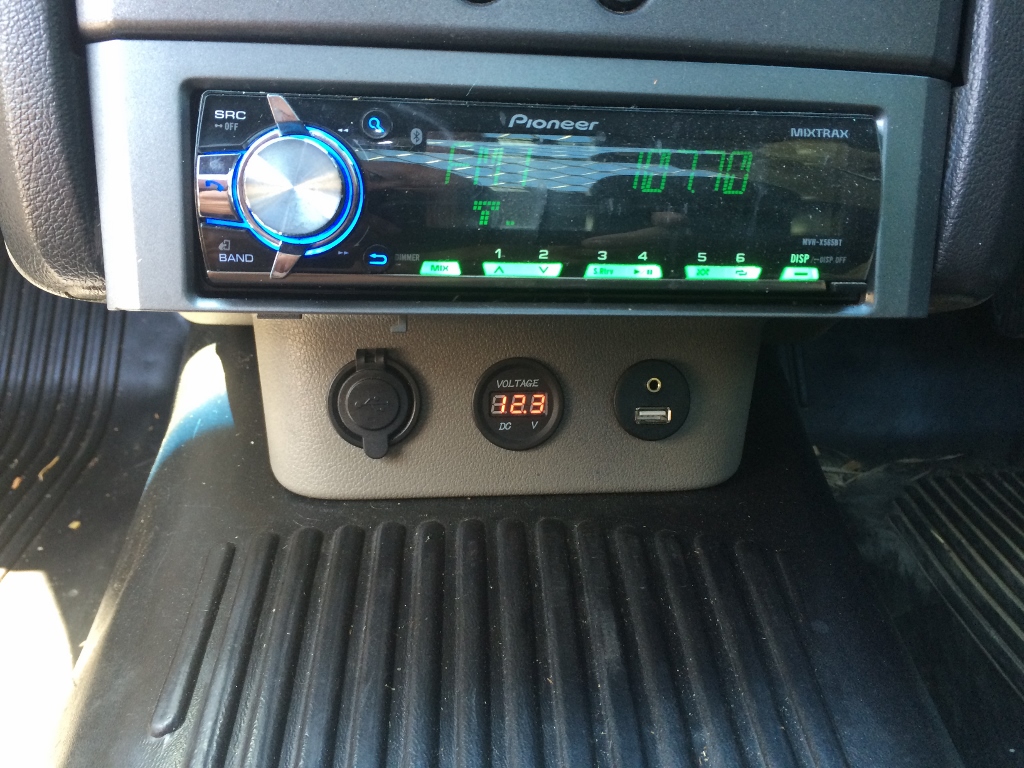

Have made the most of the space under the head unit where the cigarette lighter was.

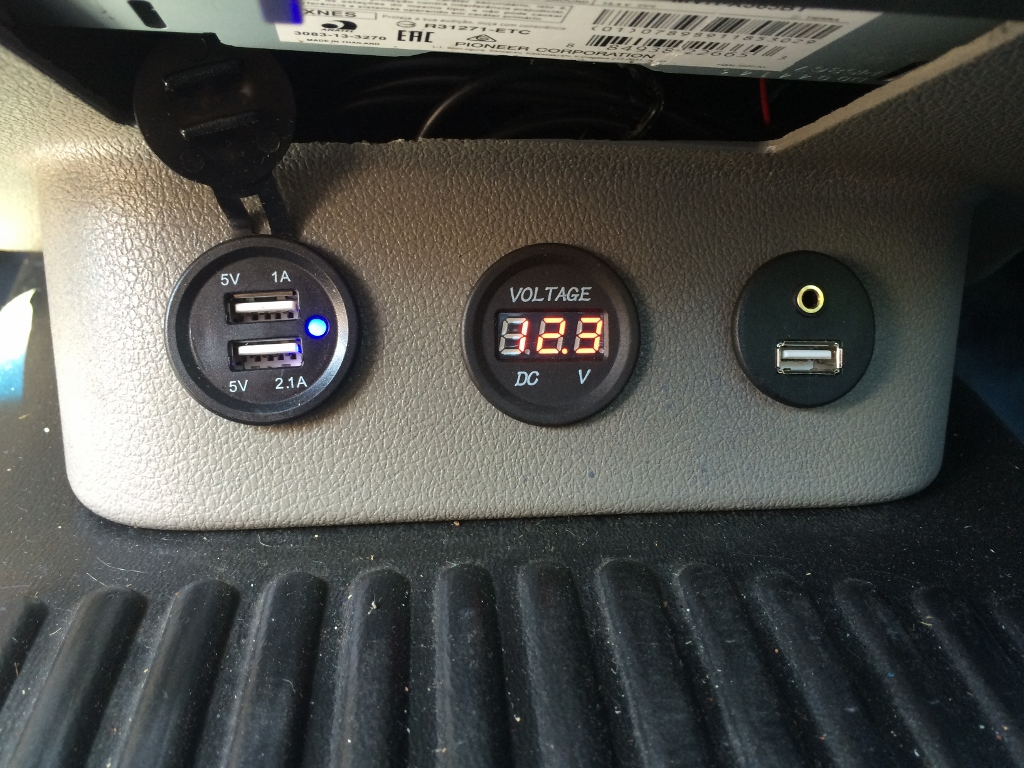

I've added a double USB outlet, Voltmeter, USB AUX outlet which is for the head unit.
Attachment:
File comment: 12V Waterproof Dual USB Port Motor Car Charger Socket Outlet 1A 2.1A Fused Cable $8.90 from eBay
IMG_4156 (1024x768).jpg
IMG_4156 (1024x768).jpg [ 437.18 KiB | Viewed 95 times ]
Attachment:
File comment: 1m 3.5mm Car Dashboard Flush Mount USB 2.0 AUX Socket Extension Lead Panel Cable
eBay $9.28

IMG_4158 (1024x768).jpg
IMG_4158 (1024x768).jpg [ 407.88 KiB | Viewed 93 times ]





Attachments:
File comment: Digital Voltmeter Socket for Car Boat Auto Motorcycle Truck DC 0-35V
e bay $7.99

IMG_4157 (1024x768).jpg
IMG_4157 (1024x768).jpg [ 456.59 KiB | Viewed 87 times ]
Top
 Profile


 Post subject: Re: Head unit install in BA 3 seater ute
Posted: Sat Feb 11, 2017 2:00 pm
Stock as a Rock
Offline
User avatar

Age: 32

Posts: 181

Joined: 27th Nov 2004

Ride: Cortina TE

Location: Perth
WA, Australia

Quick question.. Does ur 3 seater have AirCon? if not.. are you able to take a photo of the bracket in the engine bay with the part number?



_________________


Top
 Profile


 Post subject: Re: Head unit install in BA 3 seater ute
Posted: Sun Feb 12, 2017 6:15 am
Fordmods Newbie
Offline
User avatar

Age: 55

Posts: 5

Joined: 17th Aug 2014

Ride: BA Falcon Ute

Location: Warnervale
NSW, Australia

Hi
Yes it has a/c, I`m pretty sure its standard on all models BA-BF
Do you still need photo?
