 Post subject: Help: Wiring in front speakers, tweeters, crossovers.
Posted: Sun Apr 01, 2007 11:21 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Okay, bought these speakers and the Pioneer instructions on the box are dodgy as always, so I really have no idea. I did a search and nothing really useful came up.

I'm happy to put the tweeters in the stock location on the dash, unless it is easier to put them in the doors with the speakers.

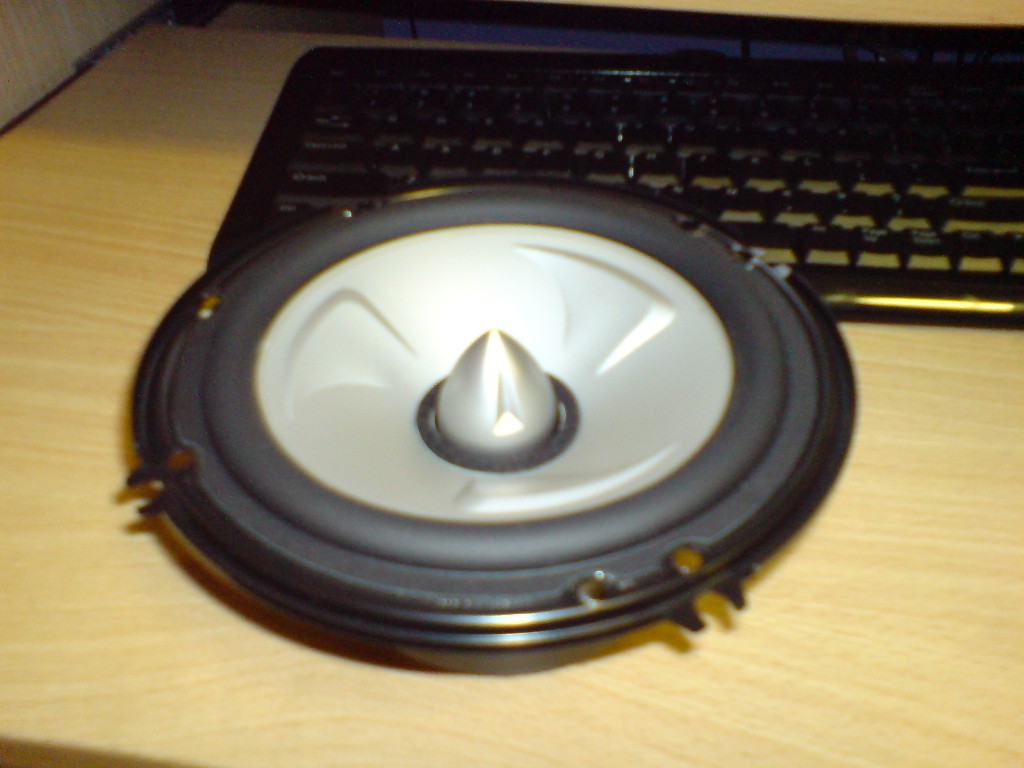

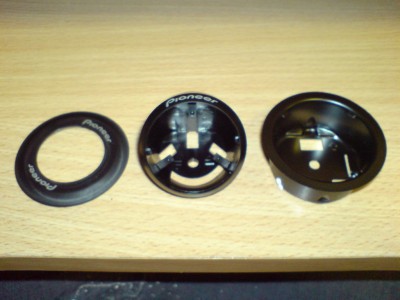

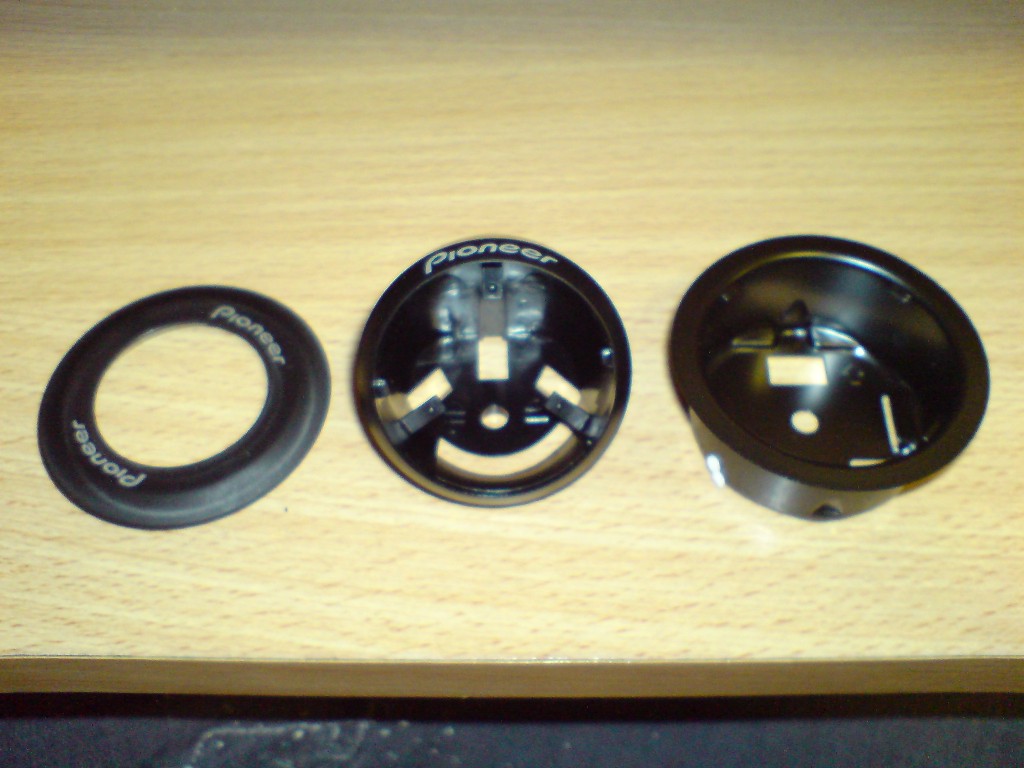

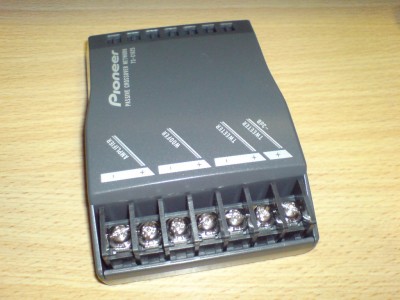

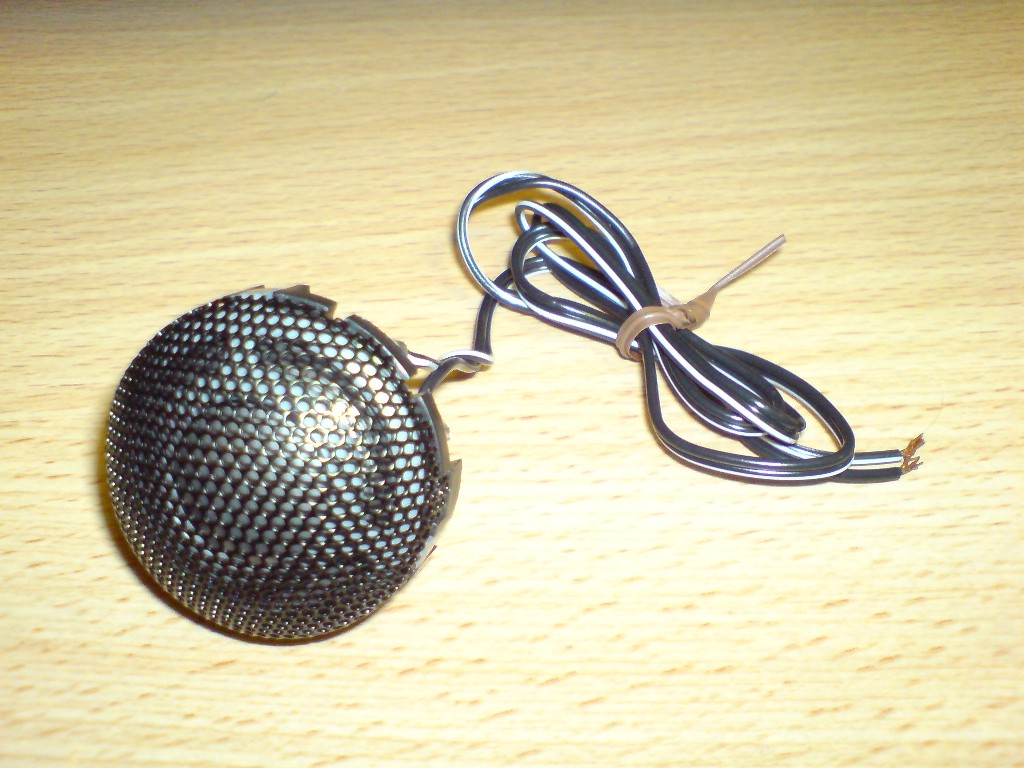

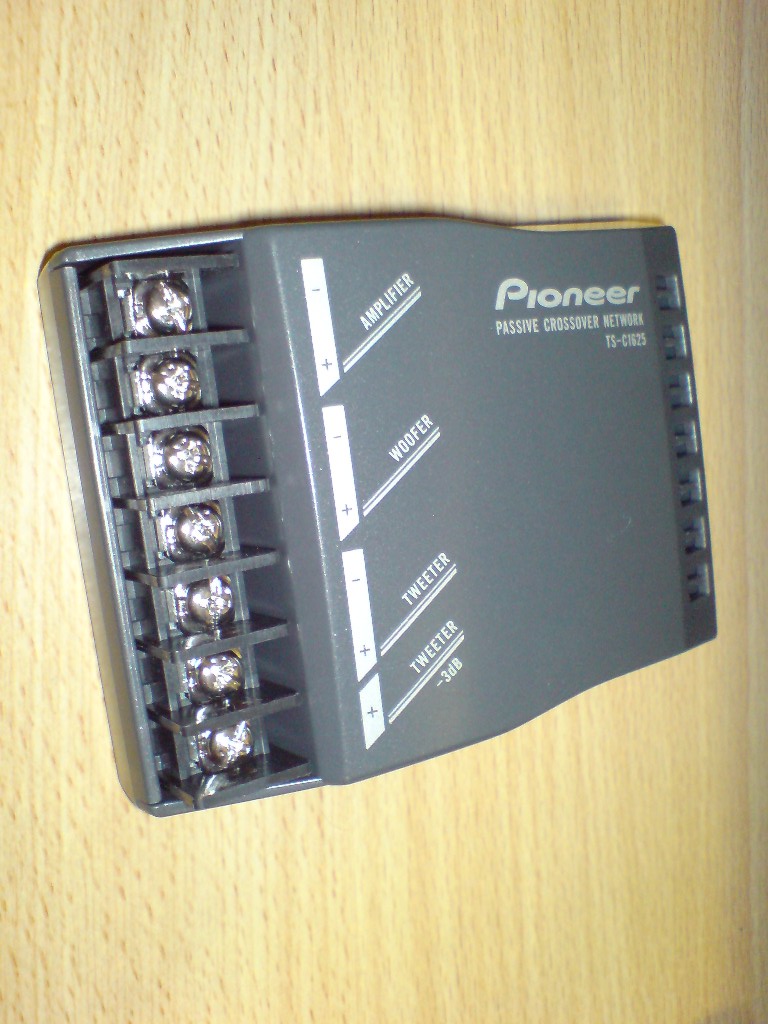

Here are some pics of what came in the pack, how do I wire it all up and where do I put the crossover thing?





Attachments:
01.jpg [ 117.59 KiB | Viewed 39 times ]
02.jpg [ 158.08 KiB | Viewed 78 times ]
03.jpg [ 173.75 KiB | Viewed 77 times ]
04.jpg [ 128.32 KiB | Viewed 50 times ]



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Sun Apr 01, 2007 11:46 am
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 160

Joined: 2nd Jan 2006

Ride: Falcon EB II

Location: Melbhoon, Mill Park
VIC, Australia

okie dokie, i havn't wired up splits before so some one please correct me if i am wrong but from the looks of things your wiring should go like this:

AMP: The desired channel from H/U
Woofer: The 6 inch speaker
Tweeter: Obvious

Not too sure what the other chanel is for where it has the -30DB, As for where to mount those, any possible chance of mountine those behind the kick pannels, i dont think the ecu should interfier in any way or if it does and or you dont like the idea of doing that you could try and mount them behind the H/U itself, but im sure other members who have splits in their cars could give insight as to where to mount them.

-Nick



_________________

• F*** McDonalds... I'll make you go Mmmmmm...
• F*** SubWay... I'll give you a foot long

Proud owner of the 18233rd EB Falcon

Top
 Profile


Posted: Sun Apr 01, 2007 11:50 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Ah, sweet if you got the wiring right there. I know everythings gotta be wired up, but with how crap is written on the crossover, it's a bit confusing.

Anyone know where I should mount/put the crossover units?



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Sun Apr 01, 2007 6:11 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Bump, I'd like to hook these up tomorrowwww.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Sun Apr 01, 2007 6:20 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Don''t put them on dash, the sail peices on the top above teh door trim, there triangular and small, mount them on there rather.

The woofer put in the factory speaker location.

The crossover, make a little bracket and attach it to the inside of the door - I'll get a photo of mine in a minute.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Apr 01, 2007 6:25 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia




_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Apr 01, 2007 6:27 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

See, old licence plates come in handy.
It's about to change a bit though as the map pockets at a mates house getting hacked up and glassed to fit an 8" woofer. And I just got some 3 way crossovers and 4" mid speakers - trying to figure out how to do them ATM.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Apr 01, 2007 6:29 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4305

Joined: 6th Jul 2005

Ride: BA xr8 Magnet ute

Location: Melbourne
VIC, Australia

Run Power 12v+ to amp, run the the Left Speaker and Left Tweeter off one channel, Run right speaker and righ tweeter off another
Top
 Profile


Posted: Sun Apr 01, 2007 6:33 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4305

Joined: 6th Jul 2005

Ride: BA xr8 Magnet ute

Location: Melbourne
VIC, Australia

ohh and the remote wire too!
Top
 Profile


Posted: Sun Apr 01, 2007 6:39 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Guys I"m still lost, can anyone draw a diagram of the wiring for me?



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Sun Apr 01, 2007 7:28 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia


Get it now?



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Apr 01, 2007 8:11 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Tahnks mate, but I'm not using an amplifier. I want to run the front speakers off the head unit. Can you modify the diagram a little with that in mind? Sorry.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Sun Apr 01, 2007 8:58 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

Till_Lind wrote:
Tahnks mate, but I'm not using an amplifier. I want to run the front speakers off the head unit. Can you modify the diagram a little with that in mind? Sorry.


If that is the case. Use the right signal cable from the old speakers to run the right hand side and the left for the left. Therefore run the negative/positive to the "AMPLIFIER" contacts of the crossover and then run the woofer to the 6" speakers and the tweeter to the tweeters...won't get the best sound but will still get something better then stock...

should work that way...someone correct me if I am wrong.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Sun Apr 01, 2007 9:19 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Till_Lind wrote:
Tahnks mate, but I'm not using an amplifier. I want to run the front speakers off the head unit. Can you modify the diagram a little with that in mind? Sorry.


Serious?
Instead of the audio speaker signal goign from the amp to crossover for the speakers, it now goes from the amplifier built into the headunit to the cross over.

The cross over then divides the signal determining what goes to the tweeter and what goes to the mid bass.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Sun Apr 01, 2007 9:29 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

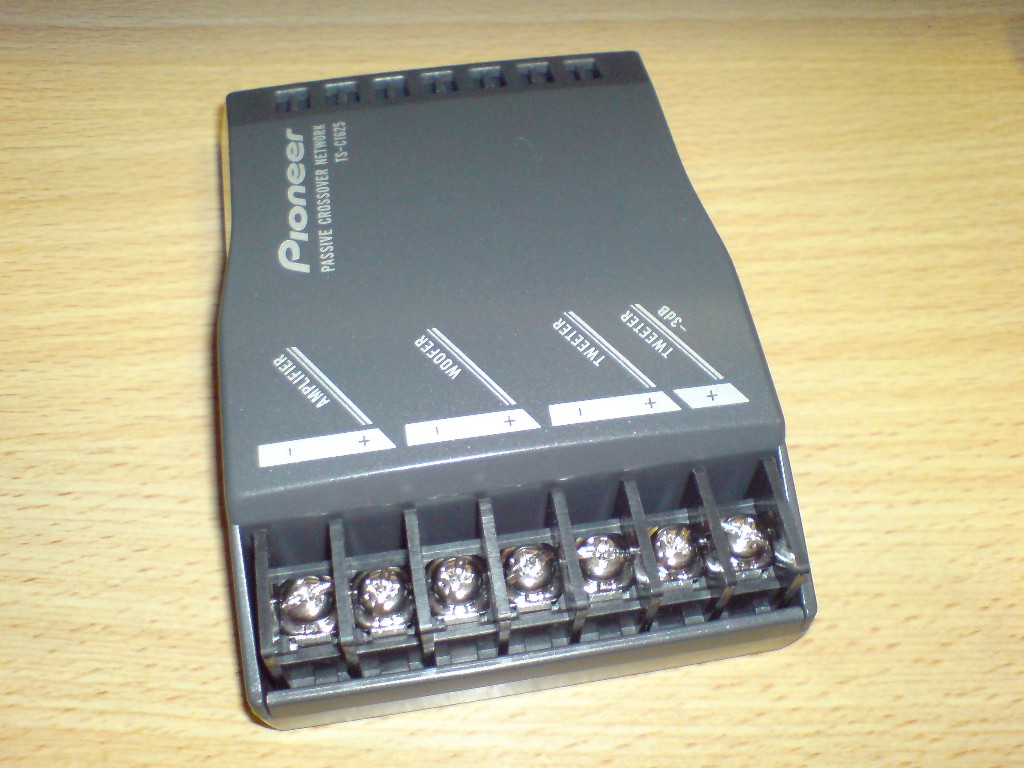

Okay thanks for that guys. Just finally should I use the -3dB positive outlet for the tweeters, keeping in mind I'm putting them in the stock location? Thanks.
