 Post subject: Help with Door Trim Light
Posted: Sat Oct 18, 2008 12:00 am
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

Hey guys, I need to know which wires i can leech of to make the light on the door trim to work. I want to leech of the wires from the door loom. Like the door trims with light on the Ghia's im modding my EF Gli with the woodgrain Trims. So Just need to know which wires i can hook it up to. The light only has two wires btw.
Help much appreciated.

Thanks.



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


Posted: Sat Oct 18, 2008 11:44 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

Someone has to know which wires. Please, this will save me time.



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


Posted: Sun Oct 19, 2008 1:22 am
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

I ran the rears across the floor under the carpet to the light in the centre console, and for the fronts to the illumination in each footwell.
Brett



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


Posted: Sun Oct 19, 2008 9:24 am
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

from what i can gather you want to hook into the plug going to door loom, have you replaced the door looms, or have you replaced the body loom, with a ghia one.?

or have you just extended the wires and want to hack in at that loom, if this is what you mean, I don't believe you'll have wires running to there for the courtesy lights being a gli. i would recommend adding the other courtesy lights, and then hacking into them as above bit of a b**ch but it's not that bad to do, admittedly I still need to hack my wires and make the final connection.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


Posted: Sun Oct 19, 2008 10:24 am
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

I have replaced the body loom with the ghia one and the door loom with the ghia loom but it didn't have the plug for the door courtesy light. Now what i want to do is to get the light working by hacking into the door loom not going past the door, is there anyway to do this? otherwise the only way will be to hack into the footwall or any of the courtesy lights inside (this is what i don't want to do.)
Any help would be good.



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


Posted: Sun Oct 19, 2008 1:03 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

Ah ok, it sounds like you have an ef1 ghia door loom, possibly body loom, have a look and see if the body loom has any excess wires.
If so open a door and measure for 12 volt with a multimeter or just a test light.f so hit up a pick a part for a door out of a gli smash it p to get a couple pins out of it or what not whack it in cut in there and you should be good, other wise sorry to say but your going to have to do it the long way.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


Posted: Sun Oct 19, 2008 1:18 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

Ok, I think i have ef1 ghia looms all round body and doors. There are no excess wires on the body loom. If i open a door do i just check on the door looms if they have 12 volts or was it the body loom to check on?



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


Posted: Sun Oct 19, 2008 8:47 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

it was the body loom and if you have no excess wires, you wont have any to check on, sorry mate but ef1 and maybe 2 ghias didn't have courtesy lights in the doorcards, just rear map pockets, and the woodgrain.

Yeah you needed el looms really, ahwell I guess your stuck doing it the hard way unless anybody else can chime in.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


Posted: Sat Nov 15, 2008 9:59 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

Anybody? Still need help on this one.



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


Posted: Sat Nov 15, 2008 11:24 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

What do you mean you still need help, you know what wires can be leached footwell lights, rear console light, overhead light, keylock etc.

no quick fixes, unless you get the correct looms



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


Posted: Sat Nov 15, 2008 11:34 pm
Getting Side Ways
Offline

Age: 30

Posts: 1434

Joined: 14th Jul 2008

Gallery: 1 images

Ride: Falcon EF Gli

Location: Melbourne
VIC, Australia

So no other way then? I thought someone else might have done this that is not telling. :)
Damn i have to do the long way now!



_________________

AsIzZy

My Build Thread:
post994940.html#p994940

For Sale Thread 1
forums/viewtopic.php?t=70845&highlight=

Top
 Profile


Posted: Wed Nov 19, 2008 8:54 pm
Stock as a Rock
Offline
User avatar

Age: 59

Posts: 180

Joined: 8th Jul 2006

Gallery: 23 images

Ride: BFII Fairmont Ghia, Silver

Location: Melbourne
VIC, Australia

To use a loom without modding it, you need one from a DF LTD, NF Fairlane, DL LTD, NL Fairlane or EL Fairmont Ghia. They are the models in F or L series that had courtesy lights in the door trim map pockets.

Or try a reputable auto electrician but is that cheating? :D
Top
 Profile


Posted: Thu Nov 20, 2008 8:47 pm
Getting Side Ways
Offline

Age: 48

Posts: 419

Joined: 16th Jan 2005

Ride: EF Ghia 5.0

Location: Adelaide
SA, Australia

TerroristGHIA wrote:
I ran the rears across the floor under the carpet to the light in the centre console, and for the fronts to the illumination in each footwell.
Brett


Exactly how I did it! :)

Not the best way, as it means that all four door lights turn on when any door is open. I have melted lenses and heat marks on the side of the rear seat cushion from the rear door lights being on when closed.

On an original setup, does each door light come on individually only when a particular door is open?

Mike



_________________

EF Ghia 5.0 - XR8 in a tuxedo....classy, low and loud

Bordeaux Purple, Tickford kit, slammed, 18" BA XR8's, EL Ghia chrome, full leather, Pioneer audio, C&C, ABS, LSD, Crane cam, GT40P heads, high flow cats, Genie extractors, lots of woodgrain, chrome and interior lights!

Top
 Profile


Posted: Fri Nov 21, 2008 2:37 pm
Stock as a Rock
Offline
User avatar

Age: 59

Posts: 180

Joined: 8th Jul 2006

Gallery: 23 images

Ride: BFII Fairmont Ghia, Silver

Location: Melbourne
VIC, Australia

V8 Ghia Mike wrote:
...all four door lights turn on when any door is open. I have melted lenses and heat marks on the side of the rear seat cushion from the rear door lights being on when closed.

On an original setup, does each door light come on individually only when a particular door is open?

Ex factory, all of the courtesy lights are on when the roof lights are on. That is, lights in front footwells, door trims and rear of centre console. So yes, when one or more doors are open all the courtesy lights are on. And they all dim down to "off" at the same time too. It'd be interesting to see the functionality changed to individual door lights coming on.

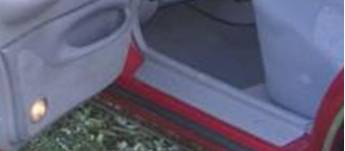

Re the seat fabric heat marks, maybe high series cars have a different shaped rear seat-base that doesn't get touched by the trims while the doors are shut? My Futura rear seat started to get marked from the added courtesy lights in the door trims (see pic).

By the way, my BF only has courtesy lights in the front door trims.





Attachments:
courtesy light mark.jpg
courtesy light mark.jpg [ 5.26 KiB | Viewed 284 times ]
Top
 Profile


Posted: Fri Nov 21, 2008 6:59 pm
Getting Side Ways
Offline

Age: 48

Posts: 419

Joined: 16th Jan 2005

Ride: EF Ghia 5.0

Location: Adelaide
SA, Australia

No, the Ghia seats contact the hot lenses when the rear doors are shut. :?

Mike



_________________

EF Ghia 5.0 - XR8 in a tuxedo....classy, low and loud

Bordeaux Purple, Tickford kit, slammed, 18" BA XR8's, EL Ghia chrome, full leather, Pioneer audio, C&C, ABS, LSD, Crane cam, GT40P heads, high flow cats, Genie extractors, lots of woodgrain, chrome and interior lights!

Top
 Profile
