 Post subject: ICC VGA Computer Input Solution
Posted: Mon May 21, 2007 12:04 pm
Stock as a Rock
Offline

Posts: 110

Joined: 5th Nov 2004

Gallery: 1 images

Ride: BA XR8

Location: wollongong
NSW, Australia

So i got my new car (BA xr8) with the premium sound etc etc, first thing was to try and make this VGA video connection. After following the techo document i made the cable (cost me $5 and half hour, which works a treat), then frigged around with a horizontal and vertical to composite sync circuit which i found on the net to get a clear picture. useless as far as my attempts go....

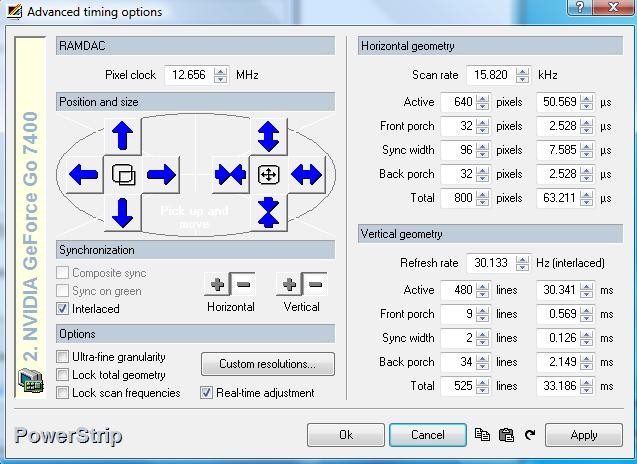

All you need is a program called PowerStrip (along with the techo document cable), i used version 3.74. the attached pic is a screenshot of the settings you need for it to work. i will post up 2moro a pic of my screen playing video from a laptop output.





Attachments:
Timing.jpg [ 86.84 KiB | Viewed 263 times ]
Top
 Profile


Posted: Tue May 22, 2007 10:05 am
Stock as a Rock
Offline

Posts: 110

Joined: 5th Nov 2004

Gallery: 1 images

Ride: BA XR8

Location: wollongong
NSW, Australia

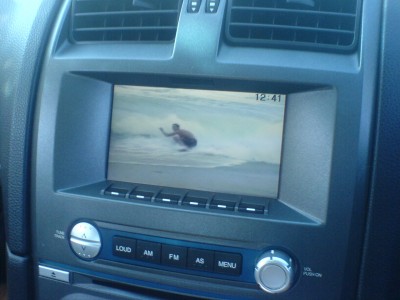

For those who need a visual heres a video playing on the screen





Attachments:
File comment: Video playing from laptop output
DSC01937.JPG [ 845.04 KiB | Viewed 98 times ]
Top
 Profile


Posted: Tue May 22, 2007 2:29 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1518

Joined: 6th Nov 2004

Gallery: 14 images

Ride: BA XR6 Turbo

Power: 175 rwkw

Location: The Shire, Sydney
NSW, Australia

Nice find mate :)

I'm looking at getting a BA shortly so I'll be sure to give this a crack!

For those too lazy to google it, here's the link to the program download

http://entechtaiwan.com/files/pstrip.exe



_________________


Top
 Profile


Posted: Wed May 23, 2007 1:21 pm
Stock as a Rock
Offline

Posts: 110

Joined: 5th Nov 2004

Gallery: 1 images

Ride: BA XR8

Location: wollongong
NSW, Australia

Im currently working to integrate a little celeron computer i have to use for
music
movies
gps
bluetooth phone etc

setting it up using media engine for now as a front end, but i like the look of roadrunner if i can get it working with no hassles.....www.mp3car.com has heaps of info as im sure most of you know :)
Top
 Profile


Posted: Thu May 24, 2007 8:48 pm
Smokin em up
Offline

Age: 33

Posts: 204

Joined: 8th Mar 2005

Ride: BA Fairmont Ghia V8

Location: City
NSW, Australia

Yeah this is good s**t. I modded my xbox to NTSC and i have an xbox setup under the seat. Watching DVDs is cool
Top
 Profile


Posted: Thu May 24, 2007 9:43 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

While you're responsibly parked of course.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Thu May 24, 2007 10:41 pm
Smokin em up
Offline

Age: 33

Posts: 204

Joined: 8th Mar 2005

Ride: BA Fairmont Ghia V8

Location: City
NSW, Australia

yes it was parked with the handbrake on and not in traffic.


The ICC is good but the audio side leaves a lot to be desired. Whine through the audio is highly annoying even with the amplified kit.
Top
 Profile


Posted: Thu May 24, 2007 11:03 pm
Stock as a Rock
Offline

Age: 41

Posts: 115

Joined: 6th Nov 2004

Ride: EF XR6

Location: Dalby
QLD, Australia

any pics or diagrams on making the cable. or can you make me one and i buy it off you??
Top
 Profile


Posted: Thu May 24, 2007 11:38 pm
Smokin em up
Offline

Age: 33

Posts: 204

Joined: 8th Mar 2005

Ride: BA Fairmont Ghia V8

Location: City
NSW, Australia

For anyone doing a car computer. You can also use an ARCADEvga video card that runs the native res of the ICC in NTSC.

160 od bucks
Top
 Profile


Posted: Thu May 24, 2007 11:40 pm
Smokin em up
Offline

Age: 33

Posts: 204

Joined: 8th Mar 2005

Ride: BA Fairmont Ghia V8

Location: City
NSW, Australia

gravelrash wrote:
any pics or diagrams on making the cable. or can you make me one and i buy it off you??



I will take pics tommorow for you. I am working on one for the XBOX 360 its much easier because you can get the high def VGA output and run it straight in.
Top
 Profile


Posted: Fri May 25, 2007 8:42 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

gravelrash wrote:
any pics or diagrams on making the cable. or can you make me one and i buy it off you??

Dude look in the tech docs section - Fordmods was the first site to post how to make a vga input for your ba premo icc
If you click on the tech docos link up the top you will find complete instructions on how to make it



_________________

Nicko

Top
 Profile


Posted: Fri May 25, 2007 5:24 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

I'll be doing this soon, so I can get R34 GTR style readout.

e.g.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri May 25, 2007 5:32 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

And of course I've got to get it to do this...



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri May 25, 2007 6:11 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1518

Joined: 6th Nov 2004

Gallery: 14 images

Ride: BA XR6 Turbo

Power: 175 rwkw

Location: The Shire, Sydney
NSW, Australia

heh, I have a JPG on my HDD media player with a 'danger to manifold' image that I can flick up :lol:
