Installing splits into EF XR6



Page 1 of 2 [ 20 posts ] Go to page 1, 2  Next


 Post subject: Installing splits into EF XR6
Posted: Mon May 31, 2010 1:26 am
Fordmods Newbie
Offline

Age: 28

Posts: 2

Joined: 31st May 2010

Ride: Ford EF II XR6 Manual

Location: Melbourne
VIC, Australia

Hello all,

I was wondering where a good spot would be to install the cross-over's on both the drivers side and passenger side for my focal splits. I was trying to remove the plastic mould around the fuse box area, but I couldn't get it off. Any help would be greatly appreciated. :D
Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Fri Jun 11, 2010 4:37 pm
Stock as a Rock
Offline

Age: 26

Posts: 150

Joined: 5th Feb 2010

Ride: EF Falcon

Location: Glenning Valley
NSW, Australia

dont they run up the top along the dash?



_________________

EF XR6, Red in colour, T5 with short shift, tired LSD, Pioneer head unit, 2.5 exhaust with staino pacemakers, 68mm TB, dumped on ultras, sitting on FTR's with EL bodykits

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sat Jul 10, 2010 4:30 pm
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 330

Joined: 11th Nov 2004

Gallery: 17 images

Ride: BA XR6 turbo

Location: Canberra
ACT, Australia

the tweeters go on the dash in the back corner and the cross over in the kick panel cut the old wires off that go in to the door and extend them to the cross over (kick panel)



_________________

If you think life is bad. Imagine being a egg...you only get laid once, you only get smashed once and the only bird that sits on your face is your mum!

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sat Jul 10, 2010 7:13 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

I installed mine under the arm rest.



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sat Jul 10, 2010 7:24 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

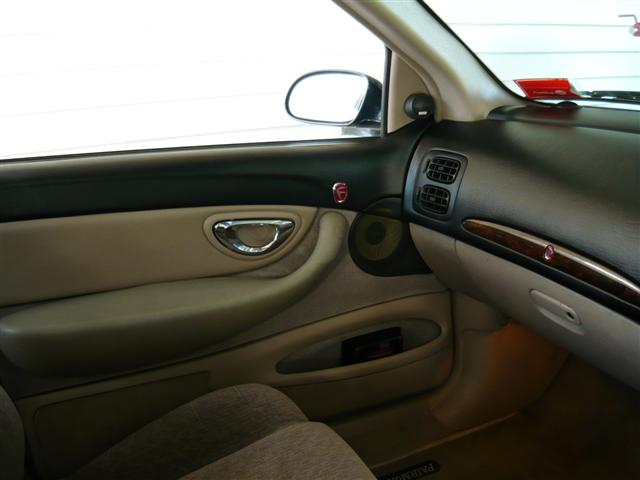

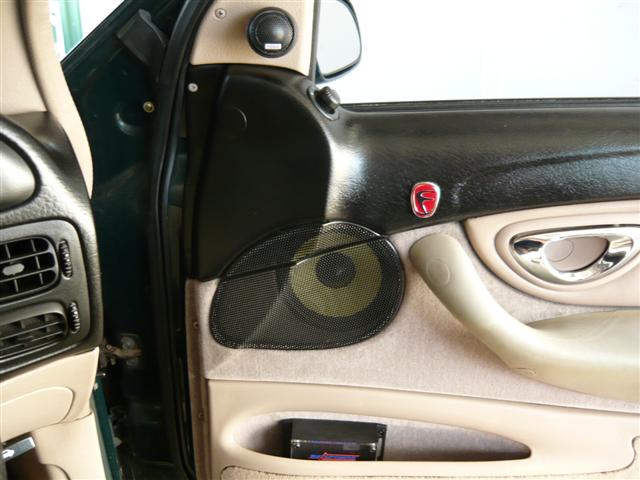

I installed mine in the map pockets. Maybe not the best location for a stealth install but i don't mind them there, plus they were fairly easy to wire up as i didn't have to run long lengths of wire to the tweeters and woofers. Was originally going to install them somewhere above where the headunit mounts as there is space there but that didn't happen.. As you can see, the tweeters were mounted on the sail trims that sit above the door trim.

Attachment:
P1010469 (Small).JPG
P1010469 (Small).JPG [ 32.46 KiB | Viewed 48 times ]

Attachment:
P1010470 (Small).JPG
P1010470 (Small).JPG [ 47.95 KiB | Viewed 42 times ]



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 12:18 am
Parts Gopher
Offline

Age: 25

Posts: 76

Joined: 2nd Jul 2010

Ride: 96 EF 5 Spd

Location: lara
VIC, Australia

hey just wondering What size speakers are in the Front doors? thx
are they 6"?
Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 12:42 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Yeh 6".
I installed my splits in the map pockets as well, I've never used them lol. Tweeters in the factory location but.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 12:46 am
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 41

Joined: 12th Nov 2009

Gallery: 3 images

Ride: EFII Falcon Gli

Location: Tewantin
QLD, Australia

They are 6.5"



_________________

EF Falcon Gli
-2.5" Exhaust, King Super/Ultra lows, Alted Performance Cam, 3.45 LSD, T5 conversion

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 1:06 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Uhh no they arent.. theyre 6".
A genuine 6.5" woofer will normally need some slight massaging to get it in.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 1:12 am
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 41

Joined: 12th Nov 2009

Gallery: 3 images

Ride: EFII Falcon Gli

Location: Tewantin
QLD, Australia

damn i knew someone would correct me....
I was led to believe they were 6.5, i fitted 6.5" speakers in my doors no problems, they line up perfectly

*edit, had a bit of a search and from what i gather the holes are 6" but many 6.5s will fit in alright as long as they are too deep and dont hit the windows or the grill on the door

Krysisdog, didnt notice your post above mine, thought the last one was the question

ford-audio-visual-f5/in-the-front-doors-of-an-ef-falcon-t77867.html



_________________

EF Falcon Gli
-2.5" Exhaust, King Super/Ultra lows, Alted Performance Cam, 3.45 LSD, T5 conversion

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 1:28 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Trust me, most 6.5s arent actually 6.5" speakers, which is why nearly every 6.5" fitted to Falcon doors actually fit okay. It normally takes an expensive 6.5" speaker (as it will be a genuine 6.5) to show this, and if you own a Falcon chances are you wont be buying the exxy gear :lol:



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 2:06 am
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 41

Joined: 12th Nov 2009

Gallery: 3 images

Ride: EFII Falcon Gli

Location: Tewantin
QLD, Australia

fair enough, why do manufacturers bother putting 6.5 on thier products then....
Ive got (apparently lol) 6.5 3 way pioneers



_________________

EF Falcon Gli
-2.5" Exhaust, King Super/Ultra lows, Alted Performance Cam, 3.45 LSD, T5 conversion

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 8:14 am
Getting Side Ways
Offline
User avatar

Age: 39

Posts: 694

Joined: 6th Apr 2007

Ride: 98 NL, 97NL, 98EL

Power: 141 rwkw

Location: Sunny Coast or Beerburrum
QLD, Australia

I have the Jaycar Response 6.5" 80W 4Ohm, Yeah, they go very loud, but the magnet is HUGE! I have to make some 12mm wooded spacers for them because the electric window hit the magnet lol.

Laticia.



_________________

BANNED!!!!

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Sun Jul 11, 2010 11:04 am
Tyre Shredder
Offline
User avatar

Age: 32

Posts: 330

Joined: 11th Nov 2004

Gallery: 17 images

Ride: BA XR6 turbo

Location: Canberra
ACT, Australia

if u eanted to put them on show u could put them on the door like i did in my profile pic



_________________

If you think life is bad. Imagine being a egg...you only get laid once, you only get smashed once and the only bird that sits on your face is your mum!

Top
 Profile


 Post subject: Re: Installing splits into EF XR6
Posted: Wed Jul 14, 2010 12:52 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2450

Joined: 5th Nov 2004

Gallery: 1 images

Ride: NL V8 Fairlane

Location: Sydney
NSW, Australia

I didn't like the idea of bastardising my door and have them in the boot next to the amps. You also don't really want them exposed to the elements and you want access to them to adjust. Another spot is under the passenger seat; drivers seat if you don't have electric seats. If you wanted to be fussy, try not to run the audio cables near any high current wires. And/or you can use shielded audio cables to "filter" the noise. The real danger with noise though is the HU to amplifier RCA cables.



_________________

There are 10 types of people in this world.
Those who know binary and those who don't.
