Lights are dimming when bass kicks in



Page 1 of 2 [ 23 posts ] Go to page 1, 2  Next


 Post subject: Lights are dimming when bass kicks in
Posted: Thu Jan 07, 2010 9:26 am
Smokin em up
Offline

Age: 29

Posts: 225

Joined: 29th Jul 2007

Ride: 97 EL XR6

Location: Melbourne
VIC, Australia

I recently installed a sound system

Alpine: Head unit

Clarion: Speakers (55W RMS)
Sub (500W RMS)
4 Channel (50x4 RMS)
Mono Block (860W RMS)

Aerpro: 1 Farad Capacitor

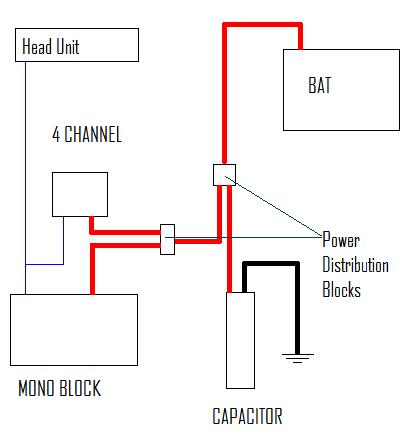

I did all the wiring myself, however the only bit of wiring that I am unsure of is the wiring of the capacitor. One of the guys at Autobarn told me to do this, and he has been installing systems for a few years.

Can anyone tell me if this is correct?

Attachment:
wiring.JPG [ 17.83 KiB | Viewed 41 times ]
Top
 Profile


 Post subject: Re: Lights are dimming when bass kicks in
Posted: Thu Jan 07, 2010 9:59 am
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Looks fine to me.

What do you expect? drawing 100(ish) amp pulses are going to flickers lights.

ARE you using 4GA cable? larger cable minimizes voltage drop especially over length.
Is your Earth of same size?

Things to change:

Add another earth strap to the car, EL's only have a couple of earths so add a Nice fat earth from the battery terminal to the Alternator mounting bolt OR Engine mount. (Get an AU earth strap, one it goes from battery to alt to chassis/k-frame)

Make sure your batteries optimum, i mean these amp's are no free lunch, power is power something is going to give.

I'm against cap's, if you need something to buffer, throw in another battery in the boot like the pro's do!

Also, it might NOT make a difference, but try moving the cap pos. wire directly to the mono amp, rather than reverse feeding both. (yes i know it all joins anyway, but being directly closer might make the difference.)



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


 Post subject: Re: Lights are dimming when bass kicks in
Posted: Sun Jan 31, 2010 9:19 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1110

Joined: 25th Mar 2007

Gallery: 7 images

Ride: BA MKII Fairlane GHIA

Location: Berwick
VIC, Australia

h0w is the cap ment to work if it isnt connected to an amp?
2 positve 1 neg
12v+ in
12v+ out (amp)
earth
is this right

from what i can se there its having power thrown at it then its all getting earthed is the cap actually discharghing into the mono or not?

not having a go maybe i miss understand your diagram
Top
 Profile


 Post subject: Re: Lights are dimming when bass kicks in
Posted: Sun Jan 31, 2010 9:26 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 1110

Joined: 25th Mar 2007

Gallery: 7 images

Ride: BA MKII Fairlane GHIA

Location: Berwick
VIC, Australia

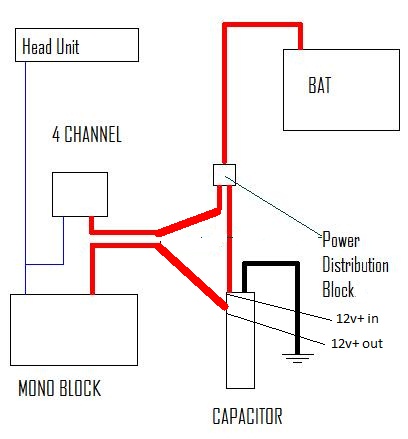

does this look better
