Need advice for determining negative and postive ford loom



Page 1 of 1 [ 4 posts ]


 Post subject: Need advice for determining negative and postive ford loom
Posted: Thu Sep 28, 2006 5:34 pm
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

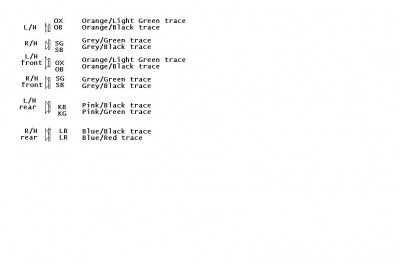

The Gregorys has the low and high series EF wiring as follows.
And my question is, is the NEGATIVE at the top and POSITIVE at the bottom like I've done to the diagram. Because the Gregorys left that part out?





Attachments:
speak. wiring.jpg
speak. wiring.jpg [ 33.62 KiB | Viewed 40 times ]

Last edited by Kit on Fri Sep 29, 2006 1:49 am, edited 1 time in total.

Top
 Profile


Posted: Thu Sep 28, 2006 7:34 pm
Smokin em up
Offline
User avatar

Posts: 250

Joined: 10th Apr 2006

Ride: EF OPT20

Location: Country
SA, Australia

The colors ending in B (for Black) are the negatives.
Also see this thread (last post): http://www.fordmods.com/forums/viewtopi ... highlight=



_________________

'94 EF GLI
Dash Mat
Color-coded Ashtray
Polished Wheel Nuts

Top
 Profile


Posted: Fri Sep 29, 2006 1:53 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

Thanks for the reply. Looking back at my Gregory's table above, why is the black trace on the bottom line for front speakers and on the top line on the rear speakers.

Is that the universal standard, black trace always Negative. Because that Gregory's example is confusing if not?
Top
 Profile


Posted: Fri Sep 29, 2006 11:18 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

If ever unsure on the polarity of a speaker use a 1.5volt battery and click it on the speakers wires, if the cone pushes out the wire that is on the positive terminal of the battery is the positive for the speaker. DO NOT USE any battery higher than 1.5 volts as it will cook your speakers. Another handy item is an analogue multi meter as you can use the ohms x1 to quickly find speakers by clicking on the speaker wires and the speaker will emit a ticking sound, this test wont work with a digital meter.
