radio



Page 1 of 1 [ 10 posts ]


 Post subject: radio
Posted: Mon Jul 31, 2006 9:24 pm
Stock as a Rock
Offline

Posts: 144

Joined: 29th Apr 2006

Location: Moonta
SA, Australia

could someone plase post a diagram of the all the ford ED Radio wiring diagrans including the colour of the car wires to wire it up because i oneday would like to put a cd stacker in with a cassette deck with cd controls in the car at the front and i need to know all the car radio wire colours and what they do and where they go to
Top
 Profile


Posted: Tue Aug 01, 2006 12:07 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

theres a tech doco for this i believe. but if not heres the wires (most of them) anyway :P

yellow - Battery 12V (constant)
yellow/black - Ignition 12v (present when car on)
Black - Ground
orange - Left front positive
orange/black - left front negative
grey - Right front positive
grey/black - right front negative

the other two pairs are blue and white, but i cant remember for the life of me which pair is left and right (they are the rears)



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


Posted: Tue Aug 01, 2006 12:10 am
Stock as a Rock
Offline

Posts: 144

Joined: 29th Apr 2006

Location: Moonta
SA, Australia

thankyou when you find the rest please let me know wont you
Top
 Profile


 Post subject: Sound diagrams
Posted: Sun Aug 13, 2006 10:05 pm
Stock as a Rock
Offline

Age: 35

Posts: 115

Joined: 6th Jun 2006

Ride: Black ED Fairmont 5.0L

Location: Sydney
NSW, Australia

hey,

My workshop manual is in pieces at the moment...so might be a good time to take some scans.

Will get it done as soon as I can.

Will



_________________

1994 Black Pearl ED Fairmont V8

9/72 XA GS 351 Auto Hardtop (Wild Violet & White Trim)

Top
 Profile


 Post subject: wiring diagrams
Posted: Sun Aug 13, 2006 11:10 pm
Stock as a Rock
Offline

Age: 35

Posts: 115

Joined: 6th Jun 2006

Ride: Black ED Fairmont 5.0L

Location: Sydney
NSW, Australia

Hey All,

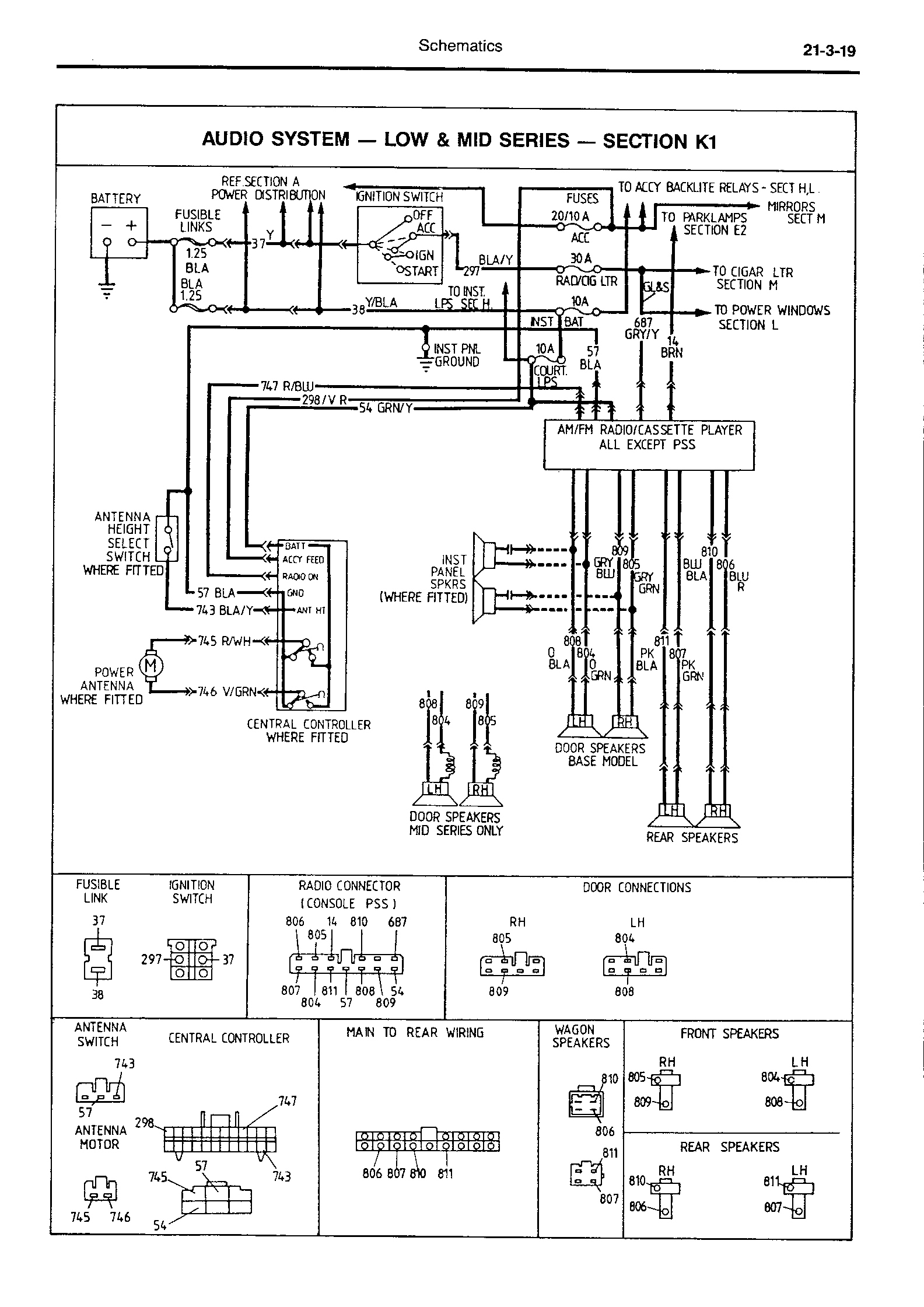

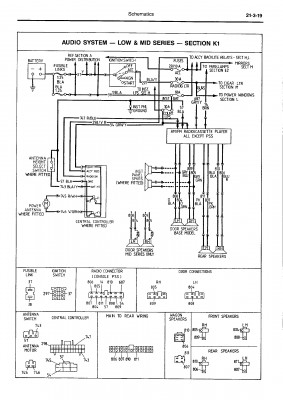

AUDIO SYSTEM - LOW & MID SERIES - SECTION K1.

Will





Attachments:
K1.jpg [ 1008.24 KiB | Viewed 1317 times ]



_________________

1994 Black Pearl ED Fairmont V8

9/72 XA GS 351 Auto Hardtop (Wild Violet & White Trim)

Top
 Profile


 Post subject: Wiring Diagrams
Posted: Sun Aug 13, 2006 11:26 pm
Stock as a Rock
Offline

Age: 35

Posts: 115

Joined: 6th Jun 2006

Ride: Black ED Fairmont 5.0L

Location: Sydney
NSW, Australia

Hi All,

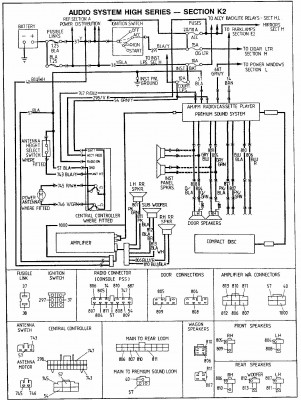

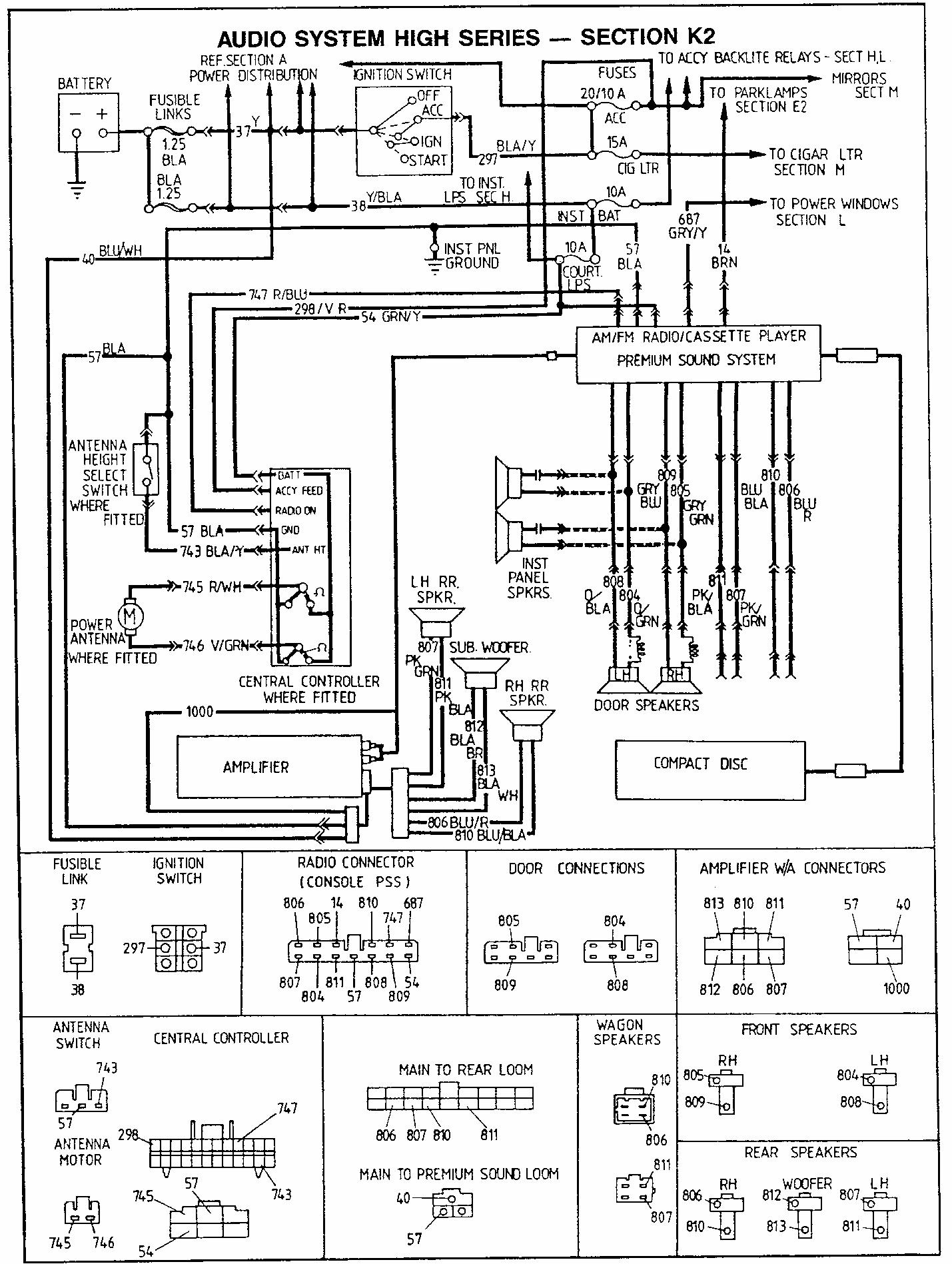

AUDIO SYSTEM HIGH SERIES - SECTION K2.

Will





Attachments:
K2.jpg [ 473.1 KiB | Viewed 51 times ]



_________________

1994 Black Pearl ED Fairmont V8

9/72 XA GS 351 Auto Hardtop (Wild Violet & White Trim)

Top
 Profile


Posted: Sun Aug 13, 2006 11:27 pm
Getting Side Ways
Offline

Age: 36

Posts: 7287

Joined: 5th Nov 2004

Gallery: 12 images

Ride: 1994 ED XR8 Sprint

Location: Somewhere in
QLD, Australia

Top
 Profile


 Post subject: Wiring diagrams
Posted: Sun Aug 13, 2006 11:31 pm
Stock as a Rock
Offline

Age: 35

Posts: 115

Joined: 6th Jun 2006

Ride: Black ED Fairmont 5.0L

Location: Sydney
NSW, Australia

Hey,

I posted both the Low & Mid Series along with the High Series to show you what you've got and where you'll need to go...

I've got the (factory) High series wiring all figured out - except from where exactly the factory tapped the power off (physically) for the amplifier. I think it was off one of the fusible links - can't remember which one right now.

Will



_________________

1994 Black Pearl ED Fairmont V8

9/72 XA GS 351 Auto Hardtop (Wild Violet & White Trim)

Top
 Profile


Posted: Sun Aug 13, 2006 11:34 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 10126

Joined: 5th Nov 2004

Gallery: 4 images

Ride: EF Gli Ghia, XP Fairmont

Location: Perth
WA, Australia

/moved to Audio

Good work on the scans Will



_________________

Owning 1 of 67612 EF GLi Sedans made
FACT: "Chuck Norris owns the greatest Poker Face of all-time. It helped him win the 1983 World Series of Poker despite him holding just a Joker, a Get out of Jail Free Monopoly card, a 2 of clubs, 7 of spades and a green #4 card from the game Uno."

Top
 Profile


 Post subject: Premium Sound amp
Posted: Mon Aug 21, 2006 11:23 am
Stock as a Rock
Offline

Age: 35

Posts: 115

Joined: 6th Jun 2006

Ride: Black ED Fairmont 5.0L

Location: Sydney
NSW, Australia

Hi All,

Power for the Premium sound amplifier comes off one of the 30 Amp circuit breakers (if I remember correctly) to a three pin connector that is well hidden behind the fuse box.

Easily found. Three pin connector with two thick wires - one yellow (positive) and one black (ground).

factory harness just slips right in.

Will



_________________

1994 Black Pearl ED Fairmont V8

9/72 XA GS 351 Auto Hardtop (Wild Violet & White Trim)

Top
 Profile
