 Post subject: RGB Converter Install Questions
Posted: Mon Oct 31, 2011 8:57 pm
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

HI Guys,
I have been doing my research to upgrade the BA ICC to DVD player. I decided against ASL as they seem expensive for what seems to be a plug adapter of sort.... As the unit itself costs 180 on carvonerters. What i need to know is where do i connect the RGB out pins to get to the ICC display?

And what pins do i tap into?

ONe of these work

http://www.carconverters.com.au/news/13.html

I saw members on here using it, notably Lukeyson, data_mine.

I want to use it soley for DVD player, will get an aftermarket player which can be switched to NTSC only, have an Pioneer one in mind...

So does anyone have further info on the pins i need to connect, and maybe the quality of the stock display compared to aftermarket flip out dvd...

Thanks
Michael.
Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Fri Nov 04, 2011 10:35 pm
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

Anyone know? Maybe best to PM those guys then...
Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 05, 2011 1:27 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

I think this one is the one I've got (it's been many years since I bought it) http://www.carconverters.com.au/product ... r/236.html

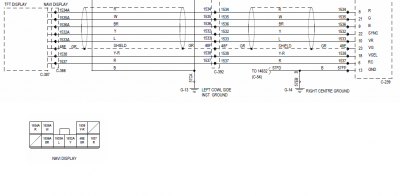

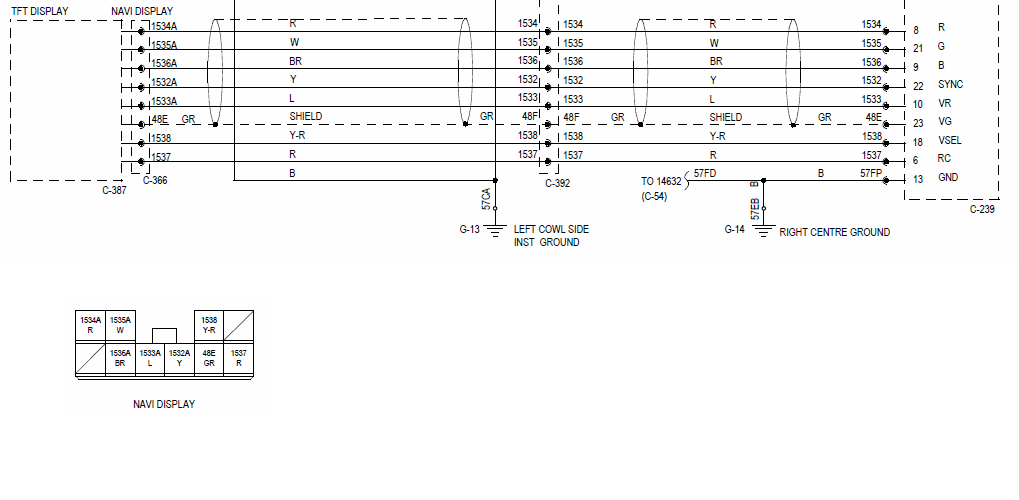

You need to find the video input (sat-nav) wires to the ICC. It's a 8-pin connector on the ICC for that.

Attachment:
Video Input.png
Video Input.png [ 39.26 KiB | Viewed 297 times ]



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 05, 2011 2:11 pm
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

Sounds good, would i have to solder the joints or can they sit there firmly?

Glad i kept looking into this screen business, ASL too much.

Whats the vid quality compared to pop out DVD? Little lower? Or same? I have an early BA, i hope all the ICCs were the same.
Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 05, 2011 2:52 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Always solder connections (or use proper connectors). Or you'll be forever tracking down dodgyness as the day to day vibration of being in a car causes problems.

The ICC screen is pretty damn good actually. Compared to what was a $3000 Pioneer 1DIN flip out unit, the ICC screen IMHO was better quality (but smaller).



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 05, 2011 3:16 pm
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

THats good to hear, any ideas or tips on getting appropriate connectors? Just have a look and visit d**k smith? Id rather do it right, once lol.
Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 05, 2011 3:20 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

I actually did things the expensive way, started with the ASL kit, found it didn't play PAL sources (which I needed, and really this is Australia not US/Japan, no need for NTSC here).

So had the cabling from the ASL kit when I bought the carconvertors unit.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 05, 2011 3:33 pm
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

Ah damn, do you have any pics of install by any chance? Do i have to remove the whole ICC to do this? Pretty keen now i have heard back from someone to confrim what i thought was true. This is the best way compared to those Alpine units and the ASL.

Just need an idea for this converter... / Adapter... Hmmm
Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 05, 2011 4:02 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

nah, the plugs you need are on the bottom of the ICC, accessible once you get the tissue box holder out of the way.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sun Nov 06, 2011 2:40 am
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

Ah thats great, ill open it up and have a look before i buy anything. Maybe ill buy the head unit and do that, while im there, got a dvd in there atm so shouldnt be too hard.

Really keen on seeing what this plug looks like, want to get a decent harness, there has to be a plug type / code or something... Unless soldering really is easyily done, but i doubt...
Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sun Nov 06, 2011 1:02 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

You should probably have a look here then:
documents.php?d=38



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 12, 2011 9:52 pm
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

Ah, correct me if im wrong but that clip taken from the old EL falcon or ef, this is what i can use to plug directly onto the ICC Sat NAv entry point, then connect up the wires to the ports?
Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 12, 2011 11:20 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Raiden88 wrote:
Ah, correct me if im wrong but that clip taken from the old EL falcon or ef, this is what i can use to plug directly onto the ICC Sat NAv entry point, then connect up the wires to the ports?


Yes, it's the plug that fits the ICC.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Sat Nov 12, 2011 11:42 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

As I'm stripping out all the stereo gear in my car, I took these snaps for you.


The blue/black wire you see is the video select wire, it goes to a switch, which is grounded (switch the ground connection).



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


 Post subject: Re: RGB Converter Install Questions
Posted: Wed Nov 16, 2011 9:49 pm
Fordmods Newbie
Offline

Age: 29

Posts: 8

Joined: 31st Oct 2011

Ride: 2003 BA XR6T

Location: Melbourne
VIC, Australia

WOw dude, great snaps, this is great info to get me geared up. Just gotta fix my diff mount first /sigh
