sub box measurements



Page 1 of 1 [ 12 posts ]


 Post subject: sub box measurements
Posted: Tue May 29, 2007 5:03 pm
Stock as a Rock
Offline

Posts: 121

Joined: 18th Mar 2007

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

gday all. ive got 2 pioneer tsw306c's that i wanna build a sealed box for, for in the boot. the pioneer reccomendation is that each sub is in a 35.4litre sealed enclosure. just wondering if anyone would have measurements of a box that would fit up under the parcel shelf to suit. i went out and started measuring my own but couldnt figure out a good size to fit in accordance to the litres. any posts would be greatly appreciated. cheers



_________________

Live, Play, Work - FORD

Top
 Profile


Posted: Tue May 29, 2007 5:41 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2515

Joined: 27th Mar 2006

Gallery: 1 images

Ride: FG MkII Xr6t Ute

Location: Brisbane
QLD, Australia

just make sure each sub has a separate chamber



_________________

EVL098 wrote:
Cramping in the hand from having it on your Wang for an excessive period of time is a definate con.
Seriously do people google "f**k up modifications for Fords owned by Jews" and get linked straight to this site nowadays?

AU,factory fitted tickford kit/IRS, t5,Sports ryder/KYB: gone.

Top
 Profile


Posted: Tue May 29, 2007 5:46 pm
Parts Gopher
Offline

Age: 28

Posts: 96

Joined: 18th Feb 2007

Gallery: 1 images

Location: Bendigo
VIC, Australia

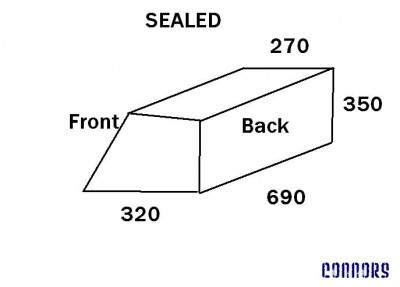

Heres wat i made up for my 2 Rockford 12's fits there nicely





Attachments:
box size.JPG
box size.JPG [ 23.05 KiB | Viewed 35 times ]



_________________

Connors

Top
 Profile


Posted: Tue May 29, 2007 6:01 pm
Stock as a Rock
Offline

Posts: 121

Joined: 18th Mar 2007

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

ahh perfect thats what sorta thing im after. thanks alot timmy



_________________

Live, Play, Work - FORD

Top
 Profile


Posted: Tue May 29, 2007 6:04 pm
Parts Gopher
Offline

Age: 28

Posts: 96

Joined: 18th Feb 2007

Gallery: 1 images

Location: Bendigo
VIC, Australia

Not a problem

So yeah just to make sure, the subs face into the cabin :!:

Used mdf16 and boltered her up wit a bit of liquid nails aswell to keep it air tight and worked out ok.

Its a nice tight squized up n down to get onto the shelf but looks nice when in there



_________________

Connors

Top
 Profile


Posted: Tue May 29, 2007 6:05 pm
Stock as a Rock
Offline

Posts: 121

Joined: 18th Mar 2007

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

yea ill be facing mine into the boot but the measurements will work all the same. slight bit of modifying. thanks bud



_________________

Live, Play, Work - FORD

Top
 Profile


Posted: Tue May 29, 2007 9:01 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Those subs are suited to a ported enclosure around 2cu ft, tuned between 35 to 45hz.



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Tue May 29, 2007 9:31 pm
Stock as a Rock
Offline

Posts: 121

Joined: 18th Mar 2007

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

whered you find that information? i thought they were sealed over ported use? the boxed ones made by pioneer 306CBOX are sealed?



_________________

Live, Play, Work - FORD

Top
 Profile


Posted: Tue May 29, 2007 9:49 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

When you model the specs you end up with something like 2cu ft tuned to 35hz as optimum.

Jump to here http://www.mobileelectronics.com.au
Search 306c. Answers will be revealed.



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Tue May 29, 2007 10:00 pm
Stock as a Rock
Offline

Posts: 121

Joined: 18th Mar 2007

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

ahh thanks for that ill have a good read through. i still think ill keep to the sealed enclosure because im more after tight bass with good clarity over jus pure loudness. thanks all for the posts



_________________

Live, Play, Work - FORD

Top
 Profile


Posted: Tue May 29, 2007 10:28 pm
Stock as a Rock
Offline

Posts: 121

Joined: 18th Mar 2007

Ride: EL Fairmont

Location: Melbourne
VIC, Australia

actually after reading more i might look into the porting more. i think though that to build something the size of a 4ft3 box would have no chance of fitting in behind the seats but ill see what i can find on there



_________________

Live, Play, Work - FORD

Top
 Profile


Posted: Tue May 29, 2007 10:56 pm
Stock as a Rock
Offline
User avatar

Age: 35

Posts: 169

Joined: 30th Nov 2004

Gallery: 5 images

Ride: ef falcon

Location: perth
WA, Australia

there are advantages and disadvantages with both sealed and non sealed boxes but sealed sound alot easier to get to have a low note and nice punchy bass thats its advantage but it could be better... where as ported are better but u have to get everything in the design right which is hard and thats the down side... well thats what ive come to beleive by reading what rockford fosgate and jlaudio have to say about it....

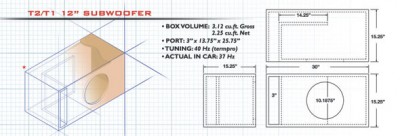

this is the ported design rockford recommend





Attachments:
12 inch ported box design.jpg
12 inch ported box design.jpg [ 29.6 KiB | Viewed 35 times ]



_________________

stage2cam,lukeyheaders,highflowcat2 1/2, 2 1/2 exhaust 3 hotdogs, 17x235/45 17x255/40's

Top
 Profile
