Trouble with 6.5" splits



Page 1 of 2 [ 18 posts ] Go to page 1, 2  Next


 Post subject: Trouble with 6.5" splits
Posted: Sun Sep 03, 2006 3:52 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 5th Jul 2006

Location: Melbourne
VIC, Australia

Hi all
I am trying, without much sucess to mount some 6.5" splits. i made up a bit of a spacer sweet as however the spacer is too thich to allow me to put the dorr trims on and the speaker is too close to the so if the grill was on it would punch a hole into the speaker. What are my options?

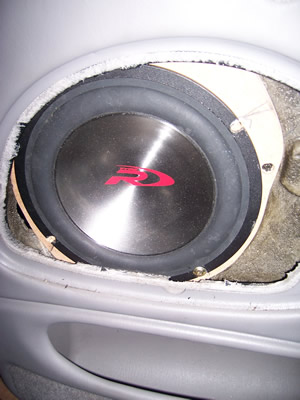

(see picture)





Attachments:
100_0062.jpg [ 30.21 KiB | Viewed 22 times ]
Top
 Profile


Posted: Sun Sep 03, 2006 3:57 pm
Getting Side Ways
Offline
User avatar

Posts: 2644

Joined: 6th Nov 2004

Gallery: 8 images

Ride: 2007

Location: Mount Annan
NSW, Australia

Is the spacer to change the mounting size or to gain rear clearance? If its the former then can you mount it from the rear.



_________________

BF Fairmont Ghia Series II update.
GQ XR6T ghia patrol.

,======o00o
//__|__|_,\_____\,___
|_/--\'_|'__|_/--\_[]IIII[]
_( o ) )_____( o ) )=o=) )__

Top
 Profile


Posted: Sun Sep 03, 2006 4:01 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 5th Jul 2006

Location: Melbourne
VIC, Australia

The speaker is to wide for the orginal hole
Top
 Profile


Posted: Sun Sep 03, 2006 4:06 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 5th Jul 2006

Location: Melbourne
VIC, Australia

The speaker is to wide for the orginal hole
Top
 Profile


Posted: Sun Sep 03, 2006 7:17 pm
Getting Side Ways
Offline

Age: 37

Posts: 775

Joined: 27th Nov 2004

Ride: BA XT Series 2

Location: Cairns
QLD, Australia

will have to resize the hole. that is what I did to mine.



_________________

Stage 1 stereo install done. Pics in audio section.
Next step is probably a nice exhaust or stage 2 stereo.

Top
 Profile


Posted: Sun Sep 03, 2006 7:26 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

Im running 2x Alpine Type-R splits in my front doors mate one in the factory location like yours...yes the fancy lookin supports to hold the cone are just to big for the factory hole....u can either resize the whole hole but all I did was just use some good tin snips/metal cutters and cut out just a tiny bit extra for the support arms to slot into....the type-R's just clear the window too so dont worry about that :P

Did u take the grill out or cut it out?

Cause that may have been a mistake :) but yeh ccidents happen if ya did.

Need any help gimme a yell.



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Sun Sep 03, 2006 8:06 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 5th Jul 2006

Location: Melbourne
VIC, Australia

I just took off the grill, so you reckon just move it a little bit up and right. and cut a bit off the door so it sits in the center of the speaker grill. Is the 12mm mdf to thick, should i run it through a thicknesser to about 10mm or should i scrap the spacers all together. Oh and where abouts is the easiest spot to mount the tweeters?
Top
 Profile


Posted: Sun Sep 03, 2006 10:21 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

keegs wrote:
I just took off the grill, so you reckon just move it a little bit up and right. and cut a bit off the door so it sits in the center of the speaker grill. Is the 12mm mdf to thick, should i run it through a thicknesser to about 10mm or should i scrap the spacers all together. Oh and where abouts is the easiest spot to mount the tweeters?


Well theres no need for the spacer thats up to u...u could run it thru a thicknesser but id be going lower than 10mm maybe 8 or 6...if u cut out tiny bits like the pic below it should sit neatly centred like the original speaker did.

As far as tweeter positioning...many will argue where is the best place to mount....in the end as close to be angled at your ears and closest to your ears.....BUT still equal or close to equal with the rest of the front stage....other wise high frequencies will be reaching you ears far to early etc etc messing up your staging but yeh....

Easiest place is the factory location.....also the most cost effective...other than that your choices are custom fabrication of tweeter pods...mounted on the doors....the a-pillar....corner of the dash where it was originally but higher and angled into the cabin rather than the sound waves initially aimed at deflecting off the glass.



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Mon Sep 04, 2006 11:51 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

u could try baffle plates. They are just 8-12mm MDF rings that u can use.



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Mon Sep 04, 2006 12:33 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

stomper wrote:
u could try baffle plates. They are just 8-12mm MDF rings that u can use.


too thick....the type-rs then rub or hit the door trim cover...altho he wont really have that prob now ;)..ut yeh u dont want that...just cut holes like the pic below and it will slot in fine...sorry i was supposed to post it up last night.

sorry for my poor effort with the drawing lol...i just couldnt be stuffed :P



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Mon Sep 04, 2006 6:22 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 5th Jul 2006

Location: Melbourne
VIC, Australia

Thanks for all your help guys!!!
i be out cutting up the door tomorz, homework today
cheers
Top
 Profile


Posted: Mon Sep 04, 2006 11:48 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

thats sorta what i did to fit the focals, they slotted straight in after that ;) who needs spacers when u got a grinder ;)



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


Posted: Tue Sep 05, 2006 4:16 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

I have the Alpine 171 6.5" in the factory location and had the same issues.
When I installed them I coated the door trim grille and the area with Silicon spray and then pressed the trim back in place on the door. Took it off and what ya know, Silicon spray transfered directly onto the speaker surrounds.

What I did then was snip off a couple (NOT ALL) the offending plastic studs holding the grilles on. Then got a length of new garden hose and cut that in half <-be careful.
I then taped this half cut hose around the outside of the speaker baskets, reattached the door trims over this. Now the hose holds the trim off the speaker surrounds, and the drivers have plenty of room to, to do their arr thing.
Top
 Profile


Posted: Tue Sep 05, 2006 10:23 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

cooki_monsta wrote:
thats sorta what i did to fit the focals, they slotted straight in after that ;) who needs spacers when u got a grinder ;)


thats all ya need grinder, cutter just even a pair of good cutteers...the type r support arms arent that much bigger than the standard hole...



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Fri Sep 08, 2006 9:12 pm
Fordmods Newbie
Offline

Posts: 16

Joined: 5th Jul 2006

Location: Melbourne
VIC, Australia

Thanks Cutters and a file did the job plus some 4mm spacers.

Next step, need to know how to wire the xovers to the woofer, tweeter, and HU

Also thinking about mounting the tweeter between the front and back door above the seatbelt or in the speaker grill which do you reckon's better
Top
