tweeters



Page 1 of 2 [ 17 posts ] Go to page 1, 2  Next


 Post subject: tweeters
Posted: Thu Nov 09, 2006 7:30 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

Pyroay,I have a pair of tweeters, that I would like to use in my "A" pillars. In the wiring is something sealed in a vacuum wrap. Is this the crossover, if so, do I connect it in line with the door speakers, to the amplifier?



_________________

The older I get the better I was!

Top
 Profile


Posted: Thu Nov 09, 2006 8:17 pm
Getting Side Ways
Offline

Age: 31

Posts: 3893

Joined: 15th Nov 2004

Gallery: 24 images

Ride: BF MKII V8 Fairmont Ghia

Location: Perth
WA, Australia

what does it look like?

is it a black box with several screw joins to put wire in?


like that?

if so. there are 3 connection, an input from the amplifier. and output for ur door speaker and an output for your tweeter.



_________________

2007 Steel BF Ghia MKII V8 - 19" GTP's + Superlows

Top
 Profile


Posted: Thu Nov 09, 2006 8:21 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

I know what you are talking about. The pioneer 4"splits in my car have them. They go in the line to the tweeters. I think they are like cheap crossovers. The ones gaz has got there are the same as the ones in my ute. Haven't really noticed any difference except those ones are bigger and hardere to hide :lol:



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Thu Nov 09, 2006 8:40 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

Well i aint Aaron but hey :P .... well my guess is its a small black box in the wrap its a passive crossover....got any pics or can u take some...be easier to explain..



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Thu Nov 09, 2006 8:44 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

Is there a difference in performance between the two, Big Kev?



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Thu Nov 09, 2006 8:48 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

Guys, thanks for that. They are pioneer,so the crossover must be a cheap version. I will buy a better set next time I am at the stereo store.



_________________

The older I get the better I was!

Top
 Profile


Posted: Thu Nov 09, 2006 9:03 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

xhute0 wrote:
Is there a difference in performance between the two, Big Kev?


Yeh there is a difference....

A passive crossover is cheap and normally simple to install - as they run in line with the speaker wire feeds on the same line. Normally, they are designed to modify a particular frequency. But they offer less flexibility and don't allow the fine-tuning control you will get with active crossovers.

Active crossovers require additional wiring for power and earth, but give you far greater control. Active crossovers help your amplifier by cutting unwanted frequencies before the amp has to boost them. This way your amplifier can focus only on the frequencies that you want to hear, without wasting power on frequencies you don't want to hear...

Active crossovers are normally built into amplifiers....this is where you get the LPF/HPF, set frequency settings/ranges etc...its nortmally a good idea tho to have an external active crossover...simply for ease of tuning and also if u ever get a new amp that doesnt have this functionality u wont loose that cross over tuning ability.

Theres alot more to the technical backgorund of the two but you can get the drift :)



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Thu Nov 09, 2006 9:05 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

kwaussiekid wrote:
Guys, thanks for that. They are pioneer,so the crossover must be a cheap version. I will buy a better set next time I am at the stereo store.


Being pioneer doesnt necessarily mean cheap mate...pioneer sell subs over 2.5K still :P so cant be too crap ;)

Could u describe what was in the vacuum wrap? was it a box? or capacitor ?



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Thu Nov 09, 2006 10:42 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

Its two pieces under vacuum wrap.The amp has HPF-LPF settings for both channels,so all may well be ok.



_________________

The older I get the better I was!

Top
 Profile


Posted: Fri Nov 10, 2006 7:05 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

kwaussiekid wrote:
Its two pieces under vacuum wrap.The amp has HPF-LPF settings for both channels,so all may well be ok.


ok....what i meant by explaining the ampflifier cross over has nothing to do with the tweeters or the oringinal post you had sorry....but yeh if u can see what it is....u said 2 peices under vacuum wrap but lol that aint any help :P....pic would be good otherwise try explaining what in the wrap in more detail...



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Fri Nov 10, 2006 7:32 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

The little black cylinder think in heat shrink is a bi-polar capacitor, it cuts the low and mid frequencies out to the tweeter. Almost all 2-3 way speaker set ups use a passive x-over (frequencies split after the amp) be it a capacitor only in your case or a series of chokes, capacitors and wire wound resisitors. Active x-overs split the frequencies before the amp but not really feasable for just doing tweeters.
Top
 Profile


Posted: Fri Nov 10, 2006 7:44 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

joolz wrote:
The little black cylinder think in heat shrink is a bi-polar capacitor, it cuts the low and mid frequencies out to the tweeter. Almost all 2-3 way speaker set ups use a passive x-over (frequencies split after the amp) be it a capacitor only in your case or a series of chokes, capacitors and wire wound resisitors. Active x-overs split the frequencies before the amp but not really feasable for just doing tweeters.


Thats right they way passive crossovers work by cutting the frequencies after theyve been boosted is aa waste of power BUT obviously they are easier for non-car audio technically minded ppl :P if thats the right way to say it to install and enjoy plus their nice n cheap :)



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Fri Nov 10, 2006 3:46 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

Thanks for all your ghelp Kev,Joolz got it right. So I would be better to buy a better type of set-up would I ?





Attachments:

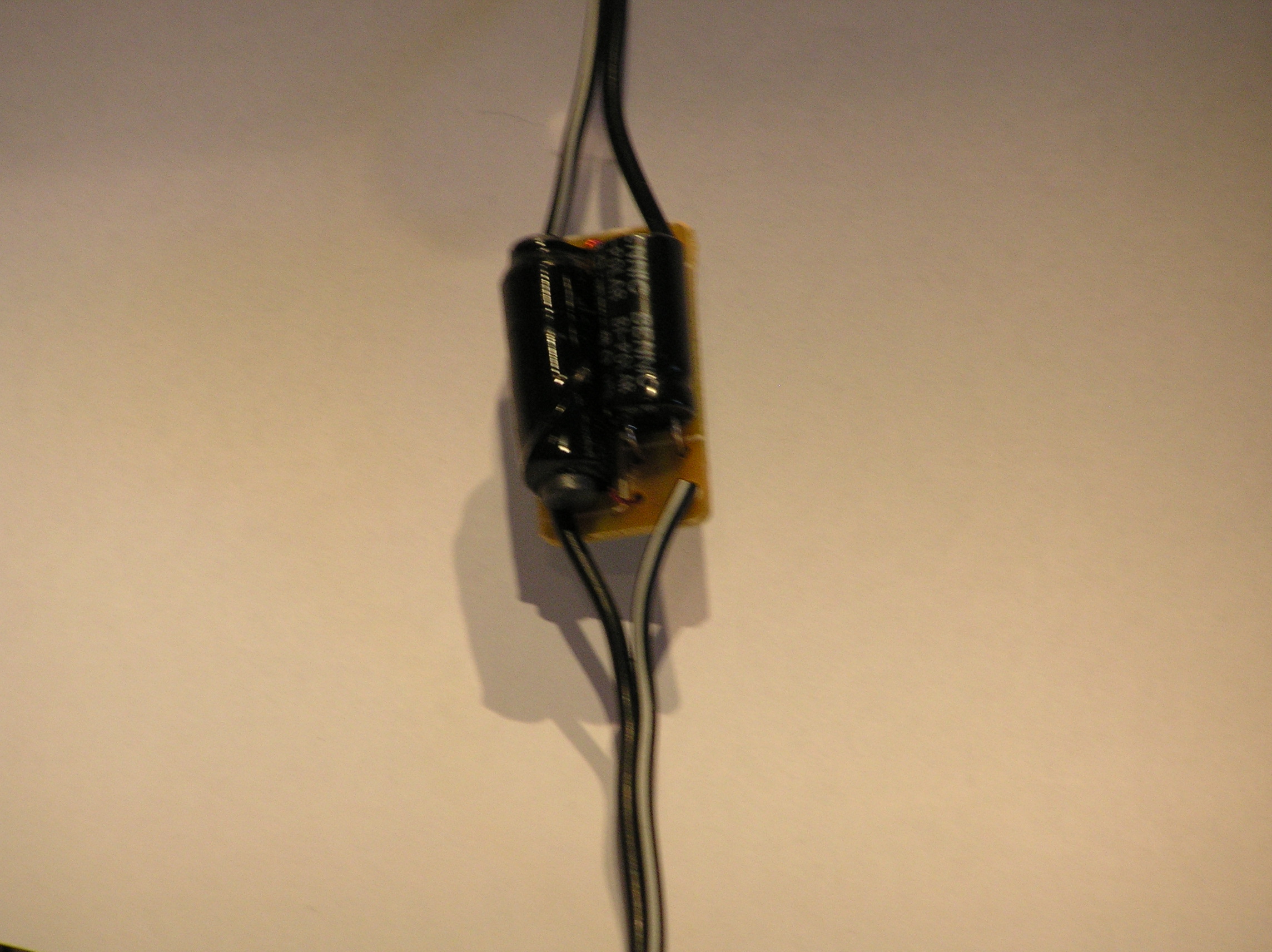

capacitor.jpg [ 848.82 KiB | Viewed 19 times ]



_________________

The older I get the better I was!

Top
 Profile


Posted: Fri Nov 10, 2006 4:02 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 2705

Joined: 6th Nov 2004

Gallery: 11 images

Ride: 2009 FG XR6 Sedan

Location: Melbourne
VIC, Australia

Basically a decent 2 way x-over cuts the lows and mids to the tweeter and the highs to the mid/bass, it may also have an atenuator for the tweeter to adjust the high level. Your current set up only cuts the lows and mids to the tweeter but allows all frequencies to the mid/bass.
Top
 Profile


Posted: Fri Nov 10, 2006 4:36 pm
Getting Side Ways
Offline

Age: 65

Posts: 971

Joined: 11th Jan 2005

Ride: BA MK11

Location: West Melbourne
VIC, Australia

Thanks Joolz,any recommendations for splits with 4 inch speakers for the door?
