 Post subject: where are the crossovers?
Posted: Wed Jun 21, 2006 4:20 pm
Fordmods Newbie
Offline

Posts: 4

Joined: 4th May 2006

Location: melbourne
VIC, Australia

hey all,

installing a 4 channel amp into an au fairmont and have just got the doors off to find that the speaker crossover is not to there. Where are they mounted? Couldn't see it, and there is a mass of wires all over the place.

any advice appreciated, cheers.
Top
 Profile


Posted: Wed Jun 21, 2006 4:52 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

i think you will find that they will be on the side of the speaker, a small cap and a resistor or inductor on the actual basket is all that is used to generate the roll off frequency.



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


Posted: Wed Jun 21, 2006 5:31 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

what speakers? the factors ones don't use cross overs, they use some sort of component, resistor, cap something on the side of the speaker, it's cheaper for them.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Wed Jun 21, 2006 5:52 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 662

Joined: 4th Sep 2005

Gallery: 6 images

Ride: EL XR6

Location: Riddells Creek
VIC, Australia

Factory speakers dont have crossover - dont they just normally run them off the speakers - or off the head deck - maybe you should just up grade your speakers so as not to blow up the factory speakers which are now amped!!
Top
 Profile


Posted: Wed Jun 21, 2006 6:36 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2396

Joined: 25th Sep 2005

Gallery: 9 images

Ride: Da Maverick & xe ute

Location: Upper FTG. melbourne
VIC, Australia

the factory speakers are fine ampd but there is no crossovers just thought id tell u ;) i had a look at mums au just for the fun of it, they do use s**t cheap r c tuning so yea just use the hpf on the amp ;)



_________________

Mods: sprint kit, steeda short shift, svo lip, El handles, El Air intake, au xr wheels, lukey cat back, jbl focal and pioneer sterio <--- Sold

Xe ute - Bright green with 302

Da maverick - Straight gas turbo

Top
 Profile


Posted: Wed Jun 21, 2006 7:24 pm
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3737

Joined: 22nd May 2006

Ride: BF F6 Tornado - #0077

Location: Bendigo
VIC, Australia

Ok time for a laugh, i have no idea what crossovers are. can someone please tell me before they die of laugher?



_________________

** For Sale ** http://www.fordmods.com/ford-parts-for-sale-f17/assorted-e-series-parts-t124697.html

F6 Tornado 2006 Build

Is it about sex? The engine in my car? Or a cure for cancer?
No?

Then f**k off

Top
 Profile


Posted: Wed Jun 21, 2006 7:48 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 967

Joined: 8th Nov 2004

Gallery: 7 images

Ride: TE50

Location: Brisvegas
QLD, Australia

nah thats cool

a crossover is a device which isolates a frequency. for speakers for instance, if you use a 'High Pass' cross over only high frequencies (ideal for tweeters) can pass through it.

Same for subs, they use a low pass crossover to pass only low frequencies to subs. Thats y subs go boom boom and you dont hear voices out of them...these voice frequencies have been removed.

The ford ones use a crude capacitor to simulate a crossover. It does an ok job but no where near as accurate as a proper external crossover.



_________________

Formerly SpuDEF

Top
 Profile


Posted: Thu Jun 22, 2006 12:10 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

On the EF Fairmont theres a capacitor soldered to the sides of each tweeter. Would be the same for the Au wouldn't it?





Attachments:

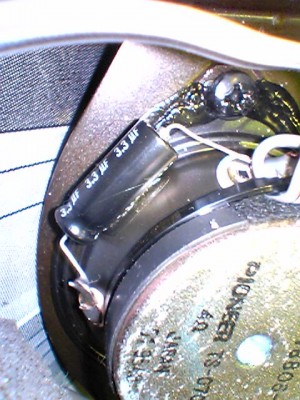

File comment: EF Tweeter Capacitor
pic_016.jpg [ 68.42 KiB | Viewed 27 times ]

Last edited by Kit on Thu Jun 22, 2006 1:24 am, edited 1 time in total.

Top
 Profile


Posted: Thu Jun 22, 2006 1:03 am
Fordmods Newbie
Offline

Posts: 4

Joined: 4th May 2006

Location: melbourne
VIC, Australia

thanks for all the replies guys, much appreciated. :D

the reason i asked the question is because when i looked at the speaker in the door there were only two cables running to it.

As it is a splits system shouldn't there be cables running from the speaker to the tweeter with the capacitor somewhere in the mix?

i was hoping to run 16awg cables from the amp all the way to each speaker terminal but couldn't see how the speaker in the door was linked to the tweeters.
Top
 Profile


Posted: Thu Jun 22, 2006 1:29 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2537

Joined: 5th Nov 2004

Gallery: 13 images

Ride: EFII Fairmont

Location: Perth
WA, Australia

From memory in the EF, I think the wires are split under the tweeter plate. One pair to the tweeters which are plugged in, and a pair to the drivers in the door.
Top
 Profile


Posted: Sun Jun 25, 2006 1:06 am
Stock as a Rock
Offline
User avatar

Age: 41

Posts: 180

Joined: 21st Jul 2005

Gallery: 4 images

Ride: FG XR6

Location: Geelong
VIC, Australia

In the AU, they look like the picture Kit posted.
There's a capacitor on the side of the tweeter as shown.
There is no "crossover" on the main speaker at all. They just let it have the full range sound and rely on it not being able to play the extreme highs and lows anyway.

the wiring to the tweeter in the A-pillar, and to the mid range in the door are 2 separate runs. Don't know where they join.



_________________

Subtle but high quality audio system.
Alpine processor and amp / Focal Utopia splits / Soundstream Exact sub

Top
 Profile


Posted: Sun Jun 25, 2006 1:50 am
Getting Side Ways
Offline
User avatar

Posts: 704

Joined: 19th May 2006

Gallery: 1 images

Ride: 2003 BA XT

Power: 141 rwkw

Location: Perth
WA, Australia

I swear you can't even hear the tweeters in the EF, though maybe thats becasue of the dash mat.

Interesting to know the crossovers are there, thanks.
Top
 Profile


Posted: Thu Jun 29, 2006 12:56 am
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 582

Joined: 20th Nov 2004

Ride: xr6

Location: Brisbane
QLD, Australia

The crossovers that ford use are only 6dB/octave high pass only on the tweeters. The natural roll off is relied upon for the woofers.
If you are using a dash mat it will definitely all but block out the tweeters entirely even with the little holes cut into it.....



_________________

Do it once, Do it right!!!!!!

Top
 Profile


Posted: Thu Jun 29, 2006 10:06 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 967

Joined: 8th Nov 2004

Gallery: 7 images

Ride: TE50

Location: Brisvegas
QLD, Australia

Darkr wrote:
I swear you can't even hear the tweeters in the EF, though maybe thats becasue of the dash mat.

Interesting to know the crossovers are there, thanks.


Yeh ive just taken my dash matt off and the tweeters in my Ef sound a lot better.

Its important tho to have your system tuned well as well tho to get the most out of them



_________________

Formerly SpuDEF

Top
 Profile
