19" rims added. rubbing on control arm thingy?



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 9:39 pm
Oompa Loompa
Offline

Age: 29

Posts: 46

Joined: 13th Jul 2012

Gallery: 3 images

Ride: 97'eL Futura

Location: Adelaide
SA, Australia

hey guys i just bought pre au dark agent rims. and tried to chuck them on today. the rears were fine. but when i went to put the front ones on. i seen that they just about rub on the control arm thing yi believe it is. and if i drive it i don't wanna be taking chunks out of the brand new tires. i think ill need spacers but am unsure on what size or anything as i don't want them to then rub on the guards. anyone had this problem?
Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 9:54 pm
Technical Contributor
Offline

Age: 66

Posts: 6815

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Are you sure they are E series offset, ie 6mm. AU rims will fit the rear with no issue but will foul on the suspension on the front.
Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 9:56 pm
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

what profile are the tires?



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 10:14 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

My Drift R's miss the upright by only millimeters and I still had to roll the guards because they hit... I am very low but and the rims 8.5" wide with 235's on them...

I assume you are talking about the upright? Pretty hard for a wheel to hit on the control arms...

You say just about rub... If it doesn't actually touch the upright then this is right... If it does touch the upright then it's wrong... As I said mine are very very close to the upright but nothing there can flex to let the wheel actually touch the upright, and if it does then something larger has unfolded and the wheel rubbing on the upright would be the least of my worries...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 10:30 pm
Oompa Loompa
Offline

Age: 29

Posts: 46

Joined: 13th Jul 2012

Gallery: 3 images

Ride: 97'eL Futura

Location: Adelaide
SA, Australia

The profile is 245/35/19 and there not quite touching but they are so close. few other people have said its fine but im not quite sure.

cheers. steve
Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 10:40 pm
Oompa Loompa
Offline

Age: 29

Posts: 46

Joined: 13th Jul 2012

Gallery: 3 images

Ride: 97'eL Futura

Location: Adelaide
SA, Australia

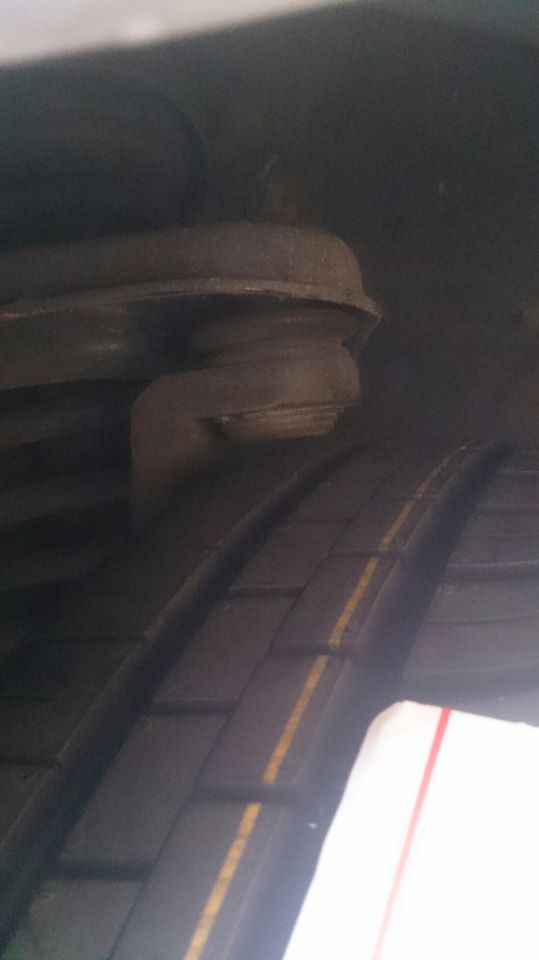

here is a photo of it





Attachments:
steve.jpg [ 35.28 KiB | Viewed 750 times ]
Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 10:44 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4583

Joined: 30th Aug 2010

Ride: BF XR6,

Location: NEWCASTLE
NSW, Australia

Its fine. I was running a 245 30 20inch tyre on my bf and it has similar gap but its fine nothing around there moves to rub on the tyre



_________________

BF XR6
xr8 snorkel,typhoon lower snorkel,territory intake pipe,20% underdrive kit,pacemaker extractors,high flow cat,xforce exhaust,t56 conversion hd turbo clutch/ flywheel,m86 3.45 lsd,custom tune187.1rwkw as an auto

Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 10:45 pm
Oompa Loompa
Offline

Age: 29

Posts: 46

Joined: 13th Jul 2012

Gallery: 3 images

Ride: 97'eL Futura

Location: Adelaide
SA, Australia

cheers mate.
Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 10:55 pm
Technical Contributor
Offline
User avatar

Age: 34

Posts: 3714

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I have more gap on my 17's between them and the ball joint... Does a circumference this big throw your speedo out much?

I have similiar gap to the grease nipple hanging out the bottom of my top ball joint... Aftermarket ball joints and they seem to have grease nipples now... Something to keep in mind when they need replacing... Then you may find trouble...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Tue Sep 17, 2013 11:07 pm
Oompa Loompa
Offline

Age: 29

Posts: 46

Joined: 13th Jul 2012

Gallery: 3 images

Ride: 97'eL Futura

Location: Adelaide
SA, Australia

i was just a bit worried haha. seems like it should be alright.

as for throwing out the speedo much. im not to sure yet as ive only just got the rims. mate used a site to test that stuff and said it should only throw it out by about 1km. so that's not to bad.

cheers steve,
Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Wed Sep 18, 2013 7:25 am
Getting Side Ways
Offline

Age: 35

Posts: 2563

Joined: 19th Feb 2007

Gallery: 21 images

Ride: 98 EL Futura

Power: 199 rwkw

Location: Lilydale
VIC, Australia

With 245/35/19 you should be ok with the upright. You will have to roll the guard though.



_________________

EL Futura: CVE head, Wolf V500, ICE Ignition and Coil, 36lb injectors, Walbro 255lb, Paci comps, 3" exhaust, T5, Harrop Truetrac with 3.9s. Now with 198.9rwkw, (~185rwkw and 13.80 @99.1mph) with more power to come

Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Wed Sep 18, 2013 11:29 am
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

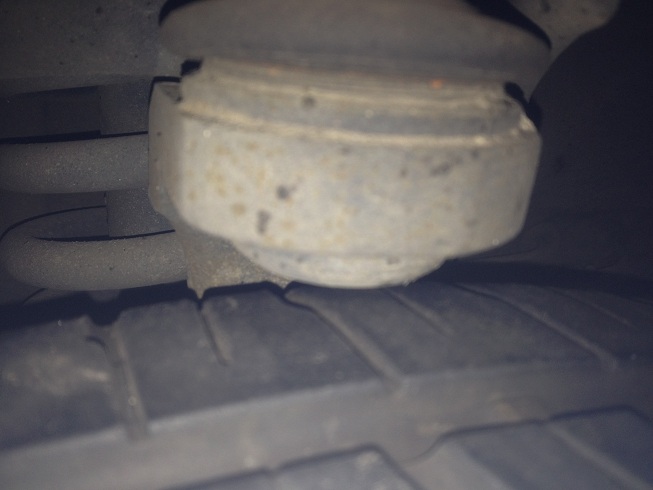

I did the exact same thing, 19" Pre Au Agents and yeah it's close but it wont hit. I have done maybe 3000ks with them and no issues. For piece of mind when I need new tyres ill go for 235 instead of 245 but none the less they are fine





Attachments:
IMG_0481.JPG [ 61.24 KiB | Viewed 368 times ]



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Wed Sep 18, 2013 12:49 pm
Oompa Loompa
Offline

Age: 29

Posts: 46

Joined: 13th Jul 2012

Gallery: 3 images

Ride: 97'eL Futura

Location: Adelaide
SA, Australia

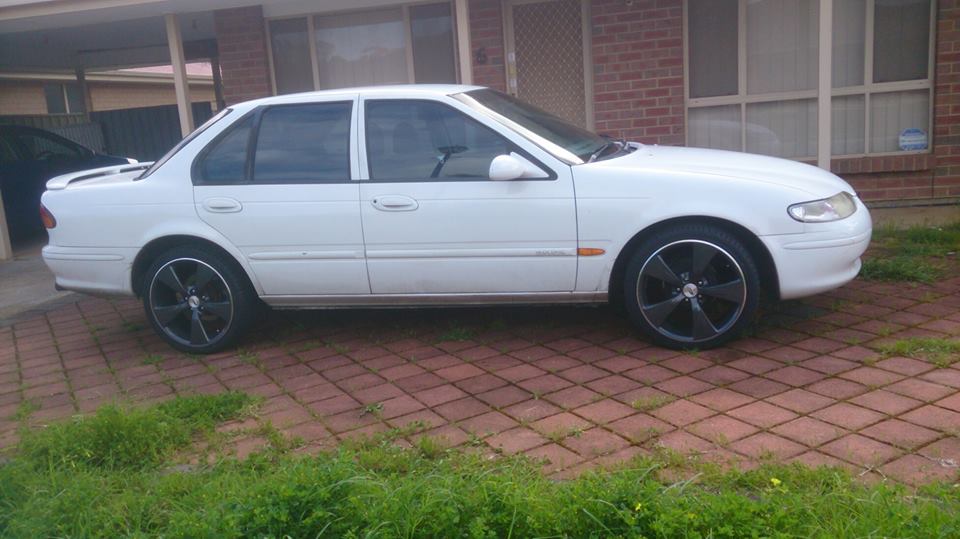

sweet cheers bud. just finished putting them on. love it. quick question did you need to roll the guards or was it fine? is yours lowered?





Attachments:
File comment: what it looks like now. not sure on lows or superlows. think lows will be fine
new rimssss.jpg
new rimssss.jpg [ 75.03 KiB | Viewed 240 times ]
Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Wed Sep 18, 2013 12:52 pm
Getting Side Ways
Offline
User avatar

Posts: 901

Joined: 28th Apr 2011

Gallery: 18 images

Ride: 1997 EL XR6

Power: 180 rwkw

Location: Melbourne
VIC, Australia

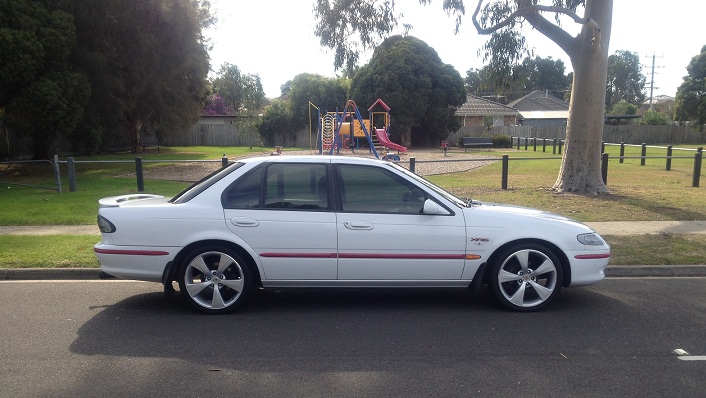

Nah mine guards are not rolled, they don't hit or anything but I will get them done once I get coilovers. I just have standard XR suspension, which by the looks of it is a bit lower then yours.





Attachments:
IMG_0485.JPG [ 118.91 KiB | Viewed 263 times ]



_________________

MGW Short Throw Shifter, CVE Cam, CVE Head, SS Big Mouth Air Intake, Pacemaker Headers, 3" Exhaust, 3" Varex, 3" Cat, 19" Silver Agents, EMS Stinger 4424, 42lb Injectors and Walbro 255lb Fuel Pump

Next: Pacemaker Comps, 6 Individual Throttle Bodies, ICE Coil and ignition

Top
 Profile


 Post subject: Re: 19" rims added. rubbing on control arm thingy?
Posted: Wed Sep 18, 2013 12:56 pm
Oompa Loompa
Offline

Age: 29

Posts: 46

Joined: 13th Jul 2012

Gallery: 3 images

Ride: 97'eL Futura

Location: Adelaide
SA, Australia

yeah. im liking the silver agents on it. looks sweet as.
i dont like how high mine sits haha. its terrible. not to sure on whether lows will be fine or to go superlows thoughts?

cheers
