A dozen driving lights?



Page 1 of 2 [ 24 posts ] Go to page 1, 2  Next


 Post subject: A dozen driving lights?
Posted: Sun Jan 20, 2008 11:05 pm
Parts Gopher
Offline
User avatar

Age: 28

Posts: 66

Joined: 22nd Feb 2006

Gallery: 4 images

Ride: AUII Ghia TS50 Wannabe

Location: Melbourne
VIC, Australia

Im looking to fit aroundabout' a dozen driving lights, maybe two :twisted: to my F350. Anyone have any suggestions, say wiring, or more to the point, how many batteries would i be needing?
Top
 Profile


Posted: Mon Jan 21, 2008 12:24 am
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Why so many lights?
Top
 Profile


Posted: Mon Jan 21, 2008 7:36 am
Smokin em up
Offline

Age: 28

Posts: 222

Joined: 4th Jan 2008

Ride: 5sp ef

Location: mildura
VIC, Australia

so if people flash him he can burn their eyes out!!



_________________

MINITRUCKS
xcabbi wants one

Top
 Profile


Posted: Mon Jan 21, 2008 8:55 am
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

Or light up the MCG in a blackout.
Top
 Profile


Posted: Mon Jan 21, 2008 9:29 am
Getting Side Ways
Offline

Age: 36

Posts: 3794

Joined: 9th Aug 2005

Ride: Hilux

Location: Mornington
VIC, Australia

or maybe because hes victorian



_________________

Now driving a Hilux

Top
 Profile


Posted: Mon Jan 21, 2008 11:58 am
Oompa Loompa
Offline

Age: 34

Posts: 34

Joined: 22nd Nov 2006

Ride: XF

Location: Perth
WA, Australia

Unless you need to be able control exactly which lights are on at a given time, get some big relays and thick cable. Hook up a single switch that comes off the high beam wire to control your relays (maybe stick some fuses in there somewhere as well).

Batteries aren't important unless you intend to run the lights with the engine off (turn your lights off while trying to start the car). You will need a big alternator.

Find the total wattage you are using (say you have 8 x 100w lights = 800watts)

800watts /12volts = 67amps

add 20-60amps for the rest of your car = 90-130 amps
and add a safety margin, so 100-150amps

If your alternator isn't up to scratch you can get it rewound or replace it with a bigger one. I have heard of people using multiple alternators although that comes with it's own set of problems.
Top
 Profile


Posted: Mon Jan 21, 2008 12:11 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 556

Joined: 10th Dec 2006

Gallery: 4 images

Ride: EAII Falcon S

Location: Brisbane
QLD, Australia

80w alternator and dual batteries is a hastle free setup :)



_________________

Speed Safely! ;-)

Top
 Profile


Posted: Mon Jan 21, 2008 2:02 pm
Parts Gopher
Offline
User avatar

Age: 28

Posts: 66

Joined: 22nd Feb 2006

Gallery: 4 images

Ride: AUII Ghia TS50 Wannabe

Location: Melbourne
VIC, Australia

Well its an old 80's 350, Seventh Gen, 351 V8, the lights in question, there are two main reasons for the lights.

First. The bragging rights, the OVER practicality of it and the use of portable floodlights.

Second. For a bit of fundraising with ZS

It will look amazing and im going to upload pics when im done

Its supposted to look dodgy, out of place and very post-apocalyptic, the survivors truck

Anyother suggestions? Open to all critism and opinions :twisted:





Attachments:

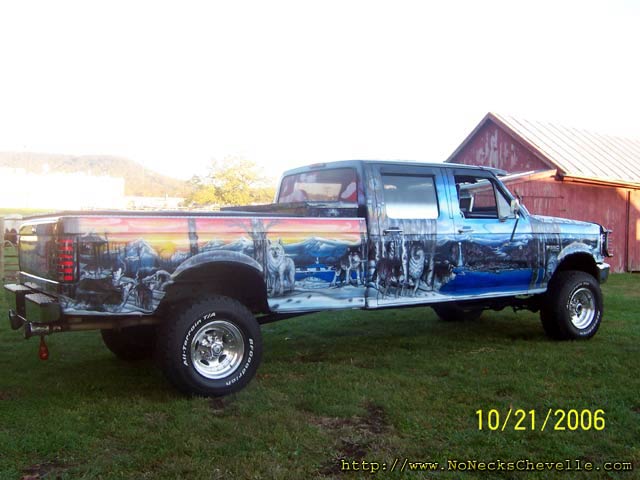

File comment: Imagine this without the eccentric paintjob - replace with a matte black job, a big black bullbar followed with just about every trim black, rims included. Roof rack mounted lights aswell as bullbar mounted.
Bill97FordF350b.jpg [ 44.52 KiB | Viewed 62 times ]
Top
 Profile


Posted: Mon Jan 21, 2008 3:18 pm
Technical Contributor
Offline

Age: 50

Posts: 3227

Joined: 12th Feb 2007

Gallery: 10 images

Ride: Falcon

Power: 113 rwkw

Location: your mums
NSW, Australia

to start with you will need a few Delco big amp alts and a big a** bracket to hold them and a few extra pulleys and belts and some mother sized relays. And look into a few batteries to go with it, not a easy task and not cheap.

this will give you an idea















_________________

BANNED

Top
 Profile


Posted: Mon Jan 21, 2008 3:33 pm
Oompa Loompa
Offline

Age: 34

Posts: 34

Joined: 22nd Nov 2006

Ride: XF

Location: Perth
WA, Australia

If you want literally 2 dozen high power lights, then you might need a setup similar to those ^^^^.

If you just want 6-12 lights (6 HID lights will put out more light and use less power than 1-2 dozen standard incandescent bulbs) you should get away with a single rewound or aftermarket alternator.

Running multiple alternators would make the job much more complex.
Top
 Profile


Posted: Mon Jan 21, 2008 3:36 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 5889

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: '14 Grand Cherokee

Location: Port Lincoln
SA, Australia

heydonms wrote:
If you want literally 2 dozen high power lights, then you might need a setup similar to those ^^^^.

If you just want 6-12 lights (6 HID lights will put out more light and use less power than 1-2 dozen standard incandescent bulbs) you should get away with a single rewound or aftermarket alternator.

Running multiple alternators would make the job much more complex.


the good HID ones cost about a grand for a pair though :shock:



_________________

11/93 ED OPT20 GLi | Full Boat Spec

Top
 Profile


Posted: Mon Jan 21, 2008 3:44 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1132

Joined: 11th Jun 2006

Gallery: 1 images

Ride: ef fairmont,

Location: brisbane
QLD, Australia

trick is relays and corect wiring , wire them in pairs of the relay work it like this

2 lights = 1 relay
4 lights= 2 relays
6 lights =3 relays
and so on , as described before work out how many amps will be drawn ussing the watts devided by 12volts , run a inline fuse on each set of lights ,suggest to at least run dual batteries , if confused talk to your local auto lecy , nice looking truck btw



_________________

95 ef montfor sale pm for info, 88 hilux mud truck

Top
 Profile


Posted: Mon Jan 21, 2008 3:50 pm
Oompa Loompa
Offline

Age: 34

Posts: 34

Joined: 22nd Nov 2006

Ride: XF

Location: Perth
WA, Australia

There are some available for around the $600 but yeah good ones are around the $1000 mark, conversion kits would be slightly cheaper but may not be quite as tidy.

All up I suspect that the cost of decent HID lights would be cheaper than the equivalent in normal lights (with a shorter bulb life), extra alternators, extra batteries, load balancing circuitry (to allow for different voltages out of the alternators, etc) and the extra fuel required to power everything.

Plus they would be smaller, lighter, easier to install and produce a whiter light.
Top
 Profile


Posted: Mon Jan 21, 2008 7:28 pm
Parts Gopher
Offline
User avatar

Age: 28

Posts: 66

Joined: 22nd Feb 2006

Gallery: 4 images

Ride: AUII Ghia TS50 Wannabe

Location: Melbourne
VIC, Australia

Way too expensive. Incandescent lights is the way, i have myself a 351 windsor v8, plenty of output.

I dont forsee any problems in keeping charge, i have one truck battery in the garage, looking at getting another one, and looking at heavy duty alternators

hmm

We shall see anyone know of any good brands? - Looking at truck alternators at the moment... Delco Remy is one im under the impression is powerfull 12v 95A, but not sure if its still going to be enough

Thanks for your input guys

Any other suggestions? Even about the truck in general? :twisted:
Top
 Profile


Posted: Mon Jan 21, 2008 9:46 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

I run 6 130w spotlights on my XH. These run a 110amp alternator standard. When you actually think about what you are trying to do what I am about to say will make sense.
If you run a second battery, which is isolated from the first, use this battery to power the lights. That way you still have the first battery to run your standard lights. Also, you will find it very rare that this will actually happen. This is simply because it will be unusual for the spotlights to be on for the hour or so that it will take to run the battery flat with the vehicle at idle. I also run sidelights and various other lights and have never ran the battery flat with the lights. I think the total draw we worked out one night over a can or three was about 78 amps (that was before the last spending spree at Jaycar :twisted: ). That was without the engine management system, stereo and other bits and pieces: primarily the lights.
Anyway, IMHO if the charge system is setup with a bit of thought and attention to detail, a second alternator is not really necessary.



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat
