 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Thu Feb 12, 2009 10:14 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

finished!!!....


here's go's.....

1) went to "carmate" at villawood..
2) baught a $200 4 led angel eye kit.. 2x 4 inch rings 2x 6 inch rings..
3) removed the front bumper..
4) removed the crash protection egg grate style black plastic sh*t from the support bar..
5) four 10 mm bolts hold each head light.. unplugged the looms and put she came...
6) pre heated the oven to 80 degree's celcius..
7) popped each headlight in for 5 minutes.. (1 at a time)
8) pried the lenses off easily with 2 screw drivers.. rubber glue is super melty..
9) used an instant dry superglue that dries clear to glue the bottom of the ring to the chrome lense.. (gaffa tape holds them in their place while the glue is setting..)
10) pulled the angel eyes wires through the rubber boot that covers the "driving light globe)
11) 2 small holes were drilled in the back of the headlight to attach the "power box" that powers the angel eye's..
12) the box is 12v powered.. -i spliced the wires into the positve and negative wires that power the small parking lights.. -great for dusk/dawn driving with them on without having to have your headlights on..
13) solder'ed the spliced wire's and cover'ed them with electrical tape....
14) re-installed the headlights back into place..
15) re-installed the bumper back into place..

DONE... looks awesome!...





Attachments:

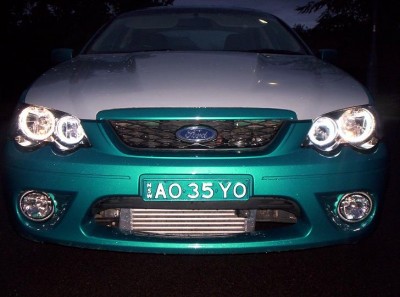

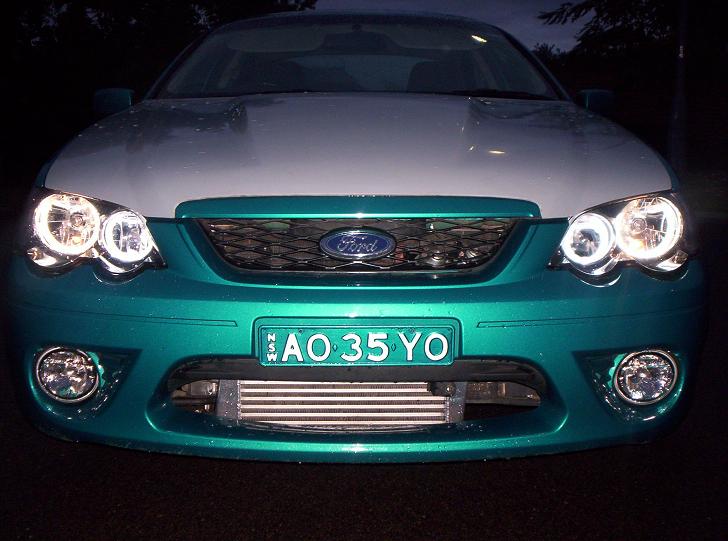

angel eye mod on my bf xr Turbo headights.. 009.jpg
angel eye mod on my bf xr Turbo headights.. 009.jpg [ 27.02 KiB | Viewed 47 times ]

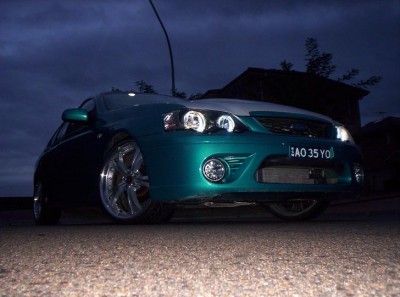

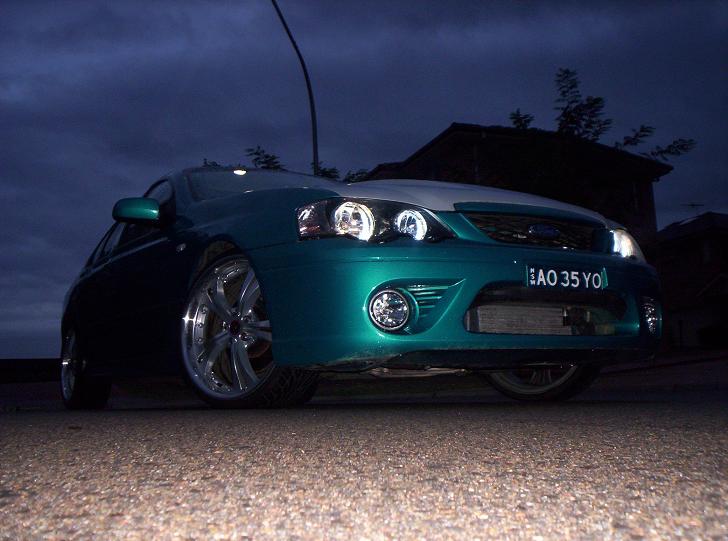

angel eye mod on my bf xr Turbo headights.. 011.jpg
angel eye mod on my bf xr Turbo headights.. 011.jpg [ 60.44 KiB | Viewed 39 times ]

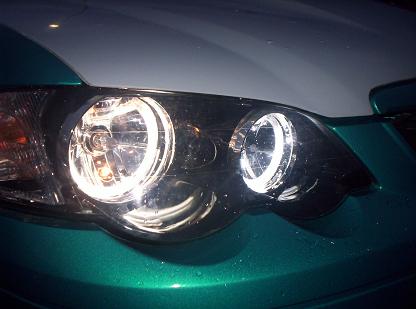

angel eye mod on my bf xr Turbo headights.. 010.jpg
angel eye mod on my bf xr Turbo headights.. 010.jpg [ 66.03 KiB | Viewed 31 times ]



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Thu Feb 12, 2009 10:31 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

can you see them when the headlights are on normal beam?
Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Thu Feb 12, 2009 10:35 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

FordFairmont wrote:
can you see them when the headlights are on normal beam?

yes... you certainly can.. as high beams is not on when just "normal driving lights are switched on:.. and the headlights themselved help illuminate the rings too!... :D



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Fri Feb 13, 2009 10:43 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 617

Joined: 18th Mar 2008

Gallery: 4 images

Ride: BAII XR6T

Location: Silverdale
NSW, Australia

looks the goods in real life man, just gotta change the parkers! 8-)



_________________

FOR SALE BAII XR6 TURBO

Build Thread StrawbZ AU XR6 & BAII XR6T

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Fri Feb 13, 2009 10:52 pm
Oompa Loompa
Offline
User avatar

Posts: 20

Joined: 11th Jan 2007

Gallery: 7 images

Ride: FG XR8 09

Location: Melbourne
VIC, Australia

Wow thats cool I got a Ef but looks like im falling in love with the Ba.

Cool Stuff.



_________________

FORD Falcon EFII 4L SOLD Enjoying My New FG BOSS 290 Now...

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Sat Feb 14, 2009 4:18 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

StrawbZ wrote:
looks the goods in real life man, just gotta change the parkers! 8-)

will be doing soon!...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Sun Feb 15, 2009 9:16 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Wow. This mod is awesome. I'm inspired.

Lukeyson
Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Sun Feb 15, 2009 11:55 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

2 x 4" and 2 x 6"? Are you sure?

Poking around myself with a ruler, I can see how the high-beam lenses might be 10cm, but the low beams only seem to get to 13cm for me. Your 6" is closer to 15. Did they have to be cut down or are the low-beam lenses actually 15cm?

Looking at this auction I can see 6, 8, 10 and 13cm options, but nothing for 15cm.... : http://cgi.ebay.com.au/ws/eBayISAPI.dll ... 0359841890


Lukeyson
Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Mon Feb 16, 2009 12:22 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

the driving lights.. (bigger angel eye's picture'd may be closer to 5 inches tahn thew full 6... )



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Sat Mar 07, 2009 11:26 pm
Oompa Loompa
Offline
User avatar

Age: 44

Posts: 32

Joined: 1st Dec 2005

Ride: BA XR8

Location: Canberra
ACT, Australia

Can you post some pics during the day so we can see how they look in daylight?

Was your kit a CCF tube, or acrylic with cuts?
Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Mon Mar 09, 2009 5:33 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

genebaby wrote:
Can you post some pics during the day so we can see how they look in daylight?

Was your kit a CCF tube, or acrylic with cuts?


acrylic with cuts... im sure...

see what i can do with pics later on... -i live away from the computer as i moved out of home 2 weeks ago...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Fri Mar 13, 2009 2:04 pm
Getting Side Ways
Offline
User avatar

Posts: 2772

Joined: 27th Jan 2005

Gallery: 11 images

Ride: BOXCAR (Not some sorry ass EF/EL

Location: Mackay, Far North New South Wales.
QLD, Australia

A little off topic, but not really, but still a bit. Can any one tell me who here had put BA headlight assemblies into an EB-ED? I remember seeing the thread but searchy no work. I can search by user name but. I would love to do that to mine with some Angel eye's.



_________________

The artist formerly known as seton005 (and allegedly The_Murph).

When I was growing up, we were so poor we could'nt even afford to pay attention.


Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Fri Mar 13, 2009 2:20 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

AKO wrote:
A little off topic, but not really, but still a bit. Can any one tell me who here had put BA headlight assemblies into an EB-ED? I remember seeing the thread but searchy no work. I can search by user name but. I would love to do that to mine with some Angel eye's.

cant remember the user name.. but it was that gold ea fordmodder right??



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Fri Mar 13, 2009 4:09 pm
Getting Side Ways
Offline
User avatar

Posts: 2772

Joined: 27th Jan 2005

Gallery: 11 images

Ride: BOXCAR (Not some sorry ass EF/EL

Location: Mackay, Far North New South Wales.
QLD, Australia

Not really that sure. My memory isnt what it used to be.

Also my memory isnt what it used to be.



_________________

The artist formerly known as seton005 (and allegedly The_Murph).

When I was growing up, we were so poor we could'nt even afford to pay attention.


Top
 Profile


 Post subject: Re: angel ayes / now half installed!!!!!! pics P2
Posted: Tue Mar 17, 2009 12:59 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 308

Joined: 9th Apr 2006

Gallery: 5 images

Ride: R33

Power: 142 rwkw

Location: Pennant Hills, Sydney
NSW, Australia

EA2BA i think?



_________________

R33 GTS-T - 222.6rwkw
EF - 142rwkw

Top
