 Post subject: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Feb 26, 2010 1:52 am
Fordmods Newbie
Offline

Age: 32

Posts: 1

Joined: 24th Feb 2010

Gallery: 8 images

Ride: 1994 ED XR8, 1963 Ford Fairlane

Location: hamilton
New Zealand

I have purchased a fiberglass bonnet bulge (power Bulge) to fit onto my ED XR8, and was just wondering if anyone knows or has done this before and could please help with info on how to attach this to my car, any help would be most apprechiated :)

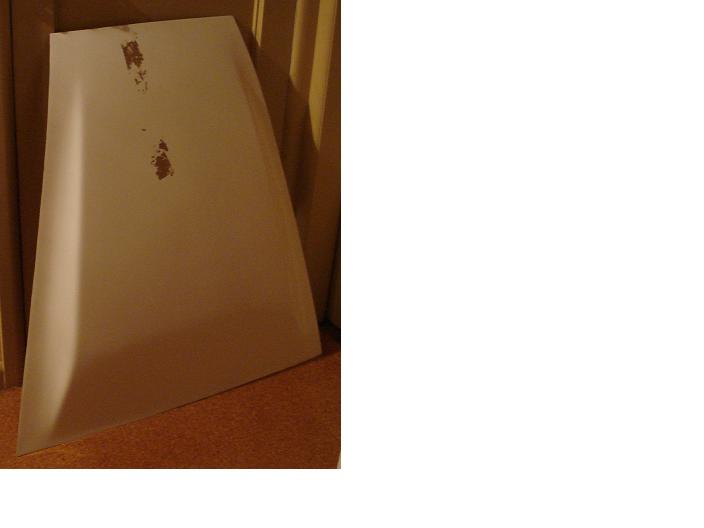

Attachment:
File comment: Bonnet Bulge
Power Bulge.JPG
Power Bulge.JPG [ 17.33 KiB | Viewed 126 times ]

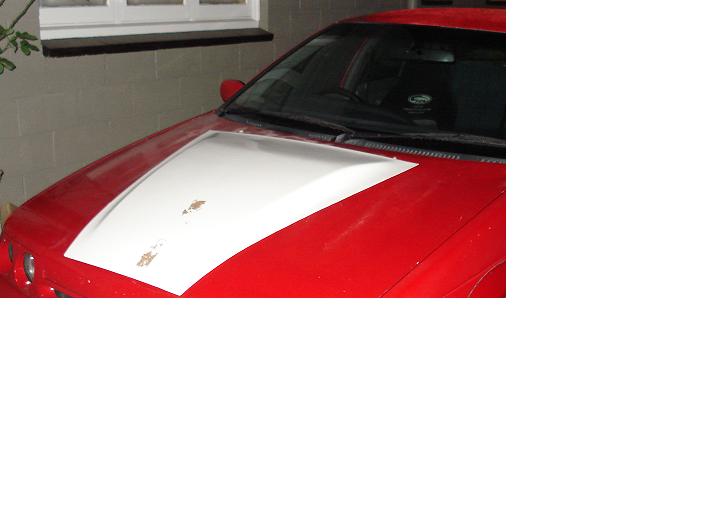

Attachment:
File comment: Sitting on Car
Bulge on Car.JPG
Bulge on Car.JPG [ 22.01 KiB | Viewed 170 times ]
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Feb 26, 2010 9:12 am
Oompa Loompa
Offline

Age: 40

Posts: 48

Joined: 14th Oct 2008

Location: Clifton Springs
VIC, Australia

I started a thread here to see if I could get 10 people interested in a full custom fibreglass bonnet with a bulge for ea/eb/ed which is the best option but didn't get enough interest.

To fit it to a normal bonnet it has to be graphed on and from the few people I know that have done this they have had dramas with it cracking and ruining there paintwork within 6 months of it being done.

If you help me find 10 people I can have the full fibreglass bonnet version available for $800 each. If we can't get atleast 10 people then the manufacturer wants $6000 to build the mould to manufacture them but for 10 or more he is willing to not charge for the mould.
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Feb 26, 2010 9:29 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

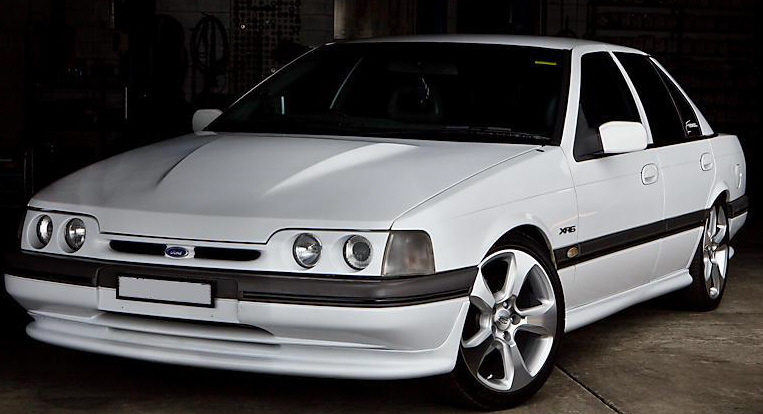

or better again!!
a steel grafted bonnet is the way to go...if you can find a damaged xr8 one thats still usable!!!





Attachments:
IMG_9180_web.JPG [ 130.25 KiB | Viewed 382 times ]
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Feb 26, 2010 11:30 am
Oompa Loompa
Offline
User avatar

Age: 24

Posts: 41

Joined: 10th Nov 2008

Ride: EL XR6

Location: Perth
WA, Australia

Ive helped fit these to several PPG automotive paint rep cars and they all have cracked within 6 months, Guy doing em at work was old fellla a knows most his s**t :)



_________________

1998 EL XR6.. 1975 XB Wagon,302,4 Speed Manual.. 2006 BF XR6T

Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Feb 26, 2010 12:14 pm
Stock as a Rock
Offline

Age: 26

Posts: 196

Joined: 11th May 2008

Location: Mt Barker
SA, Australia

Steel grafting is the strongest but also the most expencive. The labour is the filler there. Panel welding is not easy. SWC does it though. and on the subject, Troyman, What does you bonnet look like underneth?? Do you have the standed reforcement from the ED bonnet, or something else?
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Feb 26, 2010 2:43 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

phatEB wrote:
Steel grafting is the strongest but also the most expencive. The labour is the filler there. Panel welding is not easy. SWC does it though. and on the subject, Troyman, What does you bonnet look like underneth?? Do you have the standed reforcement from the ED bonnet, or something else?

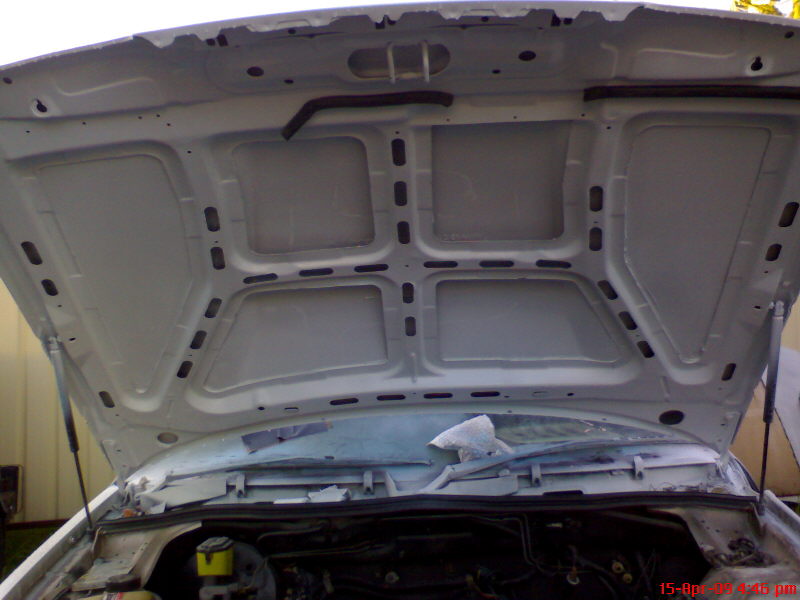

i still have the std re enforcement, the bonnet is still nice and ridged..
i was a little concerned at first about having no support directly under the bulge it self, but its been close to a year and no problems, the bulge has even been engineered with the car...
Attachment:
DSC01371.JPG [ 64.53 KiB | Viewed 133 times ]
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Feb 26, 2010 3:46 pm
Stock as a Rock
Offline

Age: 26

Posts: 196

Joined: 11th May 2008

Location: Mt Barker
SA, Australia

That is a good job, I thought of cutting the renforcement bracing and sticking it to the buldge then welding some bracing from the factory bracing to the bulge bracing. Like the BA/BF V8's
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Tue Apr 27, 2010 9:28 pm
Oompa Loompa
Offline

Age: 29

Posts: 39

Joined: 27th Mar 2010

Gallery: 15 images

Ride: BF XR6

Location: Raymond Terrace
NSW, Australia

Neilo77 wrote:
I started a thread here to see if I could get 10 people interested in a full custom fibreglass bonnet with a bulge for ea/eb/ed which is the best option but didn't get enough interest.

To fit it to a normal bonnet it has to be graphed on and from the few people I know that have done this they have had dramas with it cracking and ruining there paintwork within 6 months of it being done.

If you help me find 10 people I can have the full fibreglass bonnet version available for $800 each. If we can't get atleast 10 people then the manufacturer wants $6000 to build the mould to manufacture them but for 10 or more he is willing to not charge for the mould.


I got a fibreglass boss bonnet for 650 bucks cost me 950 to get painted and within 4weeks it had bubbled and the paint peels off and the paint rep told me it was release agents in the fibreglass itself that was causing it to happen is this tru?



_________________

BF XR6 4SP AUTO BOSS BONNET SUPER SUPER LOW KING SPRINGS SEXY GRILL AND RED XR BADGES MMM DELICIOUS

Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Thu May 06, 2010 6:07 pm
Parts Gopher
Offline

Age: 26

Posts: 76

Joined: 26th Jan 2009

Ride: BA XR8, EF Gli (wrecking)

Location: Canberra
ACT, Australia


thats mine, from phat customs.

for fitting it was pop riveted onto the bonnet then smoothed out with i dunno what



_________________

BA XR8 - Daily driver
boosted EF xr6 - sold
EF Gli - Wrecking - PM me for any parts (whole car available)

Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Thu May 06, 2010 9:06 pm
Technical Contributor
Offline

Age: 60

Posts: 6817

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Contact me via PM and we will see what can be done.
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Wed May 19, 2010 9:03 pm
Oompa Loompa
Offline

Age: 32

Posts: 24

Joined: 4th May 2010

Ride: AU Falcon & EA Falcon

Location: Kingaroy
QLD, Australia

I got exactly the same on my ea project car.... I had it profesionally grafted on and sure enough within 6 months it cracked all the corners. I have taken it back to the guy I done it with and he seems to think that what has happened is that the air trapped under the bulge expanded with heat at this is why it has cracked. He refitted it for me ( for free) and used a hole saw and cut out a aprox 10cm hole neatly disguised under the hole in the brace of the under bonnet. He said this should releave and pressure thus stopping the air expanding and stopping it cracking.
This has been done aprox 2 months ago so fingers crossed.
Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Dec 16, 2011 12:53 pm
Stock as a Rock
Offline
User avatar

Age: 24

Posts: 130

Joined: 27th Jul 2011

Gallery: 2 images

Ride: 93 ed fairmont ghia

Location: Bulli
NSW, Australia

TROYMAN wrote:
or better again!!
a steel grafted bonnet is the way to go...if you can find a damaged xr8 one thats still usable!!!


that looks sweeet!! how did you get a steel grafted one, are the stock ones steel and therefore needing to get a wrecked xr8? would definatly consider it in a steel one if it would resist cracking and what-not.



_________________

ED Fairmont Ghia. t5 conversion w h/d exedy, 3:45:1 lsd, pacemaker extractors, 2.5" custom exhaust, waggott cam,K&N high flow panel filter, TI performance chip w/ 4 tune switch(2 ED, 2 EL tunes) king 18's, el thermo fan w/ Davis Craig switch. 5000K hids,led lighting, doof box in boot.

Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Dec 16, 2011 12:59 pm
Parts Gopher
Offline

Posts: 85

Joined: 9th Jun 2009

Ride: ef 2 fairmont ghia

Location: melbourne
VIC, Australia

id get rid of the fibreglass bulge and get a genuine steel bonnet. Weld it in place and it will never come off.

Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Dec 16, 2011 1:04 pm
Getting Side Ways
Offline
User avatar

Age: 46

Posts: 3763

Joined: 25th Nov 2004

Gallery: 6 images

Ride: EFII 5.8 NOS TerroristGhia

Power: 274 rwkw

Location: Sydney Australia
NSW, Australia

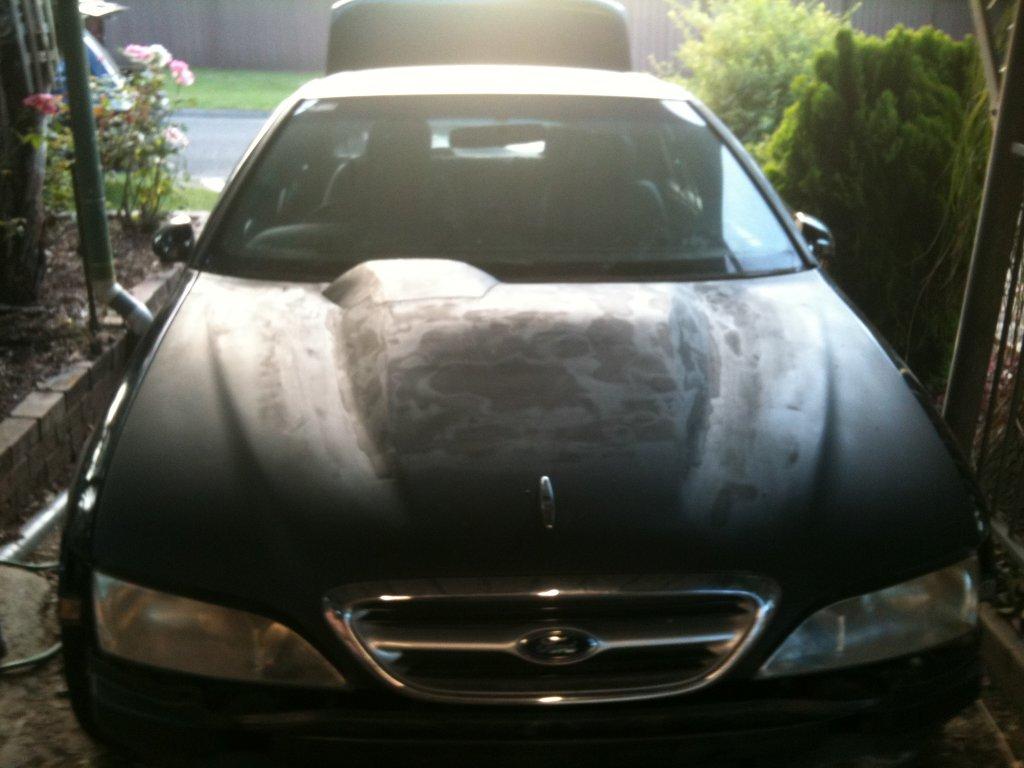

Not all fibreglass ones crack. Heres mine again done by SWC





Attachments:
After.jpg [ 81.02 KiB | Viewed 137 times ]



_________________

The Terrorist ED Retired due to RUST.
The TerrosistGhia, EF Ghia 351 EFI 5 Speed.
Millennium Falcon, Sleeper EL DOHC 6 Speed Manual EFI LPG
Member#1131
I didn't Vote for Multiculturalism, DID YOU!!!

Top
 Profile


 Post subject: Re: BA/BF Bonnet Bulge onto ED XR8
Posted: Fri Dec 16, 2011 1:08 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

c james wrote:
TROYMAN wrote:
or better again!!
a steel grafted bonnet is the way to go...if you can find a damaged xr8 one thats still usable!!!


that looks sweeet!! how did you get a steel grafted one, are the stock ones steel and therefore needing to get a wrecked xr8? would definatly consider it in a steel one if it would resist cracking and what-not.


its a bulge from a dammaged xr8 bonnet( genuine ones are all steel), the section was cut from the ed bonnet and the ba bulge was welded in its place.....
