Posted: Wed Mar 12, 2008 10:38 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Hehe. Yep, been there, done that too - snap one that is. The wonders of an accurately placed flatblade screwdriver....


Lukeyson
Top
 Profile


Posted: Thu Mar 13, 2008 1:39 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

Removing the center console is not as bad as it sounds.. once you've done it once it doesn't take all that long.



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Mon May 05, 2008 12:00 pm
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

Had another go at this on the weekend, I got SO CLOSE to the PRND selector but just couldn't remove the top layer of the console in order to get to it.

I removed all the console lid screws, the rear vents, the cup holder, all the screws/bolts around the gear selector, and the tissuebox holder. The top layer of the console came off at about a 30degree angle, but the upper part (covering the PRND thing) just wouldn't budge.

There's a chap on Ebay called roadboss01 who sells chrome BA Gear selector covers, like this:

http://cgi.ebay.com.au/ws/eBayISAPI.dll ... 0225888586

I PM'd him about removing the PRND gear selector in order to change to the chrome one, and he informed me that you don't need to remove the driver's seat, handbrake or entire console in order to get to it. He mentioned that you just need to 'loosen' the console slightly in order to get to it. Unfortunately, he was unable to provide any further info. Anybody got any idea about this? Cheers.
Top
 Profile


Posted: Mon May 05, 2008 4:07 pm
Getting Side Ways
Offline

Age: 30

Posts: 1798

Joined: 14th Jun 2006

Gallery: 7 images

Ride: FG 50th Anni G6E Turbo

Location: Melbourne
VIC, Australia

Macca wrote:
Be careful removing the plastic covers on the seat rails, the plastic is very brittle, don't rush taking them off.


Mine snapped becuase i lent the wrong way on it getting out of the car.. replaced it, then had to remove it to fiddle with the seat wires/electronics and snapped it again. Im leaving it broken this time... fkn tight a*** ford!
Top
 Profile


Posted: Fri May 16, 2008 12:04 am
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

Well guys, I gave this another shot tonight... and guess what... SUCCESS!!!

Also, I didn't have to remove the handbrake or driver's seat. I just had to loosen the console slightly and pop the PRND selector out.

It is illuminated by a single T5 globe. I replaced it with blue, and it looks awesome at night and matches the footwells and dash.

Pictures attached.





Attachments:

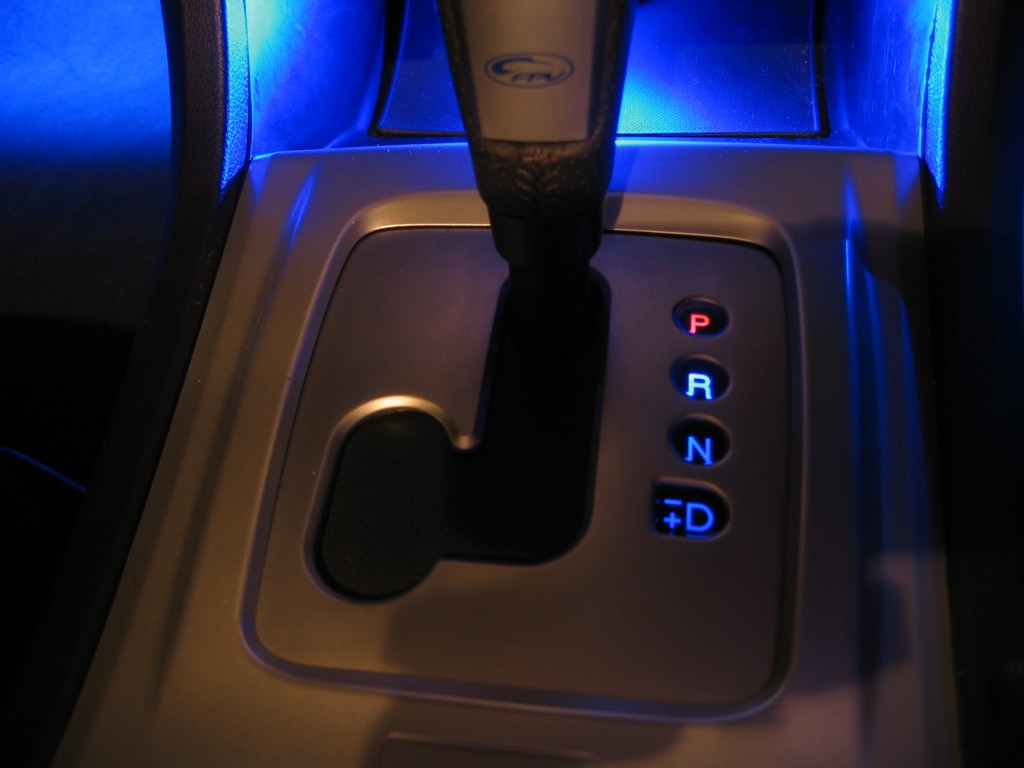

File comment: The final product. PRND in blue with red shadow for the current gear.
IMG_3724.JPG [ 79.46 KiB | Viewed 269 times ]

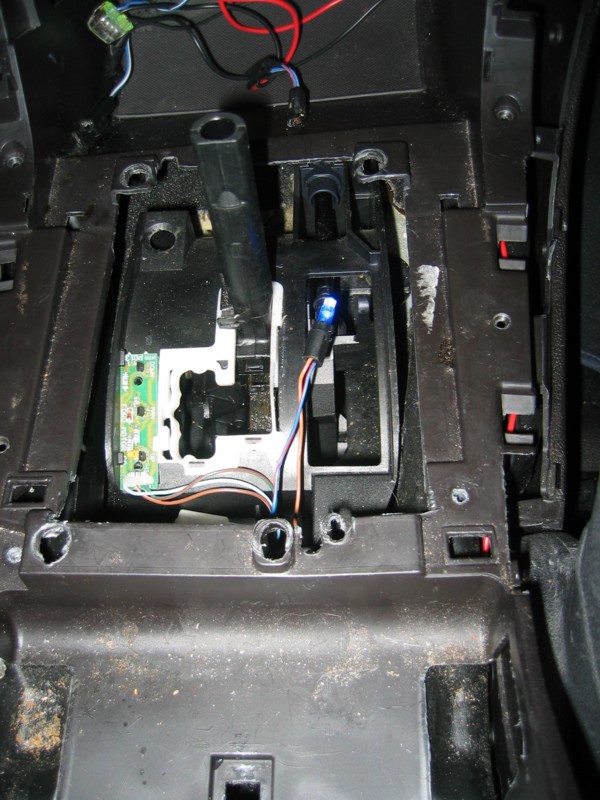

File comment: PRND selector removed with the new blue globe in its globe holder.
IMG_3716.JPG [ 122.84 KiB | Viewed 427 times ]
Top
 Profile


Posted: Fri Jun 20, 2008 8:30 pm
Smokin em up
Offline
User avatar

Posts: 290

Joined: 5th Mar 2007

Ride: BA XR6

Location: Adelaide
SA, Australia

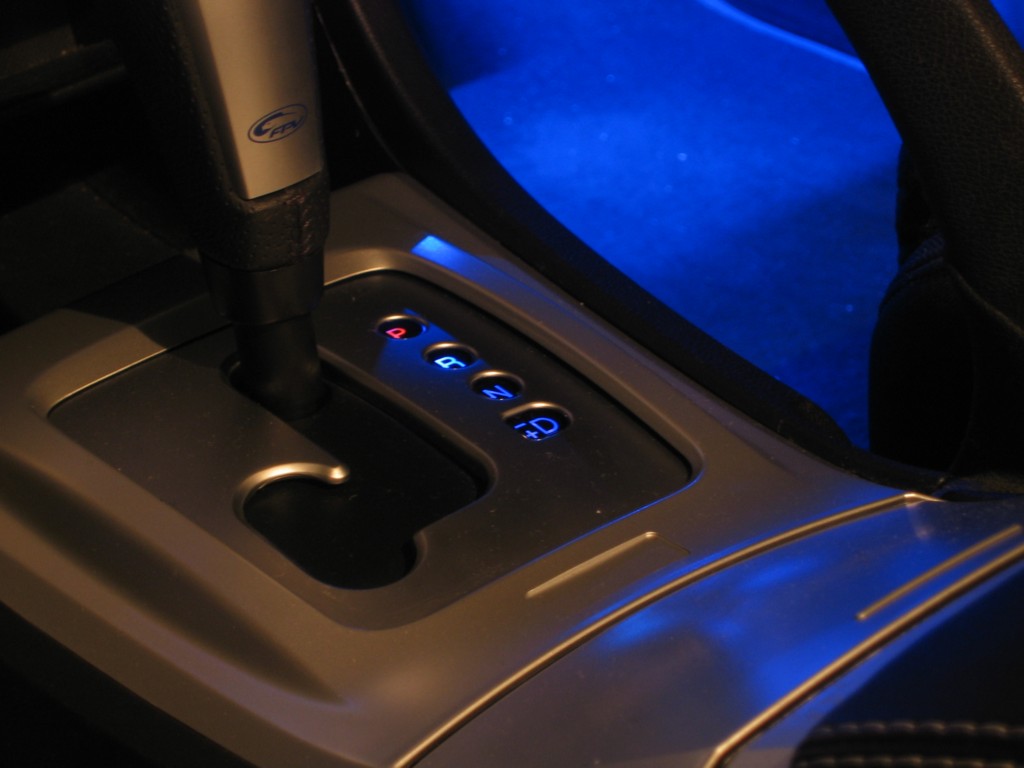

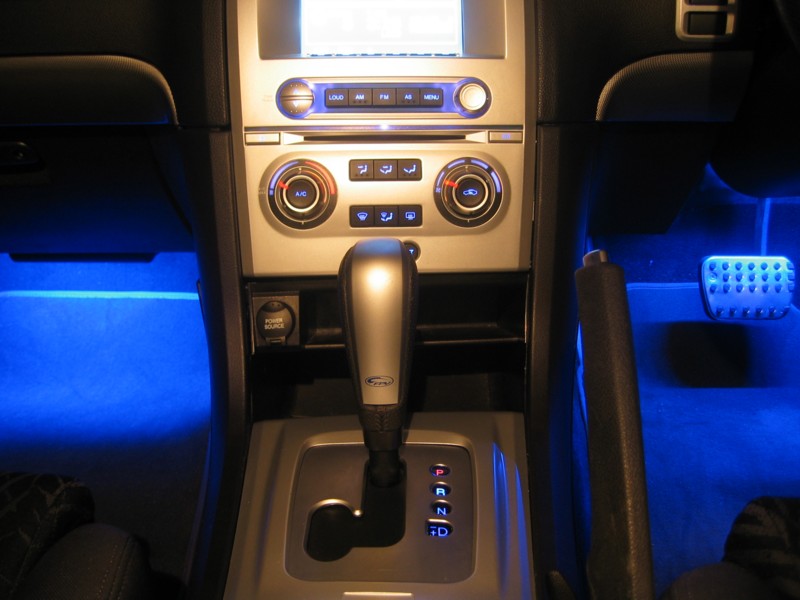

More pictures...





Attachments:
IMG_3748.JPG [ 90.99 KiB | Viewed 7865 times ]
IMG_3719.JPG [ 90.02 KiB | Viewed 7808 times ]
Top
 Profile


Posted: Fri Jun 20, 2008 9:30 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Wow. It does look good doesn't it.


Lukeyson
Top
 Profile


Posted: Fri Jun 20, 2008 10:09 pm
Stock as a Rock
Offline
User avatar

Age: 44

Posts: 129

Joined: 25th May 2005

Ride: BA XR6

Location: Melbourne
VIC, Australia

I apoligize to everyone, I have always said that a blue led wouldnt look quite right. I was wrong. I spose I can be wrong sometimes ;)

Matt



_________________

2004 Harvest Green XR6
Orsm Ford Cruisers
ORSM Ford Cruiser's Web Site

Contact me for Cluster Programming & Window switch colour change for BA/BF Falcons & Territory.

Top
 Profile


Posted: Fri Jun 20, 2008 10:36 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4401

Joined: 25th Mar 2005

Ride: BA XT, BA XR6T, ED Ghia 5.0

Location: Perth
WA, Australia

I like it too. Tempting..



_________________

What's the difference between a Holden and a sheep? It's less embarrasing getting out of the back of a sheep..

Top
 Profile


Posted: Fri Jun 20, 2008 10:38 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

aumatt wrote:
I apoligize to everyone, I have always said that a blue led wouldnt look quite right. I was wrong. I spose I can be wrong sometimes ;)

Matt


Nah mate. You're wrong about that. You're always right....


Lukeyson
Top
 Profile


Posted: Fri Jun 20, 2008 11:03 pm
Stock as a Rock
Offline
User avatar

Age: 44

Posts: 129

Joined: 25th May 2005

Ride: BA XR6

Location: Melbourne
VIC, Australia

LOL thanks mate



_________________

2004 Harvest Green XR6
Orsm Ford Cruisers
ORSM Ford Cruiser's Web Site

Contact me for Cluster Programming & Window switch colour change for BA/BF Falcons & Territory.

Top
 Profile


Posted: Sat Jun 21, 2008 12:25 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

The ZF uses surface mount LEDs for the white illumination (the little yellow ones). The 3mm round LEDs you see are for the red 'selected gear' illumination.


Also, to get to it

Pop off the surround (grab it from under the ICC and pull up).
Disengage the leather boot, by squeezing it's sides.
Grab a smallish screw driver, and jam it down the front of the shifter housing, to disengage the two clips, then it'll come off easily. Navigate the base of the leather boot around to get it off fully.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sun Aug 10, 2008 7:30 pm
Stock as a Rock
Offline
User avatar

Age: 59

Posts: 180

Joined: 8th Jul 2006

Gallery: 23 images

Ride: BFII Fairmont Ghia, Silver

Location: Melbourne
VIC, Australia

brad17djr wrote:
wait till it starts bubbling up around the surround like the rest of them do that we have to replace lol


The BA and BF four-speed shifter, after some years, seems to get a bubble on the silver plastic near the 'D' selection. No doubt it's caused by the globe heat.
The BF six-speed shifter is illuminated by LEDs, with very little to no heat, so the plastic probably won't bubble.
Top
 Profile


Posted: Sun Aug 10, 2008 8:24 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Actually, the brushed-aluminium BF door-handle inserts bubble after awhile as well. It looks like it's a problem with the plastic-bonding process or something similar.

I had a BF Loaner from the local dealer and the bubbles on it's door handles were truly spectacular.


Lukeyson
Top
 Profile


Posted: Sun Aug 10, 2008 8:58 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Truly.
