 Post subject: Re: EL Fairmont HID retrofit
Posted: Wed Jul 13, 2011 9:50 am
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Basically it involves a lot of cutting and hacking to get another HID projector to fit inside the XR low beam module.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Fri Jul 29, 2011 4:17 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 753

Joined: 6th Dec 2004

Gallery: 12 images

Ride: 98 DL LTD | 71 XY

Location: Bellevue
WA, Australia

Yeah really good job mate, if only I had the time to do this myself



_________________

RIP Scotty
Still Doin It For Ya Mate

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Fri Jul 29, 2011 9:09 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

I did some testing tonight with an XR low beam unit that I got my grubby hands on.

HID kit in std XR low beam

HID kit in XR low beam with glass lens removed

HID projector without Glass lens

HID projector behind glass lens

As you can see, there is a massive difference between a projector designed for halogen and a projector designed for a HID Xenon light source.
You can see the XR lens diffuses the light just a touch, enough to take away the sharp focus of the HID projector, but it doesn't reduce the output all that much. What doesn't show up in the pic is the blue on the cutoff line, this is completely removed when the projector is behind the XR glass lens.

So for all those people that say it's perfectly fine to have a HID kit fitted to Ford XR's because they have projectors, you are sort of right. It's much better for other drivers as it maintains a sharp cutoff with no glare, but look at all the light your missing out on if you used a real HID projector.

Unfortunately, I dont have a std falcon headlight to demonstrate with.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Sat Jul 30, 2011 10:06 am
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

MAD wrote:
I did some testing tonight with an XR low beam unit that I got my grubby hands on.

HID kit in std XR low beam

HID kit in XR low beam with glass lens removed

HID projector without Glass lens

HID projector behind glass lens

As you can see, there is a massive difference between a projector designed for halogen and a projector designed for a HID Xenon light source.
You can see the XR lens diffuses the light just a touch, enough to take away the sharp focus of the HID projector, but it doesn't reduce the output all that much. What doesn't show up in the pic is the blue on the cutoff line, this is completely removed when the projector is behind the XR glass lens.

So for all those people that say it's perfectly fine to have a HID kit fitted to Ford XR's because they have projectors, you are sort of right. It's much better for other drivers as it maintains a sharp cutoff with no glare, but look at all the light your missing out on if you used a real HID projector.

Unfortunately, I dont have a std falcon headlight to demonstrate with.


whats it look like with a halogen in the std low beam?



_________________


Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Sat Jul 30, 2011 10:58 am
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Unfortunately the XR lowbeam I got didn't come with a globe and I don't have one lying around so I cant check.
All I would expect is it to look very similar to the HID, just not as bright. It might change the light spread a tiny bit, but the alignment of the light source between the two (halogen and HID) are very close.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Sat Jul 30, 2011 11:27 am
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

If you could cover one headlight so you can get a photo of just one light, it would be a good comparison. It wont show true brightness (mine didn't either really) but it will show if there is any difference in the light spread.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Sat Jul 30, 2011 11:37 am
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

My photo's had the camera and projector at about 18ft from the wall. But anything, as long as it gets as much of the output as possible, would be good.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Sat Jul 30, 2011 10:32 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Thanks for that. They're perfect.

Something surprised me in those pictures.
See the circled area in this picture, it doesn't seem to be as strong when fitted with a HID kit.
That means fitting a HID, while making it brighter, would actually reduce the width of the beam.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Sat Aug 06, 2011 7:14 pm
Stock as a Rock
Offline
User avatar

Age: 43

Posts: 143

Joined: 8th Sep 2010

Location: Sydney
NSW, Australia

ef_falcon_95 wrote:
Any way the projectors can be modded or replaced into the el XR head lamp??
Had a look in your build thread and your hid's beam is better than mine .

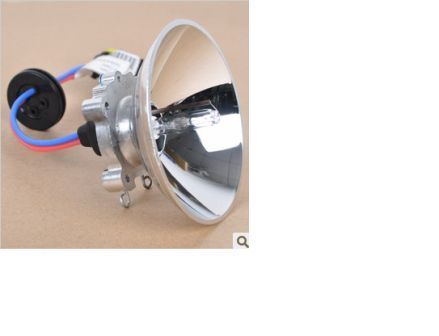

If you dont want hid projectors there is a company that sells hid reflectors so your xr headlights would look stock but with hid globes and no blinding other drivers





Attachments:
hid reflector.jpg
hid reflector.jpg [ 12.33 KiB | Viewed 56 times ]
Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Mon Aug 08, 2011 5:11 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Those reflectors are only good for use as a high beam. There is nothing shaping the light for low beam use at all.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Tue Aug 09, 2011 12:44 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

Got some new shots form a mini meet and cruise.


Here's a little 'feature' that I mentioned a couple of pages back. I can change between red and white, depending on who is around at the time.
In case anyone is wondering. They are not my parkers, I wired them to a separate switch for show purposes only.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Tue Aug 09, 2011 5:18 pm
Technical Contributor
Offline
User avatar

Age: 53

Posts: 5587

Joined: 14th Jan 2005

Gallery: 10 images

Ride: 96 XH/97 EL

Location: South Coast
NSW, Australia

Got anything in mind for where the turning lights go (as in Fairlanes)??
Having read your threads, I'd suspect something would've crossed your mind . . . . 8-) .



_________________

96 XH Longreach 'S': LPG, Alarm, 3.23:1 LSD, Cruise, Trip Comp, ABS, Power Windows, Mid Series Dome Lt, Climate Ctrl
97 EL Futura S/W: LPG, Alarm, LED int Lts, Trip Comp, F/Lane Dome Lt, Climate Ctrl, T5 Conversion

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Tue Aug 09, 2011 5:25 pm
Getting Side Ways
Offline
User avatar

Posts: 1427

Joined: 21st May 2005

Location: Melbourne
VIC, Australia

You would suspect correctly. :D
Something has crossed my mind. But it's on the back burner for a while.
I want to finish off my wheels and get the car tuned before I embark on any more light modifcations.
I've also got some more plans for the interior that I will work on as I find the parts for it.
Plus, I have a set of BA lights I'm working on at the moment that need to be finished. I'm just trying to get a donor pair of lights for not much.



_________________

EL Fairmont Ghia - Manual - Supercharged
- The Car
- The Headlights

Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Mon Aug 15, 2011 10:11 pm
Fordmods Newbie
Offline

Age: 37

Posts: 9

Joined: 3rd Jun 2006

Ride: EF

Location: mudgee
NSW, Australia

awesome thread mate, its exactly what ive been thinking about doing.
my lights are decent (EF gli with narva +50's in them) as i polish them every few months by hand, but even so, after logging a fair few late night k's this week, its reminded me of how average the general design of them is... theretrofitsource got me thinking just last night and then i stumble on this.. perfect :)
Top
 Profile


 Post subject: Re: EL Fairmont HID retrofit
Posted: Thu May 10, 2012 12:08 am
Tyre Shredder
Offline
User avatar

Age: 25

Posts: 385

Joined: 4th Nov 2011

Gallery: 5 images

Ride: EL GLi

Location: Around The Place
NSW, Australia

so as summary how do u go fitting hid to el gli can u get a certain hid bulb or do u gotta sand the plastic lens
Top
 Profile
