 Post subject: EL FUTURA WAGON BUILD
Posted: Tue Dec 18, 2012 10:37 pm
Smokin em up
Offline
User avatar

Posts: 247

Joined: 18th Dec 2012

Gallery: 8 images

Ride: AU II XR6 UTE

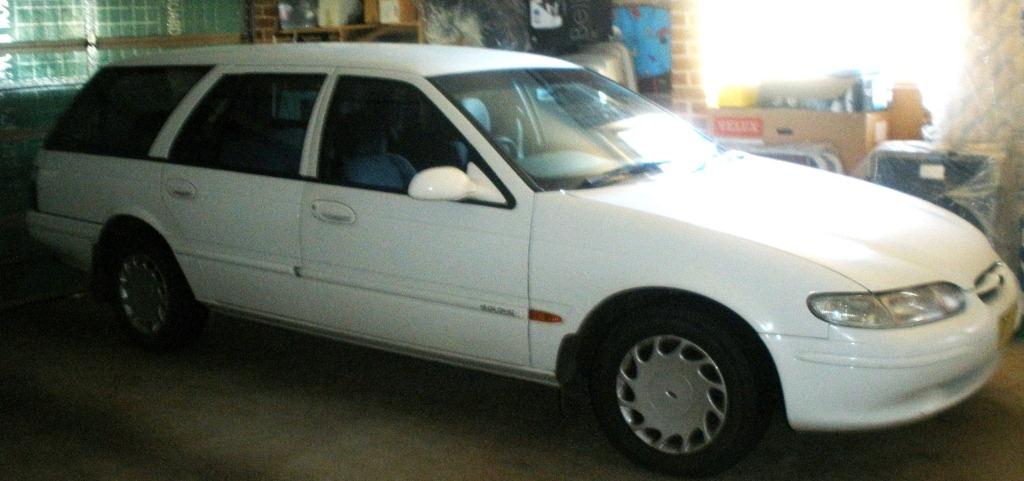

Hello! I wondering if anybody is willing to give me some advice on doing up my EL wagon. (please see attached photo)
Its a standard Falcon Futura Wagon (EL 1998) and at the moment it looks pretty boring!
I know hardly anything about doing up cars... but the first things I was thinking of doing was a) lowering the car, b) putting some mags on it.
Then I'd like that strip around the side to be black?? i dont know if i'd paint it or replace or just leave it?
I was also wondering if its possible to swap the headlights for XR6/XR8 EL lights? Is that possible? Then I thought of giving it a good dark tint!?

Please add your comments/suggestions! Much Appreciated! :o





Attachments:
PC100041 - Copy.JPG
PC100041 - Copy.JPG [ 68.38 KiB | Viewed 344 times ]



_________________

2001 AU II XR6 HP LIQUID SILVER UTE

Last edited by drewh on Fri Mar 29, 2013 4:12 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Tue Dec 18, 2012 11:18 pm
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hi and welcome to Fordmods.

My first suggestion is to read a few garage threads regarding various mods that can be done.

To lower your wagon you will need lowered front coil springs and possibly matching shocks, and the rear can be lowered using either lowering blocks or reset leaf springs.

Re the side strips, black is for base spec cars, and white looks much cleaner in my opinion.

The front headlights can be replaced with xr items, but you need deep pockets, different bumper bar, bonnet and other parts.

Tint is a good option, but don't go too dark or you might get defected.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sat Dec 22, 2012 8:19 am
Getting Side Ways
Offline

Posts: 496

Joined: 14th Sep 2011

Ride: BF II Gas Ute

Location: Canberra
ACT, Australia

Hi,

You can buy a twin-light conversion. It will not be cheap at around $650I think, but you will have much better lights. The XR front will mean replace the bonnet, and front bumper assy. The indicators are different and no longer available new. In time or a Fat girlfriend the springs will sag.... It is normally a good idea to change the shocks at the same time as the springs though, as they often start to leak with the change of ride height.

Regards 96ELGli

Edit http://www.twinlight.com.au/ Hope this helps



_________________

Regards 96ELGli

Last edited by 96ELGli on Sat Dec 22, 2012 8:27 am, edited 1 time in total.

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sat Dec 22, 2012 8:22 am
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Unfortunately, I don't believe they sell twin light conversions for the GLi/Futura front end. They do sell them for the fairmont models.

A quick check on their website would confirm this.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sat Dec 22, 2012 8:34 am
Technical Contributor
Offline

Age: 66

Posts: 6815

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

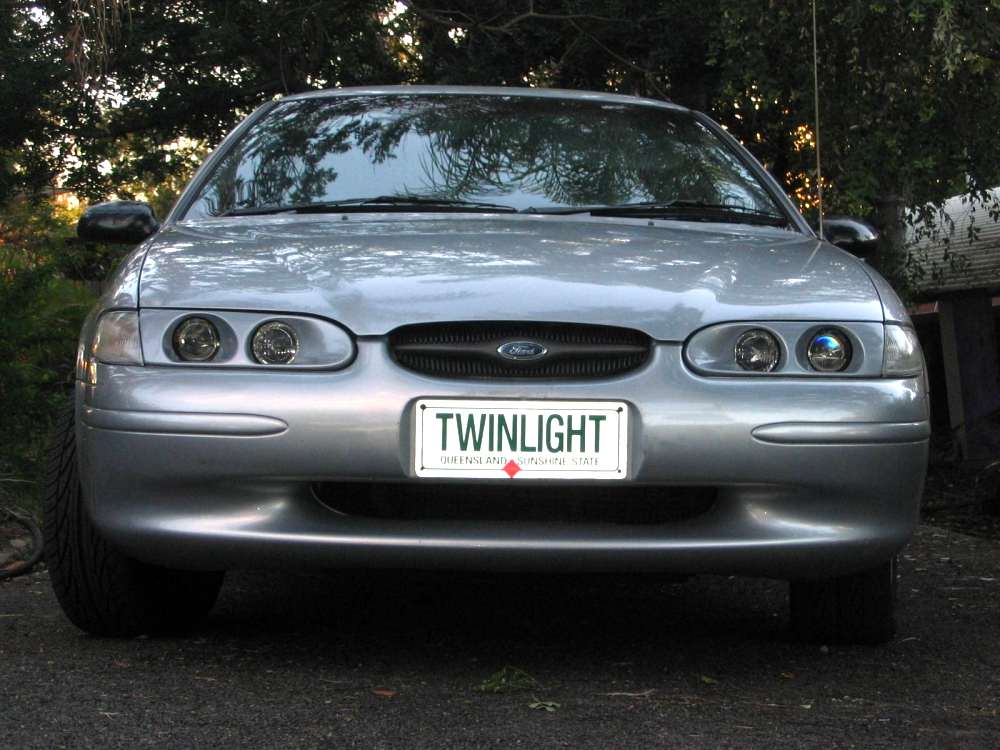

Attachment:
EL Twilights.jpg
EL Twilights.jpg [ 88 KiB | Viewed 335 times ]


http://www.twinlight.com.au/
Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sat Dec 22, 2012 8:42 am
Technical Contributor
Offline

Age: 66

Posts: 6815

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sat Dec 22, 2012 9:10 am
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

LOL

Excellent, happy to be proven wrong.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sat Jan 26, 2013 8:06 pm
Smokin em up
Offline
User avatar

Posts: 247

Joined: 18th Dec 2012

Gallery: 8 images

Ride: AU II XR6 UTE

BenJ wrote:
reset leaf springs.


What is this and how do you do it? (breif explanation)



_________________

2001 AU II XR6 HP LIQUID SILVER UTE

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sat Jan 26, 2013 8:17 pm
Technical Contributor
Offline

Age: 66

Posts: 6815

Joined: 22nd Jun 2005

Gallery: 8 images

Ride: EF Fairmont

Location: Campbelltown
NSW, Australia

They are leaf springs that are reset to the ride height that is needed.
Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sun Jan 27, 2013 10:41 am
Smokin em up
Offline
User avatar

Posts: 232

Joined: 7th Nov 2006

Ride: Territory TS TDCi

Location: Melbourne
VIC, Australia

king springs make lowered leaf springs for wagons and matching coils for the fronts

http://www.kingsprings.com.au/catalogue ... alogue.pdf
Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sun Jan 27, 2013 4:18 pm
Smokin em up
Offline
User avatar

Posts: 247

Joined: 18th Dec 2012

Gallery: 8 images

Ride: AU II XR6 UTE

SWC wrote:
They are leaf springs that are reset to the ride height that is needed.


Thanks for your help. Is this a mod you can do at home or do you have the replace them as "magna" said?



_________________

2001 AU II XR6 HP LIQUID SILVER UTE

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sun Jan 27, 2013 4:34 pm
Getting Side Ways
Offline

Posts: 5503

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

You have to take your leaf springs to a spring specialist and pay them $200 + to have the retensioned to the height you want.

Or you purchase the King Springs leaf packs, and swap them in at home.


OR, use lowering blocks and install them at home.

In reality, if you had to ask the question, you need to take your car to a suspension place and get them to do it for you.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sun Jan 27, 2013 4:40 pm
Smokin em up
Offline
User avatar

Posts: 232

Joined: 7th Nov 2006

Ride: Territory TS TDCi

Location: Melbourne
VIC, Australia

drewh wrote:
SWC wrote:
They are leaf springs that are reset to the ride height that is needed.


Thanks for your help. Is this a mod you can do at home or do you have the replace them as "magna" said?


pulling them out and installation can be done at home but the mod gets done at a suspension place where they get heated and reset.

i cheated and just got a set of XR6 wagon springs from ftg auto salvage they have a red XR6 wagon there.
Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Sun Jan 27, 2013 7:06 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4316

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Flip the shortest leaf over, bolt back to lead setup.
Chop a coil off the front.




_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: Lowering my EL wagon
Posted: Thu Jan 31, 2013 7:54 pm
Smokin em up
Offline
User avatar

Posts: 247

Joined: 18th Dec 2012

Gallery: 8 images

Ride: AU II XR6 UTE

krisisdog wrote:
Flip the shortest leaf over, bolt back to lead setup.
Chop a coil off the front.


Anyone else recommend this or not?



_________________

2001 AU II XR6 HP LIQUID SILVER UTE

Top
 Profile
