Inside EF headlights *pics*



Page 3 of 4 [ 59 posts ] Go to page Previous  1, 2, 3, 4  Next


Posted: Thu Oct 06, 2005 9:29 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

Do you have any pics of the tail lights on your NC. Not too sure whether they are a coloured external lens or a filter behind a clear lens.
Top
 Profile


Posted: Thu Oct 06, 2005 9:33 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

EACRUISER wrote:
Do you have any pics of the tail lights on your NC. Not too sure whether they are a coloured external lens or a filter behind a clear lens.


already had a look, there the same as EB's and ED's, they have the coloured filter. Where should i start cutting first? along the sides?



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Thu Oct 06, 2005 9:39 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

I would say along the top on the NC. Larger Area easier to get started.
Top
 Profile


Posted: Thu Oct 06, 2005 9:45 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

ok, how hot should the blade be?

do you need to cut away all of the glue stuff? some of it is covered by the lens housing.



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Thu Oct 06, 2005 9:59 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

not sure on how hot the blade should be.

My soldering iron had it at a constant 150degrees.

That cut through it like butter. But it did easy it along.
The lens should mould into the light assembly.

Need to cut through all of it or you will break the lens as you pull it apart.

You can buy a cheap Soldering Iron from d**k Electronics or tandy.
Top
 Profile


Posted: Fri Oct 07, 2005 12:34 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

Quote:
Now to try some more intensive polishing on the lenses which keep yellowing despite sanding and polishing ever few months.
Ok yeah, I'm going to paint the surrounds black when they go back in, and fit more bigger, brighter LEDs for the parkers. 2x 10mm 80,000mcd white LEDs in each side should do the trick
(my parkers are going to wind up brighter than my main beams )


Could u make a cluster pack of 80,ooo mcd LEDS and aim the to bounce around the light enclosure for a low beam would this produce a brigthter light then the normal halogen or narva equivalents



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Fri Oct 07, 2005 12:58 am
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 1380

Joined: 6th Nov 2004

Gallery: 3 images

Ride: FPV BF MKII F6

Location: Brisbane
QLD, Australia

is there a way of doing this while they are still on the car?



_________________

OBS35N is gooonnnneeee.
Gone for good..... Damn fence posts!!!!!

OBS35N #2 (XXF6XX) just bought, bring it on

Top
 Profile


Posted: Fri Oct 07, 2005 10:35 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Big Kev wrote:
Could u make a cluster pack of 80,ooo mcd LEDS and aim the to bounce around the light enclosure for a low beam would this produce a brigthter light then the normal halogen or narva equivalents


lol, no.

You'd need hundreds of them, as the headlights are rated at several million candlepower, where as those LEDs are only 80 candlepower.

And being LEDs they're directional anyway. do away with the reflectors, just aim the LEDs properly.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Oct 07, 2005 11:06 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1518

Joined: 6th Nov 2004

Gallery: 14 images

Ride: BA XR6 Turbo

Power: 175 rwkw

Location: The Shire, Sydney
NSW, Australia

mavs19 wrote:
Why do you need to pull the lens off to insert HI LEDs “from the insideâ€￾?

Well, I want to make a cluster of them and fan them out for the parkers, it they don't fit through the small hole in the reflectors from the back, but if I put them in from the front I can just poke the wires back out through the hole.

Either way, the headlights are temporarily back in coz I need to go out tonight! They're just squeezed back together for now with just the clips holding the lens on. It'll be parked undercover so should be right.

I'll keep looking into the xenon projectors, but I'll probably just have them for the main beams and keep the existing halogens for the hibeam.



_________________


Top
 Profile


Posted: Fri Oct 07, 2005 11:32 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1518

Joined: 6th Nov 2004

Gallery: 14 images

Ride: BA XR6 Turbo

Power: 175 rwkw

Location: The Shire, Sydney
NSW, Australia

OBS35N wrote:
is there a way of doing this while they are still on the car?


What removing the lens or adding LEDs.
LEDs you can add with the headlights in place - just remove the globe and solder LEDs in place (as I did) Removing the lenses you can't do with it on the car and they have to come out.

This is how mine look at the moment - still not very clear due to the crappy outer lenses but you can make out the bits I've painted.



also, this is how the LEDs show up - this is using 2 8mm 14,000 mcd LEDs in each side, so it should be much better with the 80,000 10mm ones.
This is a 1 second exposure or so so they're not quite that bright, but you can compare with the normal parker globe in the pic.




_________________


Top
 Profile


Posted: Fri Oct 07, 2005 12:39 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

i like the paint with the black bonnt :P
looks awesome.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Fri Oct 07, 2005 1:40 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

Those lights looks tough hyena...would be nice if we could get someone to mould up clear outer covers in glass rather than the plastic crap



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Fri Oct 07, 2005 2:29 pm
Smokin em up
Offline
User avatar

Posts: 281

Joined: 3rd May 2005

Location: Perth
WA, Australia

data_mine wrote:
Big Kev wrote:
Could u make a cluster pack of 80,ooo mcd LEDS and aim the to bounce around the light enclosure for a low beam would this produce a brigthter light then the normal halogen or narva equivalents


lol, no.

You'd need hundreds of them, as the headlights are rated at several million candlepower, where as those LEDs are only 80 candlepower.

And being LEDs they're directional anyway. do away with the reflectors, just aim the LEDs properly.

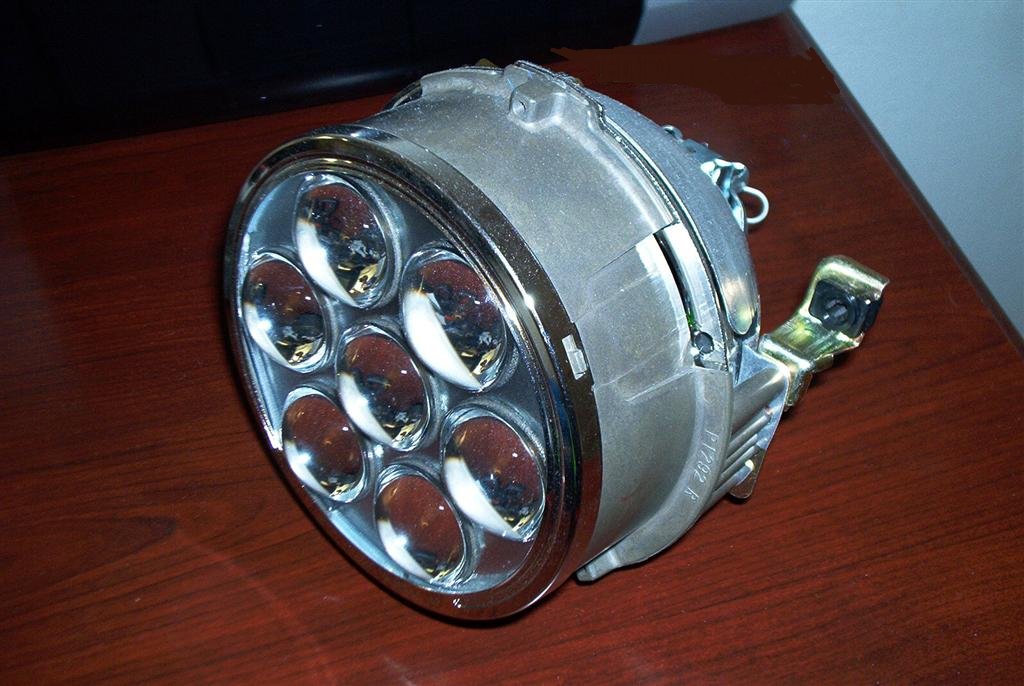

Well, actually there is a LED “Projectorâ€￾. See attached Pic.
And it is almost as bright as a Xenon Projector.

By the way Hyena I have looked around and can tell you that you can fit a Xenon or Bi-Xenon Projector in your headlight assy.
It is going to be the same as most new Hondas.
Actually try to find a set for Honda. The bezel will fit in your headlight with a bit of customising.





Attachments:
Q6.jpg [ 129.41 KiB | Viewed 21 times ]



_________________


Have fun,
mavs19

Top
 Profile


Posted: Fri Oct 07, 2005 2:39 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 4946

Joined: 15th Nov 2004

Gallery: 2 images

Ride: Trik'd up EFII XR6

Location: Perth
WA, Australia

mavs19 wrote:
data_mine wrote:
Big Kev wrote:
Could u make a cluster pack of 80,ooo mcd LEDS and aim the to bounce around the light enclosure for a low beam would this produce a brigthter light then the normal halogen or narva equivalents


lol, no.

You'd need hundreds of them, as the headlights are rated at several million candlepower, where as those LEDs are only 80 candlepower.

And being LEDs they're directional anyway. do away with the reflectors, just aim the LEDs properly.


Well, actually there is a LED “Projectorâ€￾. See attached Pic.
And it is almost as bright as a Xenon Projector.

By the way Hyena I have looked around and can tell you that you can fit a Xenon or Bi-Xenon Projector in your headlight assy.
It is going to be the same as most new Hondas.
Actually try to find a set for Honda. The bezel will fit in your headlight with a bit of customising.


Apart from the xenons I didnt see why a really bright LED pack aimed out and other LEDS to circulate the inside to bounce the directorinal light beams every inside on the mirrors why it couldnt project a very bright light outside



_________________

For Sale: 25 Farad Rockford Fosgate Competition Series Carbon Cap, more to come - pm me if interested

Top
 Profile


Posted: Fri Oct 07, 2005 2:51 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

they're not your standard 3/5/8/10mm LEDs there. Where can you get them? I wanty.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile
