New wheels on an EF, illegal or not?



Page 1 of 2 [ 27 posts ] Go to page 1, 2  Next


 Post subject: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 7:53 pm
Fordmods Newbie
Offline

Age: 29

Posts: 14

Joined: 13th Apr 2009

Ride: Ef Falcon

Location: Melbourne
VIC, Australia

Hey guys,

I'm looking at getting a new wheels for my car. i have found a few sets of 18" rims that will fit my car but am not sure if it is illegal or not. i'd rather not be pulled over every time i left my driveway cause of my wheels.

any help would be greatly appreciated !
Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 8:40 pm
Stock as a Rock
Offline

Posts: 188

Joined: 13th Mar 2008

Ride: EL Falcon XR6

Location: Sydney
NSW, Australia

for 18's?

I would doubt that...20's? yes.



_________________

1997 EL Falcon XR6 Sedan
Cold Air Intake | Sequential Scoop | Pacemaker 4480 & 2.5" Exhaust

1976 XB Falcon 500 Wagon
Sherwood Green | 3spd/250CI | Hurricane Extractors + Custom Twin 2" Exhaust | Running Whitewalls on a 2.5" Drop

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 10:03 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

I think here in NSW (might vary down south) It is 10% of circumference... I think i heard this somewhere...

Basically you can generally safely go 2 inches over whatever is written on your tyre placard inside the driver door without too much drama... If the biggest thing there is 16 then yeah 18 wouldn't be an issue...



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 10:20 pm
Getting Side Ways
Offline

Age: 49

Posts: 763

Joined: 5th Nov 2005

Ride: EF Fairmont

Location: oberon
NSW, Australia

DrGore wrote:
Hey guys,

I'm looking at getting a new wheels for my car. i have found a few sets of 18" rims that will fit my car but am not sure if it is illegal or not. i'd rather not be pulled over every time i left my driveway cause of my wheels.

any help would be greatly appreciated !


I'm fairly certain that your legal with rims up to 2in larger diameter than standard fittment. As the EF was optioned with 16in rims then 18's are perfectly legal your only worry is rim width which is allowed to be 1in wider than stock. Check the tyre,wheel fittment sticker on your car for stock sizes but fairly safe to say 18/8 is perfectly legal. If memory serves me right the option was a 16/7in rim fittment.
hope this helps. Glen



_________________

ef fairmont ghia 5.0L
classy cruiser

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 10:29 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

http://www.vicroads.vic.gov.au/NR/rdonl ... 0/VSI8.pdf

Page 3,

Soooo much misinformation....



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 10:35 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

Nice research there...

so in vic basically any size rim you want as long as its not more than one inch wider and overall diameter of the tyre doesn't increase by more than 15mm (would be to ensure speedo stays sort of correct)... So as long as you go down profile sizes as you go up rims sizes and stay at no more than 8inches wide your right...

You wouldn't know where to find a doco like that for NSW would you KD?

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 10:38 pm
Getting Side Ways
Offline

Age: 49

Posts: 763

Joined: 5th Nov 2005

Ride: EF Fairmont

Location: oberon
NSW, Australia

Glad I don't live in VIC. krissdog just killed your legal upgrades.



_________________

ef fairmont ghia 5.0L
classy cruiser

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

Yep, but its basically the same for NSW.

NSW
http://rta.nsw.gov.au/registration/down ... 9_rev4.pdf

Vic
http://www.vicroads.vic.gov.au/NR/rdonl ... 0/VSI8.pdf

QLD
http://www.transport.qld.gov.au/resourc ... cement.pdf

SA
http://www.transport.sa.gov.au/pdfs/per ... etin_3.pdf

WA
"In Western Australia rims can’t exceed the manufacturer’s specifications by more than 25mm, or one inch. Overall wheel rim width can’t exceed 177.8mm (seven inches) unless specified by the manufacturer, and cars that are equipped with 177.8mm rims can’t have higher width rims fitted at all.

As with most other jurisdictions, the wheel must be contained within the bodywork of the car, including wheel arch flares.

Rim diameters can’t exceed those specified by the manufacturer, although “plus one” and “plus two” wheels and tyres are allowed so long as the overall diameter of the large rims and fitted low profile tyres don’t exceed the manufacturer’s diameter specification.

The maximum allowed increase in track over the manufacturers’ specifications is one inch, or 25mm."



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Wed Apr 29, 2009 11:05 pm
Getting Side Ways
Offline

Age: 49

Posts: 763

Joined: 5th Nov 2005

Ride: EF Fairmont

Location: oberon
NSW, Australia

I miss read the bit on tyre diamater, I thought it was 15mm on rim or wheel diamater. This opens you up to combinations of up to 20in rims.



_________________

ef fairmont ghia 5.0L
classy cruiser

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Thu Apr 30, 2009 12:26 am
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

simple update ya rims and goto local ford and get a new tyre placard :P

Honestly if you get picked on for 18's you may be doing something worng. i see plenty of cars running 18s 19s and a handfull running 20s i think 18 is the biggest size ya need.



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Thu Apr 30, 2009 1:07 am
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

i ran 20's on my ef fairmont for ages and never got pulled up over them...



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Thu Apr 30, 2009 1:37 am
Getting Side Ways
Offline

Age: 26

Posts: 428

Joined: 21st Feb 2009

Gallery: 1 images

Ride: BA XR6, EA Brock Falcon

Location: Drouin
VIC, Australia

i had the same problem not knowing to wether to get 17's or 18's,
my tyre placard had r15, r15 and r16. so i got the 18's :)
will be interesting to see what happens when i get my p's though lol

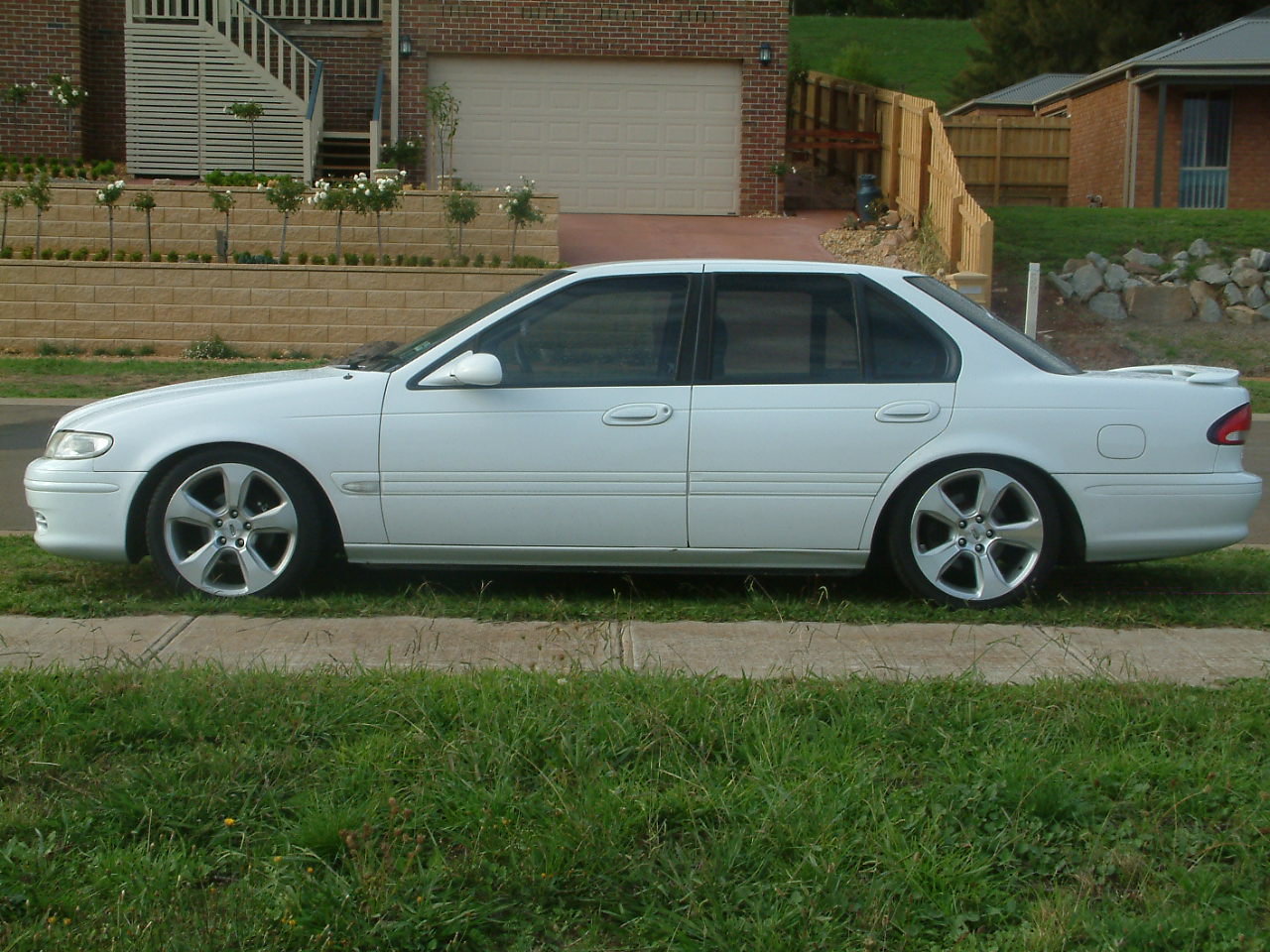

Attachment:
DSCF0070.JPG [ 285.01 KiB | Viewed 31 times ]
Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Thu Apr 30, 2009 1:57 am
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

goody21 wrote:
i had the same problem not knowing to wether to get 17's or 18's,
my tyre placard had r15, r15 and r16. so i got the 18's :)
will be interesting to see what happens when i get my p's though lol


Nothing, if you read what I linked to you'd see they're fine.



_________________

>>>EF Futura T build<<<

Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Thu Apr 30, 2009 9:35 am
Getting Side Ways
Offline

Age: 26

Posts: 428

Joined: 21st Feb 2009

Gallery: 1 images

Ride: BA XR6, EA Brock Falcon

Location: Drouin
VIC, Australia

good now i wont get picked on by the cops.
Top
 Profile


 Post subject: Re: New wheels on an EF, illegal or not?
Posted: Thu Apr 30, 2009 10:20 am
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

this is from that nsw rta link..
Minor changes to wheels..
Wheels up to 26mm wider than the largest optional wheel recommended by the vehicle manufacturer for the
vehicle can be fitted without the need to notify the RTA.
The outside diameter of the wheel and tyre combination must be no more than 15mm over the largest diameter
wheel and tyre combination specified for the vehicle and not more than 15mm below the smallest diameter wheel
and tyre combination specified for the vehicle.

there for technically you could go with 18" 19"wheels aslong as the overall rolling diamiter does not exeed 15mm larger or smaller than factory..
