 Post subject: painting the air box
Posted: Wed Jan 02, 2008 12:59 am
Stock as a Rock
Offline

Age: 27

Posts: 180

Joined: 18th Nov 2007

Location: Perth
WA, Australia

Hey i have searched for info on this but failed to discover an answer, prolly in there sumwer but i cudnt see it.

whats the best way to go about painting my airbox in my EF, and what kinda paint would i use?

cheers
Alex



_________________

2007 BF Falcon MkII
-Superlow Kings
-cat back zorst
-home made cai
-green interior lights

Top
 Profile


Posted: Wed Jan 02, 2008 9:54 am
Parts Gopher
Offline

Age: 35

Posts: 71

Joined: 25th Apr 2006

Ride: AU3

Location: Adelaide
SA, Australia

i used VHT Vinyl dye on the drivers airbag because its what is recomended on this forum because it seeps into the plastic rather than just put a layer of paint on the item which can flake and peel off. I presume that the VHT vinyl dye can be used on the airbox as it is plastic. Its about $15 a can from Autobarn.

Sam
Top
 Profile


Posted: Wed Jan 02, 2008 10:16 am
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

dont use vinyl dye on plastic
ffs!

it will not absorb vinyl is porus, the airbox lid is not!!!

you will need to first use a specific plastic primer on the airbox
then you can paint over the primer in what colour you wish, a decent plastic primer can be found in a rattle can



_________________

RIP SCOTT

Top
 Profile


Posted: Wed Jan 02, 2008 11:20 am
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

i just wiped the airbox down with wax & grease remover

Then sprayed with $2 super cheap primer, sprayed a few layers of $2 matt black, then finished with $15 high quality clear gloss.
Top
 Profile


Posted: Wed Jan 02, 2008 3:47 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 1534

Joined: 16th Aug 2005

Ride: 03 BA XR6

Location: Cranbourne VIC
VIC, Australia

I cleaned mine up with some degreaser + turps, gave it a very light sanding and then sprayed it with blue high temp spraypaint and it seems to have done the trick..

i would recommend though, using a proper grease and oil remover, primer and then paint though....im just a lazy tightass.



_________________

2003 BA Ford Falcon XR6 | BF Typhoon Intake + K&N Filter | Lukey 2.5" catback zorst | More mods coming soon....

Top
 Profile


Posted: Wed Jan 02, 2008 3:58 pm
Parts Gopher
Offline

Age: 35

Posts: 71

Joined: 25th Apr 2006

Ride: AU3

Location: Adelaide
SA, Australia

Disco Frank wrote:
dont use vinyl dye on plastic
ffs!

it will not absorb vinyl is porus, the airbox lid is not!!!

you will need to first use a specific plastic primer on the airbox
then you can paint over the primer in what colour you wish, a decent plastic primer can be found in a rattle can


well there you go. i would have assumed it would work on the air box but there you go.
Top
 Profile


Posted: Wed Jan 02, 2008 4:06 pm
Stock as a Rock
Offline

Age: 27

Posts: 180

Joined: 18th Nov 2007

Location: Perth
WA, Australia

ok cool, thanks for that, while try n head down to supercheap n get the goods. ill post sum pics up n let u kno how it goes..
also i have another querie..

u kno the material stuff on the inside of the door?
how do i get that off? and can i dye it? if cudnt do that i was thinking of re trimming it in a dark blue?
what you think?



_________________

2007 BF Falcon MkII
-Superlow Kings
-cat back zorst
-home made cai
-green interior lights

Top
 Profile


Posted: Wed Jan 02, 2008 4:33 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

i just wiped my over sanded it with 1200 grit and whiped over with a non fiberous cloth and straight red paint... (2.95 stuff from superchit)



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Wed Jan 02, 2008 4:52 pm
Stock as a Rock
Offline

Age: 27

Posts: 180

Joined: 18th Nov 2007

Location: Perth
WA, Australia

howd it turn out?



_________________

2007 BF Falcon MkII
-Superlow Kings
-cat back zorst
-home made cai
-green interior lights

Top
 Profile


Posted: Wed Jan 02, 2008 4:54 pm
Getting Side Ways
Offline

Age: 51

Posts: 720

Joined: 18th Sep 2005

Ride: ef fairmont

Location: orange
NSW, Australia

mate if you want it paint work to last' was it wax and grease remover first .than get some plastic primer.than put on colour then a nice coat of clear .you should use a plastic primer om plastic or it will not stick as well
Top
 Profile


Posted: Wed Jan 02, 2008 5:55 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

Alex90 wrote:
howd it turn out?


pretty good but if i was to do it again i would of plastic primed it and then painted it red and then cleared it



_________________

R.I.P Tobias my son.

Top
 Profile


Posted: Wed Jan 02, 2008 5:58 pm
Stock as a Rock
Offline

Age: 27

Posts: 180

Joined: 18th Nov 2007

Location: Perth
WA, Australia

aiight, i guess thats the best way.
so anybody kno how to get the inside door trim off?



_________________

2007 BF Falcon MkII
-Superlow Kings
-cat back zorst
-home made cai
-green interior lights

Top
 Profile


Posted: Sat Jan 05, 2008 3:12 pm
Stock as a Rock
Offline

Age: 27

Posts: 180

Joined: 18th Nov 2007

Location: Perth
WA, Australia

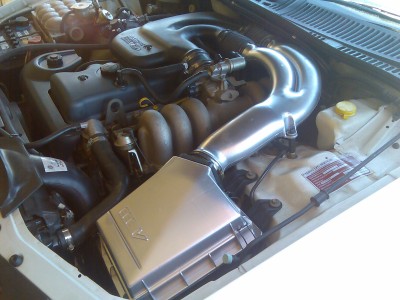

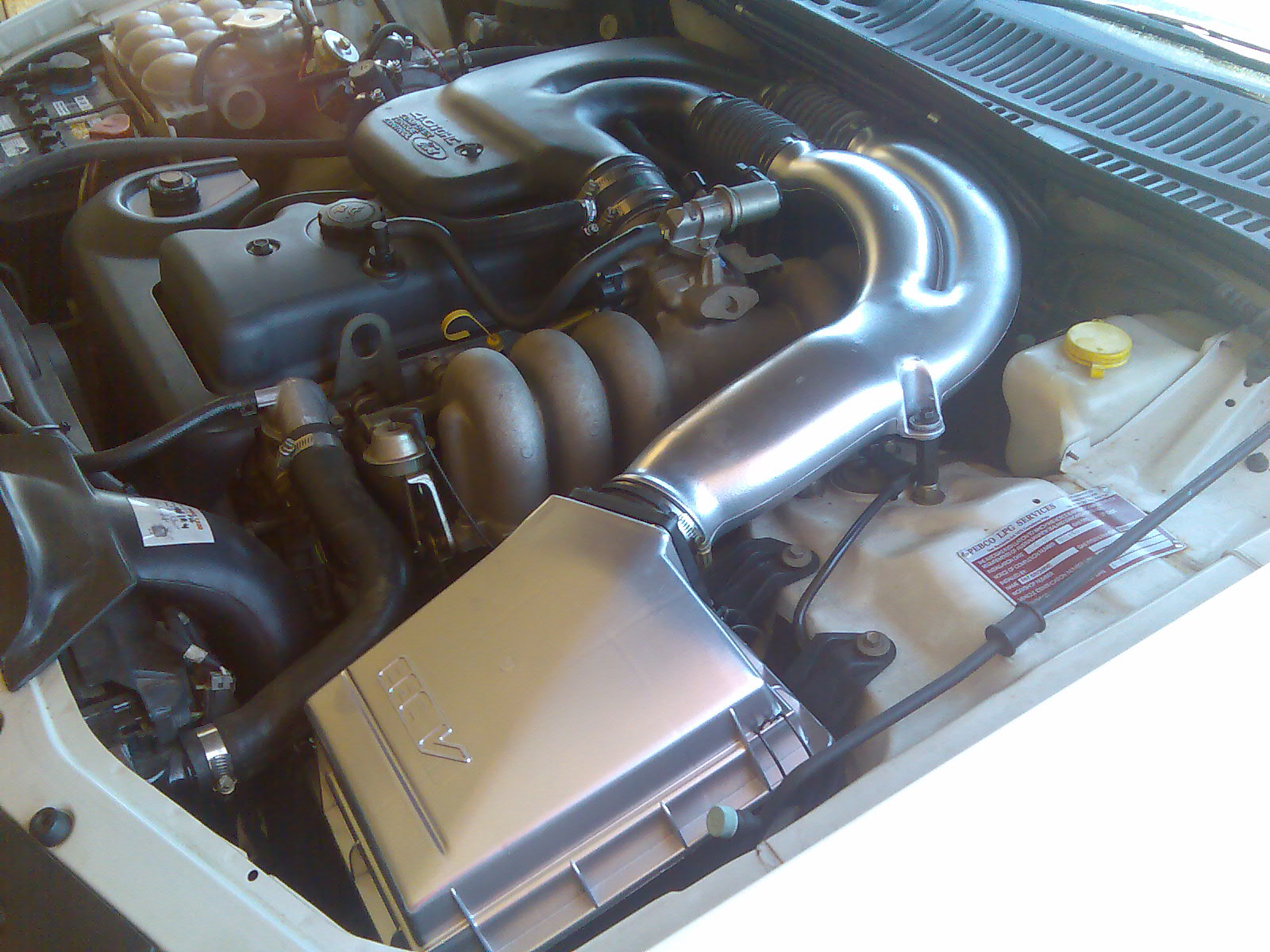

well i ended up gettin down to super cheap, and forgot to get wax and grease remover, so i just used turps lol seemd to work ok. eres some pics, tell me what you think...





Attachments:
File comment: The Finished Product.
Image002.jpg [ 408.04 KiB | Viewed 78 times ]



_________________

2007 BF Falcon MkII
-Superlow Kings
-cat back zorst
-home made cai
-green interior lights

Top
 Profile


Posted: Sat Jan 05, 2008 6:13 pm
Stock as a Rock
Offline

Age: 27

Posts: 180

Joined: 18th Nov 2007

Location: Perth
WA, Australia

am also going to do the rest of it, not sure bout the intake, cos i got all my gas hooked up to that too so might b a bit tricky for me atm, but i guess u gotta learn.. and im guna do the belt cover... what you think so far?



_________________

2007 BF Falcon MkII
-Superlow Kings
-cat back zorst
-home made cai
-green interior lights

Top
 Profile


Posted: Sat Jan 05, 2008 7:48 pm
Getting Side Ways
Offline

Age: 30

Posts: 1087

Joined: 1st Sep 2007

Ride: '07 LT XR5

Power: 133 rwkw

Location: sydney
NSW, Australia

that looks really nice mate!



_________________

So much RAM the motherboard twisted off the POST.

I lost 3 cylinders... but gained a turbo...
Proud owner of an '07 XR5Turbo

Top
 Profile
