Rear door outer quater window trim on EL



Page 1 of 2 [ 23 posts ] Go to page 1, 2  Next


 Post subject: Rear door outer quater window trim on EL
Posted: Sun Mar 02, 2008 4:18 pm
Tyre Shredder
Offline

Age: 52

Posts: 373

Joined: 27th Jan 2005

Gallery: 2 images

Ride: Falcon EL

Location: Bathurst
NSW, Australia

The quarter window outer trim on the rear doors of my EL has deteriorated that bad on both sided that I need to replace them. I have had a quick look and cant work out how to remove them from the door, anyone know how to remove them.
Top
 Profile


Posted: Sun Mar 02, 2008 4:42 pm
Fordmods Junkie
Offline
User avatar

Posts: 11739

Joined: 17th May 2005

Gallery: 11 images

Ride: EL Fairmont, VFR400 racer

Power: 144 rwkw

Location: Melbourne
VIC, Australia

I think the surround and rear quater windows are all one unit, so to take them out you have to take the whole lot out. To replace it, you have to replace the whole lot.

I think they are pretty dear from Ford.

phong =P~



_________________

phongus = Post whore 2006
EL XR6 motor, EL ECU + J3 chip, WADE 1673 Camshaft, 3" S/S intake, Pacy 4480, 2.5" Hi flow cat, 2.5" Lukey exhaust.
Max Power = 144.6 rwkw (03/05/2008)

Top
 Profile


Posted: Sun Mar 02, 2008 5:52 pm
Tyre Shredder
Offline

Age: 52

Posts: 373

Joined: 27th Jan 2005

Gallery: 2 images

Ride: Falcon EL

Location: Bathurst
NSW, Australia

Your saying the quarter window is attached to the trim piece in question..
Top
 Profile


Posted: Sun Mar 02, 2008 8:21 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

nightstalker wrote:
Your saying the quarter window is attached to the trim piece in question..


yep, he sure is. its glued in. remove the trim on the inside of the quater window and with a very sharp blade slowly cut arround the edge of the window until you cut through all the glue and then it will pop out, not an easy job. if you want a pic of the trim and window to get an idea have a look in my thread "whos sick of thoes crappy exterior trims" page 3 there is a pic of the new one i bought from ford. good luck



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Sun Mar 02, 2008 9:38 pm
Tyre Shredder
Offline

Age: 52

Posts: 373

Joined: 27th Jan 2005

Gallery: 2 images

Ride: Falcon EL

Location: Bathurst
NSW, Australia

May I be as bold to ask how much you payed for the new trim piece.
Top
 Profile


Posted: Sun Mar 02, 2008 9:55 pm
Tyre Shredder
Offline

Age: 52

Posts: 373

Joined: 27th Jan 2005

Gallery: 2 images

Ride: Falcon EL

Location: Bathurst
NSW, Australia

Never mind.. just read that thread and nearly fell off my chair when I saw the price.. Might try and source a pair from a wreckers that arent to bad..
Top
 Profile


Posted: Sun Mar 02, 2008 9:58 pm
Getting Side Ways
Offline
User avatar

Age: 45

Posts: 1953

Joined: 1st Feb 2006

Gallery: 25 images

Ride: BA on gas. EL on gas. XF on gas.

Location: Greenacres/Adelaide
SA, Australia

Over $300.



_________________

Member Number 8804

Top
 Profile


Posted: Mon Mar 03, 2008 10:06 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

nightstalker wrote:
Never mind.. just read that thread and nearly fell off my chair when I saw the price.. Might try and source a pair from a wreckers that arent to bad..


lol. i made sure i was sitting down when i rang ford to get the price. if you get a good one from a wreck give that trim dream a go, atleast it wll stop it going crapy and grey.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Tue Mar 11, 2008 10:59 am
Tyre Shredder
Offline

Age: 52

Posts: 373

Joined: 27th Jan 2005

Gallery: 2 images

Ride: Falcon EL

Location: Bathurst
NSW, Australia

I have just been quoted by a large Sydney Ford Dealership for the quarter windows for my EL.. you might wanna sit down first...... $182.50 each !! but to their defense they did say that they would not change any freight on them.

Part numbers are as follows

LH - EL F25831 A
RH - EL F25830 A
Top
 Profile


Posted: Tue Mar 11, 2008 11:25 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

nightstalker wrote:
I have just been quoted by a large Sydney Ford Dealership for the quarter windows for my EL.. you might wanna sit down first...... $182.50 each !! but to their defense they did say that they would not change any freight on them.

Part numbers are as follows

LH - EL F25831 A
RH - EL F25830 A


i think they might have already put postage on that as i paid $150 for the rh side one less than a month ago.

mix up some dish washing liquid and water in a squrtie bottle and spray that on the black glue before you start cutting as it helps make the glue softer. good luck mate, prick of a job.

also it would be worth getting some TRIM DREAM, this will stop the new trims going like the old ones did and it turns them nice and black.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Tue Mar 11, 2008 11:42 am
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

So those rear ¼ windows were just the trims and not the glass as well?
Damn I thought it was the whole lot.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Tue Mar 11, 2008 12:48 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

Timmeh wrote:
So those rear ¼ windows were just the trims and not the glass as well?
Damn I thought it was the whole lot.


yeah it is the whole lot, the trim and glass is all one piece. the glass is molded into the trim. congrats on the fag position mate.



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Tue Mar 11, 2008 1:08 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

Oh so you have to unstick the glass from the body is that what your saying?

Thanks for the congrats.



_________________

EL XR8
Timmeh banned himself from being a moderator.

Top
 Profile


Posted: Tue Mar 11, 2008 5:29 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 1079

Joined: 19th May 2005

Gallery: 29 images

Ride: ELXR8 SERIES 2

Location: naracoorte
SA, Australia

Timmeh wrote:
Oh so you have to unstick the glass from the body is that what your saying?

Thanks for the congrats.

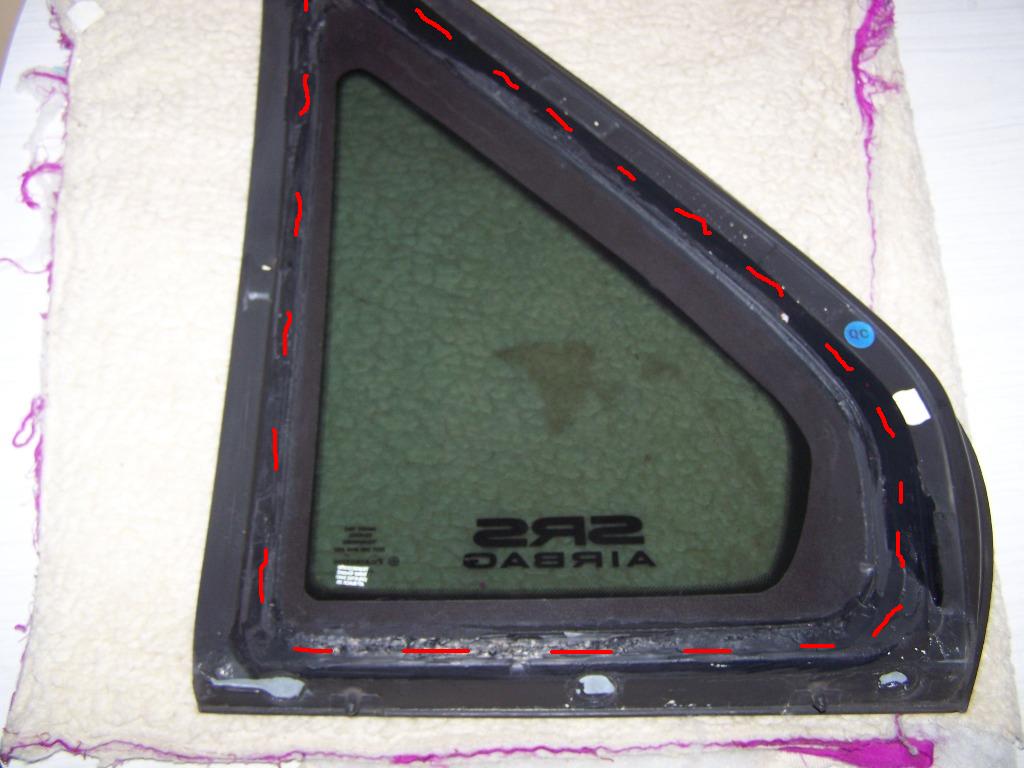

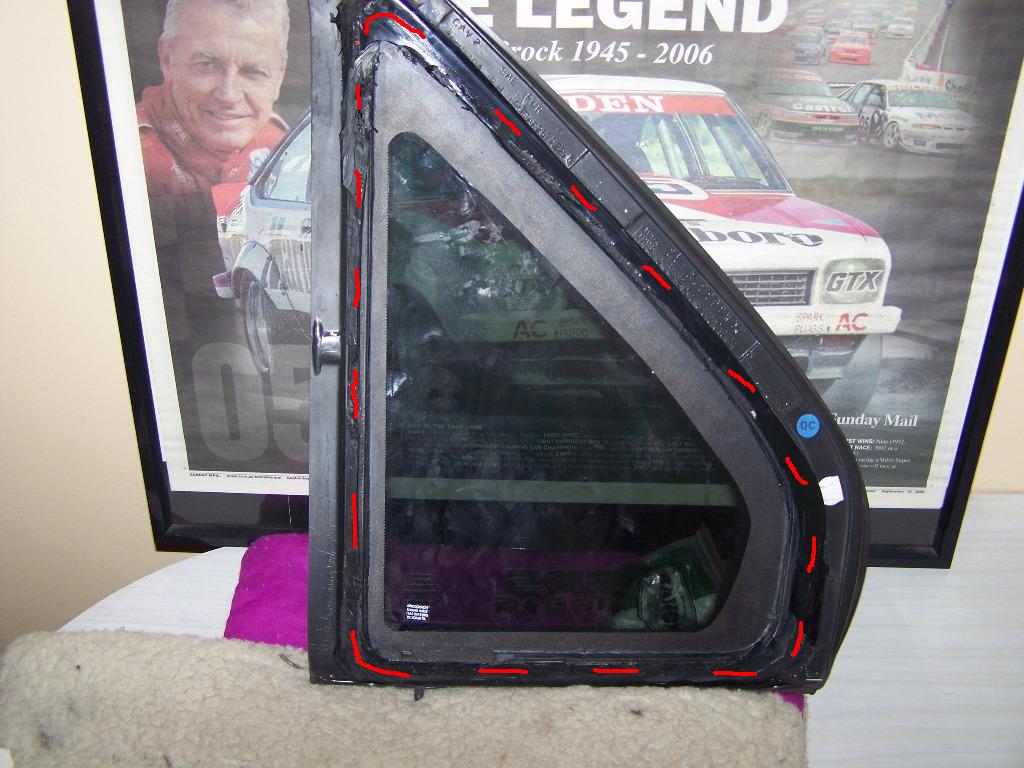

well your realy unsticking the trim from the door as the glass is molded into the trim. once you have removed the little interior quater window trim (3 or 4 screws) you can see where the quater window and trim is glued in place. then ya spray some dish liquid on the glue that you can see and run a new stanley knife blade between the trim/window and the door until you cut through all the glue. here is a pic of the trim/window i removed looking at the side that glues to the door. the red lines are where the line of glue is that you need to cut through. dont laugh at my crapy computer skills.





Attachments:
qw 001.jpg
qw 001.jpg [ 83.83 KiB | Viewed 68 times ]
qw 002.jpg
qw 002.jpg [ 116.02 KiB | Viewed 54 times ]



_________________

EL XR8 SERIES 2, 5SPD, HOT CHILLI RED, 200 ODD RWKW OF V8 FUN AND GAMES

EF XR6, 5SPD, HERITAGE GREEN, AU XR6 VCT ENGINE

VL COMMODORE, 5SPD, WHITE

BA XT, AUTO, OFFSHORE BLUE

Top
 Profile


Posted: Tue Mar 11, 2008 5:31 pm
Getting Side Ways
Offline

Posts: 6913

Joined: 6th Nov 2004

Gallery: 4 images

Ride: BF XR6, BF XT Wagon

Power: 197 rwkw

Location: Perth
WA, Australia

What adhesive are you going to use/have used to put the new one in with?
