 Post subject: another LED thread- opinions wanted.
Posted: Mon Aug 22, 2005 9:14 pm
Getting Side Ways
Offline
User avatar

Posts: 873

Joined: 9th May 2005

Ride: BA XR6T

i have just put the Narva blue LED's into my EF falcon (low series cluster). when i had a look at them in the dark, i noticed that the needles are MUCH brighter than the dials(especially around the 4k rpm mark on the tacho, and the 20km/h mark on the speedo) :? should i take the LED's out and give them a quick sand to help disperse the light better?? and should i only do it to a couple of them?? (i.e. the ones that are responsible for the lighting up of the dials) and if so which ones are responsible for the dials?

thanks in advance.



_________________

300+rwkw HeadsexTuned XR6 Turbo Ute *NOW SOLD :(*
MK Triton with 31" muddies, 2" lift and 3" turbo back exhaust etc...

Top
 Profile


Posted: Mon Aug 22, 2005 11:05 pm
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

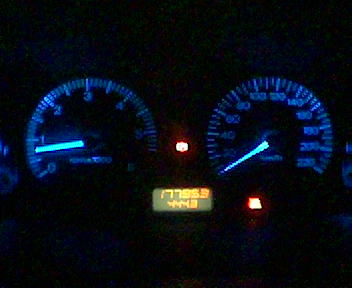

I put the identical LEDs in my low series EF cluster... but yes, i sanded the LEDs themselves with 150grain paper. Make sure to wear down the tip of the lens about 2 mm. Do this to all 6 LEDs. This has a much better effect of lighting up the cluster. Look at the pic for proof.





Attachments:
10 - In Car LED Fixed.JPG
10 - In Car LED Fixed.JPG [ 341.58 KiB | Viewed 72 times ]



_________________


Top
 Profile


Posted: Mon Aug 22, 2005 11:30 pm
Getting Side Ways
Offline
User avatar

Posts: 873

Joined: 9th May 2005

Ride: BA XR6T

shoony wrote:
I put the identical LEDs in my low series EF cluster... but yes, i sanded the LEDs themselves with 150grain paper. Make sure to wear down the tip of the lens about 2 mm. Do this to all 6 LEDs. This has a much better effect of lighting up the cluster. Look at the pic for proof.

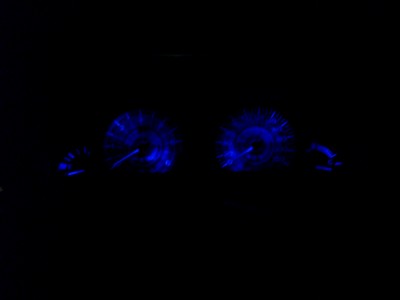

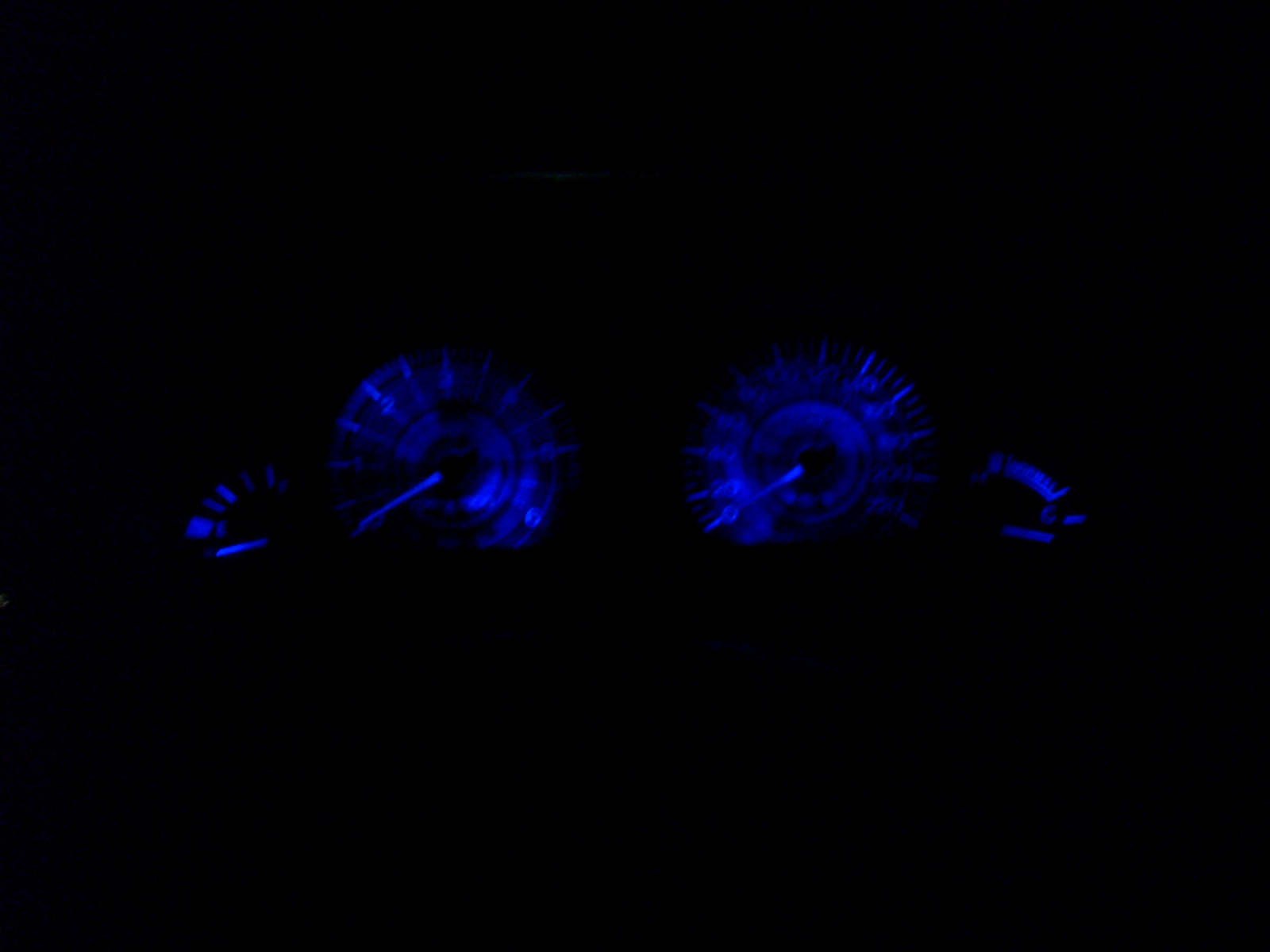

thanks for that shoony, i will give that a try tomorrow... here is a pic of how it turned out, excuse quality, its on a camera phone...
u have to click the image to view it, dunno why :?





Attachments:
dash.jpg [ 16.43 KiB | Viewed 209 times ]



_________________

300+rwkw HeadsexTuned XR6 Turbo Ute *NOW SOLD :(*
MK Triton with 31" muddies, 2" lift and 3" turbo back exhaust etc...

Last edited by Mr Man on Mon Aug 22, 2005 11:32 pm, edited 1 time in total.

Top
 Profile


Posted: Mon Aug 22, 2005 11:32 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

yup, 'frost' all of them.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Mon Aug 22, 2005 11:34 pm
Getting Side Ways
Offline
User avatar

Posts: 873

Joined: 9th May 2005

Ride: BA XR6T

150 grit sand paper do the trick as shoony said??



_________________

300+rwkw HeadsexTuned XR6 Turbo Ute *NOW SOLD :(*
MK Triton with 31" muddies, 2" lift and 3" turbo back exhaust etc...

Top
 Profile


Posted: Mon Aug 22, 2005 11:40 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

yup, doesn't really matter, just teh 150 will be faster than a higher grade.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Tue Aug 23, 2005 12:20 am
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Personally i kinda like the groovy glowing needles, but hey, different strokes for different folks... must say i love my new dash tho. Enjoy working on it! :)



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 12:32 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 5313

Joined: 6th Nov 2004

Gallery: 4 images

Ride: Surf, Turbo Diesel

Location: Melbourne, S.E Suburbs
VIC, Australia

i reckon looks awsome with the needles real bright like that



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 1:28 am
Getting Side Ways
Offline
User avatar

Posts: 873

Joined: 9th May 2005

Ride: BA XR6T

chunkz wrote:
i reckon looks awsome with the needles real bright like that

i agree, but i want the dials to be a bit brighter, u can see on the 5000 and 6000rpm bit on the tacho how it is a little dull, and the same at around 40km/h on the speedo, i just wanted the dial a bit brighter, i like the bright needles :)



_________________

300+rwkw HeadsexTuned XR6 Turbo Ute *NOW SOLD :(*
MK Triton with 31" muddies, 2" lift and 3" turbo back exhaust etc...

Top
 Profile


Posted: Tue Aug 23, 2005 1:33 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 5313

Joined: 6th Nov 2004

Gallery: 4 images

Ride: Surf, Turbo Diesel

Location: Melbourne, S.E Suburbs
VIC, Australia

see if sanding the sides of the led helps :P
not top
:lol: probs wont work



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 1:42 am
Getting Side Ways
Offline
User avatar

Posts: 873

Joined: 9th May 2005

Ride: BA XR6T

u know how in the low series clusters there are 6 globes that light up the dials, needles etc.. is there one that is for the needles and one for the dials?? or do they all do the same thing???



_________________

300+rwkw HeadsexTuned XR6 Turbo Ute *NOW SOLD :(*
MK Triton with 31" muddies, 2" lift and 3" turbo back exhaust etc...

Top
 Profile


Posted: Tue Aug 23, 2005 9:55 am
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Two LEDs are positioned at the diagonal extremes of the large dials, so they both contribute to lighting that face up - the needle appears brighter because it has less visual obstructions (ie backing plate). Then the third one lights up the fuel guage. I was going to experiment putting different colour LEDs in mine, but decided i like the blue too much to change it.



_________________


Top
 Profile


Posted: Tue Aug 23, 2005 10:21 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

yeah, the needles pick up their light the same way as the dials, there's no specific light sources for them - however that doesn't stop you adding some. A little wire and hot glue would get some LEDs right behind the needles, offering uber brightness. I haven't tried this myself, but I am planning some cluster mods, which would involve this sort of idea.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Tue Aug 23, 2005 2:58 pm
Getting Side Ways
Offline
User avatar

Posts: 873

Joined: 9th May 2005

Ride: BA XR6T

data_mine wrote:
yeah, the needles pick up their light the same way as the dials, there's no specific light sources for them - however that doesn't stop you adding some. A little wire and hot glue would get some LEDs right behind the needles, offering uber brightness. I haven't tried this myself, but I am planning some cluster mods, which would involve this sort of idea.


sounds good, and thanks for the info, i was just wondering if i would be able to frost just a couple of the globes to make the dials brighter and keep the needles the way they are as i like having them bright :) will just frost them all i reckon...

cheers.



_________________

300+rwkw HeadsexTuned XR6 Turbo Ute *NOW SOLD :(*
MK Triton with 31" muddies, 2" lift and 3" turbo back exhaust etc...

Top
 Profile


Posted: Tue Aug 23, 2005 3:55 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 753

Joined: 6th Dec 2004

Gallery: 12 images

Ride: 98 DL LTD | 71 XY

Location: Bellevue
WA, Australia

Cool i gotta try this frosting.. cant wait to see the result



_________________

RIP Scotty
Still Doin It For Ya Mate

Top
 Profile
