BA sunvisor and drivers door courtesy lamps.



Page 1 of 2 [ 25 posts ] Go to page 1, 2  Next


 Post subject: BA sunvisor and drivers door courtesy lamps.
Posted: Sat Mar 17, 2007 2:11 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

I'm heading into my local Ford dealer today to pickup my Rear Footwell Lamp Lense. I'll post pictures in the 'footwell lamp' thread shortly.

But my extra mission is to get pricing on the Sunvisor Courtesy Lamps fitted on Fairmonts and Ghias that are up in the roof lining behind the sunvisors.

I will update shortly with further information.


Lukeyson
Top
 Profile


Posted: Sat Mar 17, 2007 6:34 pm
Getting Side Ways
Offline

Age: 37

Posts: 512

Joined: 7th Mar 2006

Ride: Falcon GLI

Location: Perth
WA, Australia

the lights aernt in the sunvisors on the monts, from my memory only the fairlanes have them, good luck with it
Top
 Profile


Posted: Sat Mar 17, 2007 9:00 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Really? Interesting. Territory Ghia has them.

They are available for about $21 each. Part number is BA13A701A.

I can see connectors for them in the roof wiring harness are C-142 and C-143. But I've checked already and I don't seem to have them.

They appear to be identical to the rear drivers and passenger side door lamps. However, while the rear door lamps are wired as 'on' or 'courtesy', the sunvisor lights are just 'on' or 'off' - so can be spliced directly to the map-reading lamps in th centre.

Did any of that make any sense?

We couldn't find the part numbers for the in-door drivers and passenger courtesy lamps. They appear to be integrated into the whole door trim.


Lukeyson

Last edited by Lukeyson on Sat Mar 17, 2007 9:04 pm, edited 1 time in total.

Top
 Profile


Posted: Sat Mar 17, 2007 9:03 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

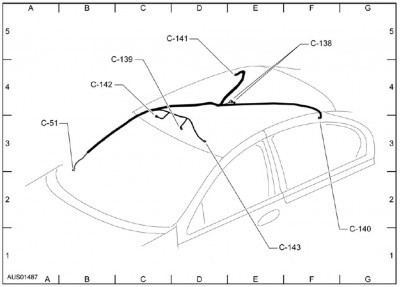

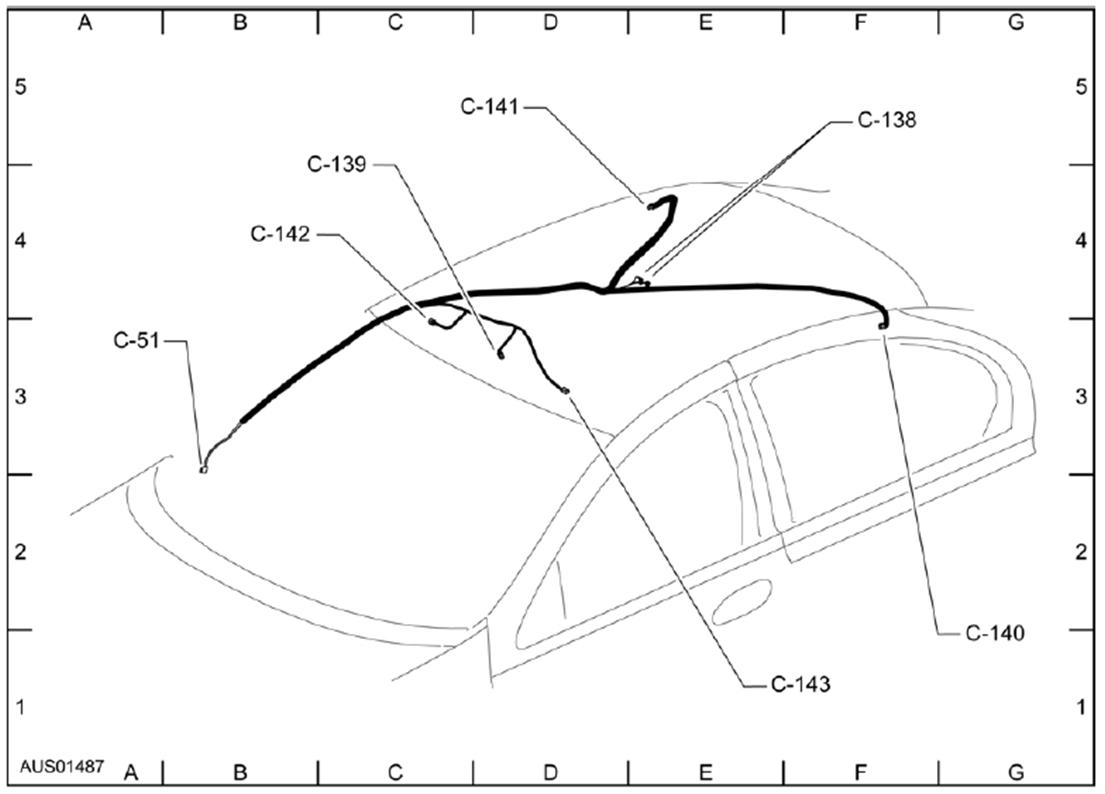

I found a diagram showing the roof harness for the sunvisor courtesy lamps.


Lukeyson





Attachments:
File comment: Roof Harness showing connectors C-142 and C-143
Roof Harness.jpg
Roof Harness.jpg [ 58.85 KiB | Viewed 43 times ]
Top
 Profile


Posted: Sat Mar 17, 2007 9:43 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Lukeyson - yeah can be done - but i believe there is a recession for them in the headlining.

there is also a electo illuminiscent rear vision mirror which auto dims - i fitted this to my vehicle and bought a ltd roof harness just to get the plug so i could splice into the map lights.
Expensive mod - but i am yet to see too many other people with it!
Make sur eyou need a new windscreen when you install it as theres is a 90% chance you will break the screen when you pull it off!

ill take some pics if you want



_________________

Nicko

Top
 Profile


Posted: Sat Mar 17, 2007 9:46 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

The problem with that mirror is that I still on occassions use it to dip manually so I can see the kids in the rear seat.

Granted I now have a 'cabin monitor camera' so I haven't done that in awhile, but the missus is complaining in her Terence Ghia that she can't see anything since she has no dip and no cabin camera (which will get fixed shortly).

Then again, she was thrilled the other night when the cars behind her changed colour and dimmed by themselves. You win some you lose some.


Lukeyson
Top
 Profile


Posted: Sat Mar 17, 2007 9:49 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

yeah thats it!
I do alot of country kms - so its very handy for me!

ill send that cd to you when i get back to work on monday from holidays!
2 weeks of bludging over!

Theres a couple of things i have on the list to do to my car
Integrate factory sat nav, Id like to do memory seats, factory reverse sensor install (piss easy plugs straight in!), I have a starter button thinking about putting it in.

Memory seats isnt a big deal for me as i am the only one who drives my car but dip in reverse would be very handy!



_________________

Nicko

Top
 Profile


Posted: Sat Mar 17, 2007 10:33 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Yes, dip in reverse is a big motivator. I manually dip my mirrors to park at the office every day.

Regarding the reverse sensor, I think there are some loom changes to consider. The main one I know of is the loom from the RHS rear to the Hitch plug. The alternate loom disables the sensor when something is hitched to the back.

But other than that, I haven't look much into it - the looms get confusing back there for me, especially with the Sat-Nav and Antenna Module in about the same area.

I noticed today that the MIssus' Ghia doesn't have that loom for disabling when hitched on reverse. When I reversed a trailer for the first time today it came on hard and didn't shut up till I stopped the car.

But I'd like to hear more about it if you do it.


Lukeyson
Top
 Profile


Posted: Sun Mar 18, 2007 10:53 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Some Pics out of Terence the Ghia....


Lukeyson





Attachments:

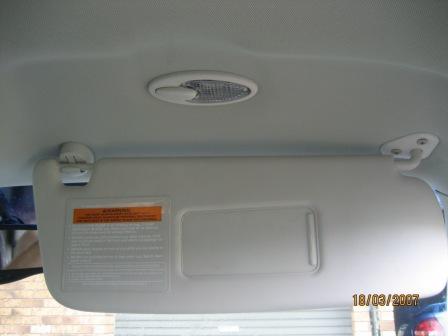

File comment: Sunvisor Courtesy Lamps. Similar to the rear door Courtesy Lamps in Falcon - including the Switch. Can be jumpered to power line from Map Lights OR replace with the Fairmont Ghia Roof Harness to also get the Electrochromatic Rear Vision Power Connector.
IMG_0741 Web.JPG
IMG_0741 Web.JPG [ 14.4 KiB | Viewed 56 times ]

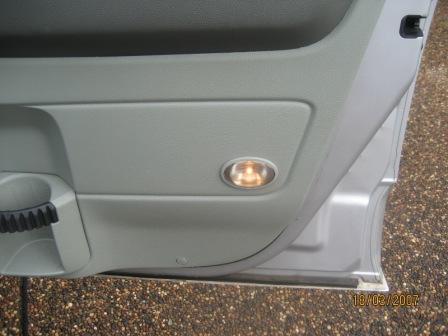

File comment: Drivers door Courtesy Lamp (Would be wired to same circuit as Footwell Courtesy Lamps)
IMG_0740 Web.JPG
IMG_0740 Web.JPG [ 23.35 KiB | Viewed 48 times ]
Top
 Profile


Posted: Sun Mar 25, 2007 3:41 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Hey, dude, I found another thing to be careful of if you're adding reverse sensors.

Check out page 418-00-4 of the BA Workshop Manual. In summary, it says that there are two separate 'Car Communication Networks' in a BA, the ISO9141 bus and the newer CAN-HS Bus. The CAN bus hosts the PCM, TCM (Dual Connect), BEM, ICC (Or ACM) and IC.

The ISO9141 bus hosts the ABS, TCM (Dual Connect), Restraint Control Module and PAM - Parking Aid Module.

I expect everything would be fine just to add it in, but it's clear now that the PAM has to be wired into the rest of the car for diagnostics. It just raises doubt for me now whether all harnesses would carry that network back there for no reason if not used.

I know that the CAN bus has to be terminated with a special module with a 120Ohm impedance (as that's what I've been focussing on of late) but don't know if the ISO9141 bus is the same.

Anyway, I hope it's still possible.


Lukeyson
Top
 Profile


Posted: Tue Mar 27, 2007 9:07 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Hey, dude, I found another thing to be careful of if you're adding reverse sensors.

Check out page 418-00-4 of the BA Workshop Manual. In summary, it says that there are two separate 'Car Communication Networks' in a BA, the ISO9141 bus and the newer CAN-HS Bus. The CAN bus hosts the PCM, TCM (Dual Connect), BEM, ICC (Or ACM) and IC.

The ISO9141 bus hosts the ABS, TCM (Dual Connect), Restraint Control Module and PAM - Parking Aid Module.

I expect everything would be fine just to add it in, but it's clear now that the PAM has to be wired into the rest of the car for diagnostics. It just raises doubt for me now whether all harnesses would carry that network back there for no reason if not used.

I know that the CAN bus has to be terminated with a special module with a 120Ohm impedance (as that's what I've been focussing on of late) but don't know if the ISO9141 bus is the same.

Anyway, I hope it's still possible.


Lukeyson
Top
 Profile


Posted: Tue Mar 27, 2007 11:43 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

ill let you know very soon - ill get the modules off darren.
I may also be getting a WDS - Thanks God for Samples from work!



_________________

Nicko

Top
 Profile


Posted: Wed Mar 28, 2007 7:39 am
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Bloody hell - a WDS?

Is this a loan or a permament thing? Those things ain't cheap!

Mate, if you get access to a WDS, I'd be super keen to figure out a way to use it to reverse-engineer what's going on over the CAN bus (See my 'Scantool Fun' thread in the ECU Forum.)


Lukeyson
Top
 Profile


Posted: Wed Mar 28, 2007 11:03 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Hey luke,
Yeah we are getting obd scanners in at work and teh manufacturer apparently does a pds/wds. Our purchasing departments is getting som eprices and hopefully a sample for me to play with and try and sell to auto mechanics and auto elecs!



_________________

Nicko

Top
 Profile


Posted: Wed Mar 28, 2007 4:43 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

And what do you do for a living?


Lukeyson
Top
 Profile
