BA to BF Fairlane Interior Conversion Project



Page 9 of 12 [ 169 posts ] Go to page Previous  1 ... 6, 7, 8, 9, 10, 11, 12  Next


Posted: Wed Jun 18, 2008 8:14 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2833

Joined: 7th Nov 2004

Gallery: 4 images

Ride: Lincoln LS, MKII Escort, ED

Location: geelong
VIC, Australia

120um is a fair bit of paint, the factory paint on the exterior of your car will be around 60-70um, ( i went playing with the tester at work one day on my car)

If you want, you can send me a small test piece of painted ferrous metal about 10mm * 10mm and i can test it for you at work.



_________________

Because i can.

Top
 Profile


Posted: Wed Jun 18, 2008 8:52 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Yikes. Now that's hard core.

Pity I don't have any spare bits of metal on my car to cut off and send your way....

I've had to put some clear on my sensor surrounds to get it to gloss. They're just flat blue with silver flecks otherwise. It's the thickness of the clear coat that bothers me.

I'm half thinking about putting some 1000 grit wet and dry over the sensor faces to thin them off. Anyone think that's a silly idea?


Lukeyson
Top
 Profile


Posted: Thu Jul 03, 2008 10:18 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Clutch line still not fixed. We'll get there evenutally.

Mirror Dip was always working, it was just user error. Or in the IT field we call it PEBKAC - Problem Exists Between Keyboard and Chair.

Here I guess it's PEBSASW - (Seat and Steerin gWheel). Not quite the same is it.


Lukeyson
Top
 Profile


Posted: Fri Jul 04, 2008 9:29 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Bump



_________________

Nicko

Top
 Profile


Posted: Fri Jul 04, 2008 10:12 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Lukeyson wrote:
Clutch line still not fixed. We'll get there evenutally.

Mirror Dip was always working, it was just user error. Or in the IT field we call it PEBKAC - Problem Exists Between Keyboard and Chair.

Here I guess it's PEBSASW - (Seat and Steerin gWheel). Not quite the same is it.


Lukeyson


No, no, no.

It's always a problem with the 'nut behind the wheel'



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Jul 04, 2008 5:36 pm
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 1093

Joined: 29th Nov 2004

Gallery: 15 images

Ride: BA Ford Fairlane V8

Location: Lower Hunter Valley
NSW, Australia

Good work Luke. This project makes my EF/EL interior in my ED V8 wagon conversion look like a walk in the park.



_________________

Interested in a fair go for the Hunter-New England area of NSW?

Top
 Profile


Posted: Sun Jul 13, 2008 10:09 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

OK, I finally have some measurements for the placement of the reverse sensors. I'll post them up shortly.


Lukeyson
Top
 Profile


Posted: Sat Aug 02, 2008 8:14 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

The key to this is printing out the templates to the right scale, and then the placement of the templates using the measurements.

You have to drill a 3mm hole in each of the locations. Then with the middle hole drill the out again to 30mm. The extra 3mm holes are for the custom key-ways for each cutout. I expect there would be a little bit of filing finish the key-ways.


Lukeyson





Attachments:

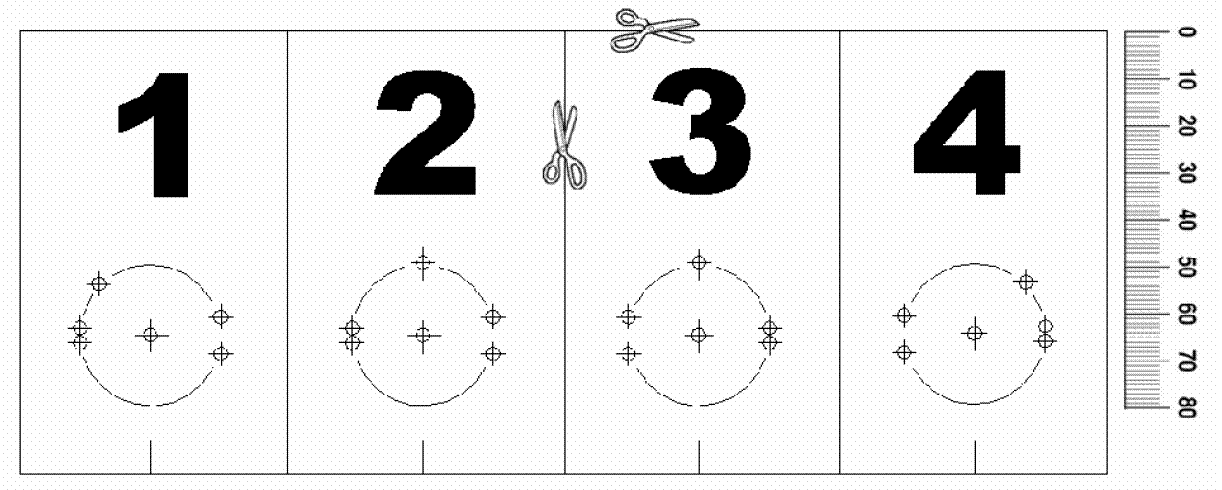

File comment: The sensor templates. Print them out to scale.
Rear Bumper Sensor Templates.gif
Rear Bumper Sensor Templates.gif [ 24.23 KiB | Viewed 1288 times ]

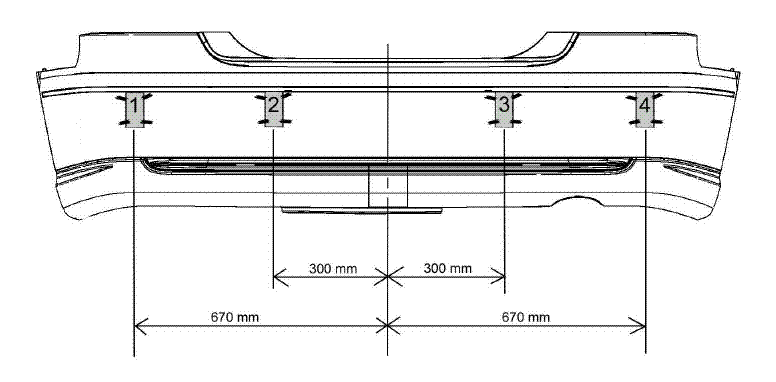

File comment: Measurements for locating the templates.
Rear Bumper Sensor Placement.gif
Rear Bumper Sensor Placement.gif [ 13.14 KiB | Viewed 1281 times ]
Top
 Profile


Posted: Sat Aug 02, 2008 8:15 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Also, I got started on fixing my clutch line today. The cable is made up and ready to go, the side panels removed. I should be able to do it tomorrow.

It was just that I was demoralised at Frosty getting a puncture in R1 at Winton.....


Lukeyson
Top
 Profile


Posted: Sun Aug 03, 2008 10:25 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Clutch line fixed and tested. First test failed and I thought it was because I had no clutch line in the dash loom, but it turns out I just had my pinouts inverted and it was an unlucky coincidence that the opposing pin was empty as well. Doh!

I pulled it out and put it in the right spot, and a quick drive proved it out. Cruise now disengages correctly at the slightest tap of the clutch pedal.

Now, onto the other finishing touches - enabling the side airbags and getting the parking sensors cleaned up, installed and working.


Lukeyson
Top
 Profile


Posted: Sun Aug 03, 2008 10:48 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

Good work Luke!



_________________

Nicko

Top
 Profile


Posted: Mon Oct 06, 2008 10:27 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Nicko wrote:
get a ba RCM Luke.

Get Darren to get some pricing on just new head rest leather covers - may not be too expensive.


I've been lazy.

Now considering BA RCM. I didn't even think about the leathers. I might ask now.


Lukeyson
Top
 Profile


Posted: Tue Nov 04, 2008 9:24 pm
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Well, still no side airbags. I guess I got burned out a bit with all that other work. Still a bit lazy.

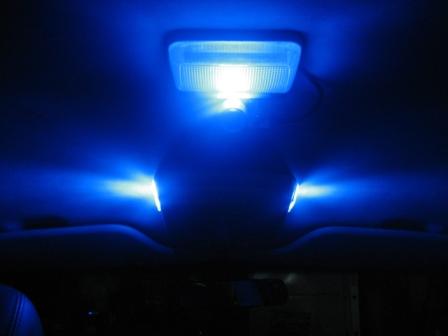

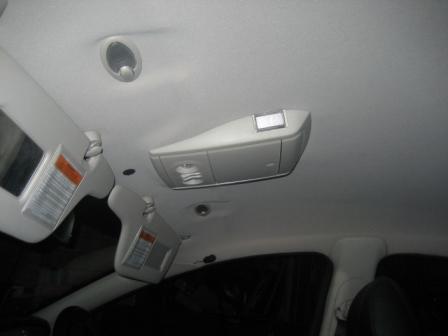

However, I have put the overhead console in now, but decided to add a couple of extra lights. This includes the 2 x lights behind the sunvisor, and 2 x extra lights in the side of the console itself. I had to make up a custom loom to do it.

I hope it wasn't over the top.


Lukeyson





Attachments:
IMG_4356_WEB.jpg [ 21.03 KiB | Viewed 928 times ]
IMG_4360_WEB.jpg [ 22.24 KiB | Viewed 935 times ]
IMG_4361_WEB.jpg [ 19.7 KiB | Viewed 929 times ]
Top
 Profile


Posted: Tue Nov 04, 2008 11:30 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

No but the porno camera in the roof is OTT.

(the Fairlane's get extra lights in the overhead console. Looks the same as mine, otherwise???)



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Wed Nov 05, 2008 7:41 am
Getting Side Ways
Offline
User avatar

Posts: 1123

Joined: 7th Nov 2005

Location: Newcastle
NSW, Australia

Nope, the overhead console really is identical to yours. I cut holes in the thing and put those lights in myself.

The lenses are actually identical to the BA Boot light lense, but the part number seems to be something that goes back to 1970's escorts and X series falcons, much like the rear footwell lense that goes back to the EA.

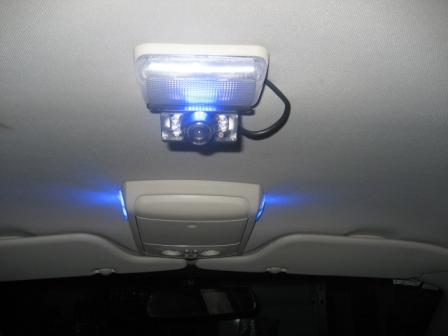

The camera is there so I can observe the kids during both the day and night while in the back. I often have to drive them 45 mins each way to grandparent-daycare on my own. The camera is a godsend, especially at night when otherwise I can't see them at all.


Lukeyson
Top
 Profile
