Alright from your two pics, here's what I've got.

middle pic, left to right.

White - GND (for reverse sensor disable switch)
Yellow - Left lamp
Red - Stop/Brake lamp
Light blue - N/C
White - GND
Black - Reverse lamp
BRown - Tail lamp
Green - Right lamp
BRown - Reverse Sensor disable switch

Bottom pic. again left to right (as in the pic), Guessing the colours, but it makes sense (the diagrams have these two colours).

White - GND
Pink - 30A auxiliary 12V



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


Posted: Sun Dec 21, 2008 2:36 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

So is there a male version of those plugs with both rows of pins? Because with the normal 7-pin plug connected there's no way to get another plug inserted there.

Has anyone seen the combined male plug?


Lukeyson
Top
 Profile


Posted: Sun Dec 21, 2008 2:58 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Don't know, never seen anything of the flat plug variety that's got more than the 7 pins.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


Posted: Sat Dec 27, 2008 10:49 am
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Today's the day, I'm going in - cover me.....

First thing to do is the RCM replacement to finally get side airbags working.

Next is the FPV car alarm. Boy, getting the old one out of the wiper cavity was nasty.

Then finally the reverse sensors and loom.


Lukeyson
Top
 Profile


Posted: Sat Dec 27, 2008 5:00 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 2159

Joined: 15th Nov 2005

Gallery: 17 images

Ride: TS40

Location: Latrobe Valley
VIC, Australia

good luck :D... if you cant see then new post you can change the url... at the moment it finishes in 140 if you were to chuck it up to say 150 it would cut the first 10 posts of this page of... and add 10 from the next...

Cheers Cam...



_________________

Was - 2001 AUIII Ford Falcon Forte
Genuine T2 TS50 bodykit, 18" BF Cobras, Boge and Eibach Suspension and Complete AU2 Fairmont Ghia Interior

Now - 2012 FG Mk2 Ford Falcon XR6
Swift Green,6 Speed Auto, Stock... and a Fuel Card :)

Top
 Profile


Posted: Sat Dec 27, 2008 6:50 pm
Parts Gopher
Offline

Age: 69

Posts: 56

Joined: 25th Nov 2007

Ride: ba wagon

Location: dandenong
VIC, Australia

Hi. Luke try your local autObarn for a Narva trailer plug p/n 82171bl, The socket seems to be quite common on falcons & terrys here in Vic. Cheers Michael
Top
 Profile


Posted: Sat Dec 27, 2008 7:19 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

I spoke to a trailer salesman mate, says those 12-pin plugs are used for when the trailer has electric brakes, or other electric things to run (e.g. lights in a horse float).



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


Posted: Sat Dec 27, 2008 7:26 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Or Caravan with a 12V fridge......


Lukeyson
Top
 Profile


Posted: Sat Dec 27, 2008 7:54 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

So how did today's activities end up? Successful I hope.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


Posted: Sat Dec 27, 2008 9:20 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

It was a bit of a struggle. The side airbags are done - getting access to the 3 x 8mm bolts on the RCM are a bit of a challenge but I got there in the long run. Now it's back together all the on-demand diagnostics have proven out successfully with no On Demand or Constant DTC's.

It was the FPV Alarm that did me in. I struggled with dodgy connections for most of the afternoon. In fact the Alarm and Airbag stuff were in by midday, but the whole afternoon was spent tracking down a problem with the Alarm - the car would not lock and I finally tracked it down with a B1300 DTC on the BEM. And I already mentioned where the old alarm was in the wiper cavity. I had to unbolt the whole wiper assembly and push it into the cavity so as to allow me to remove the old siren....there was no way a would-be crook was going to disable that thing!

So that leaves the reverse sensors still not done, and my window of opportunity has closed for now....


Lukeyson
Top
 Profile


Posted: Fri Jan 02, 2009 8:21 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

MRE-50L wrote:

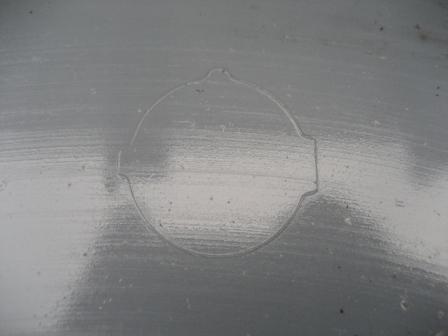

luke , when you get the rear bar off you can see the marking on the inside of the bar for the sensor locations , they look the same as the paper templetes you got . i got a rear bar here somewhere ill take a photo for you


OK, finally took the thing off today. Man, the muck under there after 5 1/2 years and 120k of travel!

But I found the outlines you mention. I took a snap on 'macro' to get it clear.


Lukeyson





Attachments:
IMG_4569_WEB.jpg [ 22.03 KiB | Viewed 1110 times ]
Top
 Profile


Posted: Fri Jan 02, 2009 8:33 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Lukeyson wrote:
A bit more playing.

This is the guts of the towbar plug with the reverse-sensor cutoff. When I pull the old unit off I'm going to see how similar they are on the inside.

There's a pic of where the magnet goes in the flip-top lid, and how the extra magnetic rood switch in the casing is hooked up via the two outboard connections on the main socket.

Lukeyson


Well, in the original plug (enjoy the dirt....) you can see that there's a channel available for fitting the reed switch.

I reckon it wouldn't be that hard to get one from DSE or Jaycar, fit it in there, add the necessary wires and make a combined towbar/reverse sensor loom out of the individual towbar and sensor looms I now have. The greater question would have to be 'why' though, unless it was to save the $100 or so buying a new loom costs.

It's too late for me, but maybe someone else might be able to take advantage of this in the future.....


Lukeyson





Attachments:
IMG_4563_WEB.jpg [ 36.61 KiB | Viewed 1118 times ]
Top
 Profile


Posted: Fri Jan 02, 2009 8:50 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

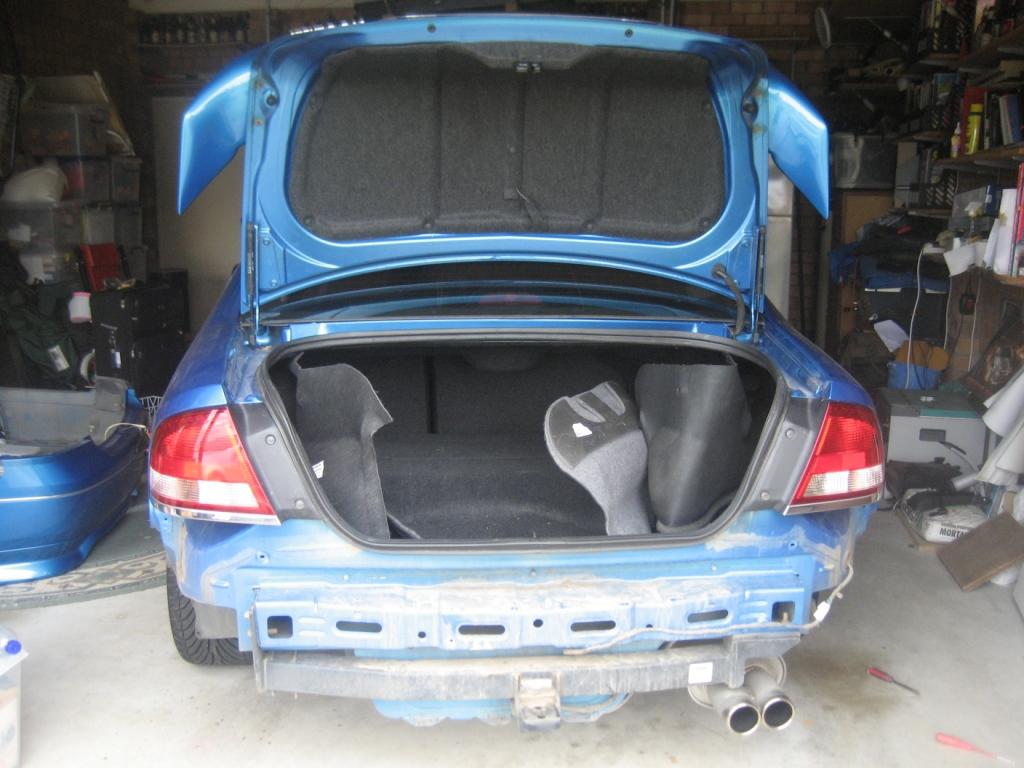

Getting the rear bar off ain't that hard after all! I once had a quick go at it but couldn't get the firtree clips out of the bloody mudflaps. This time around I just cut the bastards and will replace them with neweys from Supercheap. Amazing how much easier it makes a job.....

Anyway, this is a shot mid-stream, just after I took off the bar and before I cleaned it up. I've since also taken the opportunity to spray a shed load of Tectyl 506 over the exposed joins which are showing signs of surface rust.


Lukeyson





Attachments:
IMG_4556_WEB2.jpg [ 101.71 KiB | Viewed 1118 times ]
Top
 Profile


Posted: Fri Jan 02, 2009 10:17 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Guys, I have some bits for sale if anyone is interested. BF 4-Bag Airbag Module - I didn't end up using it and got a BA 4-Bag module instead....and my Factory BA Alarm which was rendered inoperative when I had to change the Black-Low-BEM out for a High-BEM for the DZ upgrade.


http://www.fordmods.com/forums/post933565.html#933565


Lukeyson
Top
 Profile


Posted: Sat Jan 03, 2009 12:31 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

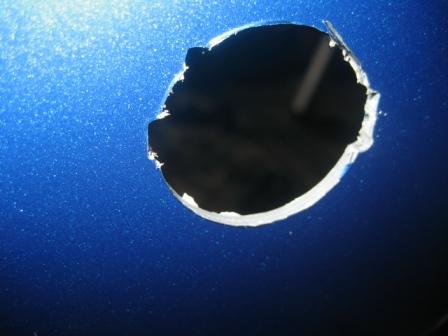

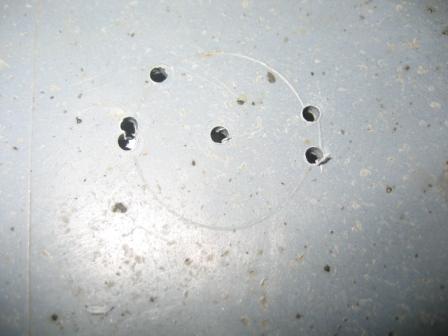

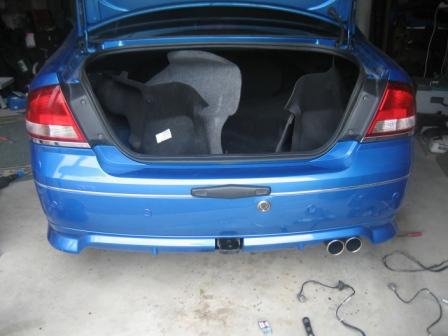

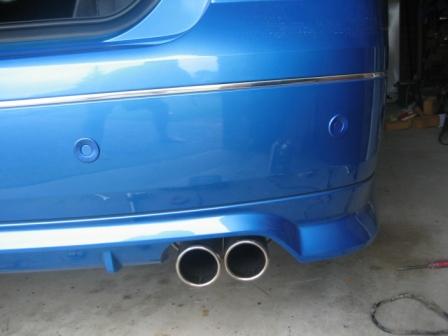

Parking Sensors are in! And they don't look half bad even if it's me saying it....


Lukeyson





Attachments:
IMG_4587_WEB.jpg [ 26.96 KiB | Viewed 1102 times ]
IMG_4586_WEB.jpg [ 27.59 KiB | Viewed 1107 times ]
IMG_4591_WEB.jpg [ 31.64 KiB | Viewed 1099 times ]
IMG_4593_WEB.jpg [ 26.54 KiB | Viewed 1220 times ]
