Deep inspection and some disassembly has revealed a few more items that are in need of repair before it all goes in. The perils of buying components that have been in a crash! They're mostly minor items (although the passenger seat is bent underneath - it looks to be easily corrected though) so it's all good.

So it looks like it'll be a couple of weekends away at the least before I can get into the major work.

I've at least hooked the drivers seat up to my powered lab, and it moves in all directions. I needed to put the seat into the full-lift position so I could get to the Memory Module and harness carrier underneath. Being the nerd I am, I wanted to get it open and take snapshots of the circuit board.

Interestingly, the Memory Module has a '10 Way Barra Memory Module' sticker on the top which triggered a little excitement. So I disassembled the back of the drivers seat to see what I could make of it. Comparing the Lumbar in this seat to a single diagram in the BA Fairlane Workshop Manual Supplement, it looks like the whole Lumbar assembly needs to be replaced, and a custom motor installed, for the Lumbar + memory to work. Seeing as how there are two types of motor alreay, and every single one of them has a custom gearbox, I don't expect to be able to bodge up a Lumbar in this seat. And since the Lumbar is only optioned in the LTD, finding one will be next to impossible.

I'll hook the 6-way passenger seat up today and give it a run, as well as the Memory Mirrors. I've got all the bits for those now so hopefully they can be fired up in anger for the first time.


Luke
Top
 Profile


Posted: Sun Apr 20, 2008 4:09 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

You don't happen to have a shifter from a 6-spd auto do you?



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


Posted: Sun Apr 20, 2008 7:04 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Correct, I don't. I have the guts of a 4-spd for the kids to play with, and so I can experiment with the tiptronic electronics.

Do you have a faulty one or just trying to get a new one? I did some reading about them, and it looks like they might have mini-CAN modules in them for Tiptronic. A 6-speed SY I played with had loads of extra broadcast messages, and the tip+ tip- message to TCM is digital according to the w/s manual, rather than the potentially flakey 'changing resistance' value provided by the 4-speed method


I have now confirmed that the Passenger seat works, but it needs some serious re-allignment. I also identified and labelled all plugs today. I had an issue locating the parcel-shelf stop light - but don't care since it's disabled in the XR's anyway. There's a large single pin female connector at the rear left passenger left shoulder area - no idea what that is. And there's an extra antenna cable for something. There's no NAVI in this harness so it doesn't look like a NAVi antenna.

Of note, however, is that the BA and BF Tiptronic connectors are the only real difference. Somewhat coincidentally topical eh?

Thankfully I have a Manual, so it's not required. Problem solved.



Lukeyson


Lukeyson
Top
 Profile


Posted: Sun Apr 20, 2008 7:08 pm
ACT Cruise Moderator
Offline
User avatar

Age: 42

Posts: 6249

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

yeah, I'm trying to source one so I can play with the electronics side of it. Had I a four speed, I'd have what I want by now. The 6 speed does indeed use CAN messages for everything. Much harder to emulate.

Next I hope to simply be able to trigger whatever the shifter physically triggers. Hoping an optorelay or reed switch or something.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow
2006 BF GT-P in Ego, mods. Supercharged 5.8L all alloy modular

Top
 Profile


Posted: Sun Apr 20, 2008 7:35 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Hmm. I'm keen to hear more about that one.

Hopefully you'll start up a thread on your efforts and keep us informed.....!

The missus has a 4Spd Territory, so ultimately I'm keen to toy with a wheel-mounted tiptronic experiment. Specifically, a non-rotating lower-steering-column mounted unit within finger reach but not interfering with wipers or indicators. The mechanical part might be cause for a mini collaboration project.

But there are a few other things to do at my end first.....


Lukeyson
Top
 Profile


Posted: Tue Apr 22, 2008 8:19 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Seats submitted to the Leather Doctor for repair today. Fingers crossed. He's going to see how much it will cost to re-trim the rear seat side bolsters at the same time.


Lukeyson
Top
 Profile


Posted: Tue Apr 22, 2008 8:56 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 11788

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

off topic - i have a 6 spd auto shifter assembly



_________________

Nicko

Top
 Profile


Posted: Tue Apr 22, 2008 8:58 pm
Stock as a Rock
Offline
User avatar

Age: 54

Posts: 144

Joined: 25th May 2006

Gallery: 29 images

Ride: G6E Turbo

Location: Adelaide
SA, Australia

You have to lift the carpet - loom runs from behind drivers seat along a channel towards the center console (stuck down at 8 points various points - 2 behind each seat and 4 on the center console 'hump') then divides into 2 looms and the main loom carries over the center down behind the front passenger seat where it ends (well one loom anyway!), and connects to the other side loom. The other smaller divided loom runs up the center towards the front dash which has the handbrake etc.
Be aware that the standard XR looms do not have a rear footwell lighting - only the premium XR loom - found this out myself! I ended up running extra wires from the front right hand drivers piller to the center for the rear footwell lighting.



_________________

AG3NT - 2008 FG G6E Turbo / SS Growler Kit / 19 Inch Dark Argent Wheels / ASL RGB System / FPV Cluster / 60lb Injectors / F6 Piping & Intercooler / KPM 15PSI Tune
JON211 - 2006 BF Fairlane Ghia / SS Induction / 18 Inch FG G6ET Wheels / ASL RGB System / Twin Rear Headrest LCD DVD Players

Top
 Profile


Posted: Tue Apr 22, 2008 9:54 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

Hmm. You reckon the Premium XR loom has the rear footwell light line? I couldn't find anything on mine when I looked ages ago, but then I didn't pull the carpet up. My car didn't have side airbags though.

I did the same thing as you and ran an extra line from the front footwell lamps to power the rear footwell lamp by splicing a connector into the Dash loom before I swapped to DZ.

I've straightened up the passenger seat tonight. Much better. But it still seems to me to have a designed tendency to point toward the centreline of the car. Is that normal? Nothing looks bent anymore underneath.


Lukeyson
Top
 Profile


Posted: Tue Apr 22, 2008 10:02 pm
Stock as a Rock
Offline
User avatar

Age: 54

Posts: 144

Joined: 25th May 2006

Gallery: 29 images

Ride: G6E Turbo

Location: Adelaide
SA, Australia

Should be straight - I tightened the front outside bolt first then ran the seat back and forwards a few times then tightened the front inner bolt. If I didnt do it this way it would point slightly towards the center and would not lock into position correctly. Drivers seat was the same - front outside bolt first then slide back and forward a few times then inner front bolt.



_________________

AG3NT - 2008 FG G6E Turbo / SS Growler Kit / 19 Inch Dark Argent Wheels / ASL RGB System / FPV Cluster / 60lb Injectors / F6 Piping & Intercooler / KPM 15PSI Tune
JON211 - 2006 BF Fairlane Ghia / SS Induction / 18 Inch FG G6ET Wheels / ASL RGB System / Twin Rear Headrest LCD DVD Players

Top
 Profile


Posted: Tue Apr 22, 2008 10:25 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

It sounds like you're talking about seats without motors. I think there's even a TSB about seats that don't latch properly because they weren't installed in allignment as you say.

But both the passenger and drivers seat from the BF Fairlane are powered, so there's no locking mechanism or lever here. I'll have a closer look now you mention it though.


Lukeyson





Attachments:

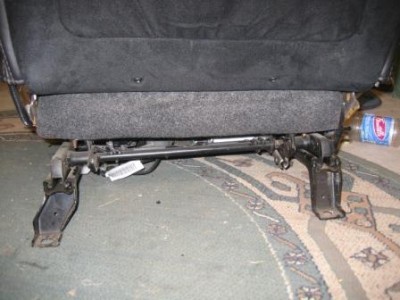

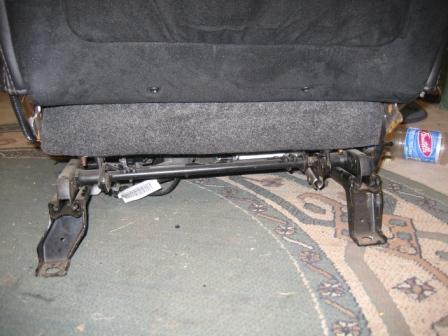

File comment: Before
IMG_3094_WEB.jpg [ 35.6 KiB | Viewed 211 times ]

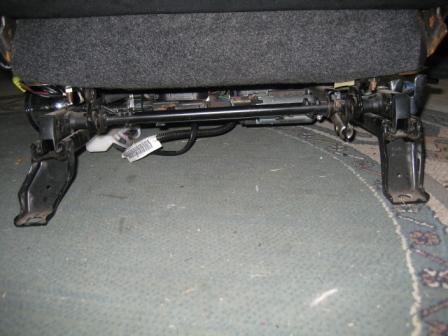

File comment: After
IMG_3106_WEB.jpg [ 33.78 KiB | Viewed 194 times ]
File comment: The 'point to centreline' I mentioned. Looking at it, I might be able to adjust it out using the movement in the 4 mount pins.
IMG_3105_WEB2.jpg [ 105.18 KiB | Viewed 229 times ]
Top
 Profile


Posted: Thu Apr 24, 2008 10:24 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

jlgw70 wrote:
You have to lift the carpet - loom runs from behind drivers seat along a channel towards the center console (stuck down at 8 points various points - 2 behind each seat and 4 on the center console 'hump') then divides into 2 looms and the main loom carries over the center down behind the front passenger seat where it ends (well one loom anyway!), and connects to the other side loom. The other smaller divided loom runs up the center towards the front dash which has the handbrake etc.
Be aware that the standard XR looms do not have a rear footwell lighting - only the premium XR loom - found this out myself! I ended up running extra wires from the front right hand drivers piller to the center for the rear footwell lighting.


How about the risers to the left and the right of the dashboard? These bits go to the door connectors, the roof loom on the RHS, and the tweeters on both sides.

Did getting that bit swapped require a dash-out?

I'm hoping to get away without the Dash-Out. A carpet-lift is OK (not completely remove, but it's coming up.) but a dash out will peeve me off a bit, mainly because of all the extra wiring I've run under there for audio boosters, video converters, bluetooth kits, electronic brake boosters etc.


Lukeyson

Last edited by Lukeyson on Thu Apr 24, 2008 10:37 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Apr 24, 2008 10:29 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

I got the seats back today that I was having straightened up a bit. Quite an improvement. Not perfect, but better.


The kids seats will hide the worst of what's left for a few years...



Lukeyson





Attachments:

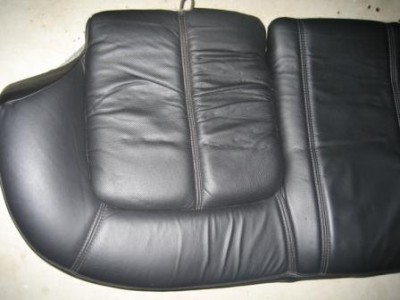

File comment: Rear Base Passenger Side After
RearBasePassAfter_WEB.jpg [ 28.11 KiB | Viewed 188 times ]

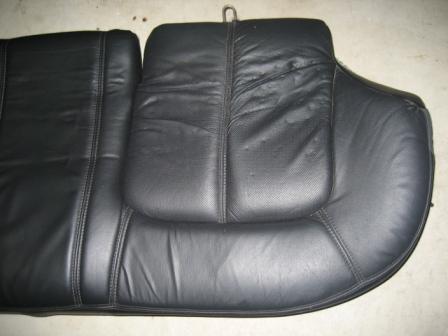

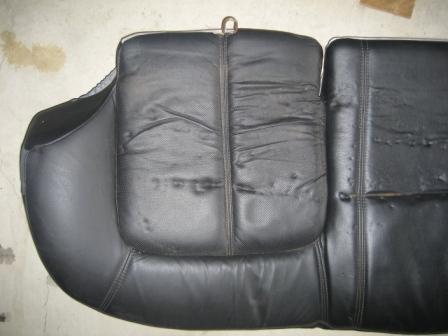

File comment: Rear Base Passenger Side Before
RearBasePassBefore_WEB.jpg [ 28.1 KiB | Viewed 181 times ]

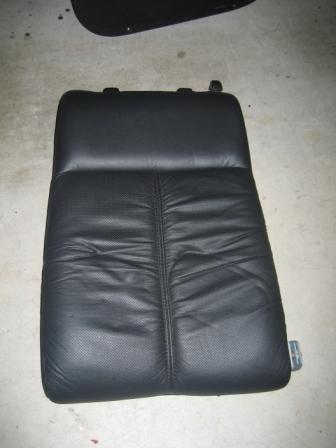

File comment: Rear Single After
RearSingleAfter_WEB.jpg [ 26.35 KiB | Viewed 196 times ]

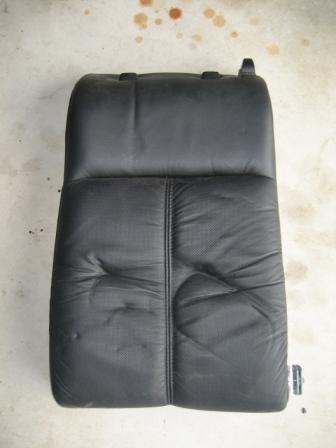

File comment: Rear Single Before
RearSingleBefore_WEB.jpg [ 24.96 KiB | Viewed 186 times ]

Last edited by Lukeyson on Thu Apr 24, 2008 10:32 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Apr 24, 2008 10:30 pm
Getting Side Ways
Offline
User avatar

Posts: 1126

Joined: 7th Nov 2005

Ride: BA XR8, SX Ghia, WQ XR4

Location: Newcastle
NSW, Australia

And more...





Attachments:
File comment: Rear Base Drivers Side Before
RearBaseDriversBefore_WEB.jpg [ 28.43 KiB | Viewed 197 times ]
File comment: Rear Base Drivers Side After
RearBaseDriverAfter_WEB.jpg [ 29.01 KiB | Viewed 195 times ]
Top
 Profile


Posted: Thu Apr 24, 2008 10:45 pm
Stock as a Rock
Offline
User avatar

Age: 54

Posts: 144

Joined: 25th May 2006

Gallery: 29 images

Ride: G6E Turbo

Location: Adelaide
SA, Australia

Quote:
How about the risers to the left and the right of the dashboard? These bits go to the door connectors, the roof loom on the RHS, and the tweeters on both sides.

Did getting that bit swapped require a dash-out?

I'm hoping to get away without the Dash-Out. A carpet-lift is OK (not completely remove, but it's coming up.) but a dash out will peeve me off a bit, mainly because of all the extra wiring I've run under there for audio boosters, video converters, bluetooth kits, electronic brake boosters etc.


Lukeyson


I did mine without pulling out the dash - used builders spaghetti to run down the side of the dash then pulled up the new loom. The only thing I could not do was mount the loom down on the chassis.



_________________

AG3NT - 2008 FG G6E Turbo / SS Growler Kit / 19 Inch Dark Argent Wheels / ASL RGB System / FPV Cluster / 60lb Injectors / F6 Piping & Intercooler / KPM 15PSI Tune
JON211 - 2006 BF Fairlane Ghia / SS Induction / 18 Inch FG G6ET Wheels / ASL RGB System / Twin Rear Headrest LCD DVD Players
