Posted: Mon Jun 16, 2008 11:08 am
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Bloody nice work brother. I've been looking for some Fairlane / Ghia door trims too... Think mine are going to be BA style blue...!

Am still having trouble removing the whole dash to get the digital climate control out as a complete unit - Looks too complicated with all that wiring at stuff, so am just intending to pull the whole lot out of Fairmont and put into Futura.

I agree on the ugly steering wheel that is Fords idea of humour. Just how much room to they really really need for a half decent airbag?!!!!




(oops - posted this message here before reading to the very end where you've compiled all your threads into one... sorry!)





Attachments:

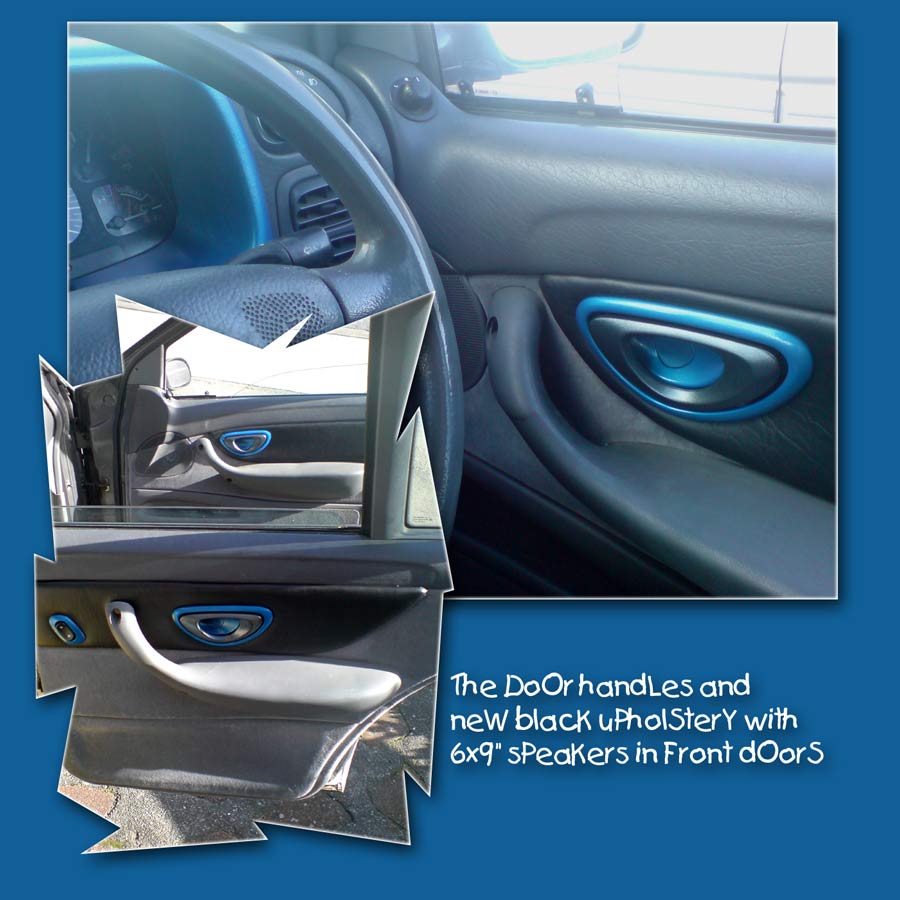

car_doors1.jpg [ 85.57 KiB | Viewed 1553 times ]
Top
 Profile


 Post subject: Re:
Posted: Wed Jul 15, 2009 5:27 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 1700

Joined: 24th Nov 2005

Gallery: 12 images

Ride: DCII LTD V8

Location: Dunedin
New Zealand

TROYMAN wrote:

ive made a ef fuel door fit the ea. as ea/ed have a finger hole and ef/el doesnt.. i will post something up soon i just dont want to crowd benj's interior topic with a fuel door thread..


Care to elaborate? I'm trying to do it atm, swapped the mounts over but haven't looked at the other parts



_________________

1993 LTD V8 Oregon 5 speed "click me"

Trick Flow Heads/Cam/Intake, Crane Ignition, T5Z Trans.

Top
 Profile


 Post subject: Re: Re:
Posted: Wed Jul 15, 2009 5:46 pm
Moderator
Offline

Posts: 14513

Joined: 7th Nov 2004

Ride: ford falcon au3 xr8

Location: a shit suburb in sydney
NSW, Australia

XFWAGON wrote:
TROYMAN wrote:

ive made a ef fuel door fit the ea. as ea/ed have a finger hole and ef/el doesnt.. i will post something up soon i just dont want to crowd benj's interior topic with a fuel door thread..


Care to elaborate? I'm trying to do it atm, swapped the mounts over but haven't looked at the other parts


yep in my old ea build thread on page 3 halfway down.
.commercial-sponsors-forum-f53/troymans-ea-s-pack-build-thread-t65404-40.html
Top
 Profile


 Post subject: Re: Re:
Posted: Fri Jul 17, 2009 12:18 am
Stock as a Rock
Offline
User avatar

Age: 33

Posts: 157

Joined: 21st Jul 2005

Ride: EAII Ghia & AUII Fairmont

Location: South Oakleigh
VIC, Australia

XFWAGON wrote:
TROYMAN wrote:

ive made a ef fuel door fit the ea. as ea/ed have a finger hole and ef/el doesnt.. i will post something up soon i just dont want to crowd benj's interior topic with a fuel door thread..


Care to elaborate? I'm trying to do it atm, swapped the mounts over but haven't looked at the other parts

I've got one on my EA. It came off a late EL wagon though, so it was just about a direct fit.


btw Ben. The car's coming along great.



_________________

1990 EAII Fairmont Ghia
Platinum Silver - 5 speed

EL engine, BBM, SVO wheels, Sprint kit, Scorcher front bar, XR lip, EF handles, mirrors & fuel flap, 2.5" exhaust, pacemaker extractors and high flow cat, serpentine conversion, AU rocker cover, heaps more

Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 12:20 am
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

hi, i have recently done a full ef dash coversion into my ed xr6, your post helped alot with wiring in the instrument cluster, i noticed you had a problem with the oil pressure guage, the cluster im using is a base model ef and dosent have the pressure guage but i do have the warning light on permanently, im assuming this would be the same problem?
also do you know if the fuel guage and temp will be reasonably accurate?
any help would be much appreciated.



_________________


Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 9:35 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hi.

What ECU are you using?

I will have to look up my pinout chart at home tonight, but if you are not using an EL ECU, then you will have these sort of issues.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 11:17 am
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

im just using my stock ed xr6 5spd ecu, everything seems to be ok, got rid of the shudders in the tacho, really the only downside to the ed ecu seems to be the oil pressure, and i realised last nite the temp guage is dead, according to the ef cluster pinout diagram it dosent have any temp guage input like the ed (red/white) wire, although the actual loom from the ef had a few more wires then the pinout chart shows, could any of those be the temp...?

cheers for your help on this



_________________


Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 11:37 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

You MUST use the EL ECU.

The cluster requires the DATA line from the EL ECU for the components that are not working. The temp and oil guages are a couple of these.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 11:42 am
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

would i need an el xr6 5spd ecu? and does that mean i would need to change the manifold and all that gear too or can i just strait swap it?



_________________


Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 12:14 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Jester-BOC wrote:
would i need an el xr6 5spd ecu? and does that mean i would need to change the manifold and all that gear too or can i just strait swap it?


Ideally, an EL XR6 Manual ECU is the best option, but they are as rare as hens teeth.

Another option is to find any old EL Auto ECU and get a J3 chip with an EL XR Manual tune on it.

You can run an EL ECU with the log manifold, but the timing and fuel maps are designed to work with the BBM manifold. It works ok with the log manifold and you can advance the timing a bit to compensate.

I do recommend doing the BBM conversion as it really helps a lot with low down torque. In fact that was one of the best driveability improvements I have done to my wagon.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 12:33 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

in the future ill want to do the bbm swap ive got a spare parts ef i could use but would that be as good? all the dash and cluster came from that car so im guessing its easier,
also with this bbm conversion how did you do the wiring from ecu to bbm etc? you didnt use el looms rite?

cheers



_________________


Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 12:40 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I just added in the wires to the EB ECU plug and ran them through to the engine bay. Makes it much simpler.

An EF BBM will work fine. The only difference is the EL BBM has mounting lugs on the back half for the EL intake pipe work.

If you have the parts car, you will have all the bits needed for the BBM conversion.

Good luck with it all.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 12:45 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

ok sounds good, can i use the ef auto ecu though (with the chip of course)?? and do you have any pinouts or diagrams for the conversion?
hope this isnt too much trouble
thanks



_________________


Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 12:47 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

No, you can't use the EF ECU as it is designed to work with the Coil Pack ignition system. You need the EL ECU as ELs reverted back to using a distributor.

As for the other docs I will have a look tonight.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: BenJ's Interior Mods - Now with EL Dash and Console
Posted: Tue Feb 09, 2010 12:57 pm
Stock as a Rock
Offline
User avatar

Age: 30

Posts: 115

Joined: 20th Jun 2005

Ride: ed xr6 with bf turbo everything

Location: perth
WA, Australia

ok no problem, so id use the EF BBM with an EL ECU and its just a case of inserting additional wiring then? thanks heaps for your help on this it goes a long way.
cheers
