 Post subject: Bug's templates in my cluster!!!
Posted: Thu Aug 18, 2005 10:05 pm
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Hey everyone, i just got to modding my cluster, and with the help of Bug's awesome looking templates, i've got one hell of a nice looking setup in the works. I'll post up all the pics i take as i'm doing it, and keep you updated onto how it's turning out.....





Attachments:

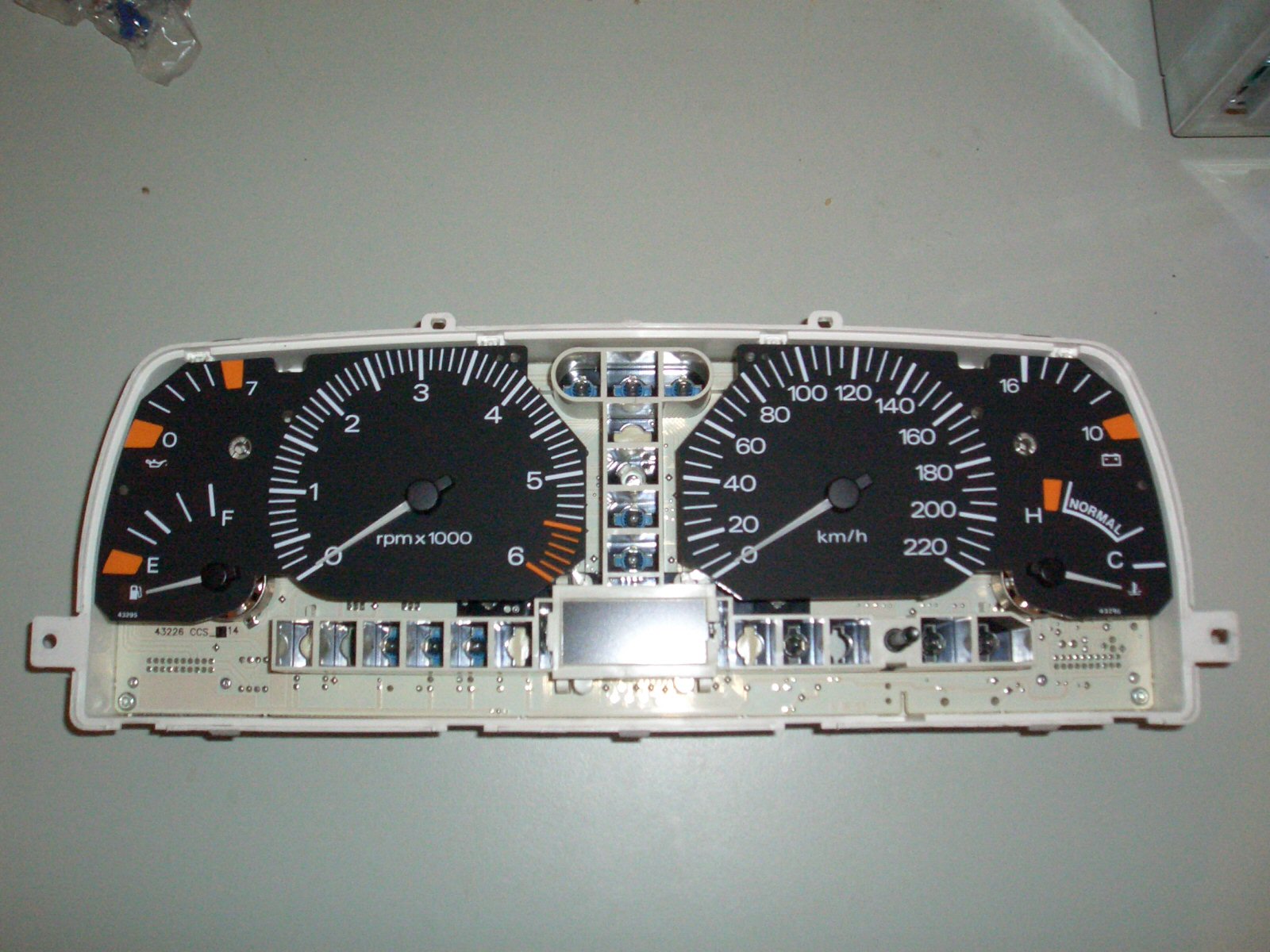

01 - Cluster Before.JPG
01 - Cluster Before.JPG [ 198.18 KiB | Viewed 35 times ]

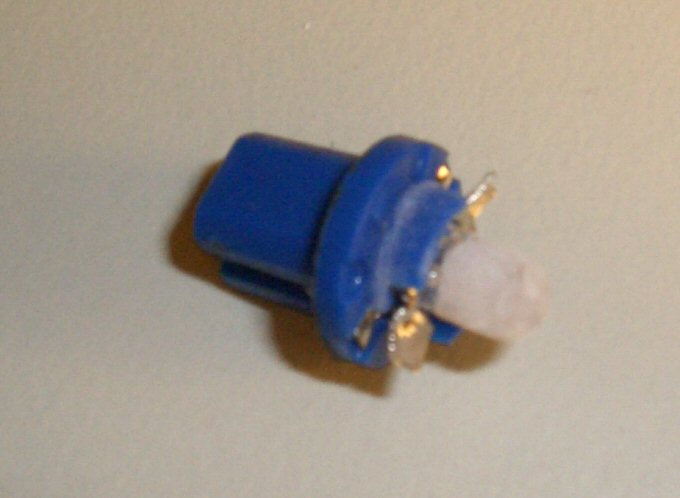

02 - LED.jpg
02 - LED.jpg [ 39.15 KiB | Viewed 37 times ]

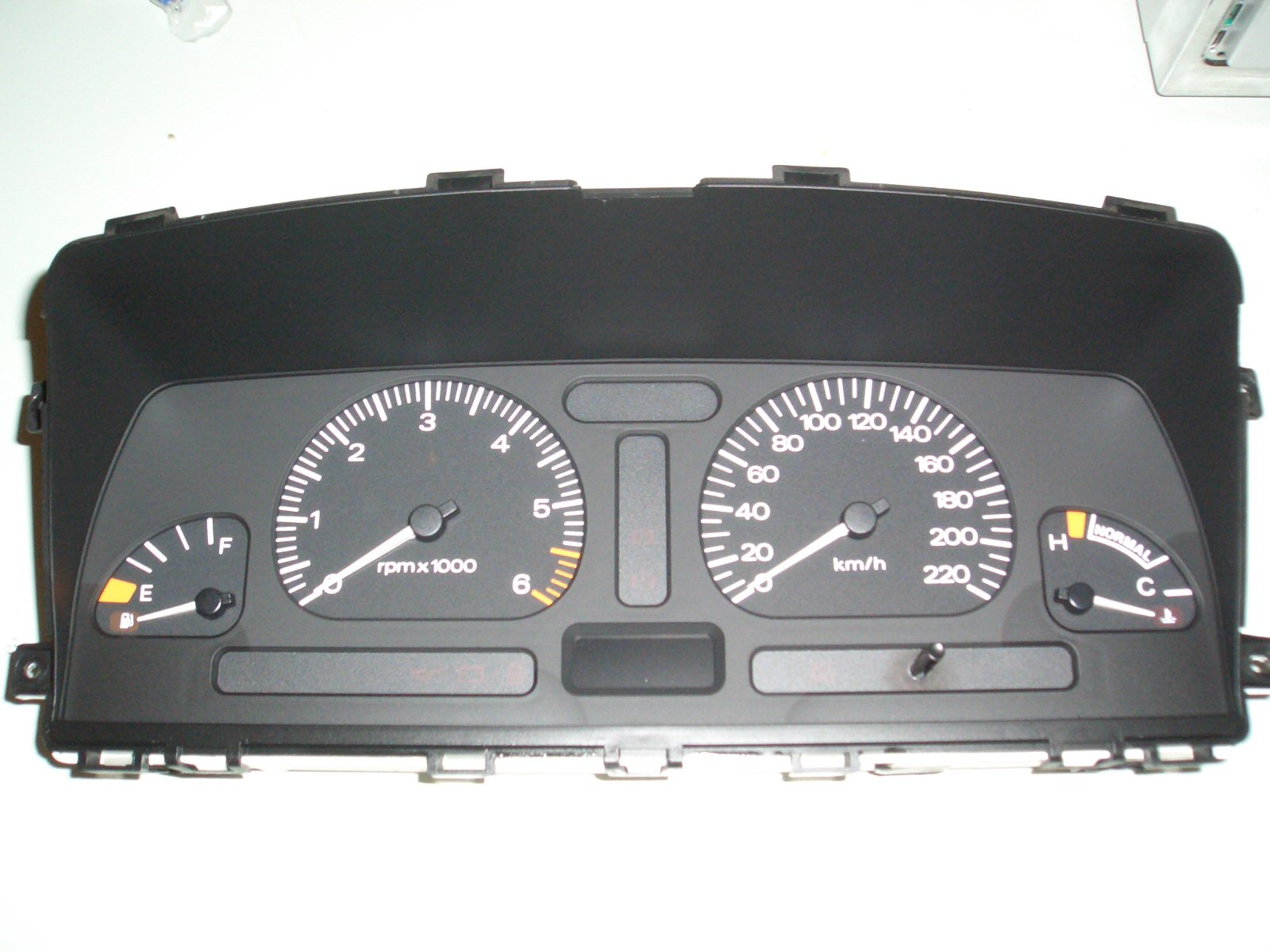

03 - Visor Removed.JPG
03 - Visor Removed.JPG [ 293.43 KiB | Viewed 35 times ]



_________________


Top
 Profile


Posted: Thu Aug 18, 2005 10:17 pm
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

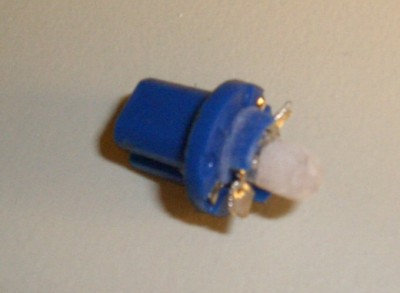

Well, if you need to know how to get the cluster out of your EF/EL, go to the doco section and read the one called "Blue neon cluster mod" or something like that. Anyway, after i got the cluster off and open, it was a mission and a half to get the needles off gently, so when you attempt this, be very careful, but it does take quite a bit of finger strength to get them off. Anyway, as recommended by a few people, i got Narva 47902 Blue LEDs which come in their own handy little plugs. I "frosted" them by scraping the crap out of them on 150 grain sandpaper, so that the light isn't so directional. BEFORE you do this, make sure you take note of which side of the LED is positive/negative and follow the instructions given in the doco named above. Anyway, once i'd got the needles and faces off completely, and received the printouts of the templates, i got to cutting them out, and i'm still busy doing that as i speak. I got both the masks and full images printed out onto this strange semi-transparent stuff that they use in shop displays (normally backlit by a flouro). The guy at the print shop said they'd be the perfect thing, and who am i to disagree with an expert? Bit pricey tho - $60 for the lot. Anyway, i'll get back to cutting now, more posts to come!! :)





Attachments:
04 - Faces Removed.JPG
04 - Faces Removed.JPG [ 297.66 KiB | Viewed 35 times ]

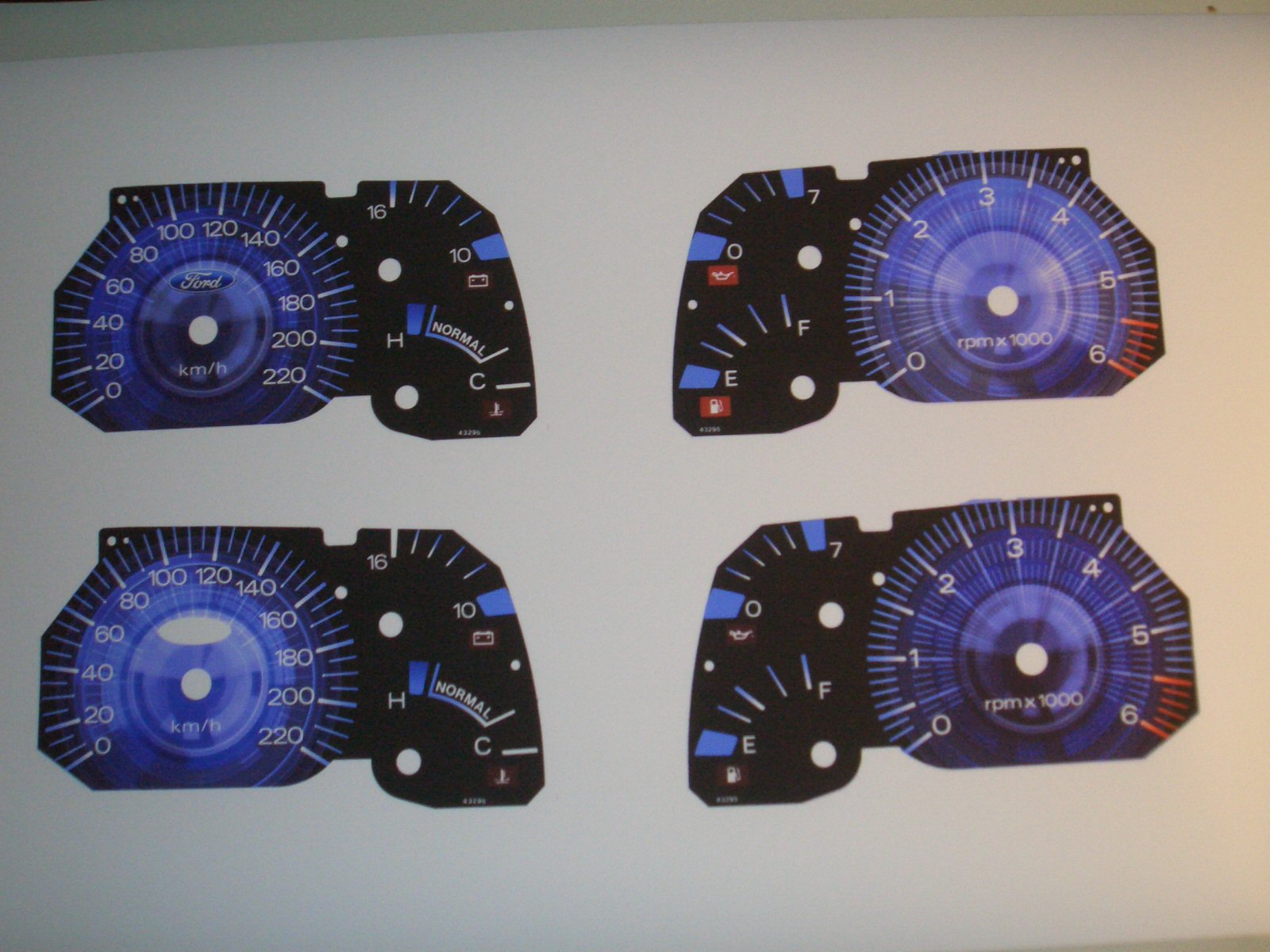

05 - Printouts Received.JPG
05 - Printouts Received.JPG [ 250.89 KiB | Viewed 57 times ]

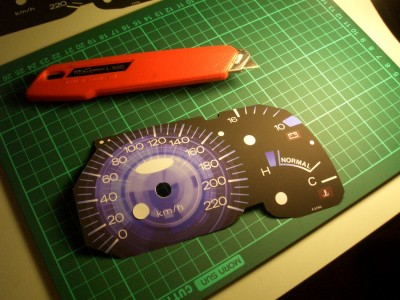

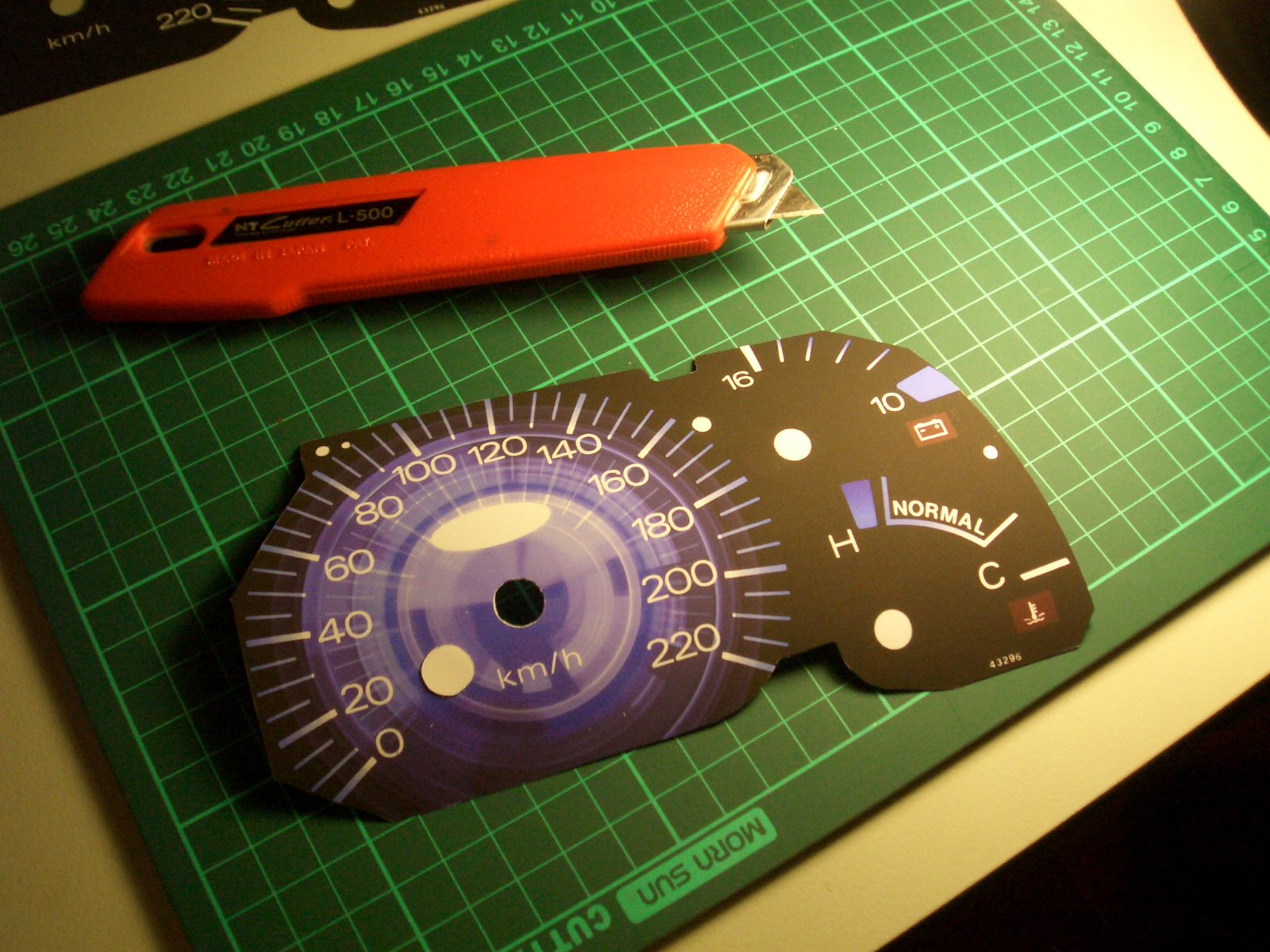

06 - Cutting Board.JPG
06 - Cutting Board.JPG [ 322.69 KiB | Viewed 36 times ]



_________________


Top
 Profile


Posted: Thu Aug 18, 2005 10:42 pm
Getting Side Ways
Offline

Age: 36

Posts: 3794

Joined: 9th Aug 2005

Ride: Hilux

Location: Mornington
VIC, Australia

love the tacho it looks mad



_________________

Now driving a Hilux

Top
 Profile


Posted: Thu Aug 18, 2005 10:57 pm
Site Admin
Offline
User avatar

Age: 34

Posts: 8831

Joined: 18th Dec 2002

Gallery: 6 images

Ride: AUII V8 LTD

Power: 270 rwkw

Location: Sydney
NSW, Australia

Thats wild! I love it :D



_________________

WAG363: AUII LTD Supercharged 363 Dart Stroker [Supercharged 363 LTD Build]
WAGGIN: 2012 Volkswagen Passat Wagon - V6 4Motion.

Top
 Profile


 Post subject: Cluster
Posted: Thu Aug 18, 2005 11:12 pm
Getting Side Ways
Offline

Posts: 476

Joined: 28th Jan 2005

Ride: 1990 EA Spac

Location: grenfell
NSW, Australia

They look very nice, look forward to some pics when installed and your comments.
Well done.



_________________

Drive safe, arrive alive

EA Spak EL dash and interior, thermo's,BBM, EF head and cam, superlows,

Top
 Profile


Posted: Fri Aug 19, 2005 12:38 am
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Ok, it's all installed, and here are the pics. Sorry about the blurry one at the end, i'll get another pic once i've dismantled the dash and put the DAMN FUEL LED THE RIGHT WAY ROUND!!! :evil: Anyway, it looks s**t hot to me, lets the light through in the perfect places, and because of the material this was printed on, the ticks etc actually luminesce. It looks almost as if there's a UV light in there somewhere. But yeah, yet again thanks to Bug for providing the images, and thanks to my photo place for giving me exactly what i needed. The whole job cost me less than $100, and about 3 hours work. Simple, effective, and something you're gonna notice every time you drive at night. Awesome s**t, keep the Ford Mods coming! :D





Attachments:

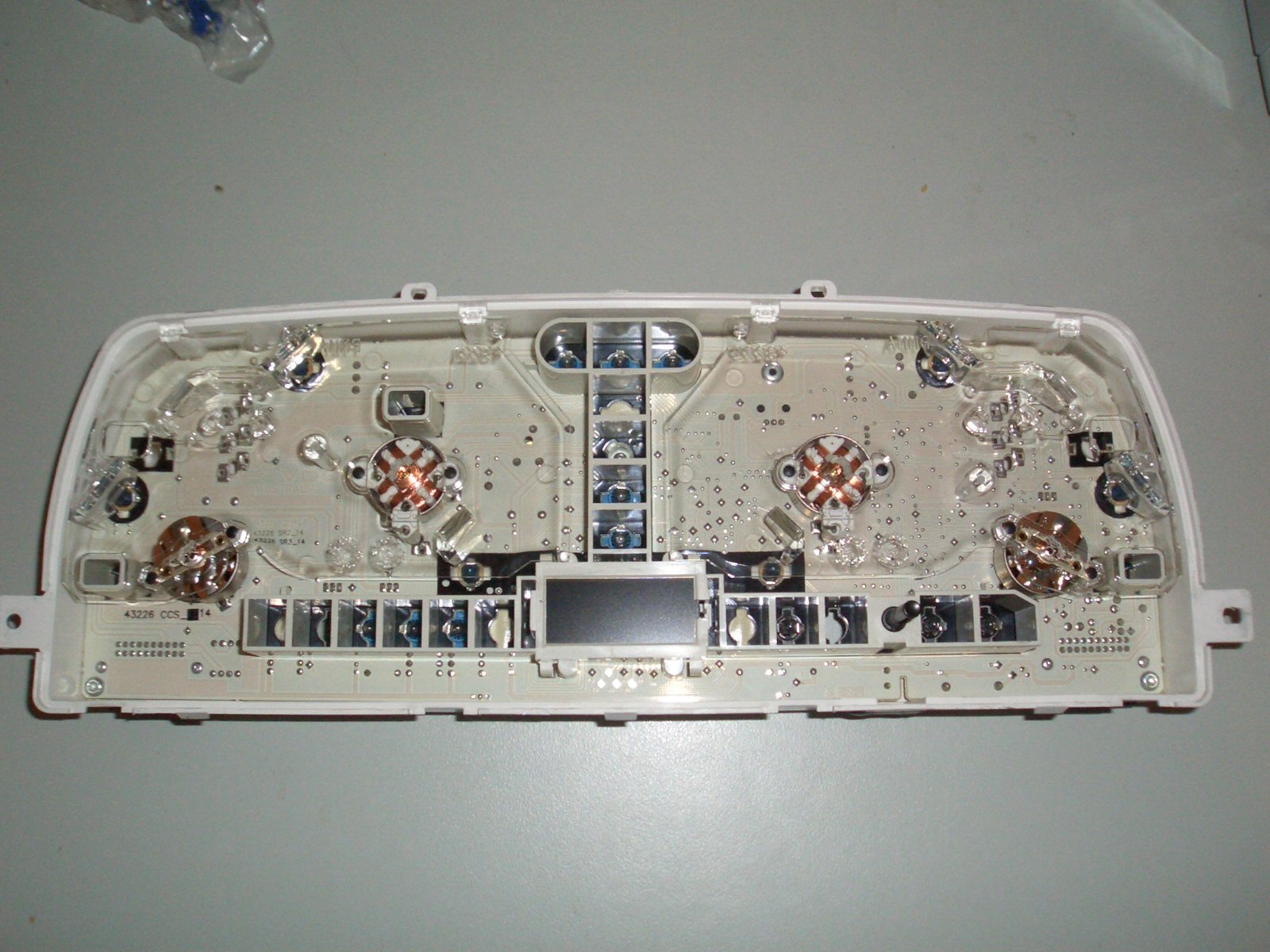

07 - All In.JPG
07 - All In.JPG [ 226.27 KiB | Viewed 44 times ]

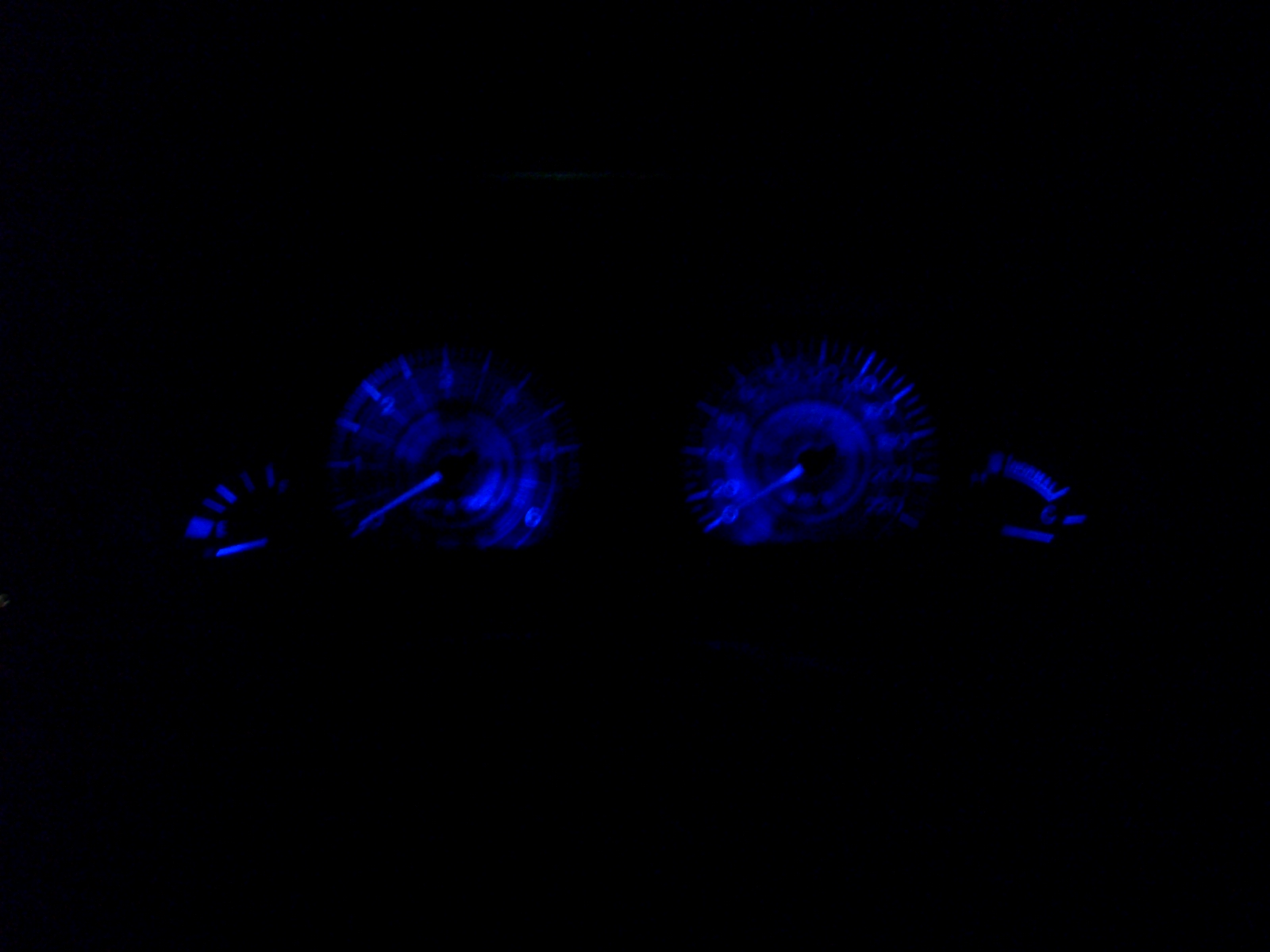

08 - In Car with Flash.JPG
08 - In Car with Flash.JPG [ 309.5 KiB | Viewed 44 times ]
09 - In Car no Flash.JPG
09 - In Car no Flash.JPG [ 64.38 KiB | Viewed 53 times ]



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 12:42 am
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Oh by the way, the print shop printed me out 3 extra complete sets of these templates if anyone's interested in them? $10 a pop, and that $10 will go straight to fordmods. Hey, it saves you guys most of the hassle of this job, and cutting $50 off the price tag for the templates, who can complain? PM me and i'll see what i can do. Cheers boys.



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 12:44 am
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Also, before i forget, i know there are a few doco's on fordmods about how to do this kinda thing, but if anyone likes, i can make a detailed account of how it's done, and submit it. As long as someone tells me what format to put it in so it can become a doco, then no problem.

Later.....



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 1:40 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

http://www.fordmods.com/phpBB2/documents.php?doc=67

Basically just do up your doco in HTML with pics, and PM brad, he'll pass on an email to send the lot to, and bam.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Fri Aug 19, 2005 2:41 am
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

That looks awesome dude.
Top
 Profile


Posted: Fri Aug 19, 2005 8:26 am
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Hmmm, no idea how to do something in HTML with all the slashes and codes etc... i'll do it when i've got more time and patience :D



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 10:14 pm
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Well i fixed the LED today, and now they all light up. One problem i have found tho - my temp guage is no longer working... anyone got any ideas on how i might have stuffed this up? Any solutions would be appreciated. Cheers





Attachments:

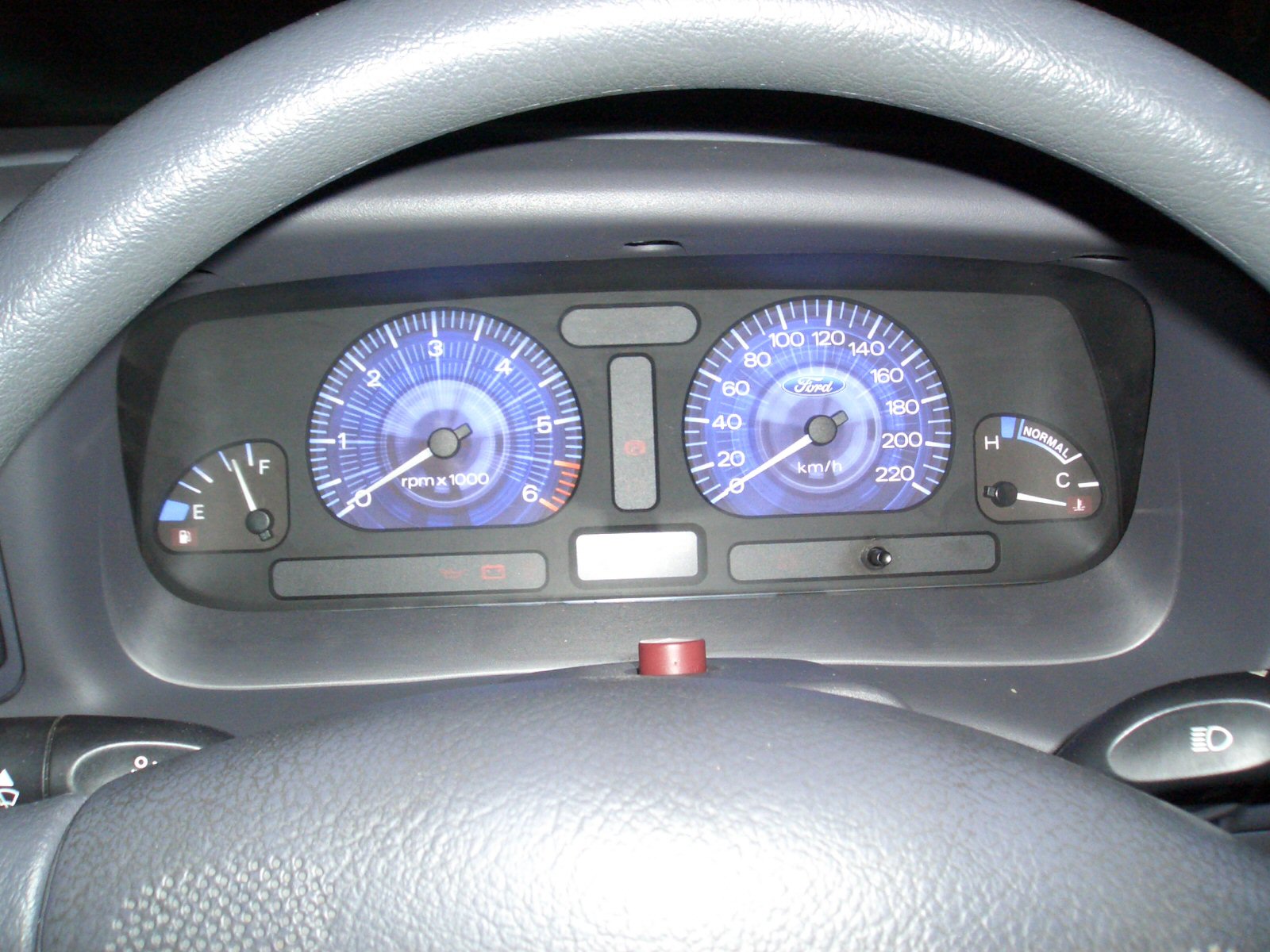

10 - In Car LED Fixed.JPG
10 - In Car LED Fixed.JPG [ 341.58 KiB | Viewed 43 times ]



_________________


Top
 Profile


Posted: Fri Aug 19, 2005 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

you might have put the needle on too tight, if it is then it wno't be able to move itself.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Fri Aug 19, 2005 11:08 pm
Getting Side Ways
Offline
User avatar

Posts: 793

Joined: 7th Jun 2005

Gallery: 4 images

Ride: Falcon BA XR8

Location: Newcastle
NSW, Australia

Just an update, all the spare templates have been sold, sorry to everyone who was hopeful :)



_________________


Top
 Profile


Posted: Sat Aug 20, 2005 1:22 am
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

The needle might be catching on the cluster face.
Top
 Profile
