 Post subject: Can holders for EB
Posted: Sat Dec 09, 2006 10:52 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1939

Joined: 10th Nov 2004

Gallery: 31 images

Ride: G6E TURBO

Location: THE DRUITT
NSW, Australia

Well as inspired by another member who I saw his post about cup holders.
I went to pick & pay more(less) and picked a stereo surround minus the ash tray & lighter. I had to hunt for the can/cup holders through alot of cars & I found a Daewoo with the dash intact so I pulled the can holders out, paid $15 for the parts then went to Bunnings got me self a Ozito hand tool(imitation DREMEL), cut the rear of that useless pocket that every thing falls out of & a few mods to fit snug like smoothing, bought a cheapy hot glue gun & glued the bastard in. I still have the ash tray but I cant use it when the holder is in use.





Attachments:

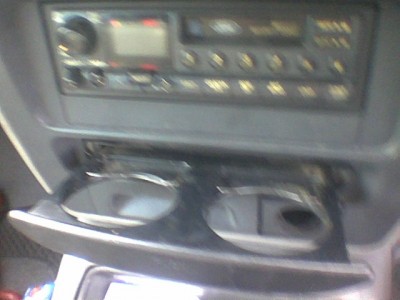

My cupholders.jpg
My cupholders.jpg [ 44.64 KiB | Viewed 164 times ]



_________________

MEMBER 1390

Top
 Profile


Posted: Sun Dec 10, 2006 9:53 am
Getting Side Ways
Offline
User avatar

Age: 48

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

Good work mate! Beats the s**t outa jamming your can (coke of course :twisted: ) between ya legs while driving 8-)



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Sun Dec 10, 2006 10:13 am
Getting Side Ways
Offline

Age: 36

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

Yeah thats great, sure bets my current cup holder location, in the main console compartment with the lid down when i'm not drinking :lol:



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Mon Dec 11, 2006 11:40 am
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 4143

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

That's a blurrrrry picture, lol. Good work.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Mon Dec 11, 2006 10:13 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 585

Joined: 27th Feb 2005

Location: Geraldton
WA, Australia

how does it slide in and out? does it lock in? Cheers. Good idea btw mate!



_________________

Fact: Chuck Norris is so fast he can run around the world and hit himself in the back of the head

_______________________________________

ED Falcon
XF Falcon
Toyota Hilux

Top
 Profile


Posted: Mon Dec 11, 2006 10:14 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 585

Joined: 27th Feb 2005

Location: Geraldton
WA, Australia

oh and how did u cut the back out? did you take the whole peice out?



_________________

Fact: Chuck Norris is so fast he can run around the world and hit himself in the back of the head

_______________________________________

ED Falcon
XF Falcon
Toyota Hilux

Top
 Profile


Posted: Mon Dec 11, 2006 10:46 pm
Stock as a Rock
Offline
User avatar

Age: 41

Posts: 174

Joined: 9th May 2005

Ride: BF Fairmont

Location: Gippsland
VIC, Australia

I'm interested in seeing some finer detail pics, as well as any further info on your setup? <-- such as what others have mentioned.

It appears to be retractable but I'm unsure about your glue statement. Did you glue the front of the cupholders to the stereo surround, or did you glue the cupholders into position? I'm guessing the former rather than the latter.

$15 for the parts is awesome value, well done!

kapul, I can't vouch for Ben_Daui's setup, but in mine the rear of that cavity needed cutting out, and 1cm-wide "notches" out of the upper corners from the rear to the front of the cavity "roof". In other words I kept most of the "roof" of my cavity intact.



_________________

EB Ghia Leather interior & more - CLICK HERE

Lightning Strike '06 BF Fairmont - powered by ICOM JTG

Top
 Profile


Posted: Mon Dec 11, 2006 11:19 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1939

Joined: 10th Nov 2004

Gallery: 31 images

Ride: G6E TURBO

Location: THE DRUITT
NSW, Australia

Ghia5L wrote:
I'm interested in seeing some finer detail pics, as well as any further info on your setup? <-- such as what others have mentioned.

It appears to be retractable but I'm unsure about your glue statement. Did you glue the front of the cupholders to the stereo surround, or did you glue the cupholders into position? I'm guessing the former rather than the latter.

$15 for the parts is awesome value, well done!

kapul, I can't vouch for Ben_Daui's setup, but in mine the rear of that cavity needed cutting out, and 1cm-wide "notches" out of the upper corners from the rear to the front of the cavity "roof". In other words I kept most of the "roof" of my cavity intact.

I'll pull it out on the w/end for more pics.
I cut the rear of the stereo surround where the screw hole for the ash tray is so there is no back to that useless pocket, yes it does lock when not in use & spring loaded, I had to cut both the surround & a few tabs of the holders that keep it in place, glued it into the rear where it was cut.

Here is some pics taken with the digi.





Attachments:

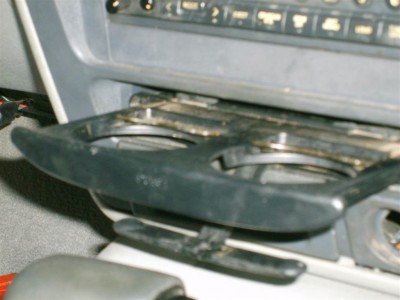

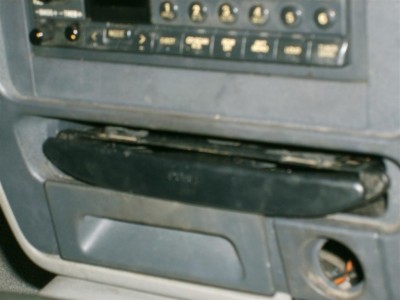

cups closed (Large).JPG
cups closed (Large).JPG [ 60.29 KiB | Viewed 141 times ]
general view.JPG
general view.JPG [ 71.17 KiB | Viewed 134 times ]



_________________

MEMBER 1390

Top
 Profile


Posted: Mon Dec 11, 2006 11:27 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1939

Joined: 10th Nov 2004

Gallery: 31 images

Ride: G6E TURBO

Location: THE DRUITT
NSW, Australia

kapul wrote:
oh and how did u cut the back out? did you take the whole peice out?


from my 1st post :went to Bunnings got me self a Ozito hand tool(imitation DREMEL)

This tool is for small jobs that a angle grinder or drill wont do, for the people who do hobbies know what Im talking about, what this hand tool does is like a 50 in 1 tool heaps of attachments like cutting discs which is how I cut the rear of the surround & grinding stones to get excess burs & to smooth out.

s**t hey I'll have to do a DOCO.



_________________

MEMBER 1390

Top
 Profile


Posted: Mon Dec 11, 2006 11:34 pm
Stock as a Rock
Offline
User avatar

Age: 41

Posts: 174

Joined: 9th May 2005

Ride: BF Fairmont

Location: Gippsland
VIC, Australia

Looks good so far mate, well done. Are you considering touching up the face of it so it looks more "factory"?

Cheers



_________________

EB Ghia Leather interior & more - CLICK HERE

Lightning Strike '06 BF Fairmont - powered by ICOM JTG

Top
 Profile


Posted: Tue Dec 12, 2006 8:51 am
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1939

Joined: 10th Nov 2004

Gallery: 31 images

Ride: G6E TURBO

Location: THE DRUITT
NSW, Australia

Well if I may try & make it more factory if I got time over X-mas but it does the job & I kept the original surround as it has the ALPINE PREMIUM badge on it.



_________________

MEMBER 1390

Top
 Profile


Posted: Tue Dec 12, 2006 1:48 pm
Stock as a Rock
Offline
User avatar

Age: 41

Posts: 174

Joined: 9th May 2005

Ride: BF Fairmont

Location: Gippsland
VIC, Australia

Yeah that's a good idea, I used a spare surround for mine as well. Hopefully it won't be too much effort making it look factory. I got lucky, as I was assuming I'd need to do the same, but after sitting mine in the cavity and looking at it I figured I'd just leave it as is.

For those interested, here's my setup:

http://www.fordmods.com/forums/viewtopic.php?t=38510



_________________

EB Ghia Leather interior & more - CLICK HERE

Lightning Strike '06 BF Fairmont - powered by ICOM JTG

Top
 Profile


Posted: Tue Dec 12, 2006 5:33 pm
Getting Side Ways
Offline
User avatar

Age: 44

Posts: 1939

Joined: 10th Nov 2004

Gallery: 31 images

Ride: G6E TURBO

Location: THE DRUITT
NSW, Australia

Here are the parts pics & how I did it





Attachments:

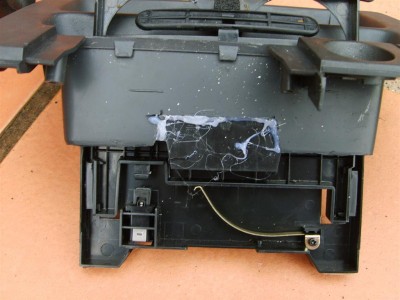

open (Large).JPG
open (Large).JPG [ 107.57 KiB | Viewed 149 times ]

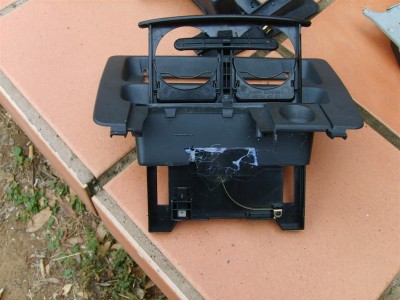

assembled (Large).JPG
assembled (Large).JPG [ 93.39 KiB | Viewed 139 times ]

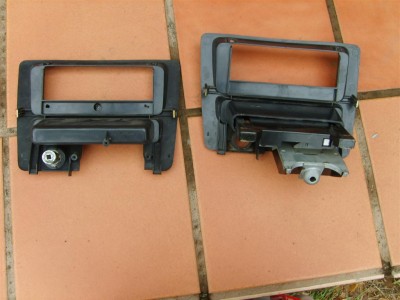

the 2 surrounds (Large).JPG
the 2 surrounds (Large).JPG [ 82.12 KiB | Viewed 132 times ]

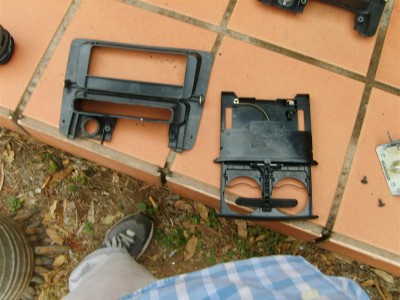

parts (Large).JPG
parts (Large).JPG [ 101.78 KiB | Viewed 137 times ]



_________________

MEMBER 1390

Top
 Profile


Posted: Tue Dec 12, 2006 6:23 pm
Stock as a Rock
Offline
User avatar

Age: 41

Posts: 174

Joined: 9th May 2005

Ride: BF Fairmont

Location: Gippsland
VIC, Australia

Your setup (from the rear) looks to be about as easy as mine! Once again good work with the cupholders mate.

Here's an illustration of the cutouts made for mine (from memory). The corner notches are to allow the screw mounts not to foul with the cavity (the cavity is too shallow at the edges but is sufficient in the centre, hence why the slab on top is left remaining.)


Here's my unit:


-Dave-
