 Post subject: changing center console
Posted: Tue May 19, 2009 1:38 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

am thinkin or upgrading my center console in my EB to add cupholders,was wondering if anyone has attempted fitting a AU one or even researched it, i did think of putting a EF but the EF/EL cupholders suck a** and will only do it i must

any help would be nice



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: changing center console
Posted: Tue May 19, 2009 1:56 pm
Getting Side Ways
Offline

Age: 33

Posts: 6746

Joined: 13th Mar 2006

Gallery: 10 images

Ride: NCII Fairlane

Location: Bathurst
NSW, Australia

EFNA wrote:
am thinkin or upgrading my center console in my EB to add cupholders,was wondering if anyone has attempted fitting a AU one or even researched it, i did think of putting a EF but the EF/EL cupholders suck a** and will only do it i must

any help would be nice


It is doable if the search function was accurate I would quickly post some posts up relating to it. I have seen it done in an XF and few Boxcars. In the end it sits there without no drama but the vent tubes need to be played around with (the tubes that go to the rear vents)



_________________

R.I.P Tobias my son.

Top
 Profile


 Post subject: Re: changing center console
Posted: Tue May 19, 2009 2:08 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

I must admit I would love to see a ba center console, as they have have the cool hidey flap over the cupholders.
I was toying with the idea of modifying an ef one but couldn't fit it, due to window switches.

the other thought is have you checked out mounting them in your dash, there was a thread where someone fitted one of the slide out units like in various jap makes, they work pretty well.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 11:23 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

OZBMX wrote:
I must admit I would love to see a ba center console, as they have have the cool hidey flap over the cupholders.
I was toying with the idea of modifying an ef one but couldn't fit it, due to window switches.

the other thought is have you checked out mounting them in your dash, there was a thread where someone fitted one of the slide out units like in various jap makes, they work pretty well.


yeah we had some in my missus old liberty talk about pain in the a** kept gettin in the way, and figured fitting AU console gave it more factory look



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 12:12 pm
Smokin em up
Offline
User avatar

Age: 48

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

Fitting an AU console is pretty straight forward and the easiest with minimal modification

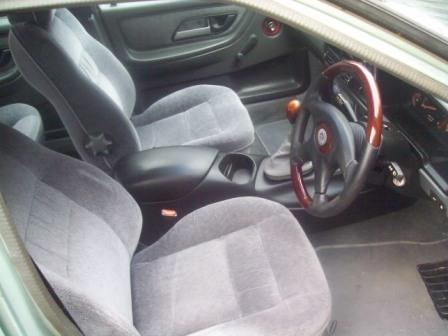

Attachments:
EL seats installed.JPG
EL seats installed.JPG [ 33.83 KiB | Viewed 44 times ]



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 12:36 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 529

Joined: 22nd Aug 2008

Gallery: 4 images

Ride: EB

Location: Wellington
New Zealand

Hey those EL seats look like the ticket, much work to get them in?



_________________

1989 EA Falcon column shift - SOLD
1990 EAII, BBM, EL ECU, T5, LSD - SOLD
1993 EBII Fairmont Ghia V8 - SOLD
2006 BF Fairlane Ghia 6C

Huge thanks to BenJ, TROYMAN, fiend and XR-Lane. The E-series knowledge/motivation pool.

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 12:58 pm
Smokin em up
Offline
User avatar

Age: 48

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

NZEA: I wrote a breif description on how i did it in the following post(below), if you need any help or have questions PM me so not to sabotage this post.

post979968.html#p979968



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 1:01 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

easpak91 wrote:
Fitting an AU console is pretty straight forward and the easiest with minimal modification


did you do a write up? what mods need to be done to fit?



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 1:15 pm
Smokin em up
Offline
User avatar

Age: 48

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

No write up is neccessary as it is pretty much a straight forward swap. The only mods you have to do to the AU console is: Modify the AU console air duct to fit the output duct that comes out from under your dash as it is smaller than the AU one and You will notice when you take out the EB console there is two screws inside the console which secures it to a braket on the floor so you will have to Drill holes in AU console to line up with that floor bracket (which is on the floor between the 2 front seats). Make sure you do your duct mod first and then drill your holes in the AU console for the mounting bracket. Hope that helps



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 3:04 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

that AU console, is that out of a standard or hi series,

do you have power windows?



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 4:20 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 1998

Joined: 31st Dec 2007

Gallery: 9 images

Ride: xc wag's, tnklane wag's

Location: Munruben
QLD, Australia

They moved window switches to the doors in au on.



_________________

Signature removed by moderator.signature must not exceed 120x500 pixles

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 5:59 pm
Smokin em up
Offline
User avatar

Age: 48

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

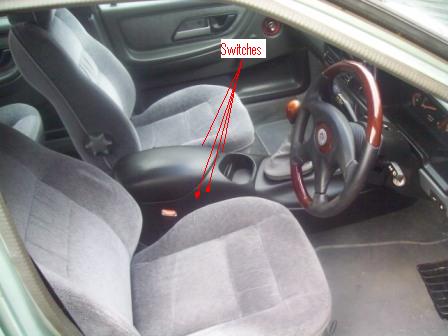

AU consoles never had power window switches they placed them on the drivers door arm rest. I am currently putting power windows in my car and mounting power window switches on the side of the console, just underneath the arm rest. I am using the same switches as are on the EF/EL rear doors, there is enough room to place 2 on either side (see pic) which will allow me to open and close all windows, i wont be putting the lock switch as i dont think there is need for it.





Attachments:
AU Switches.JPG
AU Switches.JPG [ 35.09 KiB | Viewed 54 times ]



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 7:02 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

let me know how you go with all the wiring,



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 7:44 pm
Smokin em up
Offline
User avatar

Age: 48

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

Not a problem if you want to do the mod i can write up a doco with pics if your interested.



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: changing center console
Posted: Wed May 20, 2009 7:50 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 963

Joined: 14th Jul 2007

Gallery: 3 images

Ride: AU fairmont ghia

Location: Back in
ACT, Australia

deff doin the mode once i can chase down a console from either a wrecker or someone in my area



_________________

AU FAIRMONT GHIA: 5.0 Dealer ordered SVO mods ( seeking clarification ATM), tickford suspension.

Top
 Profile
