 Post subject: Complete Custom Center Console (Started Pics)
Posted: Sat Dec 01, 2007 1:50 am
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 2159

Joined: 15th Nov 2005

Gallery: 17 images

Ride: TS40

Location: Latrobe Valley
VIC, Australia

Planning a Complete Custom Center Console

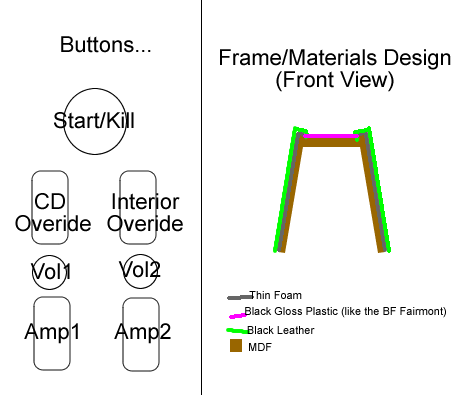

will make the frame from MDF (9mm?)Glue a Thin Foam to it and cover with leather then Embed the Black Gloss Plastic Inside It

Havent Measured Anything Yet... Not to fussed About the Pods it it wont all fit...

have a few things i want in it...

Buttons
-Engine Start/Kill Switch (hook up to starter motor wire)(push and hold while turn key to start)
-Amp Auto/Off (1/2) (though remote on wires)
-Headunit and Amps On (override Acc so can turn on CD without keys)
-2nd Interior Lights Button (control all interior lights)

Controls
-Amp 1/2 (Bass) (through hard wired remote supplied with amps)

Lights
-from door switch rear
- one each side below gear stick
- one for back seats
-from intermittent lights
- leds below console lid shine forward on buttons
- In Bottom Of Drink Holders

Appearance
- Leather Sides
- Gloss Black Top (embedded In Leather)
- Blue L.E.Ds Used
- BA GT Gear Boot

Other

-drink holders x 2 on right
-CD AUX Input (headphone Jack)
-air to vents to pass thought drink holders into back (BA Vents?)

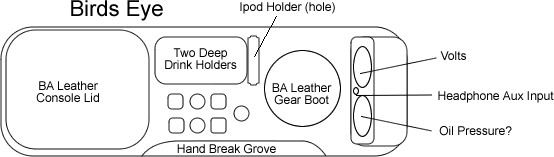

Just to give you an idea... this is Dellboy999's Image
