 Post subject: Custom parcel shelf EL XR6
Posted: Thu Mar 22, 2007 11:00 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

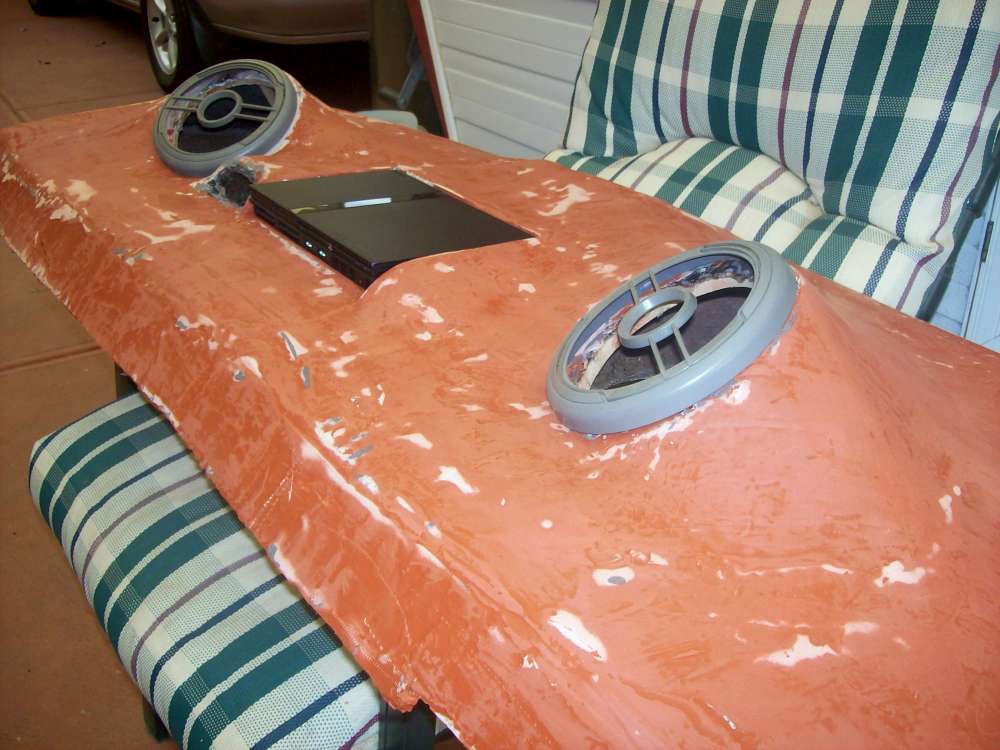

The last few days i been making this, first of all i was gonna cover the original one in white vinyl as you will see im doing the whole interior white.


STEPS:
1st: I ripped the old material stuff off that ford put on there.
2nd: Made up some mdf rings to suit 6" speakers.
3rd: Made up a a little box bit for the Playstation 2, with a slot for the cooling, and a slot for the power and AV out, so you wont see the wires
4th: Stuck the rings to the parcel shelf using glue gun, made little legs for the rings to give extra support
5th: Went to spotlight bought about 70cm 145cm of Lycra (because it stretches both ways unlike fleece which only stretches one way)
6th: Stretched the lycra over the rings and everything else to give the fibrglass and bodyfiller the shape and support while working it
7th: mixed some resin and catalyst and painted it on the lycra so the lycra would go hard.
8th: waited for it to set
9th: couldnt be bothered using the fibrglass matting and more fibreglass because it doesnt need much strength
10th: put some body filler on it and smoothed it around
11th: sanded for about 2 hours
12th: more body filler
13th: sanded for 3 hours ((((( PHOTS TAKEN NOW ))))
14th: was getting alot smoother now and put some spot putty, waiting for it to dry now over night, will sand it again in the morning and make it all smooth and finished, then have to paint it white

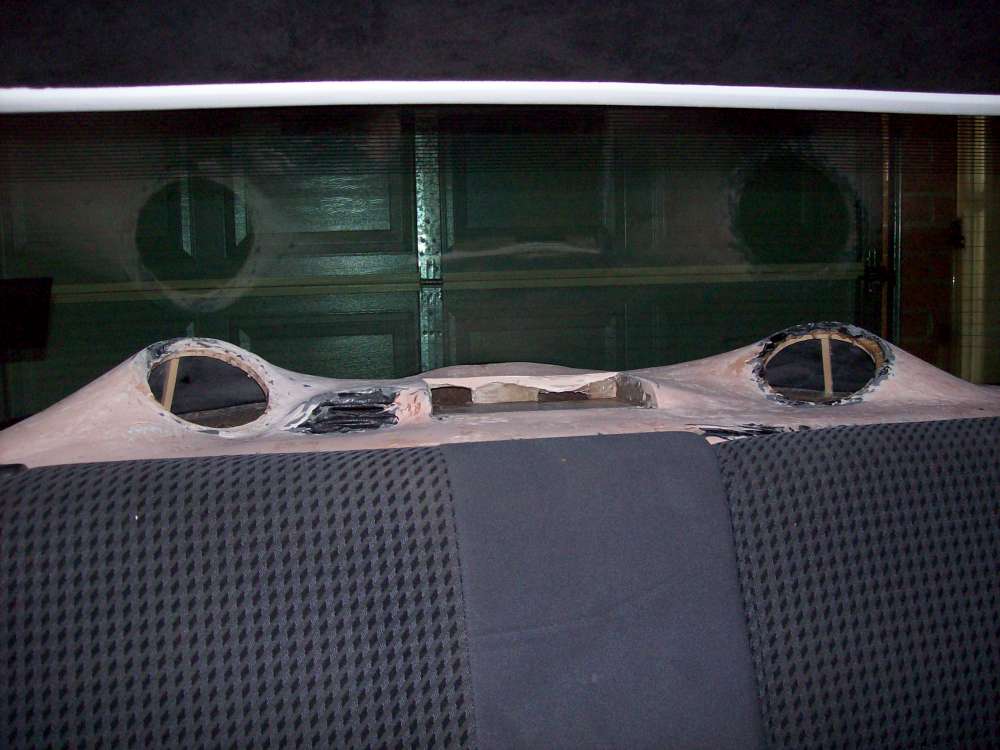

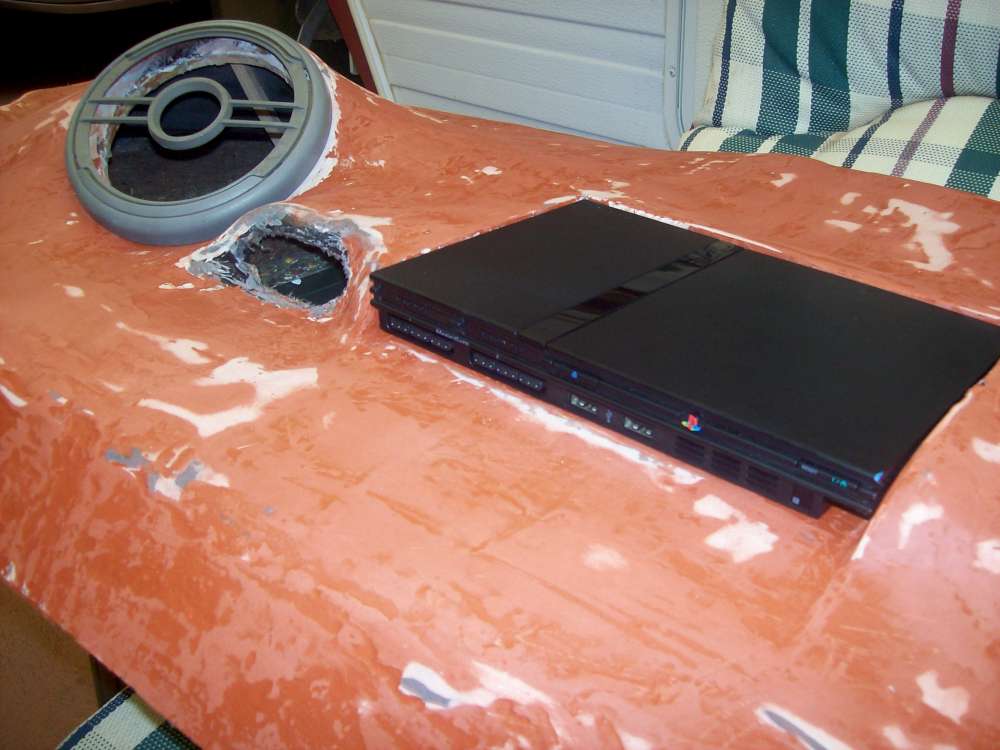

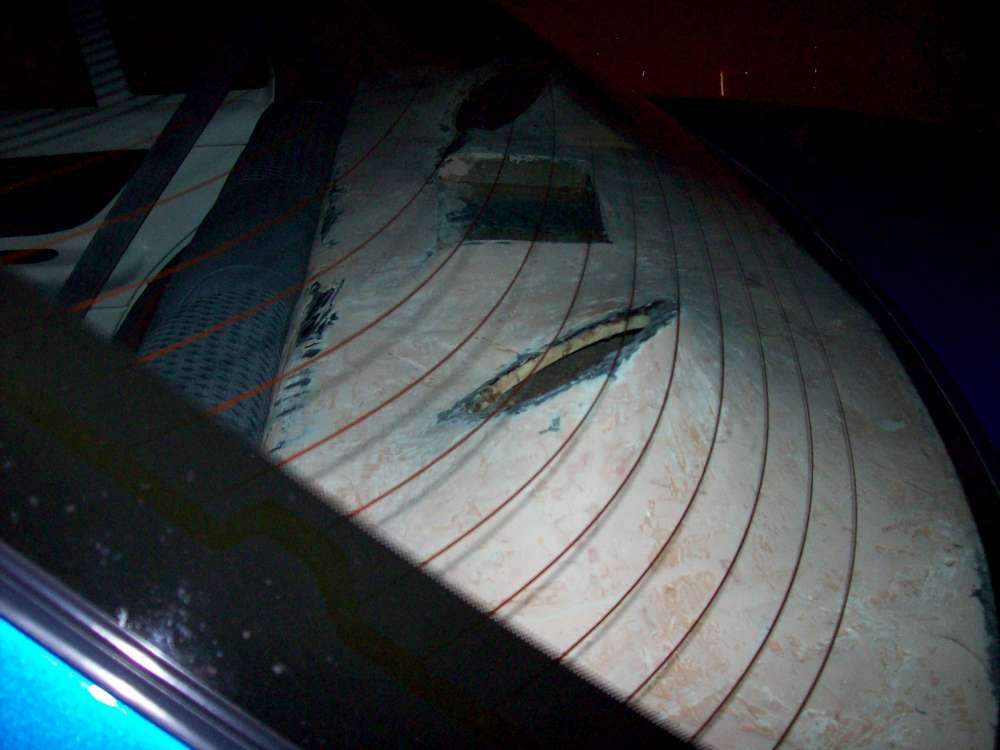

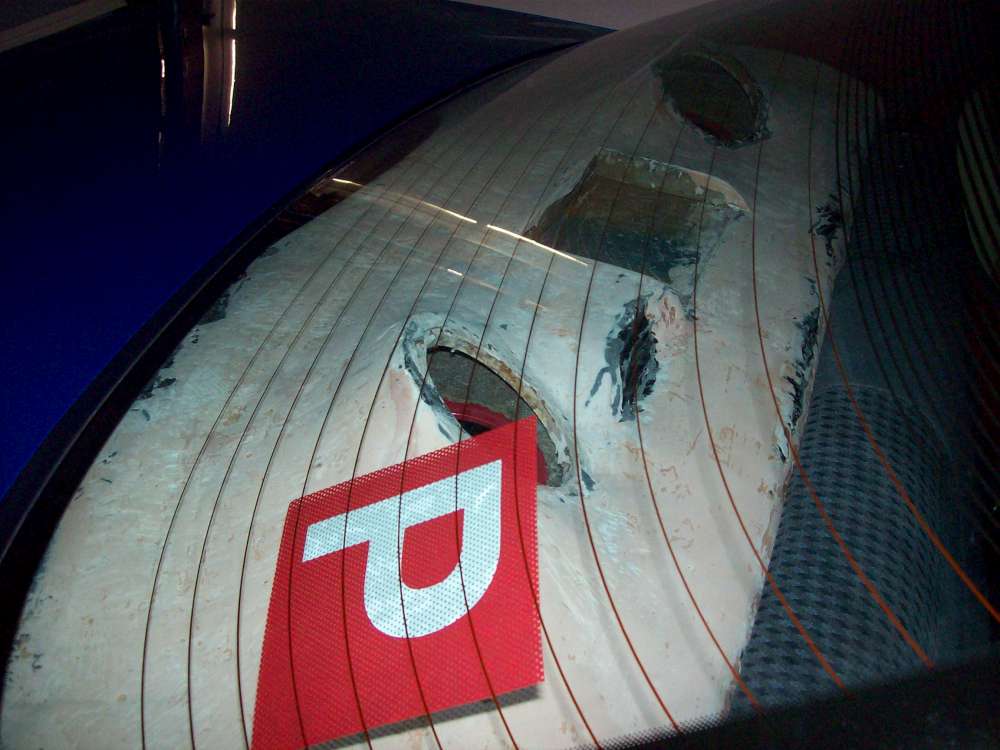

it may look crap in the photos and you cant really see how good the shape is when its in the car, those photos are of while i was test fitting it in the car. Test fitted the PS2 again and it sits so nice in it, flush and tight.

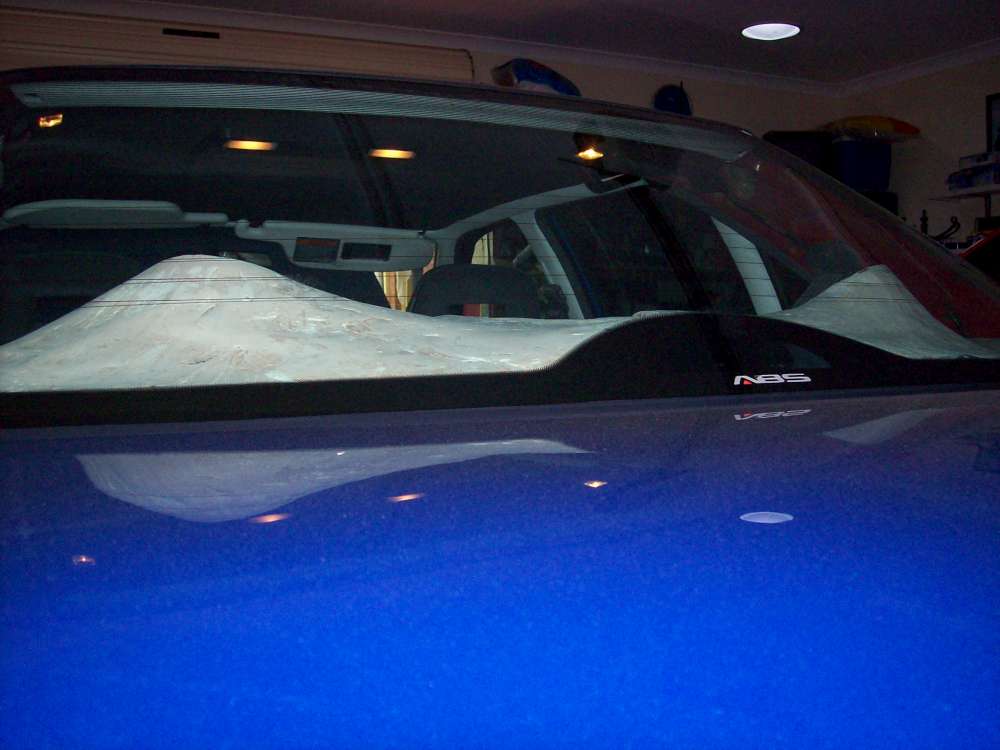

It looks like the speakers would be touching the glass, its not.





Attachments:
102_0059-1000.jpg [ 47.77 KiB | Viewed 73 times ]
102_0058-1000.jpg [ 68.48 KiB | Viewed 77 times ]
102_0057-1000.jpg [ 54.5 KiB | Viewed 65 times ]
102_0056-1000.jpg [ 52.15 KiB | Viewed 68 times ]
102_0055-1000.jpg [ 72.21 KiB | Viewed 71 times ]



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Last edited by el_xr6_luke on Thu Mar 22, 2007 11:15 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Mar 22, 2007 11:06 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

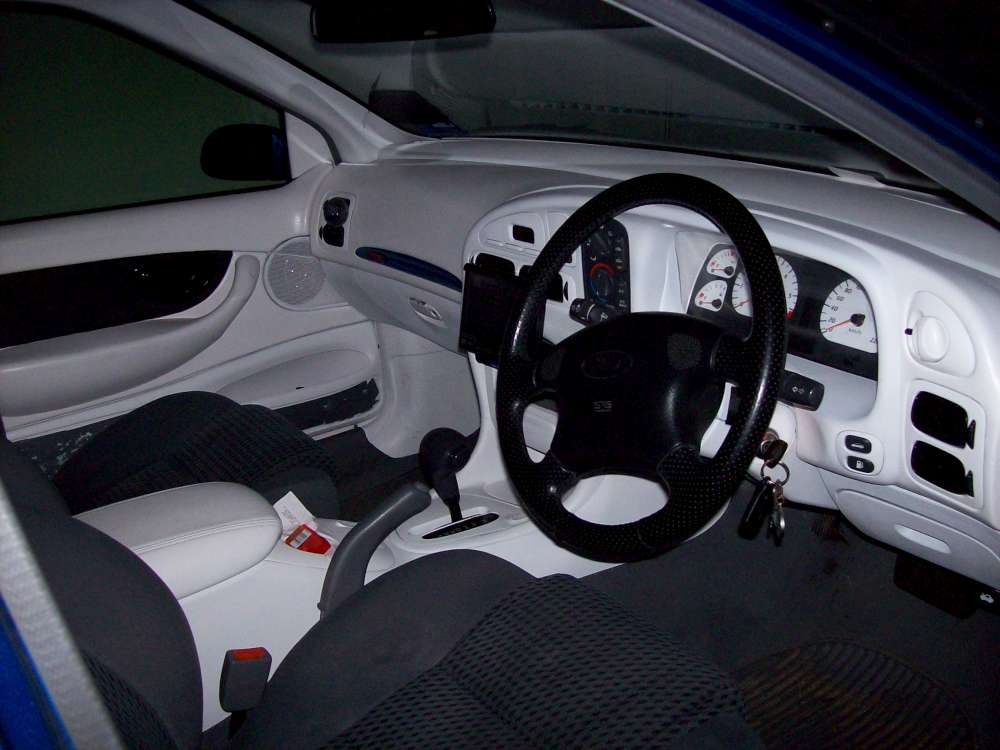

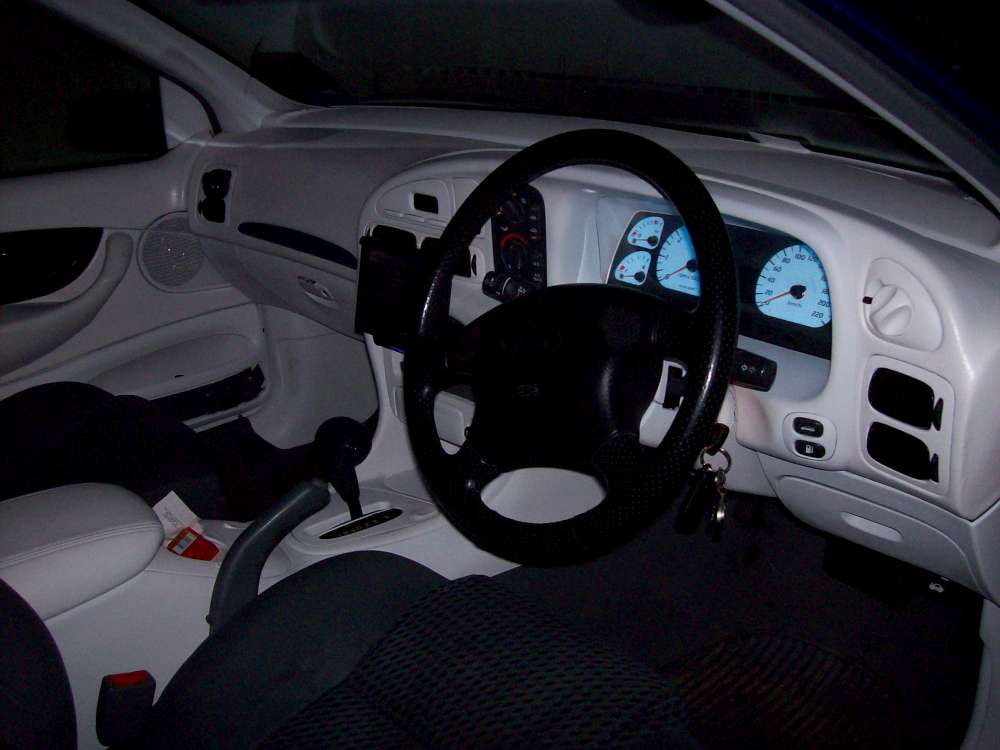

heres some pics of how my interior is coming along
all of it I have done myself, heaps of prep work removing and cleaning everything

Im still looking for a trimmer to do white leather seats for me. then the carpet I will go black, im after a bit of white carpet to do the 2 front door pods unable to find any, does anybody have any laying around. spotlight had blue which would be ok but they said they only receive it and cant order a specific colour.





Attachments:

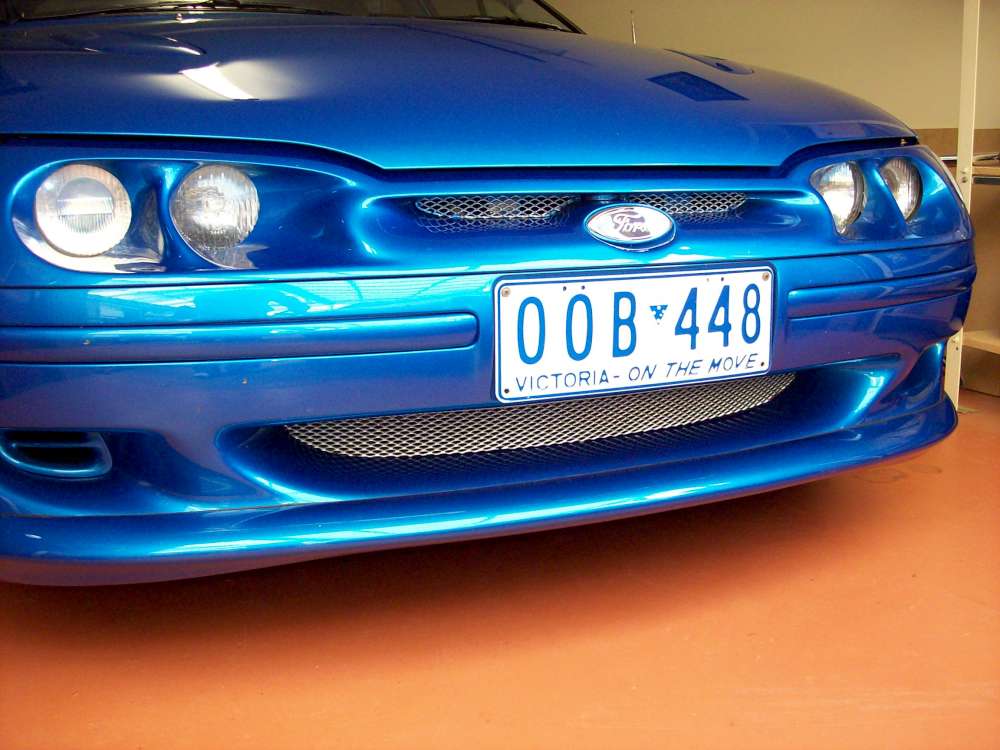

File comment: Not interior but got some mesh and made it look like this.
102_0044-1000.jpg [ 77.97 KiB | Viewed 72 times ]
102_0062-1000.jpg [ 61.44 KiB | Viewed 97 times ]
102_0061-1000.jpg [ 54.1 KiB | Viewed 103 times ]
102_0060-1000.jpg [ 64.41 KiB | Viewed 100 times ]



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Last edited by el_xr6_luke on Thu Mar 22, 2007 11:13 pm, edited 1 time in total.

Top
 Profile


Posted: Thu Mar 22, 2007 11:09 pm
Getting Side Ways
Offline
User avatar

Age: 42

Posts: 2893

Joined: 24th May 2006

Gallery: 21 images

Ride: XH B&S ute, Navara 4x4

Power: 202 rwkw

Location: Bordertown
SA, Australia

Thats a lotta white!!!!! :shock: Looking pretty good tho (glad I don't have to keep it clean!!! :lol: )



_________________

You'll ride a black tornado across the western sky

You'll rope an ol' blue norther and milk it 'till it's dry

Bulldog the Diamantina pin its ears down flat

Long before you take this cowboy's hat

Top
 Profile


Posted: Thu Mar 22, 2007 11:14 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

its actually easy to keep clean, because once i see some dirt i rub it off with a little microfibre cloth comes off straight away easy as.



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Thu Mar 22, 2007 11:50 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

you have a sun glass holder right? almost burns my eyes with the brigtness of "a thousand suns".. kidding.... :lol: does look good and i am too glad that im not cleaning it.. :wink: parcel tray looks good.. will be seeing how that comes along... 8-)



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Fri Mar 23, 2007 1:05 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

yep i now have to drive with sunglasses on in the day because the sunlight reflects off the dash onto the windscreen back into my eyes, it looks good though.

once i finish the parcel shelf i will post some more pics.



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Fri Mar 23, 2007 9:35 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Looks good mate, thumbs up for effort too.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Fri Mar 23, 2007 12:30 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 3343

Joined: 5th Nov 2004

Gallery: 9 images

Location: Brisbane
QLD, Australia

Awesome car mate! ;)
Top
 Profile


Posted: Fri Mar 23, 2007 1:36 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 2754

Joined: 14th Apr 2005

Ride: fairmont

Location: mackay
QLD, Australia

wholley s**t, damn that is good mate, that will be one fine car when done, magazine material



_________________

Now i have a EF XR8 5spd.........mmmmmm 5L

Top
 Profile


Posted: Fri Mar 23, 2007 6:30 pm
Technical Contributor
Offline

Age: 38

Posts: 39

Joined: 4th Sep 2005

Ride: EL Falcon

Location: Parkdale
VIC, Australia

The instrument cluster looks cool.
How did you do it?
Top
 Profile


Posted: Fri Mar 23, 2007 6:44 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

what do people think, should I keep the steering wheel that I got on there or should I put a new white leather one on, pictured below

or

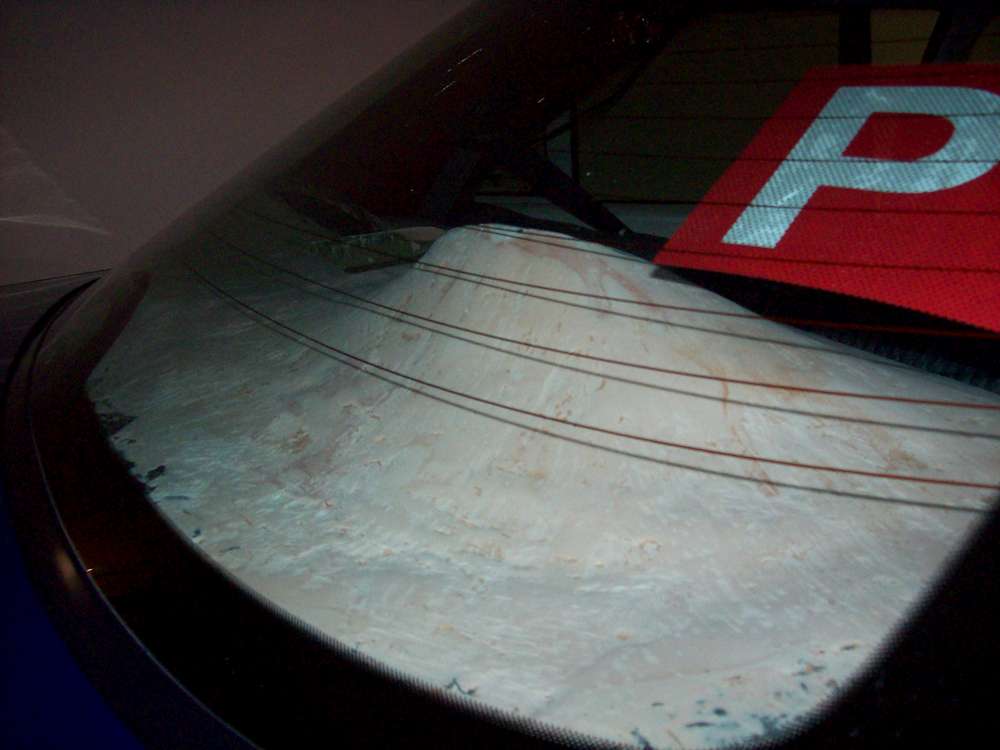

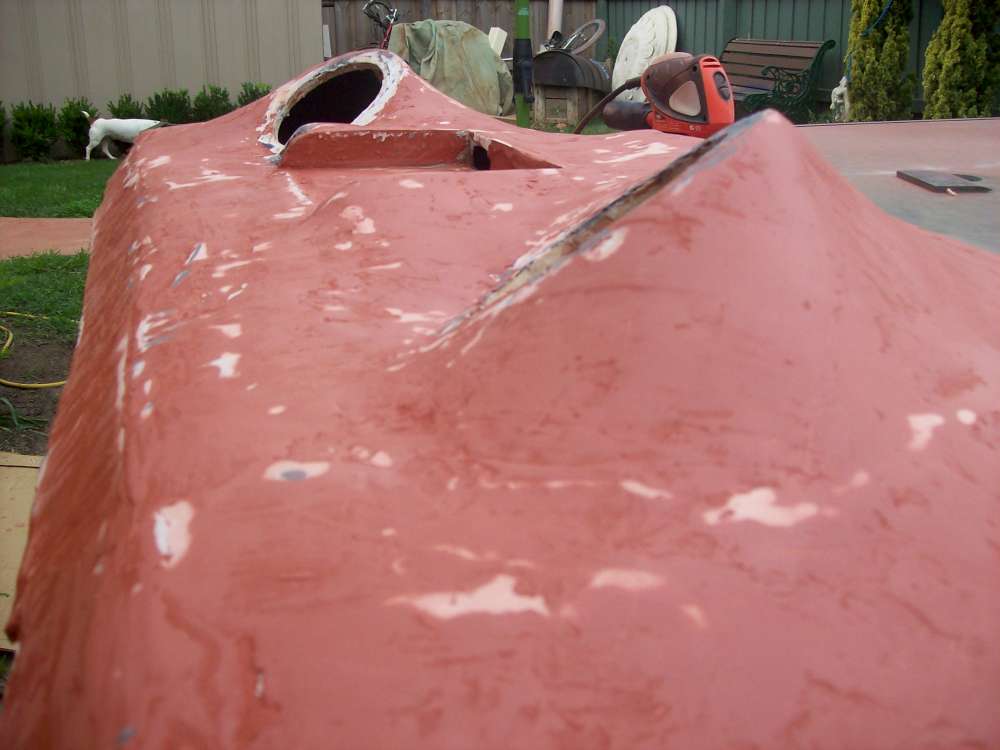

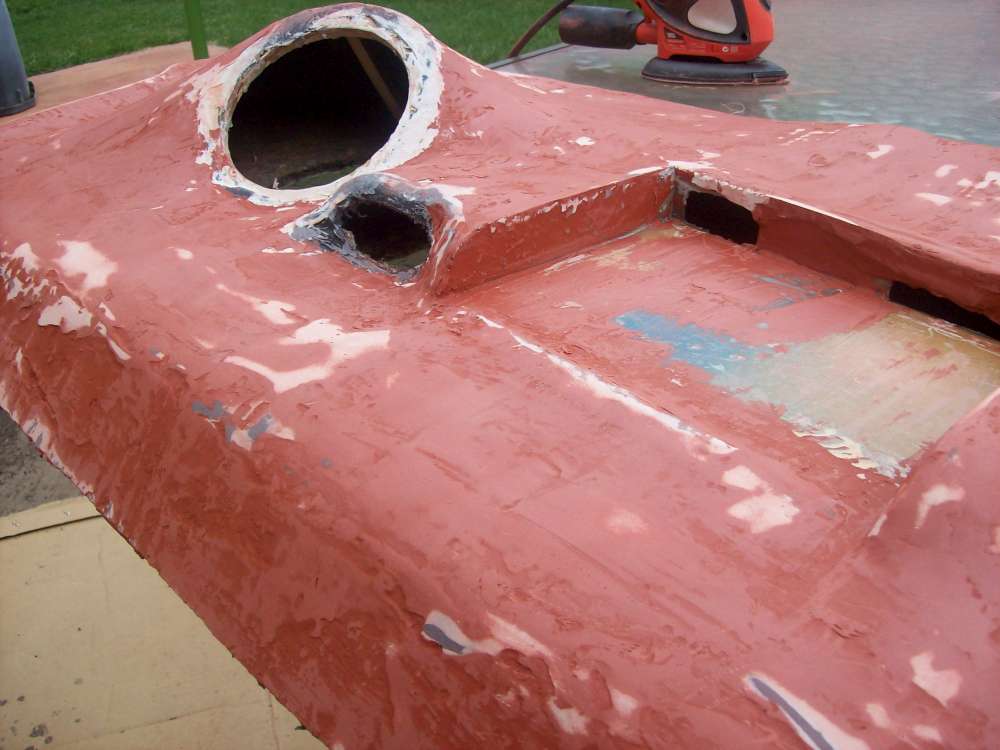

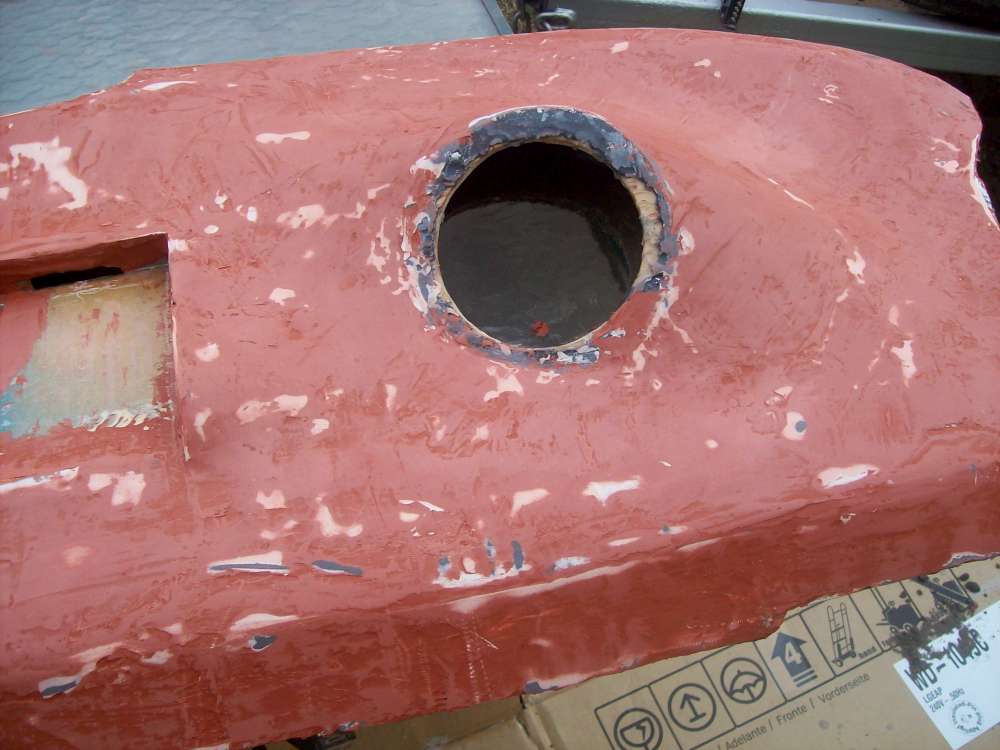

got more pics of the parcel shelf after another hour of sanding today, still not smooth enough for how smooth i want it so got to do probably 1 more layer then sand again.





Attachments:
102_0050-1000.jpg [ 67.75 KiB | Viewed 62 times ]
102_0049-1000.jpg [ 80.2 KiB | Viewed 64 times ]
102_0048-1000.jpg [ 50.31 KiB | Viewed 52 times ]
102_0047-1000.jpg [ 63.69 KiB | Viewed 64 times ]
102_0046-1000.jpg [ 66.49 KiB | Viewed 58 times ]



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Fri Mar 23, 2007 6:49 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

Brax wrote:
The instrument cluster looks cool.
How did you do it?

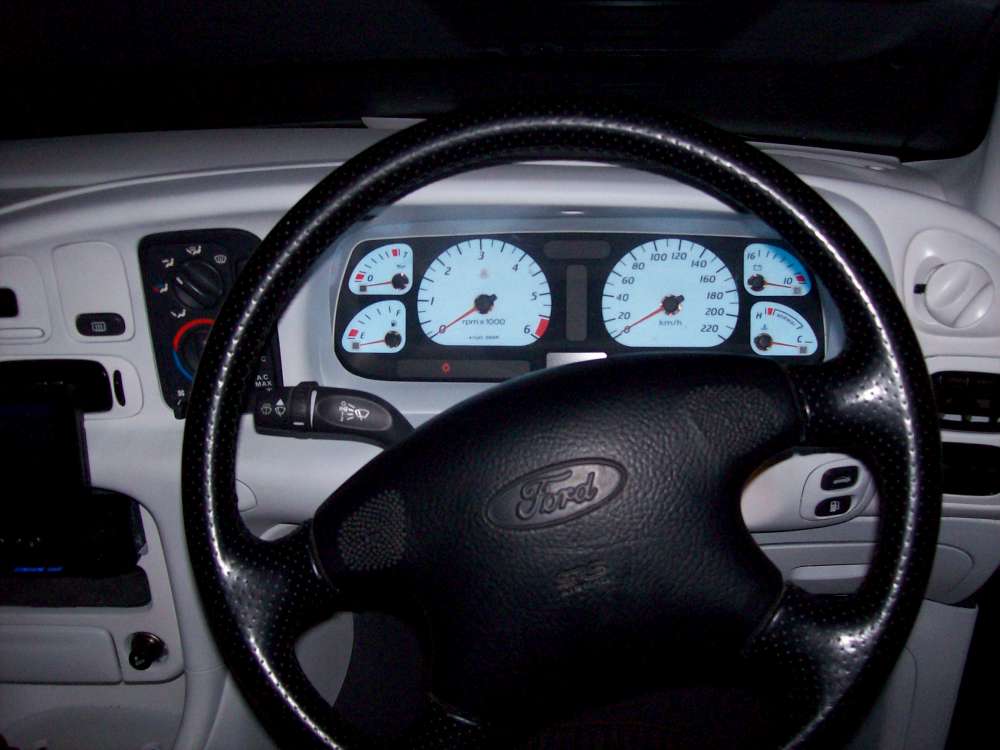

do you mean the guages, like speedo and rpm's, its one of those electroluminescent clusters off ebay, looks mad as at night glowing brightly, doesnt come out in photo with a flash.



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi

Top
 Profile


Posted: Fri Mar 23, 2007 8:06 pm
Getting Side Ways
Offline

Age: 29

Posts: 486

Joined: 23rd Sep 2005

Ride: EB S1 3.9L Bush basher

Location: Perth
WA, Australia

I would definitely go with the 1st steering wheel if possible but isnt there some legality issues with airbags and such



_________________

I dont care how fast your car is, mine goes faster through the bush.

Top
 Profile


Posted: Fri Mar 23, 2007 9:35 pm
Getting Side Ways
Offline
User avatar

Age: 38

Posts: 1231

Joined: 6th Nov 2004

Ride: 2010 Nitro Blue FG

Location: Melbourne
VIC, Australia

That is absolutely aweseom job mate!! well done. So did you just use the resin mix and hardenere that come with a fibreglass kit and paste it all over the lycra to make it hard? I've wanted to do avery similar thing with my parcel shelf but dont really have the time.



_________________

The boogieman checks under his bed for chuck norris

Top
 Profile


Posted: Sat Mar 24, 2007 2:57 am
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 411

Joined: 21st Aug 2006

Ride: EL XR6, Blueprint, Turbo

Location: Melbourne
VIC, Australia

andrewsfutura wrote:
That is absolutely aweseom job mate!! well done. So did you just use the resin mix and hardenere that come with a fibreglass kit and paste it all over the lycra to make it hard? I've wanted to do avery similar thing with my parcel shelf but dont really have the time.


ive made a few things out of fibreglass now, first thing i made was a subwoofer enclosure to fit perfectly in the boot against one side, i no longer use it now becuase im doing a boot install, made a 3 gauage pod pillar thing for a VS commodore for my mate, and now this, i got the fibreglass resin and hardener from my dads mate.
its easy to work with but smells strong, just gotta mix the right amount of catalyst then paint it on with a brush onto the lycra (a think coat) and it will harden. make sure lycra is pulled and glued down tightly because it sags sometimes and thats annoying later on.



_________________

http://www.myspace.com/luke_xr
230rwkw - 10psi
