Does anyone have a step by step instruction as to how to remove the cluster from the dash? Im trying to change the LED's. As well as on the left where the trip computer is, how do i replace that?

Cheers boys.
Top
 Profile


Posted: Mon Mar 31, 2008 7:00 pm
Getting Side Ways
Offline

Posts: 6166

Joined: 8th May 2007

To remove the cluster,

Just the front of the dash comes off, 1 piece from the steering wheel to the stereo surround.

Open ash tray and take out 1 or 2 screws. Remove stereo surround and unclip the ciggie lighter and bulb. Theres another three screws behind that.

Theres a couple of screws beside & under the steering wheel and 4 screws i think above the cluster. Drop the steering wheel by releasing the fastener under it. Front of the dash should pull off and unclip any connections going to the boot release buttons etc. (remember where they go)

Undo 4 screws in the corners of the cluster and pull it out a bit and unclip the 2 connectors. Lift it out.
Top
 Profile


Posted: Mon Mar 31, 2008 7:19 pm
Oompa Loompa
Offline

Age: 29

Posts: 27

Joined: 31st Mar 2008

Ride: Fairmont EF

Location: Melbourne
VIC, Australia

sweet!

cheers buddy, sounds pretty easy...
iv detatched the frame before for a custom head unit installation, but never the cluster...

thanks mate.
Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sat May 01, 2010 5:17 pm
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 40

Joined: 4th Apr 2010

Ride: AU Falcon

Location: Wodonga
VIC, Australia

so how did you go doing this? is it a pain in the a** to put back together... ALSO

Just a question to put out there... how many LED's would it take to do this...
Just the blue ones...


download/file.php?id=27810&mode=view



_________________


Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sat May 01, 2010 9:39 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 2477

Joined: 10th Mar 2007

Gallery: 27 images

Ride: 1995 EF Fairmont

Location: Auckland
New Zealand

jay.blanket wrote:
Just a question to put out there... how many LED's would it take to do this...
Just the blue ones...


download/file.php?id=27810&mode=view

6

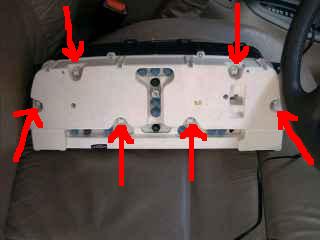

Attachment:
led bulbs.JPG
led bulbs.JPG [ 9.64 KiB | Viewed 992 times ]



_________________

Money Talks, But All Mine Ever Says Is Goodbye
EF Fairmont - EFF111 Build Thread

Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sun May 02, 2010 12:49 pm
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 40

Joined: 4th Apr 2010

Ride: AU Falcon

Location: Wodonga
VIC, Australia

thanks.. i found this site

http://www.trueblueford.com/EFdash_modifications.html

and want to know if instead of making the led globes and stuff for the instrument panel could i just use T5 LED's like these.

http://cgi.ebay.com.au/2-Wide-Angle-T5- ... 20a4e742f2



_________________


Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sun May 02, 2010 1:45 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

yeah they work the best, ive tried a few types

here is an 8 pack of the same
http://cgi.ebay.com.au/ZPE-Pack-8-x-T5- ... 3eff2f02ea
Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sun May 02, 2010 4:56 pm
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 40

Joined: 4th Apr 2010

Ride: AU Falcon

Location: Wodonga
VIC, Australia

all done just awaiting the dar to see how it looks!!!



_________________


Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sun May 02, 2010 7:25 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 2198

Joined: 8th Nov 2004

Ride: EL Ghia - XF Ego 302 Clevo

Location: Shit Creek
WA, Australia

it takes f**k all to change it to blue leds and red odo and red clock! far from being a Pain in the a***. dropping in a clevo and gearbox into an Xf is a pain in the a*** tho!



_________________

Team EGO

Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sun May 02, 2010 7:26 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 2198

Joined: 8th Nov 2004

Ride: EL Ghia - XF Ego 302 Clevo

Location: Shit Creek
WA, Australia

also those leds on ebay are f**k gay, just go to repco $3 each



_________________

Team EGO

Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Sun May 02, 2010 9:09 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

hickmanioz wrote:
also those leds on ebay are f**k gay, just go to repco $3 each


i found they are much brighter than the narva ones from repco, they spread the light better too.
Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Tue May 04, 2010 8:52 pm
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 40

Joined: 4th Apr 2010

Ride: AU Falcon

Location: Wodonga
VIC, Australia

hey so now that ive done it looks great but now im curious is it as easy to do the odo and clock and climate controll.. i really should have had more of a look when i had it all apart but i kinda didnt have the time to investigate it all.. haha. so yeah is it just globes for the clocks and that too?



_________________


Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Tue May 04, 2010 8:58 pm
Oompa Loompa
Offline
User avatar

Age: 26

Posts: 40

Joined: 4th Apr 2010

Ride: AU Falcon

Location: Wodonga
VIC, Australia

hey so now that ive done it looks great but now im curious is it as easy to do the odo and clock and climate controll.. i really should have had more of a look when i had it all apart but i kinda didnt have the time to investigate it all.. haha. so yeah is it just globes for the clocks and that too?



_________________


Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Tue May 04, 2010 9:04 pm
Getting Side Ways
Offline
User avatar

Age: 25

Posts: 3355

Joined: 10th Jan 2010

Gallery: 8 images

Ride: EL XR6

Location: albion park, wollongong
NSW, Australia

hickmanioz wrote:
also those leds on ebay are f**k gay, just go to repco $3 each



i totally agree i brought some blue leds on ebay with the bulb holder and they were s**t, never made contact and sometimes came on and off

so i brought blue leds and soldered them into the original bulb holders ,works perfectly and makes good contact



_________________

El XR6 Turbo
Dark Agents,Sunroof, bilstein shocks, 6000k HIDS, 329 mm slotted rotors, twin pot calipers , Climate Control, GarrettT04 turbo,log manifold, crow turbo cam, microtech lt10c, 42lb injectors , 044, surge tank , T56 , rebuilt bottom end , alloy plenum .

Aiming for 300 rwkw

Top
 Profile


 Post subject: Re: Detatching Ford Fairmont EF Cluster
Posted: Wed May 05, 2010 6:06 pm
Parts Gopher
Offline

Posts: 75

Joined: 28th Apr 2010

Ride: Ford EL Fairmont

Location: Melbourne
VIC, Australia

just took off the front dash part to the car and was so easy, gonna change them tonight :D just need to get into work before we close :P
Top
