 Post subject: DL LTD Seats and Door trims / Pics and progress
Posted: Wed Mar 14, 2007 12:05 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Hey guys, I started this thread because I just know I'm going to run into some problems at some point with this mod.

First problem is the back seat. How do I go about moving the brackets on the floor to suit the LWB seat? Where should they be moved, and how do I do this? Also with the back seats, the side bolster bits. Do I remove the leather from the LTD bolsters and put them on my Fairmont bolsters, or can they be modded to fit also?

Next is the front seats. First how do I remove the ones I have? I don't think an allen key will do it. And how do I hook up the power seats?

Lastly is the door trims, how do I hook up the lights on these?

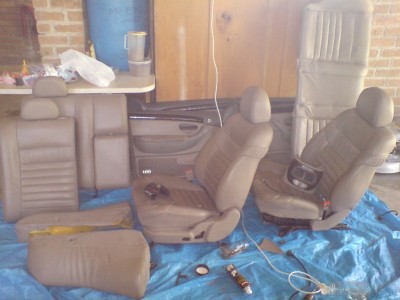

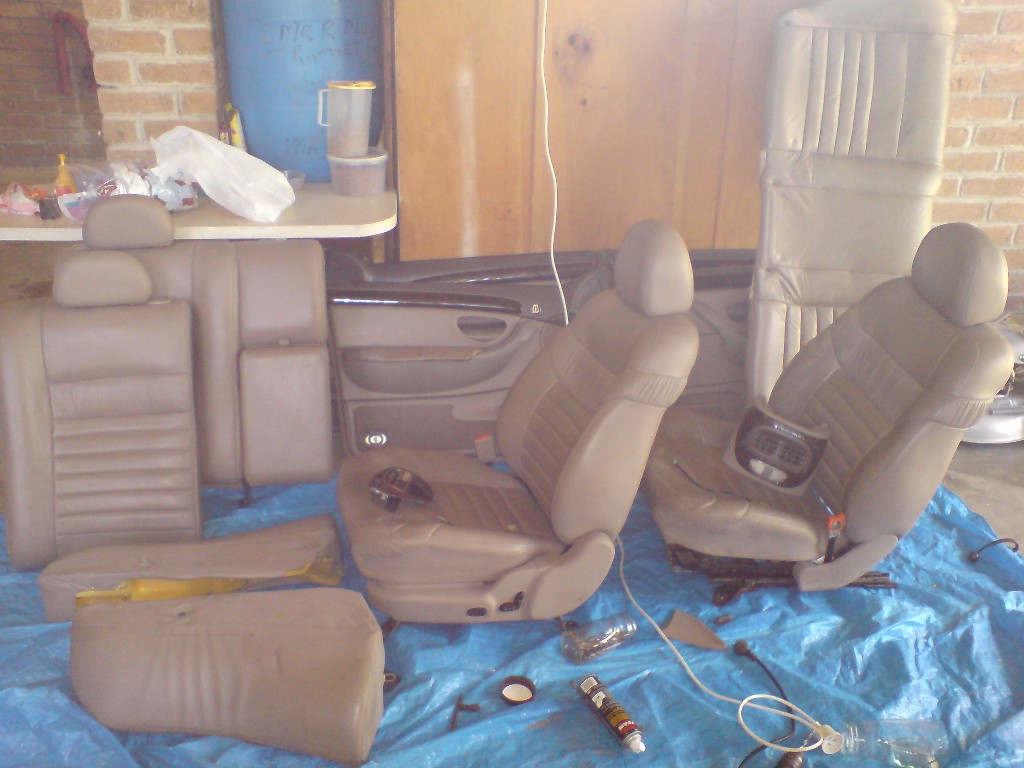

Thanks, sorry I can't go into more detail, i'm off to work. The seats and door trims arrive tomorrow morning.

UPDATE:

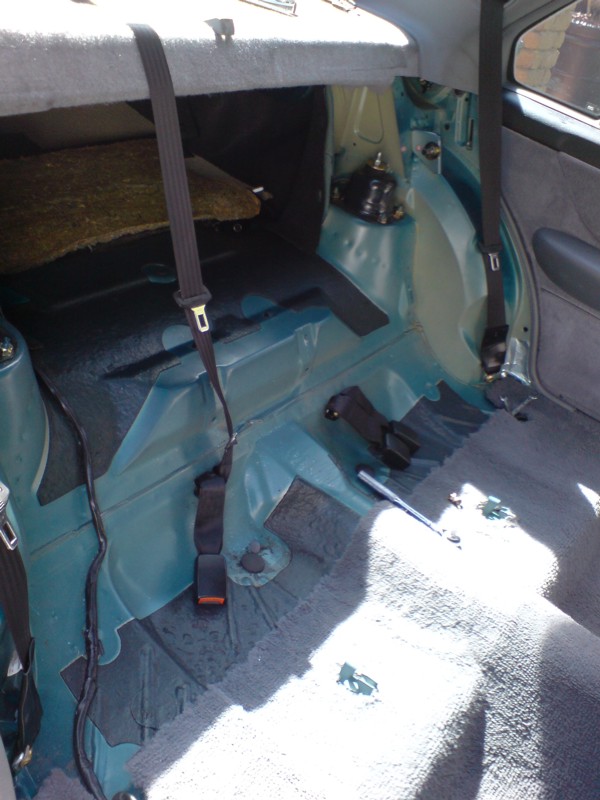

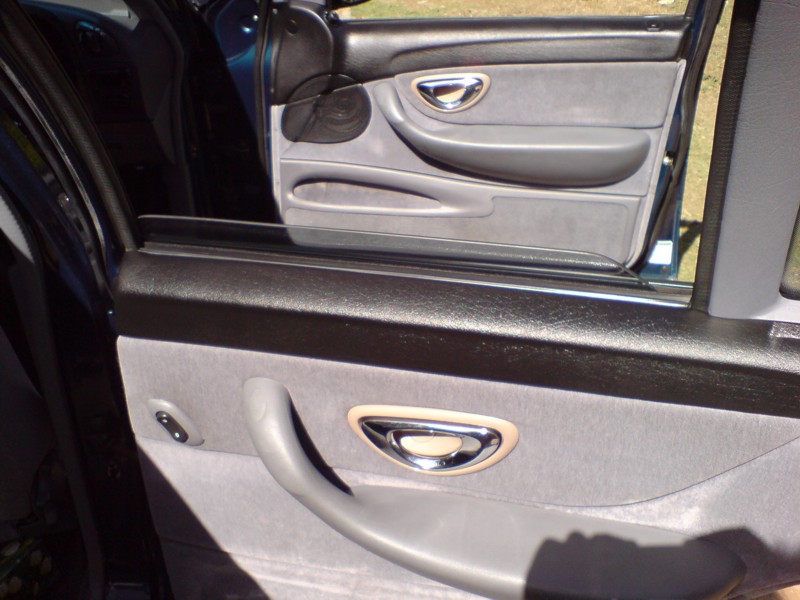

Here are some pictures from the battleground, proving veryyyy frustrating. I haven't even got the back seats in yet. I put the chrome handles in though, because they are so cool :P.


Thanks for the advice so far lads. My main foreseeable problems are as follows.

- Fitting rear seats, either modifying or changing the brackets.
- Hooking up the door trim lights (I have looms)
- Hooking up electric seats (I have looms)

Any help at all would be very appreciated, and thanks to twirqurky for his help so far.





Attachments:
interior03.jpg [ 97.81 KiB | Viewed 49 times ]
interior02.jpg [ 100.5 KiB | Viewed 52 times ]
interior01.jpg [ 141.43 KiB | Viewed 67 times ]



_________________

E39 523i
EF Fairmont

Last edited by Rick_Deckard on Thu Mar 15, 2007 4:45 pm, edited 1 time in total.

Top
 Profile


Posted: Wed Mar 14, 2007 12:52 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 552

Joined: 20th Jun 2005

Ride: XR Fairmont

Location: Western Suburbs
VIC, Australia

Well ill be fitting all of mine sometime soon............. :roll:

For the back seat base, as far as i know, you dont need to move any brackets
You will have a problem with the back rest brackets though
when i had my seats re-done in black i had them put the LTD cushions and new leather onto my fairmont metal base so now i have no problems fitting them in the back
but in your case you will need some modding, i think some people have moved or replaced the bottom brackets, not 100% sure because i didnt do it that way
side bolsters... cant use them, i tried but they dont fit, best option i suppose it to get the leather off and re-trim your side bolsters with it

for the front seats... no dont use an allen key, most likely wont work
you need one of those Torx bits or what ever they call them on a ratchet or something
i bought a set of them from autobahn or super cheap or somewhere, i cant remember exactly

i havent put the door trims on yet so i havent come to the problem of wiring the lights on the door trim, most likely should be able to connect them up with the light switch on the door or something along those lines



_________________


Top
 Profile


Posted: Wed Mar 14, 2007 3:47 pm
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

You need a T50 torx bit for your front seats (repco sell these in 1/4 drive) - 4 Bolts and they are out.
Your back seat upper you may be better off removing teh cushions and leather cover off the ltd seats and putting it onto your factory seat back - Will be easier than drilling new bracket points



_________________

Nicko

Top
 Profile


Posted: Wed Mar 14, 2007 7:34 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

Okay, I'll give it my first attempt tomorrow. I'll have the front seats in atleast. Are the electric seats simple positive and negative terminal stuff? Or is it more complicated than that?

Cheers, expect to here the problems I run into tomorrow, lol.



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Thu Mar 15, 2007 9:52 am
Getting Side Ways
Offline
User avatar

Age: 33

Posts: 11791

Joined: 5th Nov 2004

Gallery: 13 images

Ride: Holden VF Calais / NL FBT

Location: SE Melb
VIC, Australia

you need to run wiring from the fuse box to the seats - the connector is the same as another on ein the car - just remember that you need to use a good gauge wire as they do draw a bit of current!



_________________

Nicko

Top
 Profile


Posted: Thu Mar 15, 2007 1:45 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

With the rear seat backs I found it easiest to remove the material and foam off the seat backs and fit to your original framing. This is when I fitted EL XR sedan rear seat backs to EF wagon. Turns out the SWB and LWB sedan rear seat backs are different, and the wagons are different again.



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Thu Mar 15, 2007 2:25 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Dunno about EF/EL, but boxcar LWB rear seat to SWB you can grind the pin out of the brackets, get the brackets off your old seats as well, and bolt them onto the backs.
The side cushions you can take the covering off, and put the LWB cover on your original foam, fits pretty good, the excess material just tucks in behind the cushion.
It's a bit of work, bolt cutters are probably the easiest way to f**k off the circlet things taht hold the material on the side cushion, then punch holes in the appropriate spot in the new material and use cable ties.
Note we were working with stuff out of a wagon, so as twr7cx said, possibly different for LWB Fairlane/LTD, or even different again because EF/EL :P
Least that gives you an idea of the amount of work lol



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Mar 15, 2007 8:00 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

Interested in swapping your DL LTD woodgrain door strips for the more popular NF woodgrain door strips? :D



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Thu Mar 15, 2007 8:34 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

what you doing with your old interior dude? and did you have any luck with your power steering and the air conditioning probs you were having?



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Thu Mar 15, 2007 8:53 pm
Fordmods Addict
Offline
User avatar

Age: 31

Posts: 7958

Joined: 1st Jun 2005

Gallery: 13 images

Ride: Falcon

Power: 237 rwkw

Location: Melbourne
VIC, Australia

Did you notice a baby shat all over your new seats?
Thumbs down to cappa conversions.



_________________

ED XR8 Sprint - S-Trim, V500, 249rwkw
BF MKII F6 Tornado - 237rwkw

Top
 Profile


Posted: Thu Mar 15, 2007 9:10 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 1001

Joined: 5th Nov 2004

Gallery: 19 images

Ride: EL Fairmont Ghia

Power: 132 rwkw

Location: Brisbane
QLD, Australia

gotta be better than el gli s**t material they came with.

FBT's interior was nice IMHO
:D

but yeah, grey all the way :P



_________________

175.7hp 15.5 @ 374,000km
Team I have two E-Series AND all my teeth.

Top
 Profile


Posted: Thu Mar 15, 2007 9:42 pm
Getting Side Ways
Offline
User avatar

Age: 27

Posts: 2983

Joined: 15th Apr 2006

Gallery: 5 images

Ride: Falcon

Location: Aberfoyle Park
SA, Australia

Good on ya for giving all this stuff a go dude.

Gonna be sweet car when ur done with it.



_________________

HOLDENS go like rockets. They fall apart in stages!!!

Top
 Profile


Posted: Thu Mar 15, 2007 10:39 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

Steady ED wrote:
Did you notice a baby shat all over your new seats?
Thumbs down to cappa conversions.
why do a gay interior? oh,meant grey.. :wink: ... why would you want to do something else EVERYBODY else does.. cappa is more unique and hard to find.. congrats till lind... looks good all the parts going in.. 8-) -"welcome to "Club cappa"... :wink:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Thu Mar 15, 2007 10:57 pm
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

@Cappa comments:
My dad's 95 Fairmont was in cappa, and that's the car that ignited my love of these cars. When we got into my Fairmont on the day we bought it I felt the grey was a bit of a downer, felt cheaper and taxi-like, the grey.

I know the cappa won't go with the grey, that's why the idea is to eventually have the cappa seats, cappa bit on the door where your arm lays against (not the armrest section), and the rest of the interior black. I think that will look good. Ofcourse this will take ages though.

@Samftr:
Mate I'm hoping to sell the old interior at some point, but I'm not sure if I'm going to be using the brackets on the back of my Mont seat to make the LTD seats fit. Was thinking 300 for seats, door trims (top painted black) auto surround (painted black). Not all in mint condition, but I'll go into detail when I start a thread on that in for sale.

My steering seems fine I guess, would going super low effect steering at all?

Air con is chugging along okay @ 21 degrees, seems to struggle if I set it lower. I'll fix that some time.

@fordzatmyplace:
Nah mate it's cool, lol.

@stomper:
Thanks, definately something to keep me occupied (and hopefully not spending money!) for a while.

@Mitch:
You don't have a picture of how you got your Concorde seats to fit, do you? : P



_________________

E39 523i
EF Fairmont

Top
 Profile


Posted: Fri Mar 16, 2007 11:29 am
Getting Side Ways
Offline
User avatar

Age: 32

Posts: 4146

Joined: 7th Dec 2004

Gallery: 6 images

Ride: E39 523i / EF Fairmont

Location: Brisbane
QLD, Australia

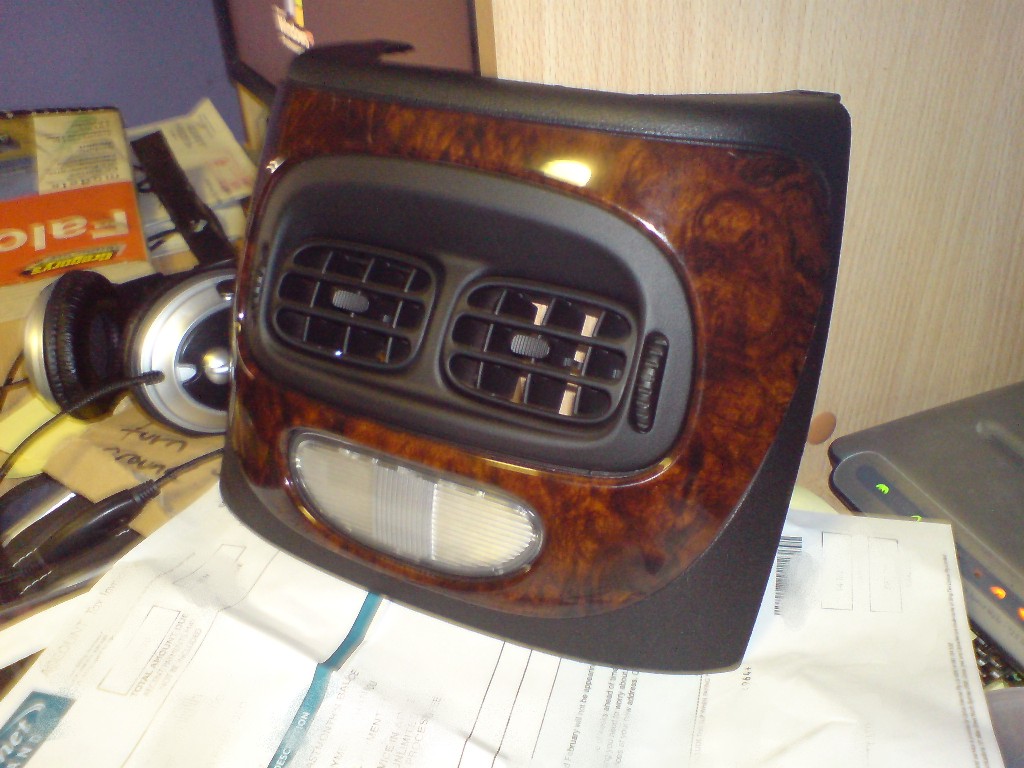

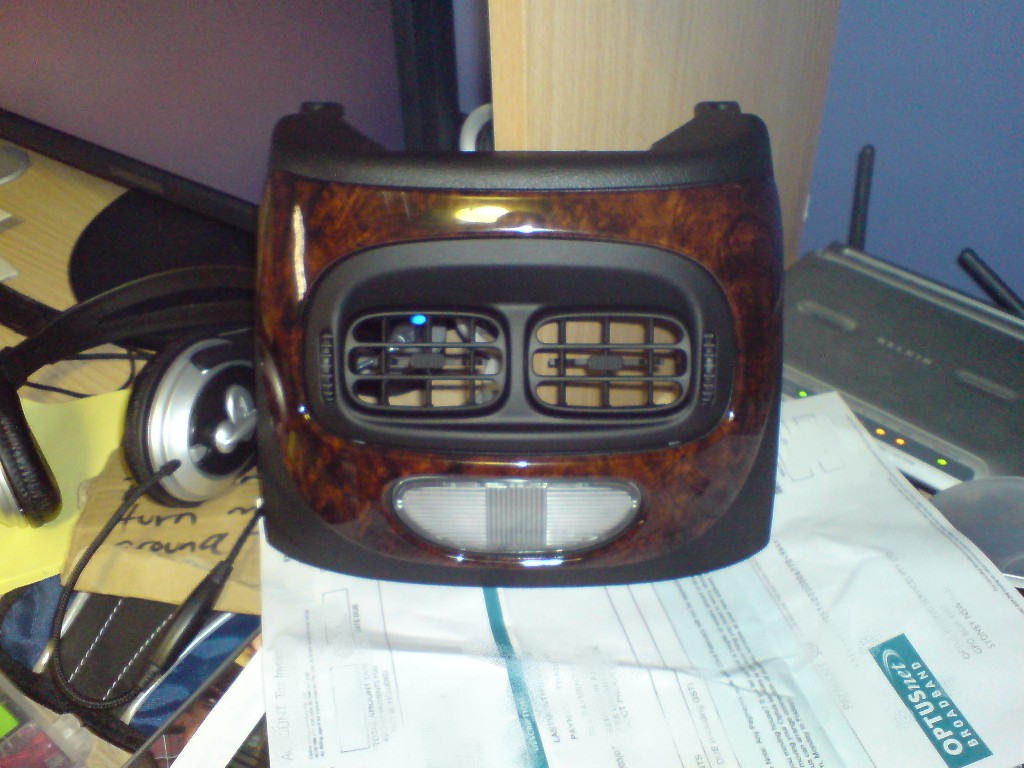

Here's a little progress report. I think the woodgrain looks good on the satin black.





Attachments:
rearvent02.jpg [ 161.45 KiB | Viewed 36 times ]
rearvent01.jpg [ 159.38 KiB | Viewed 38 times ]



_________________

E39 523i
EF Fairmont

Top
