Posted: Tue Apr 03, 2007 12:29 am
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

great, i actually didnt even think of the handbreak. well its all a learning experience right? i just love to change stuff and to be able to say i did most of it myself, but seems i have my work cut out for me, plus i like driving my car, so i dont want to have it off the road for too long :( arghh decisions decisions lol
Top
 Profile


Posted: Tue Apr 03, 2007 12:37 am
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

Rossca wrote:
great, i actually didnt even think of the handbreak. well its all a learning experience right? i just love to change stuff and to be able to say i did most of it myself, but seems i have my work cut out for me, plus i like driving my car, so i dont want to have it off the road for too long :( arghh decisions decisions lol


yeah make sure you have all of the stuff before you start, thats the mistake i made.

Start with the door trims and go from there.

To be honest with you the dash conversion is a massive job to do right.



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Wed Apr 04, 2007 11:32 pm
Fordmods Newbie
Offline

Age: 31

Posts: 4

Joined: 5th Mar 2007

Location: Melbourne
VIC, Australia

Hey Guys,
I got a set of edxr6 interior complete anyone interested give me a pm or hit me an email. $500 complete

dan_tay_2007@yahoo.com.au

Thanks Guys,
Daniel
Top
 Profile


Posted: Sun Apr 08, 2007 9:23 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

ok, got the drivers door skin on, looks pretty good, just gotta clean it up a bit and some paint and would be pretty flash.

they EF skins dont actually fit straight onto the EB, though the adjustments are very small. all i had to do was slightly bend the bar for the handle, and drill a new hole in the door frame to screw the handle on.
also the screw holes on the open side of the door dont line up, but all the others do so its really no biggy.

ill get some photos as i do the rest tomorrow so i can show you what i mean if this is a little confusing. (im not very good at explaining things lol)

all thats left is to put power windows in :)

P.S. Thanks twr7cx! you rock!
Top
 Profile


Posted: Sun Apr 08, 2007 9:32 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

Neo_nick wrote:
You need to change the dash for it to blend in properly though as it doesnt meet up with an ea eb dash nicely


oh and BTW, im not meaning to drill you or anything Neo_nick, but apart from the slight difference in colour (which will change soon) it meets up as beautiful as a virgins thighs ;)
Top
 Profile


Posted: Sun Apr 08, 2007 10:32 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 11103

Joined: 15th Nov 2004

Ride: AU III XR8 Pursuit 250 ute

Location: Hobart
TAS, Australia

Glad to hear it's going well!



_________________

Heaps of performance EF/L parts for sale, including supercharged VCT motor!

2002 Ford AU Series III Falcon XR8 Pursuit 250 ute - 5.6L of V8 Windsor!

Top
 Profile


Posted: Mon Apr 09, 2007 2:12 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

heres the photos or the EF trims on an EB

and yes i know i really need to clean the inside of my car :P





Attachments:

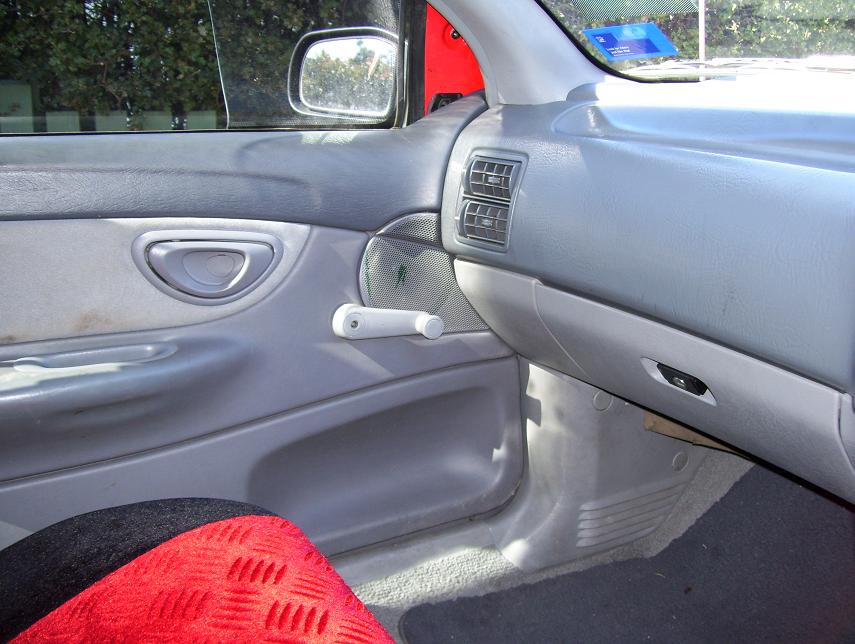

File comment: shows how well they meet up with the EB dash
Picture 016.jpg
Picture 016.jpg [ 96.51 KiB | Viewed 187 times ]

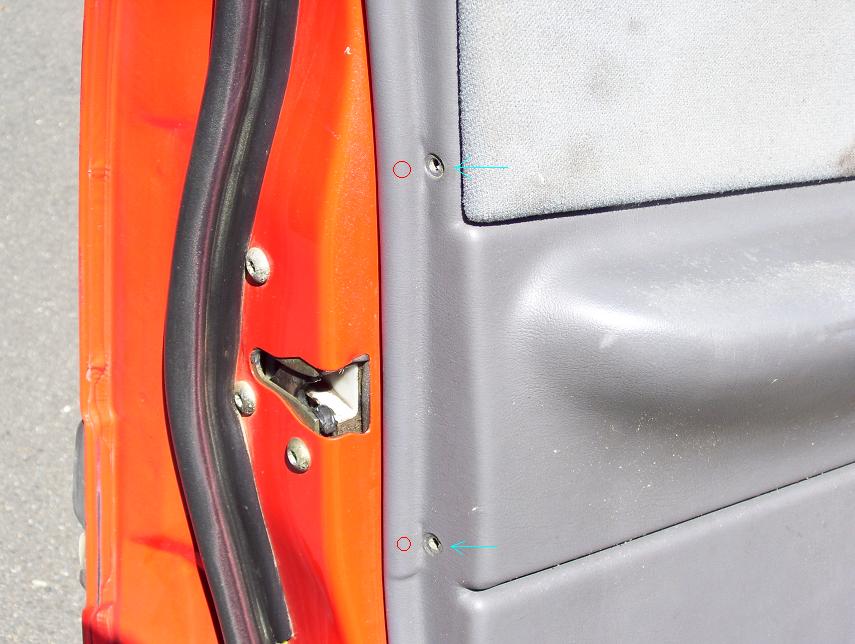

File comment: you can see where the screw holes on the open side of the trim are, and the red circles are where they EB ones are.
Picture 015.jpg
Picture 015.jpg [ 90.1 KiB | Viewed 69 times ]

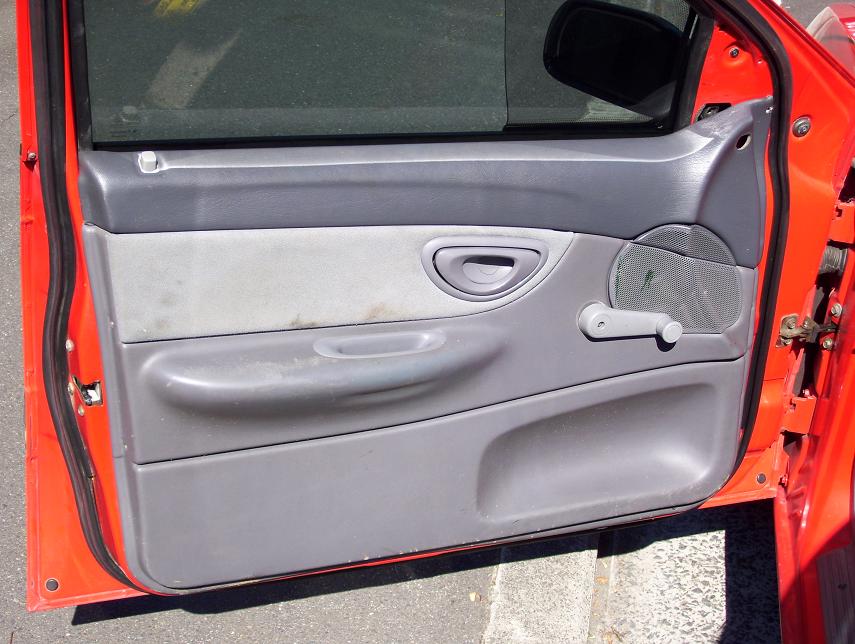

File comment: as you can see, apart from a good clean and get some of the black corner trims, they went on quite nice.
Picture 014.jpg
Picture 014.jpg [ 100.75 KiB | Viewed 71 times ]
Top
 Profile


Posted: Mon Apr 09, 2007 2:17 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 4307

Joined: 5th Nov 2004

Gallery: 9 images

Ride: EF Falcon XT-T

Location: Mornington Peninsula
VIC, Australia

i'd get EF kickpanels if they fit, they look a little neater.
may have to get the door sill plastics too if the colour doens't match.



_________________

FALCN6 - EF GLi Turbo, 20" Rims, Air Bag Suspension, Straight LPG, 225rwkw
DTHWGN - EA GL Wagon, LTD Interior, Satin Black, 5.0, Turbo
RACER - EF Futura , 5.0, 5 Speed
PROJECT - 83 Thunderbird, Lowered, 18" Billet Wheels
DAILY - BA Fairmont Ghia 5.4 3V

Top
 Profile


Posted: Mon Apr 09, 2007 2:19 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

EFFalcon wrote:
i'd get EF kickpanels if they fit, they look a little neater.
may have to get the door sill plastics too if the colour doens't match.


not a bad idea, and colour doesnt really matter because im going to be painting it all eventually
Top
 Profile


Posted: Mon Apr 09, 2007 2:22 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

also need to wire up the electric mirrors, the plugs are different so as soon as i figure out what wires what then that will be done lol
Top
 Profile


Posted: Mon Apr 09, 2007 3:28 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

EF kick panels will fit no worries.

Problem is they are a tad bit shorter then the EB ones and when fitted, a little bit of body colour will poke through the gap between the kick panel and lower section of the dash.



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Mon Apr 09, 2007 7:20 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

well has anyone got a photo of the EF kickpanel? should i bother getting one or just clean up and paint the EB ones?
Top
 Profile


Posted: Mon Apr 09, 2007 7:44 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

what you want is a set of these :P : Boxcar carpeted kick panels.




_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Mon Apr 09, 2007 7:50 pm
Stock as a Rock
Offline
User avatar

Age: 34

Posts: 107

Joined: 25th Feb 2007

Ride: EB Falcon

Location: Hobart
TAS, Australia

well there ya go... smartass :P lol. did you do that yourself or was it part of your carpet upgrade? i remember you saying something about getting someone to mod your carpet to fit EF seats and console or something like that... meh
Top
 Profile


Posted: Mon Apr 09, 2007 8:04 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

Rossca wrote:
well there ya go... smartass :P lol. did you do that yourself or was it part of your carpet upgrade? i remember you saying something about getting someone to mod your carpet to fit EF seats and console or something like that... meh


nah those kick panels where stock fitted to my DC LTD (check gallery)

the other car was talking about is my NC V8 which is copping a full NF/NL/DF/DL interior mix!!



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile
