ED Cluster help PLEASE!!!!!



Page 1 of 1 [ 5 posts ]


 Post subject: ED Cluster help PLEASE!!!!!
Posted: Sat Apr 04, 2009 6:48 pm
Fordmods Newbie
Offline

Age: 61

Posts: 4

Joined: 14th Mar 2009

Ride: ED Falcon

Location: Pine Mountain
QLD, Australia

I am having trouble removing the clear facia from my ED cluster. :evil: Is there a trick to getting the plastic cover off? :( I am afraid to prise too hard in case there is something else I need to release. I have been able to release the 4 screws holding the facia on. I have been able to loosen the four black lugs on the bottom. But still it won't come off!!!! :shock: What else do I need to do :?: :?:
Top
 Profile


 Post subject: Re: ED Cluster help PLEASE!!!!!
Posted: Sat Apr 04, 2009 7:57 pm
Stock as a Rock
Offline

Age: 32

Posts: 186

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 1997 EL Fairmont,2008 FG G6E

Location: Melbourne
VIC, Australia

You will need to remove the 4 from the top of the cluster and there are 4 right down the bottom of the cluster you have to remove it will come apart.
Top
 Profile


 Post subject: Re: ED Cluster help PLEASE!!!!!
Posted: Sat Apr 04, 2009 8:09 pm
Fordmods Newbie
Offline

Age: 61

Posts: 4

Joined: 14th Mar 2009

Ride: ED Falcon

Location: Pine Mountain
QLD, Australia

Thanks for you quick answer. Can you provide a little more info :?: The four black lugs at the bottom were easy to prise apart. Its the top of the cluster that is giving me the grief :cry: There is a clear plastic cover (with steps) the appears to let light in. Then there is a black surround that appears to be glued to the facia I want to remove. Here there are another four lugs, but I cannot get them to open up. :evil: I dont have to remove the top clear plastic :?: :?:
Top
 Profile


 Post subject: Re: ED Cluster help PLEASE!!!!!
Posted: Sun Apr 05, 2009 7:57 pm
Stock as a Rock
Offline

Age: 32

Posts: 186

Joined: 5th Nov 2004

Gallery: 1 images

Ride: 1997 EL Fairmont,2008 FG G6E

Location: Melbourne
VIC, Australia

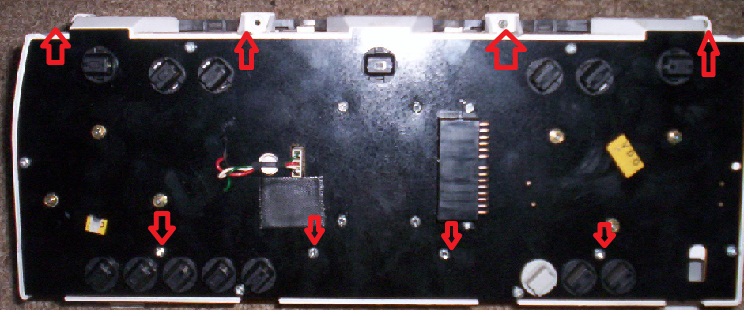

Where the red arrows are you must remove them screws to take the cover off. Then it will come apart.

Hope This Helps Ya





Attachments:
ed gli 1.jpg
ed gli 1.jpg [ 95.47 KiB | Viewed 35 times ]
Top
 Profile


 Post subject: Re: ED Cluster help PLEASE!!!!!
Posted: Sun Apr 05, 2009 8:46 pm
Fordmods Newbie
Offline

Age: 61

Posts: 4

Joined: 14th Mar 2009

Ride: ED Falcon

Location: Pine Mountain
QLD, Australia

Thanks for the photo. :D I did not know you had to remove the four lower screws in the middle of the back. :shock: Put the cluster back in this morning so I can drive to work tomorrow. Looks like a job for the Easter break. I hope the Easter Bunny is go to you, especially if this works. 8-) Thanks :mrgreen:
