ED to EL Door Trim Conversion



Page 1 of 1 [ 13 posts ]


 Post subject: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:06 pm
Stock as a Rock
Offline
User avatar

Age: 28

Posts: 184

Joined: 19th Oct 2009

Ride: BA XR6

Location: Melbourne
VIC, Australia

Ive just put EL door trims on my ed but the power mirror wiring is different. Anyone know what the easy way to over come this is. I tried an el harness but it has different connections to the ed
Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:19 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

have a look at this
not quite what u wanted but..
i will try and find the pics of the ed loom to ef el mirror switch running the ed mirrors

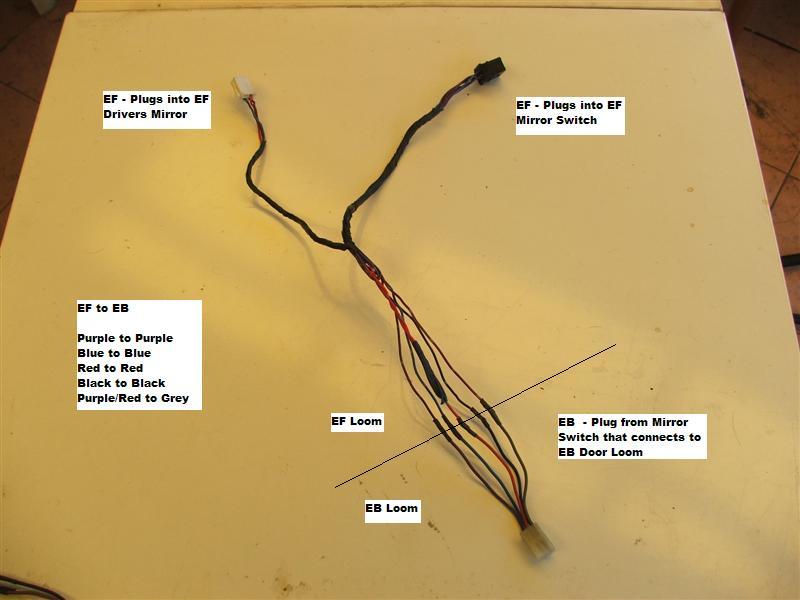

this loom will work for joining el mirrors to eb-ed loom.
Attachment:
EF-EBLoom01 mirrors.jpg
EF-EBLoom01 mirrors.jpg [ 49.14 KiB | Viewed 106 times ]

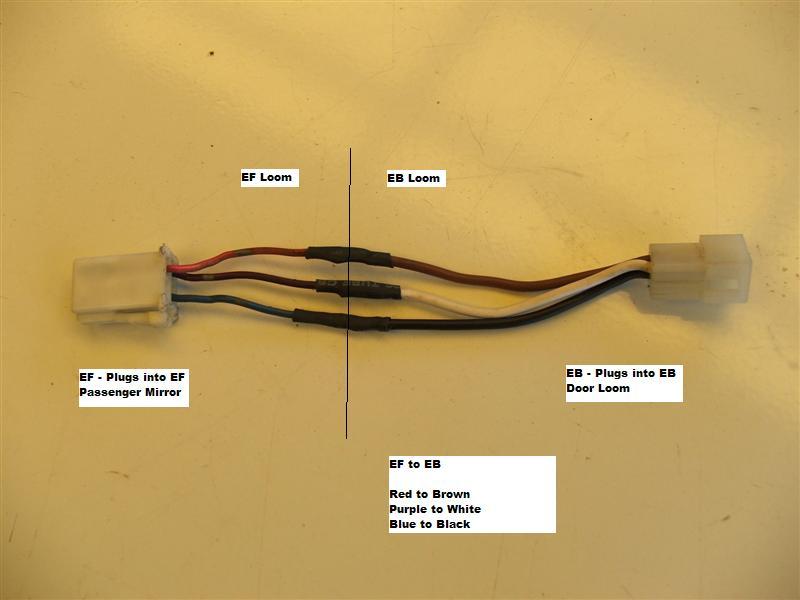

and this is for passenger side loom
Attachment:
EF-EBLoom01 mirrors.jpg
EF-EBLoom01 mirrors.jpg [ 49.14 KiB | Viewed 106 times ]





Attachments:
mirror ps.jpg
mirror ps.jpg [ 41.19 KiB | Viewed 60 times ]

Last edited by XRfairmont67 on Tue Oct 27, 2009 12:25 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:24 pm
Stock as a Rock
Offline
User avatar

Age: 28

Posts: 184

Joined: 19th Oct 2009

Ride: BA XR6

Location: Melbourne
VIC, Australia

elf100capri wrote:
have a look at this

u will need some plugs of an el door looml
Attachment:
EF-EBLoom01 mirrors.jpg



But for the mirror switch there is 2 of the same purple ones. so how do i know which connects to what?
Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:27 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:28 pm
Stock as a Rock
Offline
User avatar

Age: 28

Posts: 184

Joined: 19th Oct 2009

Ride: BA XR6

Location: Melbourne
VIC, Australia

elf100capri wrote:
isnt one purple with red trace?


ive got 2 with purple and red trace :S
Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:34 pm
Stock as a Rock
Offline
User avatar

Age: 28

Posts: 184

Joined: 19th Oct 2009

Ride: BA XR6

Location: Melbourne
VIC, Australia

ok

ok i got:
red/silver
blue/silver x2
Black/Silver
Purple/silver x 2
purple/silver with red trace

then for the ed power mirrors i got
grey
blue
black
red

and then for the left and right switch
red
black
white
green

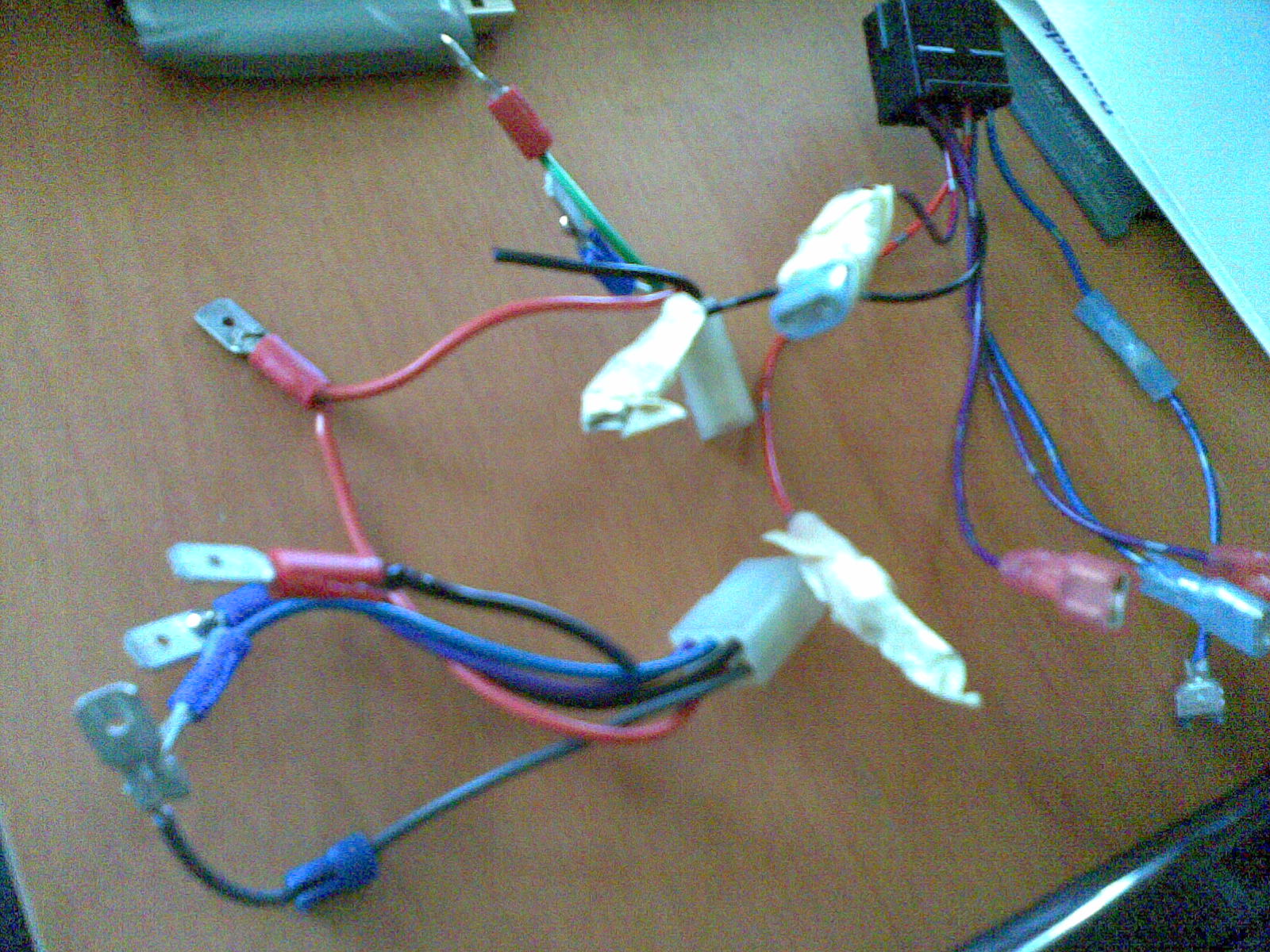

Attachments:
27102009.jpg [ 434.17 KiB | Viewed 36 times ]
Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:34 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 12:48 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

and another pic from an older thread
think this one may help you most, join the wires to corresponding plugs
http://img218.imageshack.us/img218/8649 ... 642mp0.jpg
Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 2:27 pm
Stock as a Rock
Offline
User avatar

Age: 28

Posts: 184

Joined: 19th Oct 2009

Ride: BA XR6

Location: Melbourne
VIC, Australia

i made sure all wires i wired are exact same as the pic and still nothing. all i know is there is power there cos i checked with volt meter. Im so stumped right now. Then when i put the old ed switch back in i works perfect :S
Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 3:04 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Hi, this might help.


This shows the EF/EL mirror switch plug pinouts and the corresponding EB wires.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 3:33 pm
Getting Side Ways
Offline
User avatar

Age: 49

Posts: 1634

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia

thanks benj, i wasnt looking forward to wading through 65 pages of your wagon build thread to find that pic.
there was another diagram somewhere, i though it was in technical documents, which i wired my brother inlaws ed up with to use the el switch/door trims. but i couldnt find it.

94edfutura, bens the man when it comes to upgrading your ed to later model bits
Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Tue Oct 27, 2009 4:34 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

I think this was in my old 'BenJ's Budget Buildup' Thread LOL

Which was for my previous EB Sedan.

I should put a link to it in my Sig.

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: ED to EL Door Trim Conversion
Posted: Wed Oct 28, 2009 10:56 pm
Stock as a Rock
Offline
User avatar

Age: 28

Posts: 184

Joined: 19th Oct 2009

Ride: BA XR6

Location: Melbourne
VIC, Australia

YES!!! I finally got it working. I used the wiring diagrams (thanks BenJ). Ended up being that the switch i had was blown. So there you go.
