Ef manual knob in eb



Page 1 of 2 [ 16 posts ] Go to page 1, 2  Next

Post New Topic Post Reply  Previous topic Next topic

BOSXR8
 Post subject: Ef manual knob in eb
Posted: Sat Dec 19, 2009 4:39 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia
Has any one used an ef/l manual gear knob in an Eb/d?? Any piks?? Did the ef/l xr ones come in black?? Any idea on price from ford?



_________________

EB SXR6. ED XR8 Sprint.

Last edited by BOSXR8 on Sun Dec 20, 2009 11:20 pm, edited 1 time in total.
Top
 Profile


XRfairmont67
 Post subject: Re: Ef knob in eb
Posted: Sat Dec 19, 2009 6:08 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1629

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia
are u talking about an auto knob, if not, disregard this post

Top
 Profile


Papa Smurf
 Post subject: Re: Ef knob in eb
Posted: Sat Dec 19, 2009 7:46 pm
Getting Side Ways
Offline

Age: 71

Posts: 3574

Joined: 11th Jan 2009

Location: Smithfield
NSW, Australia
BOSXR8 wrote:
Has any one used an ef/l gear knob in an Eb/d?? Any piks?? Did the ef/l xr ones come in black?? Any idea on price from ford?


The knob is too dear to buy NEW but I am sure that you would be able to obtain one from a Wrecker.
You can buy a rod to suit this so as to not have to modify one, it is from an XH ute part number
EH 7E330A $5.00. The Handle (knob) EL 7E261C1 $170.00.

This is a how to do it page documents.php?d=96

But, like I said, if you go to your Friendly Ford dealer and have them get the rod I gave the part number for you won't have to make a rod. :)
Top
 Profile


revcore
 Post subject: Re: Ef knob in eb
Posted: Sat Dec 19, 2009 10:26 pm
Getting Side Ways
Offline
User avatar

Age: 47

Posts: 3785

Joined: 5th Nov 2004

Ride: Ford

Location: Victoria
VIC, Australia
Something else that you need to know about this conversion is that the EF/EL knob has a white plastic piece inside it where the rod goes, Remove it as it won't work with it still in there (It didn't work with it when I did my conversion - I used the existing EA-ED rod and extended it and it works beautifully).



_________________

Top
 Profile


XRfairmont67
 Post subject: Re: Ef knob in eb
Posted: Sat Dec 19, 2009 11:10 pm
Getting Side Ways
Offline
User avatar

Age: 55

Posts: 1629

Joined: 8th Jul 2007

Gallery: 21 images

Ride: EL F100 CAPRI XR EF

Power: 234 rwkw

Location: brighton
SA, Australia
i put the whole nl chrome shaft in, just undo 1 nut swap them over and do it up again, no need to stuff around with rods. the ef el nf nl shaft is slightly shorter too and looks way better then having it on a eb shaft
Top
 Profile


peaandham
 Post subject: Re: Ef knob in eb
Posted: Sun Dec 20, 2009 2:06 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 676

Joined: 7th Jun 2009

Ride: Ford EB II Falcon

Location: Morphett Vale
SA, Australia
Yea i put and EF/EL Knob on my Eb Shaft and it sits too high ! This is the EF Chrome Shaft and Knob i bought and had fitted by Elf100Capri !

By peaandham, shot with FinePix A600 at 2009-11-21



_________________

OLD CAR: EB II Falcon, Everglade Green, 250thous (Rough Guess), Wildcat Extractors, 2.5 Exhaust with Muffler + Hot Dog, 18 Inch Rodney Jane Mags, XH Snorkel, EA MPEFI Tubing !

NEW CAR: 1996 TE Magna...Mods Soon To Come
Top
 Profile


BOSXR8
 Post subject: Re: Ef knob in eb
Posted: Sun Dec 20, 2009 11:17 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia
Thanks for the replies but I wanted info for the manual knob. My bad should have been more specific sorry.



_________________

EB SXR6. ED XR8 Sprint.
Top
 Profile


alfy
 Post subject: Re: Ef manual knob in eb
Posted: Sun Dec 20, 2009 11:22 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 5881

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: 2021 Amarok V6

Location: Port Lincoln
SA, Australia
the Manual knob for EF (Black) is about $15 from ford new... well that was a few years ago but should still be the same. Papa Smurf should be able to confirm.



_________________

2021 V6 Manual Amarok - 245kw/750nm - many goodies
1997 EL Fairmont Ghia 4.0 - Heritage Green & Cappa
2010 Suzuki GSX650F - when I want to be silly
Top
 Profile


alfy
 Post subject: Re: Ef manual knob in eb
Posted: Sun Dec 20, 2009 11:25 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 5881

Joined: 2nd Mar 2006

Gallery: 5 images

Ride: 2021 Amarok V6

Location: Port Lincoln
SA, Australia
and yes ive used an EF knob in an EA, from what i can remember the EA/D thread is a bit too thin for the gearknob.



_________________

2021 V6 Manual Amarok - 245kw/750nm - many goodies
1997 EL Fairmont Ghia 4.0 - Heritage Green & Cappa
2010 Suzuki GSX650F - when I want to be silly
Top
 Profile


TROYMAN
 Post subject: Re: Ef manual knob in eb
Posted: Mon Dec 21, 2009 8:27 am
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
or you can even go ba knob aswell...
Top
 Profile


BOSXR8
 Post subject: Re: Ef manual knob in eb
Posted: Mon Dec 21, 2009 9:26 am
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia
I have an ef gear stick so the thread shouldn't be an issue. From memory the base of the ef knob looks chunkier than the eb. Papa smurf can you confirm pricing? I notice troyman has a similiar thread going too regarding ef and au knobs. Will keep close eye on that one!!



_________________

EB SXR6. ED XR8 Sprint.
Top
 Profile


TROYMAN
 Post subject: Re: Ef manual knob in eb
Posted: Mon Dec 21, 2009 9:40 am
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
the ef,el,au and ba knobs will fit eb... i ended up getting the ba xr6 one...
Top
 Profile


BOSXR8
 Post subject: Re: Ef manual knob in eb
Posted: Mon Dec 21, 2009 10:02 am
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia
I just did a search in car sales for piks of gear knobs and ef au and ba looked the same from what I could see. Anyway I think I'll just get a black standard ba one for now. I'll get the latest one just to be safe!



_________________

EB SXR6. ED XR8 Sprint.
Top
 Profile


TROYMAN
 Post subject: Re: Ef manual knob in eb
Posted: Mon Dec 21, 2009 11:00 am
Moderator
Offline

Posts: 14489

Joined: 7th Nov 2004

Ride: AU XR8

Location: a shit suburb in sydney
NSW, Australia
the ef,el,au look the same but the ba xr6 one is different...

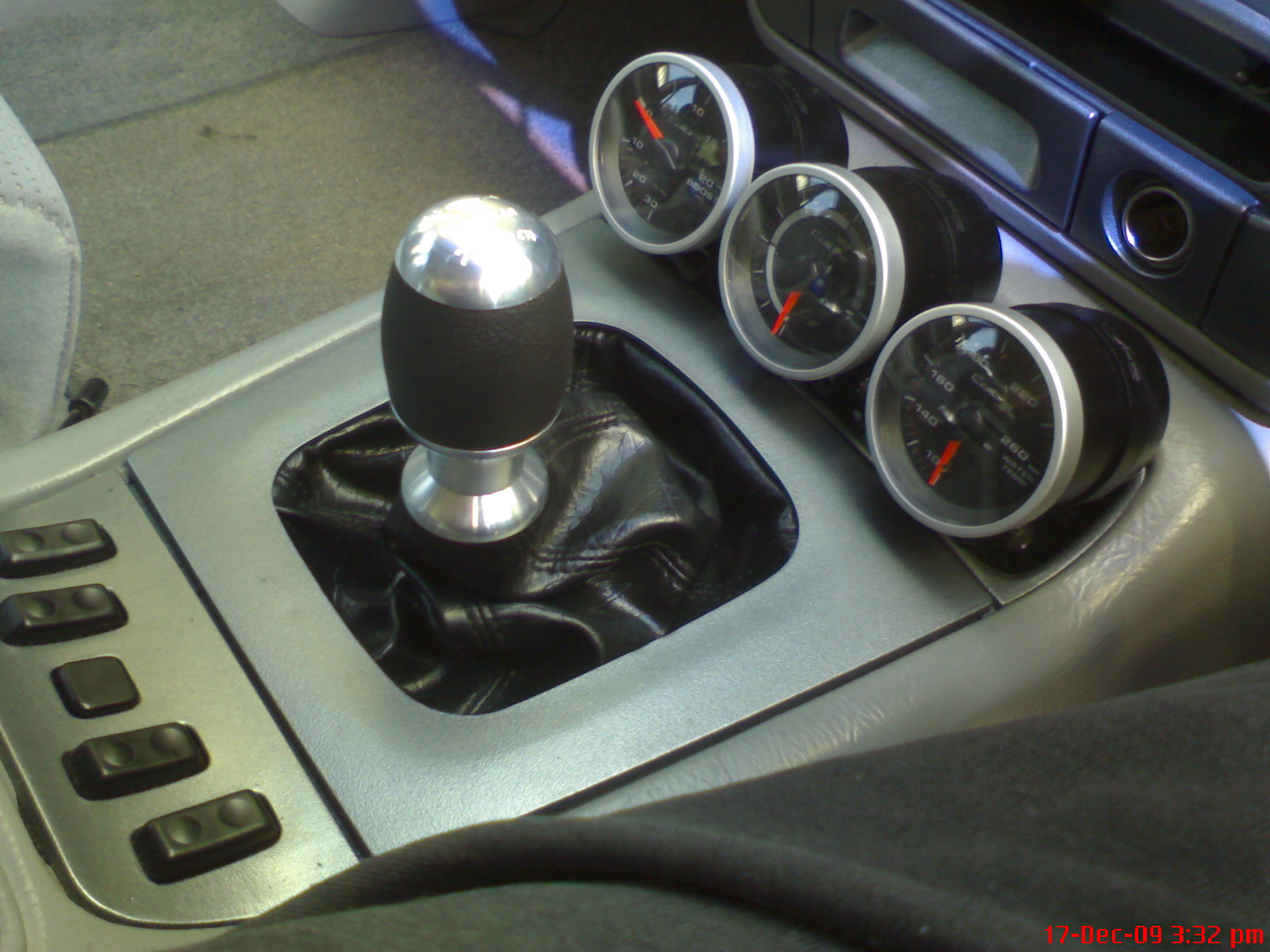

heres the ba xr6 one i got...





Attachments:
DSC01657.JPG [ 282.57 KiB | Viewed 124 times ]
Top
 Profile


BOSXR8
 Post subject: Re: Ef manual knob in eb
Posted: Mon Dec 21, 2009 1:41 pm
Getting Side Ways
Offline
User avatar

Age: 40

Posts: 930

Joined: 6th Nov 2004

Ride: EB SXR6 | ED XR8 Sprint

Location: Sydney
NSW, Australia
Yeah I didn't want an xr one because I really wanted all black to suit the rest of the interior. That looks awesome on your car. How much was it? I ordered a standard BA one for $27. How short is your shifter! I really like that set up.



_________________

EB SXR6. ED XR8 Sprint.
Top
