Posted: Mon Feb 26, 2007 10:59 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

yes but it would take a lot of butchering of wires. It would be easier to get an EF Fairmont dash loom. The dash loom should come as a part of the converison. arm79 has a EF Climate Control conversion IIRC



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Mon Feb 26, 2007 11:05 pm
Technical Contributor
Offline

Age: 31

Posts: 6047

Joined: 12th Nov 2004

Ride: Ford Ef Futura

Location: Perth
WA, Australia

camh1980 wrote:
We want to do the following:

Front and rear seat change-over

Carpet and door trim change-over

Rear power window conversion

Auto climate, Fairmont gauges, trip computer

Install and MP3 radio in the dash


Fornt and rear seats: 1hr maximum. T50 bit will help.
Carpet and door trim swap: About 2hrs max.
Rear power window conversion: No idea
Auto climate: A weekend of hard work
Fairmont gauges: If you swap the EEPROM yourself about 15mins for that. If a TV store does it, its simple plug and play which is about 15mins. Remeber the oil thing needs to be changed over.
Trip computer: About 45mins
Install headunit: Depends how good you are with headunits and car audio.
Top
 Profile


Posted: Wed Feb 28, 2007 6:20 pm
Getting Side Ways
Offline

Age: 37

Posts: 1500

Joined: 14th Nov 2004

Ride: Falcon

Location: SE Melb
VIC, Australia

OK - I have found a EF Fairmont dash loom and BEM.

I am after a trip computer now and that should be all.

However, there is one little problem.

The wires were snipped off for the trip computer and rear demister and antenna height switch, as well as the earth and radio cassette wires.

I can re-wire the earth and radio wires.

I need to know is it hard to re-conenct the trip computer and rear demister and antenna height wires?



_________________

Instant Karma is gonna get you!

Top
 Profile


Posted: Wed Feb 28, 2007 6:55 pm
Getting Side Ways
Offline

Age: 37

Posts: 1500

Joined: 14th Nov 2004

Ride: Falcon

Location: SE Melb
VIC, Australia

Can I wire common colour wires together and then go wire by wire as there seem to be three blue and red wires, three brown wires and three black wires?

I dont to wire anything backwards.

I can temp wire each colour together and test the demister, antenna switch and trip computer last.



_________________

Instant Karma is gonna get you!

Top
 Profile


Posted: Wed Feb 28, 2007 7:14 pm
Technical Contributor
Offline
User avatar

Age: 38

Posts: 4093

Joined: 20th Mar 2005

Gallery: 2 images

Ride: 2.0 Turbo VW

Power: 142 rwkw

Location: Seaford State:
VIC, Australia

Some of these wires have silver rings identifiying them as 'different'.

so Yes and No. they MAY be the same or May not!
a multimeter should sort you out!



_________________

Carefree, we may not be number one, but we're up there.

Top
 Profile


Posted: Wed Feb 28, 2007 10:12 pm
Getting Side Ways
Offline

Age: 37

Posts: 1500

Joined: 14th Nov 2004

Ride: Falcon

Location: SE Melb
VIC, Australia

They all got rings :(



_________________

Instant Karma is gonna get you!

Top
 Profile


Posted: Sat Mar 10, 2007 11:21 pm
Getting Side Ways
Offline

Age: 37

Posts: 1500

Joined: 14th Nov 2004

Ride: Falcon

Location: SE Melb
VIC, Australia

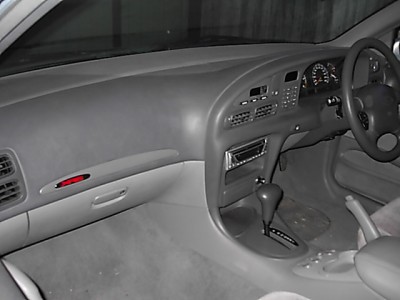

Well, it took 14 hours of work over two days, and one trip to the wreckers for parts, but the interior conversion is finished.





Attachments:
Dash 2.JPG
Dash 2.JPG [ 75.38 KiB | Viewed 24 times ]



_________________

Instant Karma is gonna get you!

Top
 Profile


Posted: Sat Mar 10, 2007 11:22 pm
Getting Side Ways
Offline

Age: 37

Posts: 1500

Joined: 14th Nov 2004

Ride: Falcon

Location: SE Melb
VIC, Australia

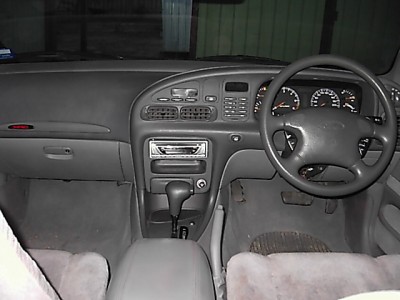

One from the back seat.





Attachments:
Dash 1.JPG
Dash 1.JPG [ 93.24 KiB | Viewed 31 times ]



_________________

Instant Karma is gonna get you!

Top
 Profile
