 Post subject: help with ed mods
Posted: Sun Apr 19, 2009 8:15 pm
Stock as a Rock
Offline

Age: 26

Posts: 139

Joined: 19th Apr 2009

Ride: ed xr6, r33 skyline

Location: lismore
NSW, Australia

got a ed xr6 couple of months ago and need some help regarding the interior
i was wondering whether i would be able to fit front/rear seats out of an ef ghia in it along with the insides of the doors?
any help much appreciated
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 8:40 pm
Getting Side Ways
Offline
User avatar

Posts: 771

Joined: 2nd Oct 2008

Gallery: 6 images

Ride: 94 ED falcon

Location: Brisbane, 4173
QLD, Australia

I wont be the only person to tell you this but there are a s**t load of threads about this look in the interior modifications bit,

Yes the door trims will fit,

Yes the back seat will fit,

But the front seat rails are different but can be made to fit by putting your ED rails on the seats you want.

Not 100% as i havnt done it, its jsut off the top of my head,

Im sure someone else will back me up or correct me, either way.

Just wondering have you done or plan to do any other mods? any reason why the XR6 stuff isnt good enough for you?

Regards,

Michael.
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 8:59 pm
Stock as a Rock
Offline

Age: 26

Posts: 139

Joined: 19th Apr 2009

Ride: ed xr6, r33 skyline

Location: lismore
NSW, Australia

the base of the seat doesnt connect to the car and it doesnt look all that classy(standard xr stuff) but i spose for a first car its not bad.i was considering the ghia stuff in it for more class or re trim the original xr stuff.
the xr has pacemaker extractors,full exhaust system(unsure on size last owner did it) full stereo,18inch rims,possibly aftermarket suspension(once again last owner couldnt tell me).
Is a stock 5 speed manual though which was a plus.only thing i did to it was new head unit and new tyres since i bought it,rest of it i didnt pay for.not bad for 3 grand ay?
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 9:23 pm
Smokin em up
Offline
User avatar

Age: 48

Posts: 212

Joined: 9th Oct 2006

Gallery: 11 images

Ride: EA SPAC 1990

Location: melbourne
VIC, Australia

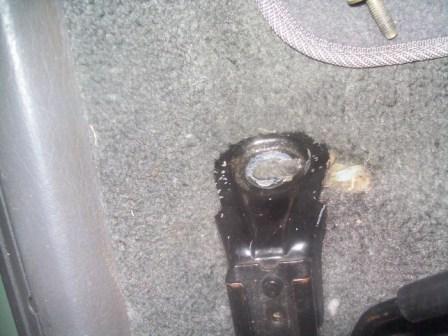

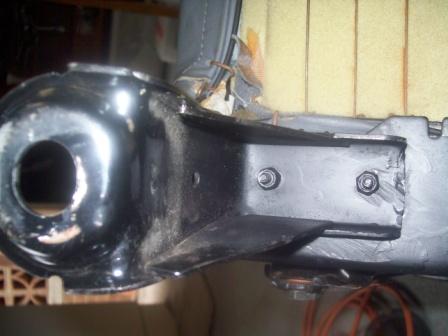

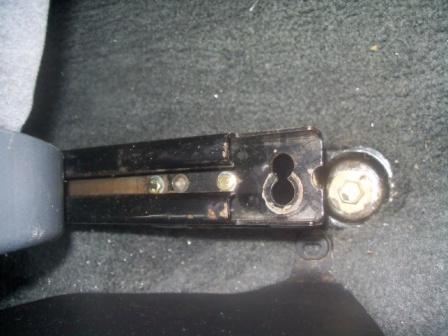

EF seats will fit with mod, the easiest way i have found is to remove the rear inside rail bracket of your original seats or donor' fix to EF rail with high tensile bolts and weld, bolt down both rear brackets then front inside bracket the front outside bracket wont line up so drill a hole through the floor and secure it with a high tensile bolt and nut. Pretty easy to do and took me about 1hr to do although i used EL Fairlane Ghia seats its much the same process
Attachment:
EA to EL bolt.JPG
EA to EL bolt.JPG [ 32.78 KiB | Viewed 31 times ]
Attachment:
EL seat installed.JPG
EL seat installed.JPG [ 35.71 KiB | Viewed 38 times ]
Attachment:
El outside bracket.JPG
El outside bracket.JPG [ 37.02 KiB | Viewed 52 times ]
Attachment:
EL seats installed.JPG
EL seats installed.JPG [ 33.83 KiB | Viewed 46 times ]



_________________

WHO EVER SAID "TWOS COMPANY THREES A CROWD" OBVIOUSLY NEVER HAD A THREESOME

Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 9:30 pm
Getting Side Ways
Offline
User avatar

Posts: 771

Joined: 2nd Oct 2008

Gallery: 6 images

Ride: 94 ED falcon

Location: Brisbane, 4173
QLD, Australia

aydro wrote:
the base of the seat doesnt connect to the car and it doesnt look all that classy(standard xr stuff) but i spose for a first car its not bad.i was considering the ghia stuff in it for more class or re trim the original xr stuff.
the xr has pacemaker extractors,full exhaust system(unsure on size last owner did it) full stereo,18inch rims,possibly aftermarket suspension(once again last owner couldnt tell me).
Is a stock 5 speed manual though which was a plus.only thing i did to it was new head unit and new tyres since i bought it,rest of it i didnt pay for.not bad for 3 grand ay?


3G sounds good, post a pic of the suspension and give us a look at the ride height from the side.

Good chance its 2.5" system which is perfect.

Yer go for re trim there are some nice leather look a like re trims going on ebay they look nice too,

check this thread

viewtopic.php?f=14&t=74694

Hope this helps,

Regards,

Michael.
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 9:53 pm
Stock as a Rock
Offline

Age: 26

Posts: 139

Joined: 19th Apr 2009

Ride: ed xr6, r33 skyline

Location: lismore
NSW, Australia

should have some pics up within 2 days.got abit throttle happy in some mud/dirt so its filthy to the point of embarrassment atm.thanks for your help dude much appreciated
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 10:21 pm
Getting Side Ways
Offline
User avatar

Posts: 771

Joined: 2nd Oct 2008

Gallery: 6 images

Ride: 94 ED falcon

Location: Brisbane, 4173
QLD, Australia

aydro wrote:
should have some pics up within 2 days.got abit throttle happy in some mud/dirt so its filthy to the point of embarrassment atm.thanks for your help dude much appreciated


Man its a road car, dont be a hero any car can spin them on grass or dirt, you should be embarrassed about that not how dirty your car is. No problem will help if i can just PM.
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 10:33 pm
Stock as a Rock
Offline

Age: 26

Posts: 139

Joined: 19th Apr 2009

Ride: ed xr6, r33 skyline

Location: lismore
NSW, Australia

its just shaming the ford badge with it not looking it's best is all.
reason i dont do burnouts on the road(which it can do very easily) is due to i cant afford to replace the tyres for the 18s and havent had a chance to get some burnout rims/tyres yet....
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Apr 19, 2009 11:32 pm
Stock as a Rock
Offline

Age: 26

Posts: 139

Joined: 19th Apr 2009

Ride: ed xr6, r33 skyline

Location: lismore
NSW, Australia

posted pics up of the xr in the garage.
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Aug 02, 2009 12:20 pm
Oompa Loompa
Offline

Age: 40

Posts: 27

Joined: 25th Jul 2009

Ride: EB 5Spd

Location: Telarah, Maitland
NSW, Australia

g'day, have extractors or sports exhaust?



_________________

Better to remain silent and be thought a fool than to speak out and remove all doubt.
~ Abraham Lincoln (1809 - 1865)

Top
 Profile


 Post subject: Re: help with ed mods
Posted: Sun Aug 02, 2009 1:56 pm
Stock as a Rock
Offline

Age: 26

Posts: 139

Joined: 19th Apr 2009

Ride: ed xr6, r33 skyline

Location: lismore
NSW, Australia

ford_nut wrote:
g'day, have extractors or sports exhaust?


what?
Top
 Profile


 Post subject: Re: help with ed mods
Posted: Mon Aug 03, 2009 4:24 pm
Getting Side Ways
Offline
User avatar

Posts: 1008

Joined: 21st Dec 2004

Ride: ED V8

Location: driving under the sun........now!
WA, Australia

Don't get rid of the XR seats mate.... They are an important part of the car as far as originality of the XR goes.

If you must stuff around with it, just get the side bolsters re trimmed in leather, like the XR sprints had.

That'd be my suggestion anyway.... to put in Ghia seats would be a crying shame IMO!!!



_________________

ED XR8 Spri-mitatio-nt

Top
 Profile


 Post subject: Re: help with ed mods
Posted: Mon Aug 03, 2009 8:09 pm
Stock as a Rock
Offline

Age: 26

Posts: 139

Joined: 19th Apr 2009

Ride: ed xr6, r33 skyline

Location: lismore
NSW, Australia

the seats look like theyve seen better days though but havent decided on anything yet.
