How do you remove the rear side bolsters in an EL?



Page 1 of 1 [ 10 posts ]


 Post subject: How do you remove the rear side bolsters in an EL?
Posted: Sun Mar 25, 2007 4:45 pm
Getting Side Ways
Offline

Age: 35

Posts: 516

Joined: 3rd Dec 2004

Ride: SZ Titanium & ZG Fairlane

Location: Roxby Downs
SA, Australia

I am trying to take my sub box out of the XR8 and I think I have to take out the side bolsters of the rear seat to get at some more brackets. How do I go about doing this? I know in the commodores you just pull like hell and they unclip from the car.



_________________

F6 Rspec #139 - Stock Car Racing

Top
 Profile


Posted: Sun Mar 25, 2007 5:02 pm
Fordmods Junkie
Offline
User avatar

Posts: 2839

Joined: 6th Nov 2004

Gallery: 50 images

Ride: MYSTERY EL's & Maverick LWB

Power: 198 rwkw

Location: parramatta
NSW, Australia

15mm spanner or a shifter to undo the rear seat bolts that lock into the rear folding seats and a 10mm bolt at the bottom of the bolster can get to it when you push the bottom seat down :)



_________________

Chance Favors The Prepared Mind !
For Sale : EL Fairmont 4L 5spd offers, AU Fairlane Ghia 4L vct Stock no mods $3.5k ono

Top
 Profile


Posted: Sun Mar 25, 2007 5:35 pm
Getting Side Ways
Offline

Age: 35

Posts: 516

Joined: 3rd Dec 2004

Ride: SZ Titanium & ZG Fairlane

Location: Roxby Downs
SA, Australia

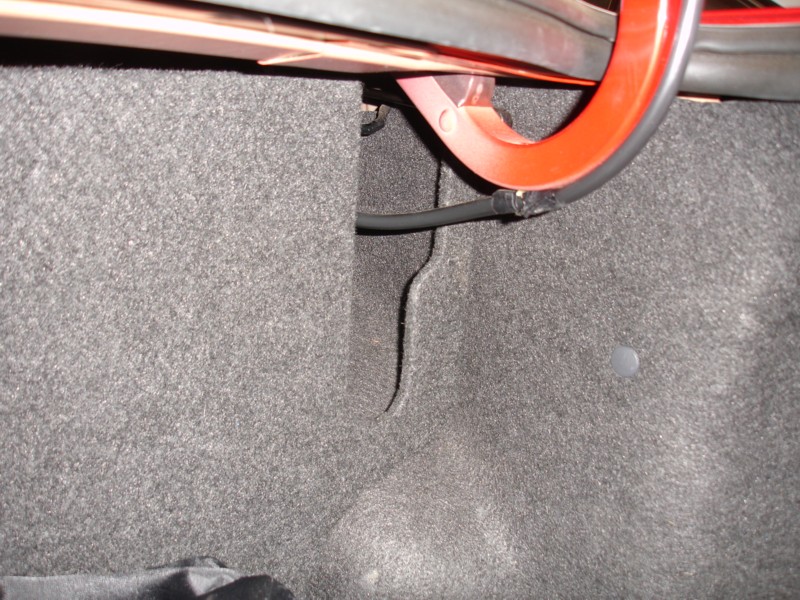

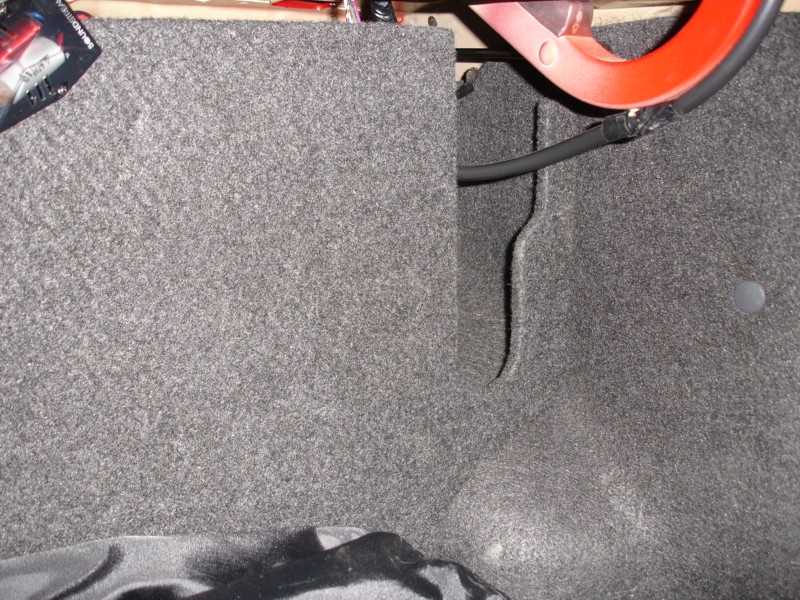

I can see the bolt you mean at the bottom of the bolster when you push the seat base down. Which is the first bolt that you say locks into the rear seats? Do you mean the locking bar that sticks out the side of the bolster? If so this looks completely round so how do you get a spanner on there? The reason I am doing this is because I am getting the suspension done in a few weeks and they will need to get into the rear mounts. I think I have to take the side plastics off as well. I took some pictures to show you what I have got now. If they work.





Attachments:
DSC00729.jpg [ 85.87 KiB | Viewed 27 times ]
DSC00728.jpg [ 86.04 KiB | Viewed 27 times ]
DSC00727.jpg [ 77.65 KiB | Viewed 28 times ]
DSC00726.jpg [ 211.04 KiB | Viewed 27 times ]
DSC00725.jpg [ 174.63 KiB | Viewed 54 times ]



_________________

F6 Rspec #139 - Stock Car Racing

Top
 Profile


Posted: Sun Mar 25, 2007 7:10 pm
Fordmods Junkie
Offline
User avatar

Posts: 2839

Joined: 6th Nov 2004

Gallery: 50 images

Ride: MYSTERY EL's & Maverick LWB

Power: 198 rwkw

Location: parramatta
NSW, Australia

the little round plastic bit just pulls off and then you will see what i mean there :)



_________________

Chance Favors The Prepared Mind !
For Sale : EL Fairmont 4L 5spd offers, AU Fairlane Ghia 4L vct Stock no mods $3.5k ono

Top
 Profile


Posted: Sun Mar 25, 2007 8:40 pm
Getting Side Ways
Offline

Age: 35

Posts: 516

Joined: 3rd Dec 2004

Ride: SZ Titanium & ZG Fairlane

Location: Roxby Downs
SA, Australia

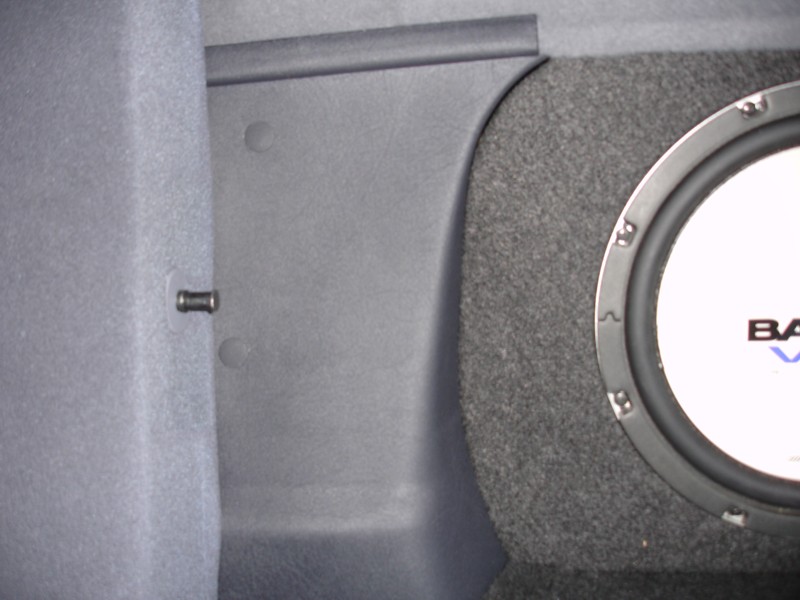

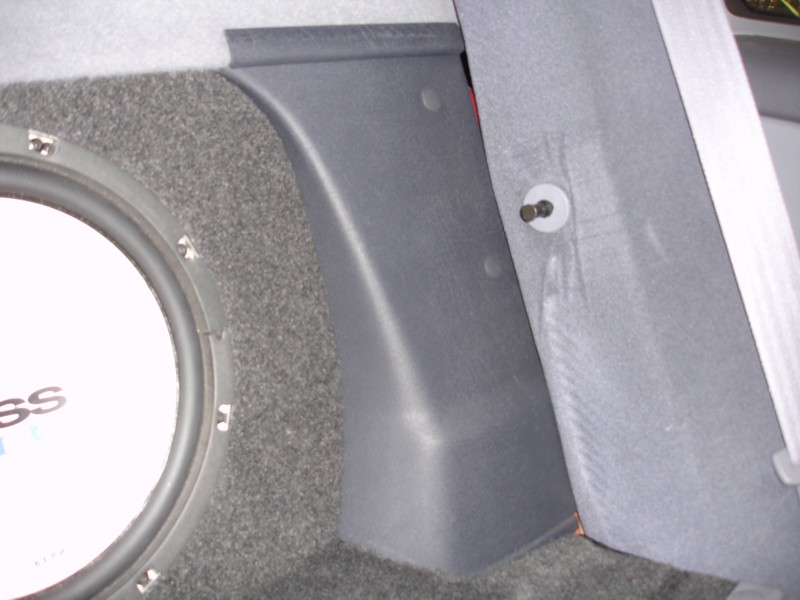

I will have to check that out next weekend when I go to do it. Will I have to take the plastic out that run behind the bolsters in the first 2 pics to get to the shock mounts or can they be accessed just by taking the subs out? If I have to take them out do you know how?



_________________

F6 Rspec #139 - Stock Car Racing

Top
 Profile


Posted: Sun Mar 25, 2007 9:02 pm
Fordmods Junkie
Offline
User avatar

Posts: 2839

Joined: 6th Nov 2004

Gallery: 50 images

Ride: MYSTERY EL's & Maverick LWB

Power: 198 rwkw

Location: parramatta
NSW, Australia

just take out the plastic covers that you see in the 1st 2 piks if your just doing the shock mounts , no need to take the bolster's out .



_________________

Chance Favors The Prepared Mind !
For Sale : EL Fairmont 4L 5spd offers, AU Fairlane Ghia 4L vct Stock no mods $3.5k ono

Top
 Profile


Posted: Sun Mar 25, 2007 11:19 pm
Getting Side Ways
Offline

Age: 35

Posts: 516

Joined: 3rd Dec 2004

Ride: SZ Titanium & ZG Fairlane

Location: Roxby Downs
SA, Australia

Ok thanks for that. So are those round plastic things what hold them in? Are they just those push in xmas trees? Is it just those couple of things on the front of the plastic or are there other ones that you can't see because of the sub box?



_________________

F6 Rspec #139 - Stock Car Racing

Top
 Profile


Posted: Mon Mar 26, 2007 12:05 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

yeah, they are just those little christmas tree things. there should be the two on the front and then two on the sides. towards the back more.

looks like your sub box might just cover the back ones though.



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Mon Mar 26, 2007 12:06 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

maybe try and pull the front ones out and see if the plastic comes out. maybe the back ones were taken out before the sub box went in? worth a try.



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Mon Mar 26, 2007 2:55 pm
Getting Side Ways
Offline

Age: 35

Posts: 516

Joined: 3rd Dec 2004

Ride: SZ Titanium & ZG Fairlane

Location: Roxby Downs
SA, Australia

thanks for your help guys. Will have a go at it this week sometime.
