 Post subject: LED Dash Problems
Posted: Sat Mar 29, 2008 11:27 am
Oompa Loompa
Offline
User avatar

Age: 29

Posts: 25

Joined: 2nd Jan 2007

Gallery: 10 images

Ride: EL Futura

Location: Gladstone
QLD, Australia

Hey All, I need help as to why my Blue LED lights arent working. I purchased this cluster kit off EBAY and fitted it yesterday. I pulled out the blue bulb holders and broke the solder holding the old bulbs in and replaced the old with the new LED T5 fittings. I didnt solder the new bulbs in, I just assumed that they made contact to the inside of the contact plates (anyone who has changed these bulbs will know what im on about). I fitted it all back together and no good :cry: the LEDs dont work. The bulbs are rated at 12v DC and the EBAY description says it is just a matter of out with the OLD in with the NEW. Can anyone give me some ideas as to why they arent illuminating.
Cheers Bevo
Ps. Heres the link to the LEDs i purchased off ebay.

http://cgi.ebay.com.au/ws/eBayISAPI.dll ... Y.m238.lVI



_________________

96 EL Futura, Manual, 20'' Xoni Diva, XR6 Headlights, Venom Kit, Full Custom Cream Interior, Cold Air, Extractors, 3'' intake pipe + HEAPS MORE COMING. Hehe

Top
 Profile


Posted: Sat Mar 29, 2008 3:14 pm
Smokin em up
Offline
User avatar

Age: 44

Posts: 251

Joined: 22nd Mar 2006

Gallery: 7 images

Ride: EF XR6 manual

Location: S.E. Melbourne
VIC, Australia

Leds are polarity sensitive, Try turing them around 180 degrees. Also If the instructions say to solder, I would do that (just to be sure) assumption is the mother of all f#@kups



_________________

EF XR6 5spd 14.57@97mph
154rwkwts

Top
 Profile


Posted: Sat Mar 29, 2008 3:17 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 4326

Joined: 30th Oct 2006

Gallery: 18 images

Ride: Envi EF

Location: Grafton
NSW, Australia

LEDs are a one way fitment - try turning them around.


... wait what...
Did you have to break out the old globes?



_________________

>>>EF Futura T build<<<

Top
 Profile


Posted: Sat Mar 29, 2008 3:31 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 290

Joined: 10th May 2006

Ride: 5 Spd EA Wagon, 5 spd EF Fairmon

Location: Melbourne
VIC, Australia

So none of them work?? it seems unlikely that you would have all of them the wrong way around... when you pull them out, before you turn them around, maybe test them with some wires and a battery to make sure that they are all working..

Cheers
David



_________________

If you're not driving a manual, you are only steering...

Top
 Profile


Posted: Sat Mar 29, 2008 6:45 pm
Fordmods Junkie
Offline
User avatar

Age: 38

Posts: 1000491

Joined: 6th Nov 2004

Gallery: 2 images

Ride: AUXR6 HP With Ducati SupA Bike!

Location: Perth
WA, Australia

why break the old globes?

accordign to the auction u just remove old and replace with these



_________________

RIP SCOTT

Top
 Profile


Posted: Sat Mar 29, 2008 7:37 pm
Tyre Shredder
Offline
User avatar

Age: 30

Posts: 372

Joined: 16th Oct 2007

Ride: EL sedan gli

Location: Bundaberg
QLD, Australia

the icon globes need to be broken out, but the backlight globes for the dials don't.

if you put blue led's behind the icons they become really fu*kn hard to see.

i had to spread the legs of the led's i got to make proper contact in the wedge base. maybe you could try that.

be sure to test it before you put it all back together!



_________________

Stock EL Gli Sedan, Tickford 98 EL/AU Hybrid Swapped in after aux shaft failure due to a lazy mechanic who can't service cars and aftermarket distributor-of-death-made-in-china crap.
Soon to be: The FalcMont - Build thread: viewtopic.php?f=53&t=120773

Top
 Profile


Posted: Mon Mar 31, 2008 8:37 am
Fordmods Newbie
Offline

Posts: 10

Joined: 25th Jan 2008

Location: Brisbane
QLD, Australia

"broke the solder holding the old bulbs"

sounds like you don't have the original T5 holders there for the gauges, the originals the bulb just slides out easy and the LED just pushes back in. Definately won't work by putting the LED into the solder-type base, it won't contact for love or money.

Are any of the othe globes on the back the non-soldered type, just use those bases instead and replace those with the soldered type you can't use.

Failing that you can pick up a billion of the orignal type at the wreckers for nothing
Top
 Profile


Posted: Mon Mar 31, 2008 4:11 pm
Tyre Shredder
Offline
User avatar

Age: 30

Posts: 372

Joined: 16th Oct 2007

Ride: EL sedan gli

Location: Bundaberg
QLD, Australia

666dan wrote:
"broke the solder holding the old bulbs"

sounds like you don't have the original T5 holders there for the gauges, the originals the bulb just slides out easy and the LED just pushes back in. Definately won't work by putting the LED into the solder-type base, it won't contact for love or money.

Are any of the othe globes on the back the non-soldered type, just use those bases instead and replace those with the soldered type you can't use.

Failing that you can pick up a billion of the orignal type at the wreckers for nothing


i don't get it, i desoldered the bulbs out of the holders for the icon lights and my led's work. the holder is exactly the same as standard only they bend the legs around the outside of the holder and solder it in place.



_________________

Stock EL Gli Sedan, Tickford 98 EL/AU Hybrid Swapped in after aux shaft failure due to a lazy mechanic who can't service cars and aftermarket distributor-of-death-made-in-china crap.
Soon to be: The FalcMont - Build thread: viewtopic.php?f=53&t=120773

Top
 Profile


Posted: Mon Mar 31, 2008 4:35 pm
Fordmods Newbie
Offline

Posts: 10

Joined: 25th Jan 2008

Location: Brisbane
QLD, Australia

Yeah that would work, but with 99% of T5 holders, the wedge bulbs just fit straight in, no soldering.

I put it down to Ford using cheaper pre-soldered bulbs when they replace them during servicing as brand new AU's etc etc just use the push type where you pop the bulb out and replace.
Top
 Profile


Posted: Mon Mar 31, 2008 4:39 pm
Fordmods Newbie
Offline

Posts: 10

Joined: 25th Jan 2008

Location: Brisbane
QLD, Australia

See this is what the majority are, no soldered leg, just pushed in


Top
 Profile


Posted: Mon Mar 31, 2008 5:22 pm
Tyre Shredder
Offline
User avatar

Age: 30

Posts: 372

Joined: 16th Oct 2007

Ride: EL sedan gli

Location: Bundaberg
QLD, Australia

i can see where you guys are coming from, however the ones that were soldered into the socket on mine appeared (and were) just a standard socket with the bulb legs soldered in. it is unknown to me why the manufacturer would bother doing this, i guess they wanted to try and increase sales?



_________________

Stock EL Gli Sedan, Tickford 98 EL/AU Hybrid Swapped in after aux shaft failure due to a lazy mechanic who can't service cars and aftermarket distributor-of-death-made-in-china crap.
Soon to be: The FalcMont - Build thread: viewtopic.php?f=53&t=120773

Top
 Profile


Posted: Mon Mar 31, 2008 6:53 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 290

Joined: 10th May 2006

Ride: 5 Spd EA Wagon, 5 spd EF Fairmon

Location: Melbourne
VIC, Australia

The 6 globes for my EF fairmont cluster were push-into-holder type ones, but, the one for the odometer LCD was soldered....
But, i've seen some ELs that have the soldered bulbs in it for the illumination as well..
Normally if i need to change blown globes in that case i goto a wrecker and rat the good push-in type holders from a cluster there.. that way globes are available in a variety of wattages..



_________________

If you're not driving a manual, you are only steering...

Top
 Profile


Posted: Tue Apr 01, 2008 11:31 am
Fordmods Newbie
Offline

Posts: 10

Joined: 25th Jan 2008

Location: Brisbane
QLD, Australia

Yep that's right...N15 pulsars have good ones :)
Top
 Profile


Posted: Tue Apr 01, 2008 6:44 pm
Oompa Loompa
Offline
User avatar

Age: 29

Posts: 25

Joined: 2nd Jan 2007

Gallery: 10 images

Ride: EL Futura

Location: Gladstone
QLD, Australia

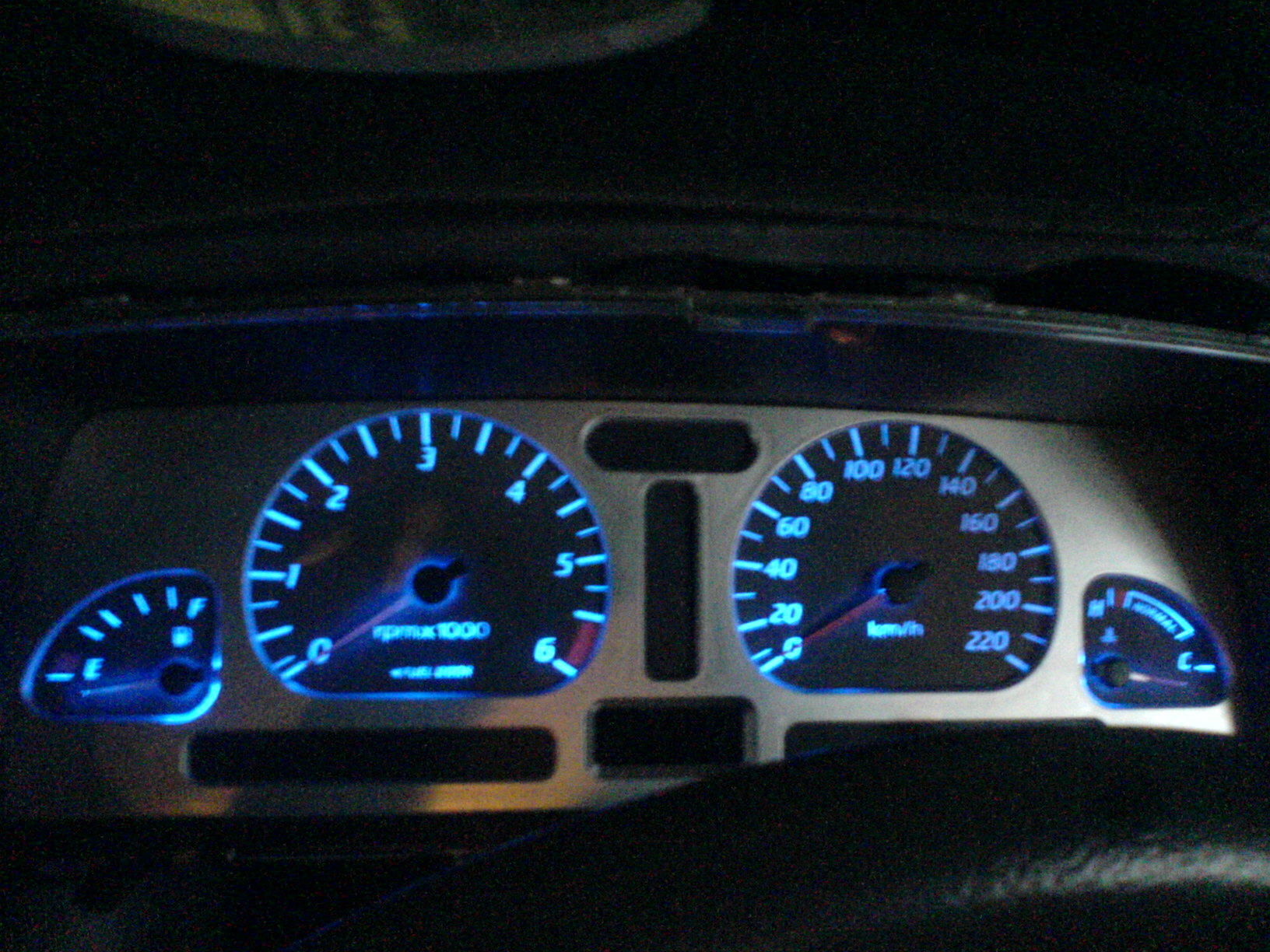

Well i ended up finding out that i had all of the bulbs round the wrong polarity. UNLUCKY i'd say :) All of my cluster Bulb holders are blue except for the warning lights which are white T5 light fittings. All of the blue bulb holders had the bulb legs soldered in and needed to be broken off to remove. Anyway the final product is unreal, i am sooo stoked. Cheers for the help guys.





Attachments:
DSC00419.JPG [ 468.92 KiB | Viewed 53 times ]



_________________

96 EL Futura, Manual, 20'' Xoni Diva, XR6 Headlights, Venom Kit, Full Custom Cream Interior, Cold Air, Extractors, 3'' intake pipe + HEAPS MORE COMING. Hehe

Top
 Profile


Posted: Tue Apr 01, 2008 10:02 pm
Smokin em up
Offline
User avatar

Age: 30

Posts: 290

Joined: 10th May 2006

Ride: 5 Spd EA Wagon, 5 spd EF Fairmon

Location: Melbourne
VIC, Australia

Well done Bevo88! Looks good indeed! Ive done this on my EF fairmont, but i did it like the doco says, with the resistors etc..

Cheers
David



_________________

If you're not driving a manual, you are only steering...

Top
 Profile
