Posted: Thu Aug 04, 2005 6:52 pm
Getting Side Ways
Offline
User avatar

Age: 34

Posts: 10826

Joined: 17th Apr 2005

Gallery: 34 images

Ride: BF MK11 XR 6 TURBO ZF 6spd

Power: 225 rwkw

Location: glenwood/sydney
NSW, Australia

Those dials look mad!!! wish i was that patient...!!! :wink:



_________________

Todd: Nurse, suction.
Nurse: The patient's not even here yet.
Todd: I know.

http://www.youtube.com/watch?v=_GQpRYRcAiA

Top
 Profile


Posted: Fri Aug 05, 2005 11:42 pm
Oompa Loompa
Offline
User avatar

Posts: 39

Joined: 9th May 2005

Gallery: 2 images

Location: Wollongong
NSW, Australia

Great inspiration from Datamine & Bug got myself modding my EA S Pac Dash. The Speedo & Tacho dials are completed and yet to finish the 4 smaller guages.

Somehow I need to make my white T10 LEDs brighter... Is there anything I can add to circuit to make LEDs brighter.

Normal photos looks best however night photo is much to be desired, very hard to get a good photo in the dark.





Attachments:

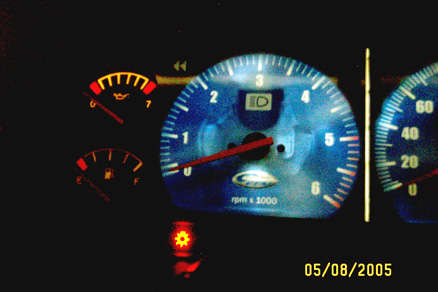

File comment: Night Shot
ford8.jpg [ 48.73 KiB | Viewed 24 times ]

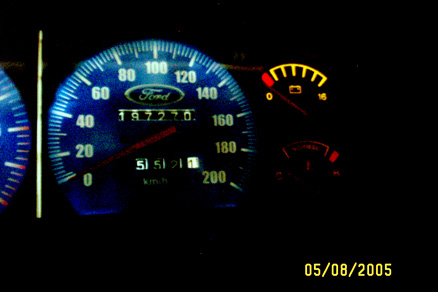

File comment: Night Shot
ford7.jpg [ 38.06 KiB | Viewed 21 times ]

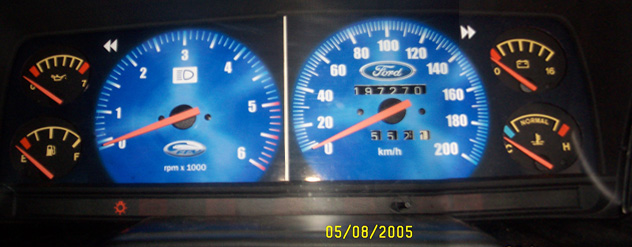

File comment: Day Shot
ford6.jpg [ 65.35 KiB | Viewed 205 times ]



_________________

#### Was formerly falcon4250 (My old EA) ####
#### Now BA Wagon Wheels (My new BA) ####

Top
 Profile


Posted: Sat Aug 06, 2005 12:47 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

very nice, you make the LEDs bright my replacing the resistors with ones of lower value.

I used 390Ohm in mine (original was 560Ohm).



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sun Aug 07, 2005 9:46 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

Why doesnt anyone use the normal globes? Surely if the design was made to suit, colour change wouldnt be too bad, and theyd have better spread? Probably not bright enough though are they.



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Sun Aug 07, 2005 10:01 pm
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Not bright enough is the problem. You could of course replace them with higher wattage globes.

But LEDs are what all the cool people are doing, and if done right will never need changing.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sun Aug 07, 2005 10:02 pm
Getting Side Ways
Offline
User avatar

Age: 31

Posts: 2449

Joined: 5th Nov 2004

Ride: Falcon EB-s

Location: Manjimup
WA, Australia

If done right :D

How big are the globes in the dash? Same size as the ones in the eb heater controls?



_________________

The problem with America is stupidity. I'm not saying there should be a capital punishment for stupidity, but why don't we just take the safety labels off of everything and let the problem solve itself?

Top
 Profile


Posted: Sun Aug 07, 2005 11:05 pm
Fordmods Newbie
Offline

Age: 44

Posts: 7

Joined: 7th Aug 2005

Location: perth
WA, Australia

hello long time no see lost or cant remeber my login.

have dash cluster from ebay in my ed

The dash, floor and trip computer Led`s are the same 10mm spade .

Lighter dimister switch are a smaller spade led`s.

Heater controls are different more like chrismas globe managed to remove the small spade led apart and solder to the into the heater control because of the lack of clearance when fitting back into dash.


[/img]
Top
 Profile


Posted: Sun Aug 07, 2005 11:43 pm
Fordmods Newbie
Offline

Age: 44

Posts: 7

Joined: 7th Aug 2005

Location: perth
WA, Australia

Top
 Profile


Posted: Mon Aug 08, 2005 12:16 pm
Smokin em up
Offline
User avatar

Age: 33

Posts: 296

Joined: 12th Nov 2004

Gallery: 20 images

Ride: EA II Fairmont Ghia S

Location: Adelaide
SA, Australia

I thought that the clusters had an orange backing so that you couldn't modify EA-ED Clusters, but looking at the pics is this incorrect.
Top
 Profile


Posted: Mon Aug 08, 2005 11:06 pm
Fordmods Newbie
Offline

Posts: 17

Joined: 2nd Aug 2005

Location: sydney
NSW, Australia

that is really bright,,,
i change th light for mine to blue, and they are not bright as that...
Top
 Profile


Posted: Wed Aug 10, 2005 5:00 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

Hyena wrote:
Bug wrote:
Here is my version of data_mine's excellent dash mod
As the others have said, that looks bloody awesome mate, well done!
I like the design, is it something you made from scratch or did you modify it from something you found elsewhere ?

Did you cut out any sections in your mask ? In data mine's I think he had just the ford logo and the speedo markings etc but yours seems fairly well lit all over the face of it. Was that because you oiled it ?
I tried a similar trick on a previous project, but I used some of my GF's clear nail polish (that was on crappy plain paper though)

How are you buying this good paper ? I've only seen it in packs of 50 odd sheets which is a bit much for a project like this...

I'm planning to do this sort of dash mod when I have my cluster out shortly, but I was going to try using UV LEDs as well to supplement the often dim backlighting that results from fitting LEDs. Most of this you beut whiter than white paper flouresses really well under UV light, so I'm going to fit a few UV leds in the top of the cluster like spot lights that will shine down on the dials. It should be largely invisible but the white markings will glow brilliantly 8-)



The dash is an original design.. im considering doing some more when I have the time, even if I dont use them ide like to contribute some art to the people on this site.
Ive since ripped out the oiled masks (the oil leaked into the front paper) and replaced them with transparencies. this is by far the BEST method ive found so far. Also ive now added 4 additional LED's to the dash by stringing them around the dials in a christmas light fashion (wire resisitors in parallel). The dash is very bright now, i'll post pics as soon as I get access to a camera again.


Also I didnt buy the paper but rather got it done at a professional printing shop. it cost $2 a page, and $3.50 for the transparencies.



_________________

EL XR6 5spd

Top
 Profile


Posted: Sat Aug 13, 2005 1:31 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

Bug, is there anything stopping you using the transparencies for front? (instead of just the back layer) this seems like the best way to go... or is that what you have done?

one more question (i am being a noob now :oops: ) do you have to stick the two layers together? or do you just cut them out and then they stay in place with the front?

hrmm... i need to start being creative... :?



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sat Aug 13, 2005 1:46 am
Getting Side Ways
Offline
User avatar

Posts: 1549

Joined: 27th Apr 2005

Gallery: 1 images

Ride: AU Fairmont Ghia

Location: Perth
WA, Australia

ive been searching all night and can find an answer, Can you do the custom dash thing and blue led mod to a EA-ED cluster? I know there are Kits off ebay to do white faces but has anyone done a custom thing with pics?
Top
 Profile


Posted: Sat Aug 13, 2005 2:16 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

No reason why you can't, you'll just need a scan of the originals to start from.



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sat Aug 13, 2005 5:07 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

nicco wrote:
Bug, is there anything stopping you using the transparencies for front? (instead of just the back layer) this seems like the best way to go... or is that what you have done?

one more question (i am being a noob now :oops: ) do you have to stick the two layers together? or do you just cut them out and then they stay in place with the front?

hrmm... i need to start being creative... :?


Ide imagine using two layers of transparencies wouldnt look very good, especially at day as there would be no white and very hard to read.

Some paper is really needed in order to spread the LED light evenly around. One thing that could be worth looking at is putting the paper on the bottom (masks), and the transparencies on the top. This means that the inner face of the dials is all white allowing greater light reflection and more evenness. Also you dont need to stick the two segments together, assuming you take your time cutting the holes out they should line up fine.



_________________

EL XR6 5spd

Top
