 Post subject: My take on the custom dash (templates added)
Posted: Fri Jul 29, 2005 9:31 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

Here is my version of data_mine's excellent dash mod.

http://www.digital-confusion.net/dash/speedo.jpg
http://www.digital-confusion.net/dash/speedo_mask.jpg
http://www.digital-confusion.net/dash/tacho_red.jpg
http://www.digital-confusion.net/dash/t ... d_mask.jpg

Here are the files!
The tacho has a slight change, with the redline now being actually red.


Some tips for anyone about to mutilate their dash.

90 GSM semi gloss paper is a MILLION times better than the normal 80gsm stuff as far as the image quality goes, and it only cuts a tiny bit more light out (dont use 160GSM though unless you add additonal lighting to the cluster, although it will create a more even look)

For the back layer use transparencies. They cost a little more but provide a much better contrast as two layers of paper cuts a huge amount of light out.

I also removed the tube that goes where the little seatbelt man light is as it showed up badly through the mask, and I used 10,000mcd LED's from jaycar.





Attachments:

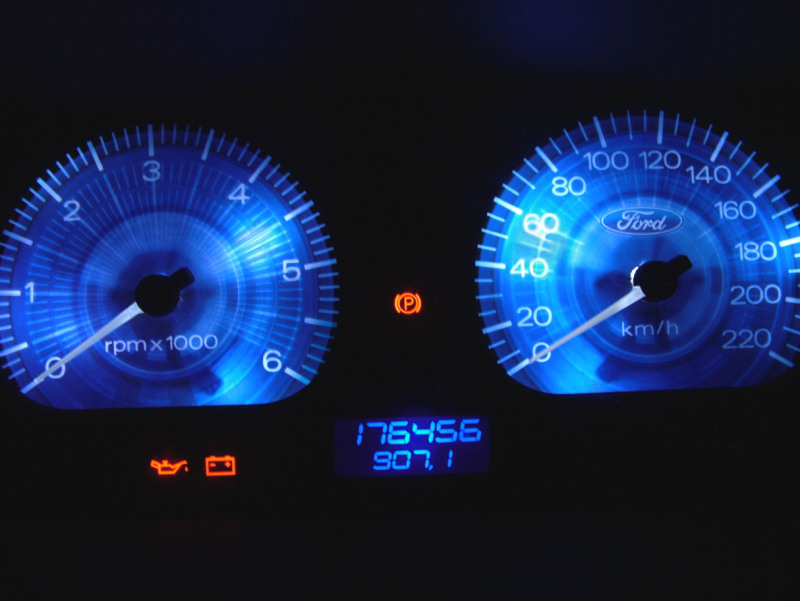

dash.jpg [ 104.57 KiB | Viewed 121 times ]

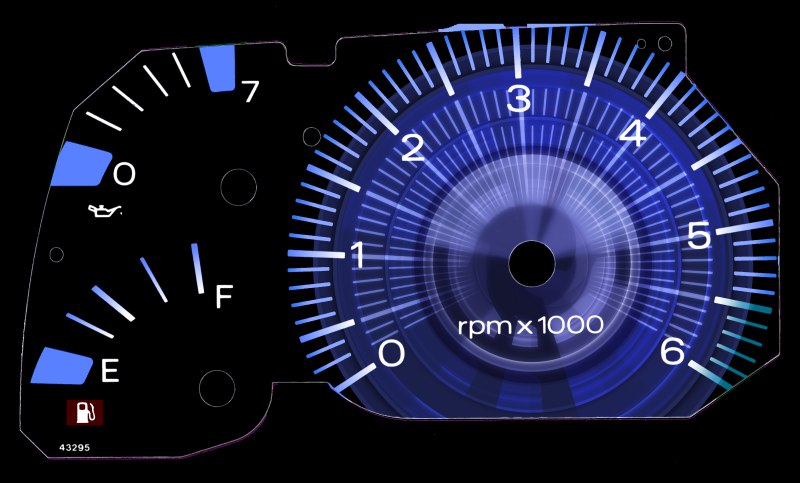

tacho.jpg [ 77.35 KiB | Viewed 187 times ]

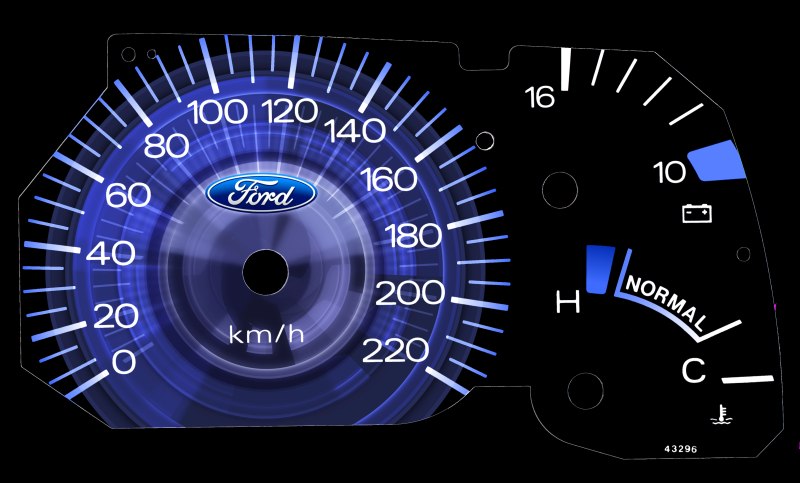

speedo.jpg [ 74.07 KiB | Viewed 150 times ]



_________________

EL XR6 5spd

Last edited by Bug on Tue Mar 14, 2006 12:00 am, edited 6 times in total.

Top
 Profile


Posted: Fri Jul 29, 2005 9:34 pm
Smokin em up
Offline

Posts: 283

Joined: 19th May 2005

Gallery: 2 images

Location: palmerston
ACT, Australia

wow that actually looks really nice...

well done!



_________________

A$1 = Tk 60 = I cant believe how much money im saving!

Top
 Profile


Posted: Fri Jul 29, 2005 9:57 pm
Getting Side Ways
Offline
User avatar

Age: 36

Posts: 2198

Joined: 8th Nov 2004

Ride: EL Ghia - XF Ego 302 Clevo

Location: Shit Creek
WA, Australia

nuts! something very much different good shiz mate!



_________________

Team EGO

Top
 Profile


Posted: Fri Jul 29, 2005 9:58 pm
Technical Contributor
Offline
User avatar

Age: 32

Posts: 3097

Joined: 5th Nov 2004

Gallery: 29 images

Ride: VU SS

Location: Ivanhoe
NSW, Australia

Wow, thats f**k awesome mate - top job! 8-)
I wanna do something like that now...



_________________

EF Fairmont now Sold!
Guides: Polishing|Modifications |Manual Conversion

Top
 Profile


Posted: Fri Jul 29, 2005 10:02 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

Thanks.. I'll finish up the oil and bat dials and post the proper files up soon. (exam tomorrow to study for atm)



_________________

EL XR6 5spd

Top
 Profile


Posted: Fri Jul 29, 2005 10:03 pm
Getting Side Ways
Offline
User avatar

Posts: 6168

Joined: 5th Nov 2004

holy s**t! that looks awesome...well done mate!



_________________


Top
 Profile


Posted: Fri Jul 29, 2005 10:21 pm
Getting Side Ways
Offline

Age: 36

Posts: 2215

Joined: 5th Nov 2004

Gallery: 17 images

Ride: Oettinger Golf GTI

Location: Sydney
NSW, Australia

definately looks sweet as
Top
 Profile


Posted: Fri Jul 29, 2005 10:25 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

mate, how did you get the blue LEDS?



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Fri Jul 29, 2005 10:43 pm
Getting Side Ways
Offline
User avatar

Age: 29

Posts: 3928

Joined: 5th Nov 2004

Gallery: 9 images

Ride: ED 5 Speed GLiXR

Location: Now in Brisbane
QLD, Australia

Dude that looks friggin fantastic. The design looks wicked, and looks even better lit up.
Did you have any other designs, or at least another idea to show us??
You seem to be pretty good at that judging by them dials.



_________________

17" Tezza Steelies, King F**king lows, pedders sports ryders, 2.5" cat back exhaust, pacemaker extractors, T5 manual
Low, loud and Slow

Top
 Profile


Posted: Fri Jul 29, 2005 10:59 pm
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

That was pretty much the first one I knocked up, although I reckon I might do some more in the future.

There is a tutorial on how to disassemble the LED screens somewhere on here I think, if not its pretty straight forward (unscrew everything, then reverse). I replaced the orange filters with blue segments I cut out from a magazine (make sure its white on the back!) as blue paper had a papery look, and I used a 4000mcd blue led from jaycar.



_________________

EL XR6 5spd

Top
 Profile


Posted: Fri Jul 29, 2005 11:40 pm
Getting Side Ways
Offline

Age: 30

Posts: 4609

Joined: 29th Jul 2005

Gallery: 10 images

Ride: BOXCAR

Location: Launceston
TAS, Australia

cool, i'll check that tutorial out. is there a place you can buy the blue segments?



_________________

^^^ What He Said

<a href="http://www.fordmods.com/forums/viewtopic.php?t=44952" target="_blank" class="postlink"> TAS Cruises</a>

Top
 Profile


Posted: Sat Jul 30, 2005 12:56 am
ACT Cruise Moderator
Offline
User avatar

Age: 36

Posts: 6275

Joined: 24th Nov 2004

Ride: '06 BF GT-P

Power: 293 rwkw

Location: Canberra
ACT, Australia

Congrats, that's some top work. I loved teh design since you first showed us on IRC.

edit: Any chance you'll be at the show on Sunday?



_________________

1998 DL LTD in Sparkling Burgundy, daily, 302W, stereo, slow - 97.5rwkw
2006 BF GT-P in Ego, mods. 293rwkw - 12.427@109 - 0-1000m 24.838@221

Top
 Profile


Posted: Sat Jul 30, 2005 1:26 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

Nah Syd is too far away for me, im on the border.



_________________

EL XR6 5spd

Top
 Profile


Posted: Sat Jul 30, 2005 1:39 am
Getting Side Ways
Offline
User avatar

Age: 30

Posts: 3184

Joined: 8th Nov 2004

Gallery: 6 images

Ride: EF Falcon

Location: Townsville
QLD, Australia

Thats bloody awesome. I like much!! :lol:

One question, do your fuel and temp idiot lights work like normal? ie: light up properly? how did you do them?



_________________

Nicco's M112 Blown, T-56 equipped EF
forums/viewtopic.php?t=68319

Top
 Profile


Posted: Sat Jul 30, 2005 2:05 am
Getting Side Ways
Offline
User avatar

Age: 35

Posts: 577

Joined: 5th Nov 2004

Gallery: 1 images

Ride: EL XR6 5spd

They light up kinda normal. Tthe orig scans didnt have any provision for them but I added dark red squares. Theyre far more subtle than the normal ones though.



_________________

EL XR6 5spd

Top
