need help on removeing dash (hope rite place to post)



Page 1 of 1 [ 12 posts ]


 Post subject: need help on removeing dash (hope rite place to post)
Posted: Sun Jan 31, 2010 4:08 pm
Parts Gopher
Offline

Age: 33

Posts: 94

Joined: 21st Jan 2005

Gallery: 4 images

Ride: ef xr6

Location: goulburn
NSW, Australia

need to pull out pedal box so can weld it can any 1 tell me the easyist way to get dash out to get to the pedal box... cheers



_________________

Bushyxr6

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Jan 31, 2010 4:57 pm
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

Remove Console,
Remove kick panels
Remove demister panel
Lower steering column to floor

Undo the 5 bolts holding the steering column/pedal box to the firewall.

Undo 2 bolts holding brackets under far left and right of dash where kick panels were.

Undo 2 bolts either side of the radio/centre section.

Undo the six bolts across the top edge of the dash.

Pull back and up gently. Undo loom plugs on right hand side until you can sit the right side of the dash on the driver seat.

Disconnect the brake pedal from the booster and wiring for brake light and remove any other wiring that might be attached to the pedal box.

Undo the 3 bolts from the top edge of the dash and pedal box.

Remove pedal box.

Install in reverse order.


Hmm, hopefully I have not forgotten anything as I did that off the top of my head.

Now, so I don't have to spend time typing this sort of thing up again, please go and buy a workshop manual of some sort. All this info is in there, with pics, and already typed.

Cheers
BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Jan 31, 2010 8:27 pm
Parts Gopher
Offline

Age: 33

Posts: 94

Joined: 21st Jan 2005

Gallery: 4 images

Ride: ef xr6

Location: goulburn
NSW, Australia

i have one but moved house other day and the books grown legs and walkd off... cheers for that done 60% just missed a couple at steering..



_________________

Bushyxr6

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Feb 07, 2010 10:41 am
Parts Gopher
Offline

Age: 33

Posts: 94

Joined: 21st Jan 2005

Gallery: 4 images

Ride: ef xr6

Location: goulburn
NSW, Australia

riteo done this went and got a new owners manual and still the barsted wont come out.......any ideas??



_________________

Bushyxr6

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Feb 07, 2010 10:44 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

The dash won't come out? Or the pedal box?

BenJ



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Feb 07, 2010 11:21 am
Parts Gopher
Offline

Age: 33

Posts: 94

Joined: 21st Jan 2005

Gallery: 4 images

Ride: ef xr6

Location: goulburn
NSW, Australia

dash still stuck in there tight if i pull any harder its going to brake..... does the pedal box come out with the dash or buy it self??



_________________

Bushyxr6

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Feb 07, 2010 11:43 am
Getting Side Ways
Offline

Posts: 5582

Joined: 20th May 2005

Gallery: 11 images

Ride: EB1 Fairmont Ghia T5 Wagon

Location: Seven Hills, Sydney
NSW, Australia

There are two long bolts from the dash that go through the top of the pedal box, where the column is attached. You might have to loosen the nuts off.

Are you sure you got the two bolts near the stereo on the tunnel, one each side?

You will need to lift the dash up and back.

It should be HARD, so don't force it.

The pedal box will stay behind when the dash is pulled back.

Cheers
BenJ

PS if you want to talk to me about it PM me for my mobile number.



_________________

BenJ's EB T5 DOHC Ghia Wagon - Current Ride
BenJ's EB GL Sedan - Previous Ride
My respect and thanks go to - snap0964, Paulmac, SWC and MRE-50L

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Feb 07, 2010 11:53 am
Getting Side Ways
Offline
User avatar

Age: 43

Posts: 3805

Joined: 22nd Apr 2007

Gallery: 5 images

Ride: DENTED UP OLD AUT WAGON

Location: Wellington
New Zealand

Yeahp - Two bolts underneath where your stereo came out is the likely culprit here... Have a good hunt around in front of the shifter - there's a couple of tags welded to each side of the trans tunnel about underneath the most forward point of the stereo (which has been removed, so just have a looksee...)

On the first page of my build thread there is this graffic -
which shows the location BenJ and I are trying to suggest in the picture second to bottom...

Try RIGHT CLICKING on the picture and zoom in or save or VIEW or whatever your browser offers you.

I think...?!?....
Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Feb 07, 2010 12:19 pm
Parts Gopher
Offline

Age: 33

Posts: 94

Joined: 21st Jan 2005

Gallery: 4 images

Ride: ef xr6

Location: goulburn
NSW, Australia

cheers mate i say thats them as it feels like its still bein held in the middle. ill have a hunt around and hopefully it will come out. ill keep ya posted with how i go.



_________________

Bushyxr6

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Sun Feb 07, 2010 5:25 pm
Parts Gopher
Offline

Age: 33

Posts: 94

Joined: 21st Jan 2005

Gallery: 4 images

Ride: ef xr6

Location: goulburn
NSW, Australia

thanks pulled those bolts out and wit a little effort got the dash out.



_________________

Bushyxr6

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Thu Feb 11, 2010 12:21 pm
Stock as a Rock
Offline

Age: 26

Posts: 150

Joined: 5th Feb 2010

Ride: EF Falcon

Location: Glenning Valley
NSW, Australia

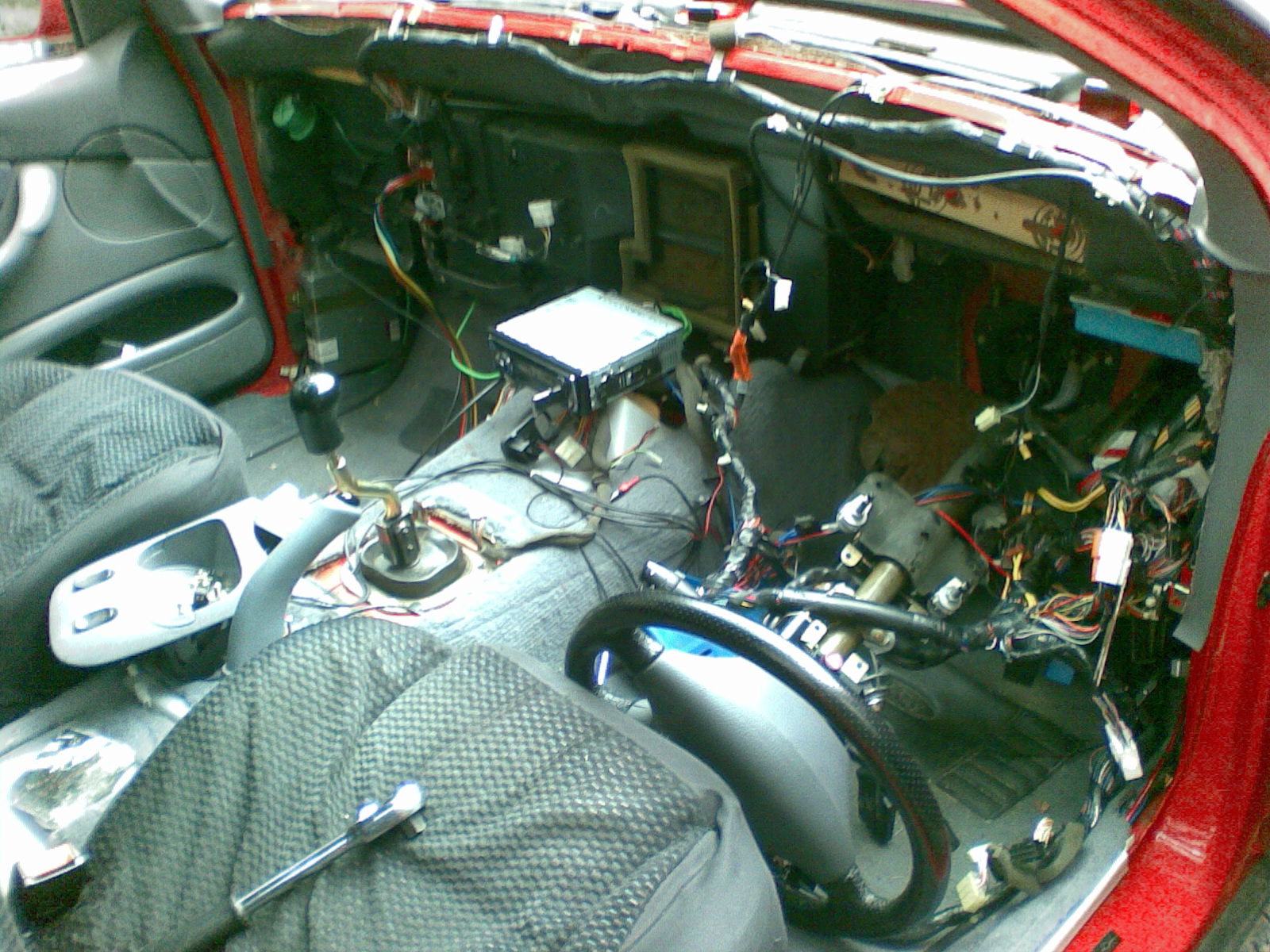

heres some pics of what i had to do





Attachments:
Image012.jpg [ 402.41 KiB | Viewed 35 times ]



_________________

EF XR6, Red in colour, T5 with short shift, tired LSD, Pioneer head unit, 2.5 exhaust with staino pacemakers, 68mm TB, dumped on ultras, sitting on FTR's with EL bodykits

Top
 Profile


 Post subject: Re: need help on removeing dash (hope rite place to post)
Posted: Thu Feb 11, 2010 12:23 pm
Stock as a Rock
Offline

Age: 26

Posts: 150

Joined: 5th Feb 2010

Ride: EF Falcon

Location: Glenning Valley
NSW, Australia

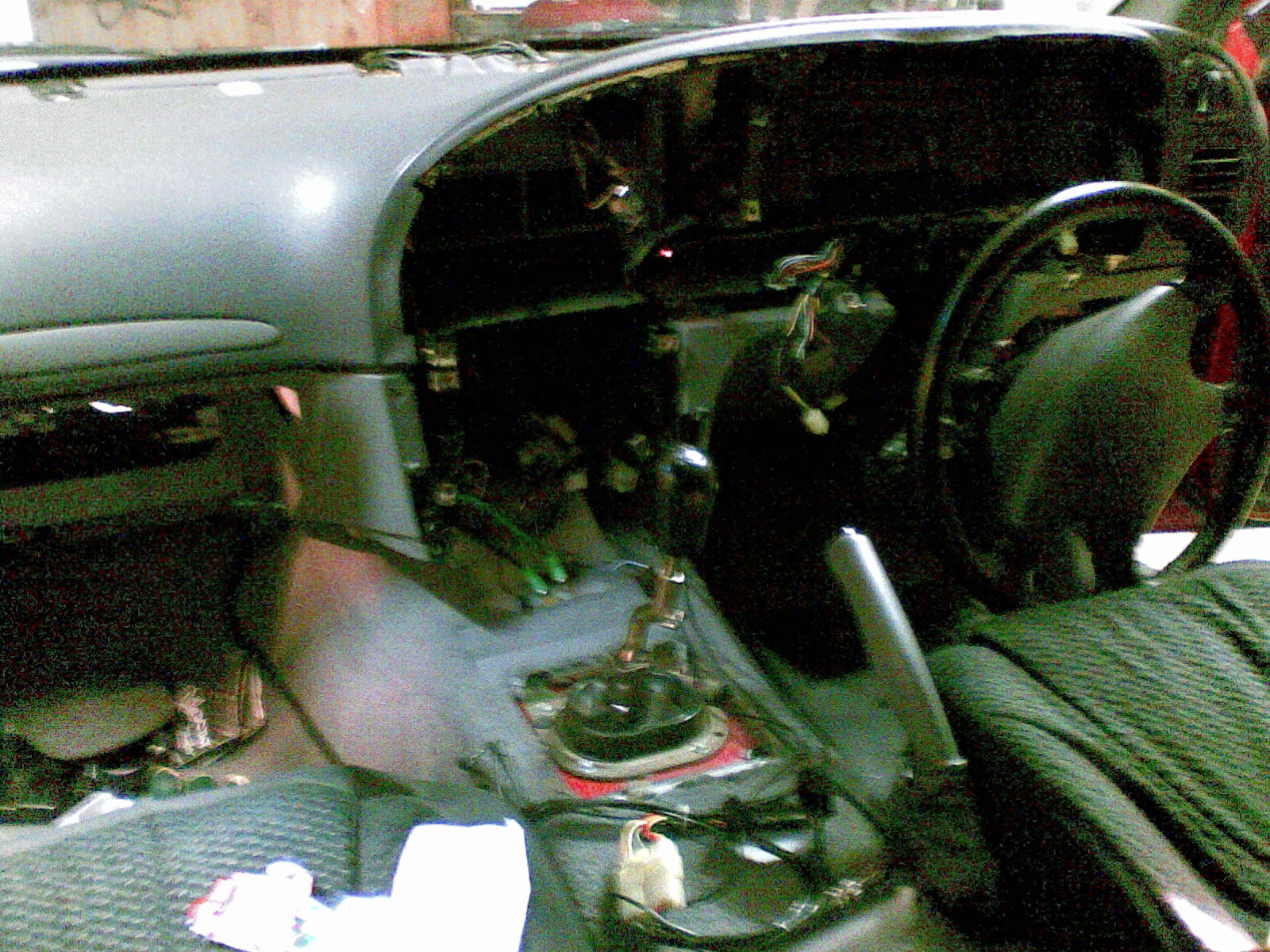

start





Attachments:
Image003.jpg [ 483.12 KiB | Viewed 32 times ]



_________________

EF XR6, Red in colour, T5 with short shift, tired LSD, Pioneer head unit, 2.5 exhaust with staino pacemakers, 68mm TB, dumped on ultras, sitting on FTR's with EL bodykits
