Neon Switch?



Page 1 of 3 [ 37 posts ] Go to page 1, 2, 3  Next


 Post subject: Neon Switch?
Posted: Sun May 30, 2010 9:49 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

gday guys, wanting to install neons with a switch...

im not crash hot with wiring so i wipped up this quick pic to see if this would work..

Please correct me if i am wrong

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 9:52 pm
Getting Side Ways
Offline
User avatar

Age: 28

Posts: 3374

Joined: 11th Mar 2008

Ride: EA SVO, AU2 Forte

Location: Bendigo
VIC, Australia

so is your EL a rice burner?



_________________

Daily driver: AU2. 5 speed. 19" FG luxos. Full exhaust. Lowered. AU3 XR leather interior, converted to full power windows. 3.45 LSD. IN THE FUTURE: Tickford 6
Weekend driver: EA SVO AU motor. Built BTR. TCE 2800 stall. T76 turbo. Locked diff. On E85. approx 320rwkw. 11.5 @121mph

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 9:52 pm
Technical Contributor
Offline
User avatar

Age: 26

Posts: 399

Joined: 19th Dec 2008

Gallery: 4 images

Ride: '62 mercury/au xr6/zh 'lane

Location: Ballarat
VIC, Australia

Theyd be always on. If you dont know what you're doing, just get a 2 pole switch. Positive from the ciggy lighter on one pin, positive going to the neons on the other. You dont run the negative through the switch. Earth the "neon transformer" nearby to the car with a ring terminal and a self tapping screw.



_________________

How many bears could Bear Grylls grill if Bear Grylls could grill bears?

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 9:53 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

i never asked for opinion on neons.. i wish to know if my diagram will work properly...

Keep the flaming to urselfs
Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 9:54 pm
Technical Contributor
Offline
User avatar

Age: 26

Posts: 399

Joined: 19th Dec 2008

Gallery: 4 images

Ride: '62 mercury/au xr6/zh 'lane

Location: Ballarat
VIC, Australia

Oh. No, they wouldnt actually be always on, theyd fry fuses as soon as you hook up ciggy lighter power. 3 pin switches work by shorting out the middle and either outside pins depending on the position its in. What you are doing there is touching positive an negative. Not good man.



_________________

How many bears could Bear Grylls grill if Bear Grylls could grill bears?

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 9:56 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

do u think u could make me a diagram of a proper setup?

I forgot to mention that the rocker switch also has a led in it to indicate that its on.. if that makes a difference?
Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:06 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

this is the switch i just got from ebay

http://cgi.ebay.com/ebaymotors/2x-12V-D ... ccessories

it says its an on off switch.. so just wanting to know how i would wire it up to turn the neons on and off
Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:06 pm
SA Cruise Moderator
Offline
User avatar

Age: 30

Posts: 1870

Joined: 14th Apr 2006

Ride: 1993 EBll xr6, 2003 ba xt

Power: 150 rwkw

Location: Whyalla
SA, Australia

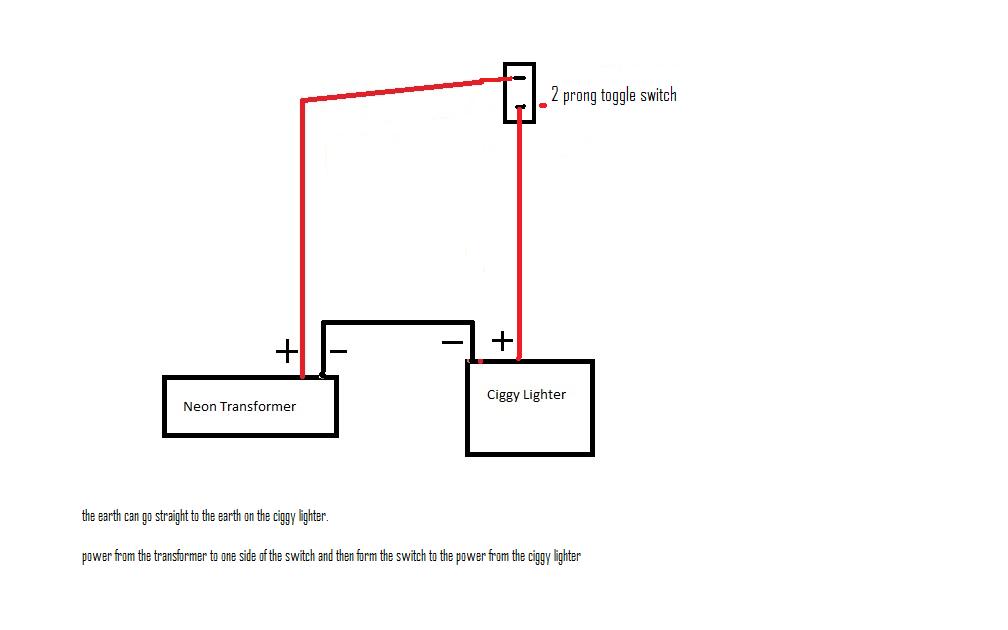

this is how i would do it...





Attachments:
NeonSwitch.jpg [ 29.43 KiB | Viewed 66 times ]



_________________

Owning 1 of 84,847 ebII.
2x clarion subs 1200w, 1x clarion amp 400w, pioneer headunit, 16x8 roh reflex.
Clear side, front indicators, White dials, trip computer, boot spoiler, K & N air filter.
35% tint, paint code (z) stark white, 3" crome nudge bar, Xh snorkle

Last edited by jonathon on Sun May 30, 2010 10:12 pm, edited 1 time in total.

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:08 pm
Technical Contributor
Offline
User avatar

Age: 26

Posts: 399

Joined: 19th Dec 2008

Gallery: 4 images

Ride: '62 mercury/au xr6/zh 'lane

Location: Ballarat
VIC, Australia

Im not going to go to the effort of that, Ill explain it to you better so you understand what you are doing (no offense)

3 pole switches only touch the common pin (middle one) and an outside pin. These can activate 2 circuits, with the middle pin being a positive, and either outside pins being positive supplies to different circuits. Following me?

By getting a 2 pin switch (simple on/off switch), when the switch is in the off position, the pins arent touching. When it is on, the 2 pins are touching, meaning your input voltage (12v from cig lighter) is touching the other pin, which is going to the positive on your neons. Following me?

Dont run a LED switch, they're gay. Get a big switch and a missile cover.

So, basically, you have a switch with 2 pins on the bottom. On one goes the positive from your cig lighter, on the other goes the positive wire from your neons. The negative wire from your neons DOESNT GO ON THE SWITCH. Either run it straight from the cig lighter negative to the neons, or find a good earth point nearby where the neons are going. The latter option is the easiest.

Damn, that guy beat me to it



_________________

How many bears could Bear Grylls grill if Bear Grylls could grill bears?

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:10 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

run neg from trans straight to ground.
cut pos wire and wire to one of each pole on the switch then to a switched power supply.
led pole on switch to earth.
Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:11 pm
Technical Contributor
Offline
User avatar

Age: 26

Posts: 399

Joined: 19th Dec 2008

Gallery: 4 images

Ride: '62 mercury/au xr6/zh 'lane

Location: Ballarat
VIC, Australia

lowie57 wrote:
this is the switch i just got from ebay

http://cgi.ebay.com/ebaymotors/2x-12V-D ... ccessories

it says its an on off switch.. so just wanting to know how i would wire it up to turn the neons on and off

Really should have gone a 2 pin switch like I said, but its only making it more confusing to yourself. With that 3 pin. 12v from cig lighter on the middle pin. 12v to the neon on either outside one (doesnt matter which one). Again, NEGATIVES DONT GO ON THE SWITCH.

Also, I reckon you might have to put the positive to the neons on that gold terminal Id say that where the led gets its power.



_________________

How many bears could Bear Grylls grill if Bear Grylls could grill bears?

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:15 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

93_eb_fairmont wrote:
lowie57 wrote:
this is the switch i just got from ebay

http://cgi.ebay.com/ebaymotors/2x-12V-D ... ccessories

it says its an on off switch.. so just wanting to know how i would wire it up to turn the neons on and off

Really should have gone a 2 pin switch like I said, but its only making it more confusing to yourself. With that 3 pin. 12v from cig lighter on the middle pin. 12v to the neon on either outside one (doesnt matter which one). Again, NEGATIVES DONT GO ON THE SWITCH



ok i understand now. thankyou for taking the time to explain it to me. sorry for the hastles.

and with what nalane said, i would run the positive of the led to the positive from the neons, and earth to the body. and do not wire up the earth to the switch
Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:21 pm
Tyre Shredder
Offline
User avatar

Age: 52

Posts: 358

Joined: 7th Jun 2007

Ride: NA Fairlane / FE LTD

Location: bayswater
VIC, Australia

More than likely the centre pin of that switch will go direct to earth for the led.
the two outside ones will go between the two cut ends of the power wire from the transformer.
Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:40 pm
Technical Contributor
Offline
User avatar

Age: 28

Posts: 3705

Joined: 27th Sep 2006

Gallery: 20 images

Ride: ED Falcon

Power: 133 rwkw

Location: Leeton
NSW, Australia

the gold pin on that switch is used to illuminated the led... if you don't want the led to light up then do as mentioned above and ignore the gold pin... They use this to indicate the LED in them (makes it easier)...

Without seeing the pic on the side of the switch its hard to say how to wire it up to get the light to come on...

If you post/draw the pic on the side of the switch I'll draw up how to wire it so your LED lights if you wanna use what you have already paid for...

Cheers,
Tim



_________________

93 Red ED 5spd Manual Build Thread

Performance: Complete AUII VCT Wiring & Power Train, Pacey Headers, 2.5" Exhaust, Exedy Clutch, DBA Rotors
Visuals: FG XR Wheel, XR Front, 17's, BA 5 Spd Shifter, BA Ghia Window Switches, NL Cluster
Tunes: 8" Pioneer Sub, JBL Speakers, Clarion Double DIN Headunit

Top
 Profile


 Post subject: Re: Neon Switch?
Posted: Sun May 30, 2010 10:41 pm
Tyre Shredder
Offline
User avatar

Age: 29

Posts: 321

Joined: 17th Nov 2009

Gallery: 1 images

Ride: BF XT Falcon

Location: Melbourne
VIC, Australia

ok will do. when they get delivered ill post it up. cheers
